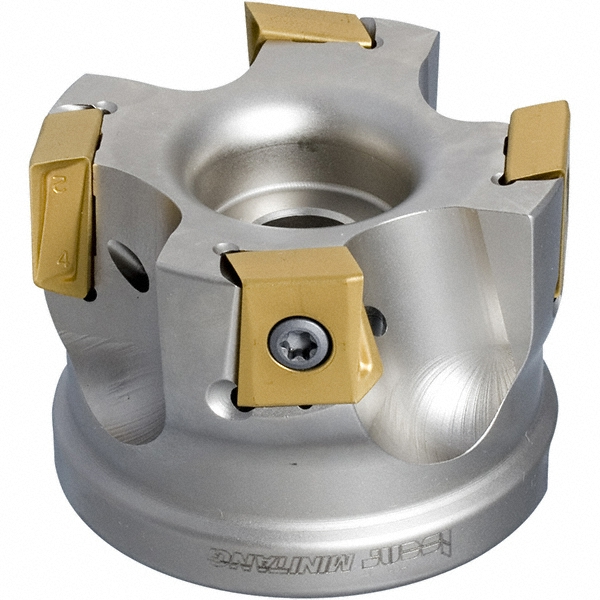

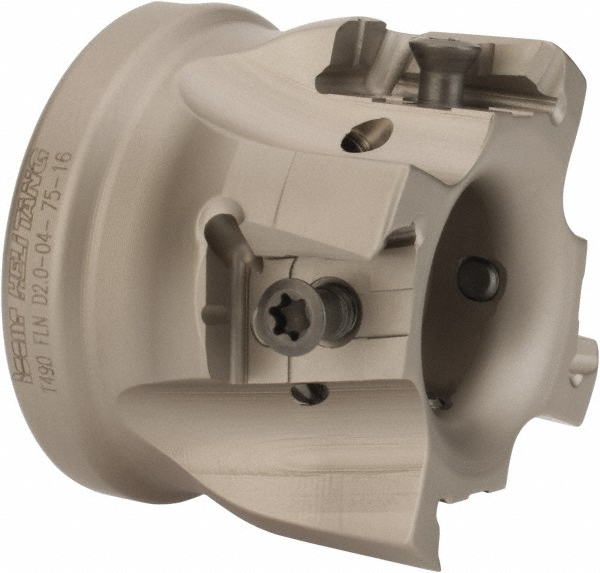

Takes 6 Inserts, 0/90° Lead Angle, 1-3/4" High, T490 LN.T 1607 Insert Style, Through Coolant, Series Helitang
| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | T490 LN.T1607 |
| Cutter Style | T490 FLN-08 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Helitang |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Hub Diameter (Inch) | 1 |
| Pitch Type | Fine |
| Standards | ISO |
| Coolant Hole Diameter (Decimal Inch) | 0.7800 |

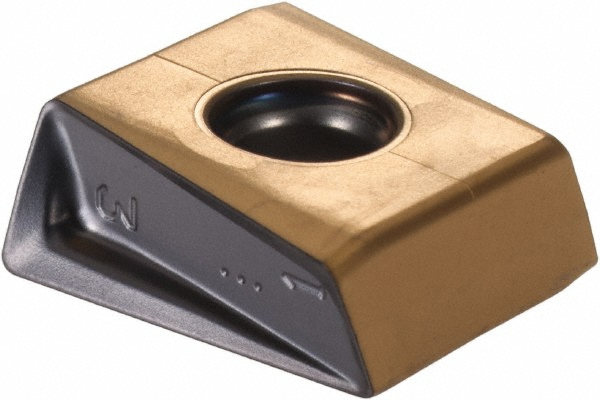

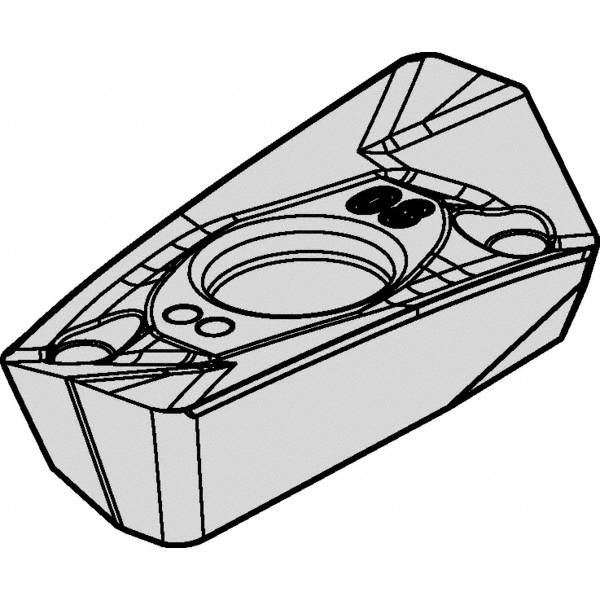

| Complete Insert Compatibility | T490 LNMT 1607PN-R; T490 LNHT 160712PNR; T490 LNHT 160724PNR; T490 LNHT 160708PNR; T490 LNHT 160716PNR; T490 LNHT 160732PNR; T490 LNMT 1607PN-R-CS |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.2190 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Israel |
| MSC Number | MSC# 62722863 |
