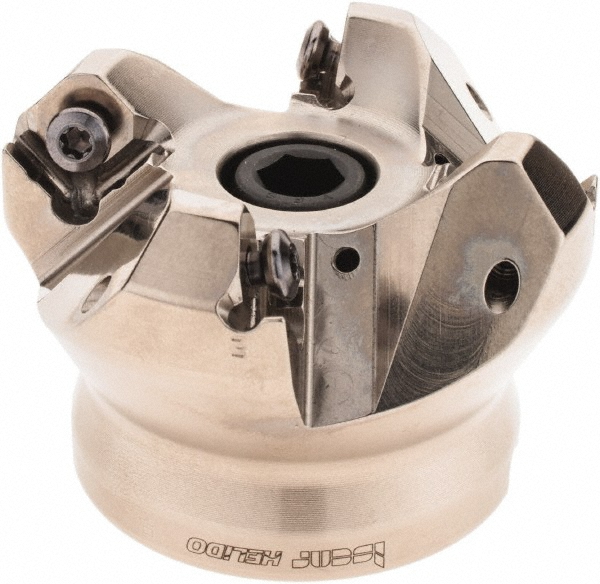

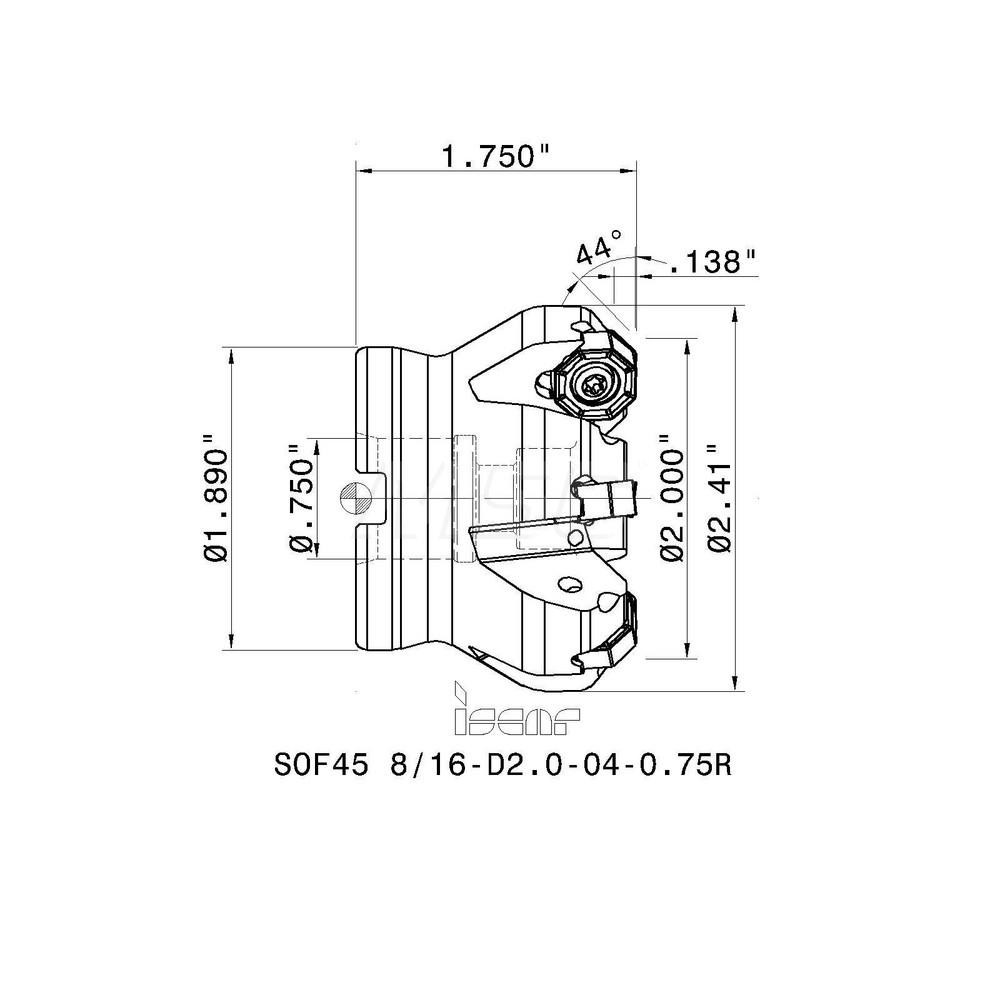

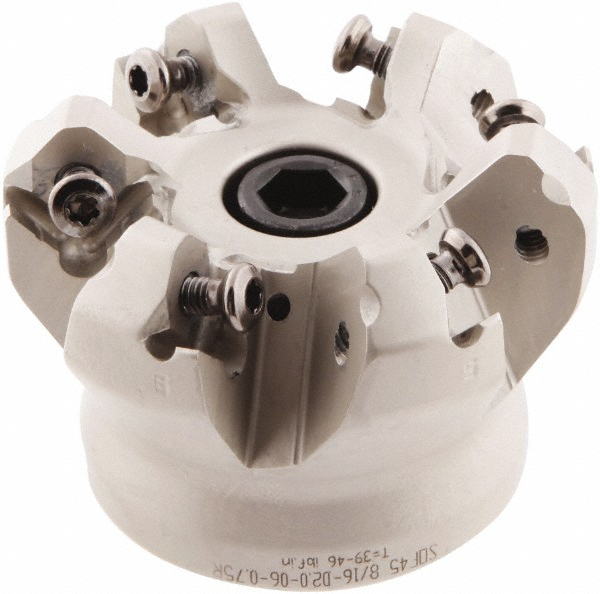

Takes 4 Inserts, ONHU 0505\xB6OXMT 0507\xB6S845 SN.U 1305 Insert, Right Hand Cut, 4 Flutes, Series Helido
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.4090 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Compatible Insert Size Code | 1305; 0507; 0505 |
| Cutter Style | SOF45 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | Helido |
| Hub Diameter (Decimal Inch) | 1.8900 |
| Overall Height (Decimal Inch) | 1.7500 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | ONHU 050500-R-HP; ONHU 0505AN-N-W; ONHU 0505AN-8R-W; OXMT 0507R08-FF; ONHU 050505-TN-MM; ONHU 0505AN-R-W; ONHU 050500-PL; OXMT 050705-R-HP; S845 SNHU 1305ANR-PL; S845 SNHU 1305ANTR; S845 SNHU 1305ANR-MM; S845 SNHU 1305AN-N-W; ONHU 050500-N-HP; ONHU 050505-TN |
| Number Of Cutter Inserts | 4 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 93156859 |
