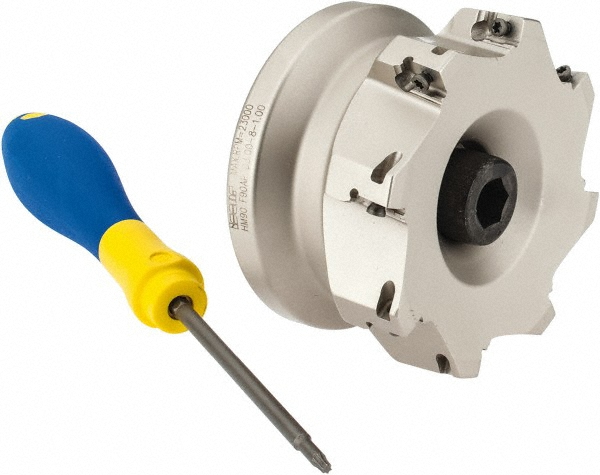

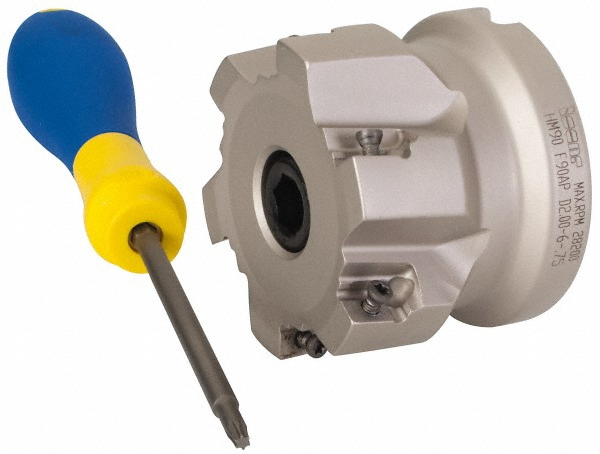

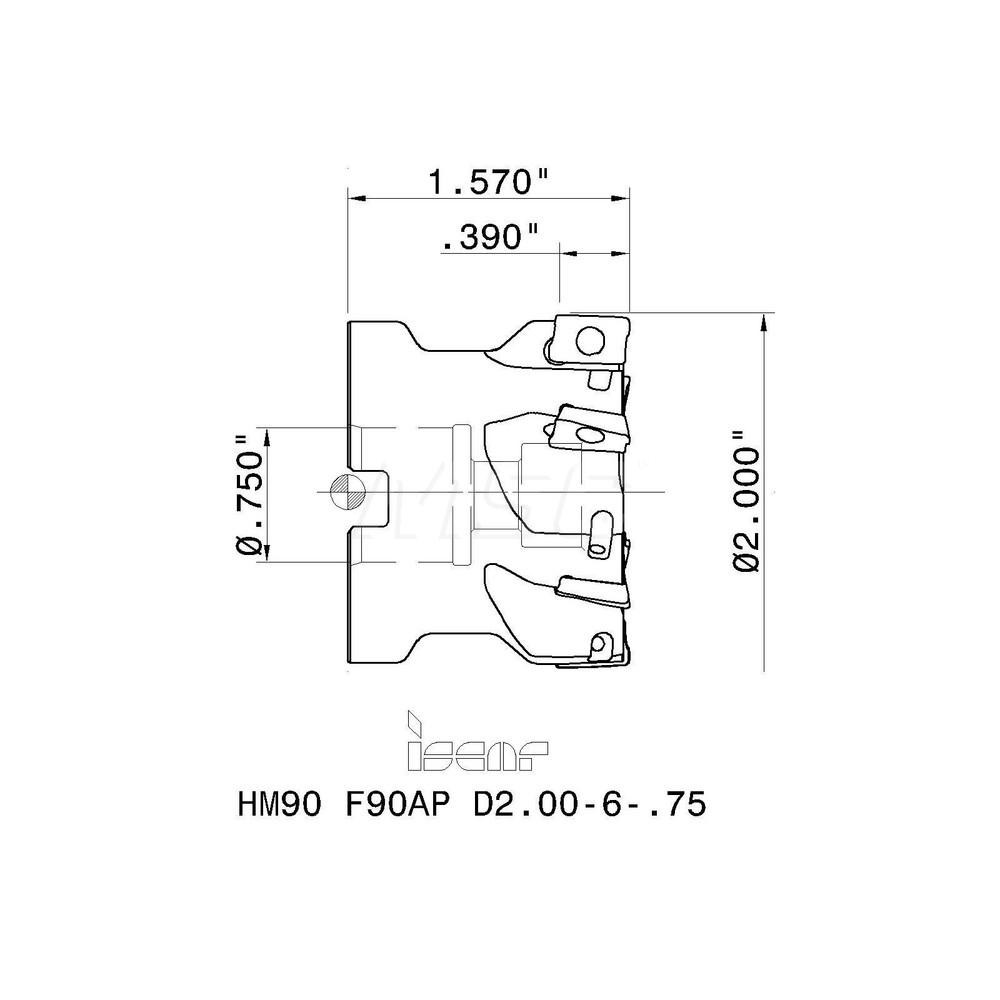

Takes 6 Inserts, 0/90° Lead Angle, 1.57" High, AP..1003.., HM90 AP..1003.. Insert Style, Series HM90

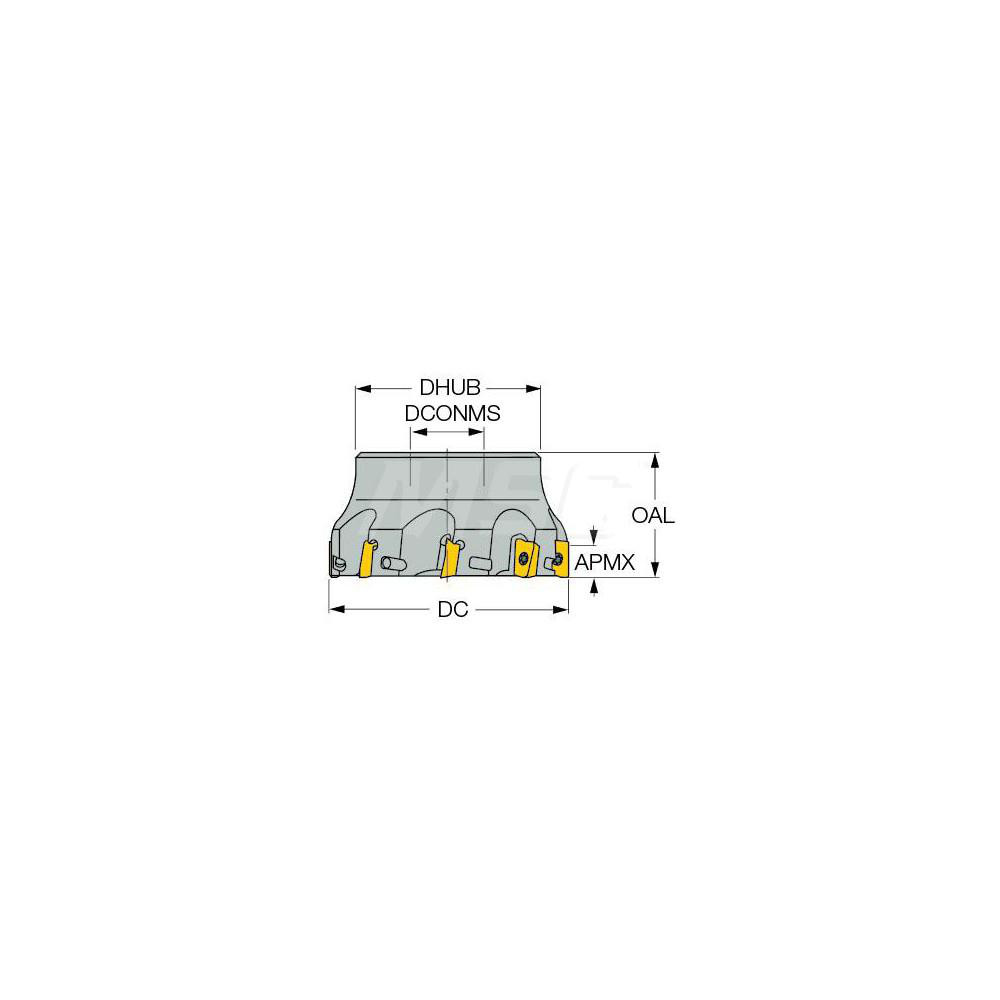

| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |

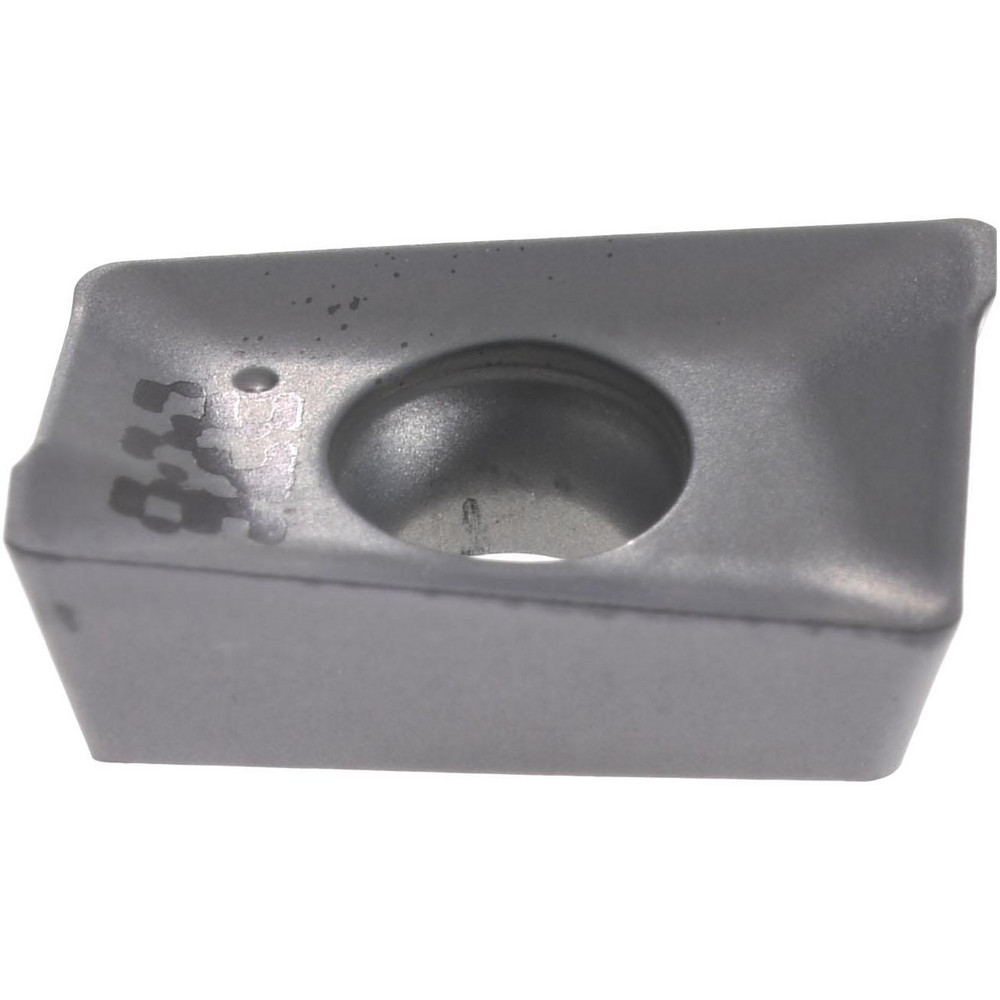

| Compatible Insert Size Code | AP 1003; HM90 AP 1003 |
| Cutter Style | HM90 F90AP-10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | HM90 |
| Maximum Ramping Angle | 1.40 |
| Overall Height (Decimal Inch) | 1.5700 |
| Keyway Width (Decimal Inch) | 0.3125 |
| Hub Diameter (Decimal Inch) | 1.8900 |
| Standards | ISO |

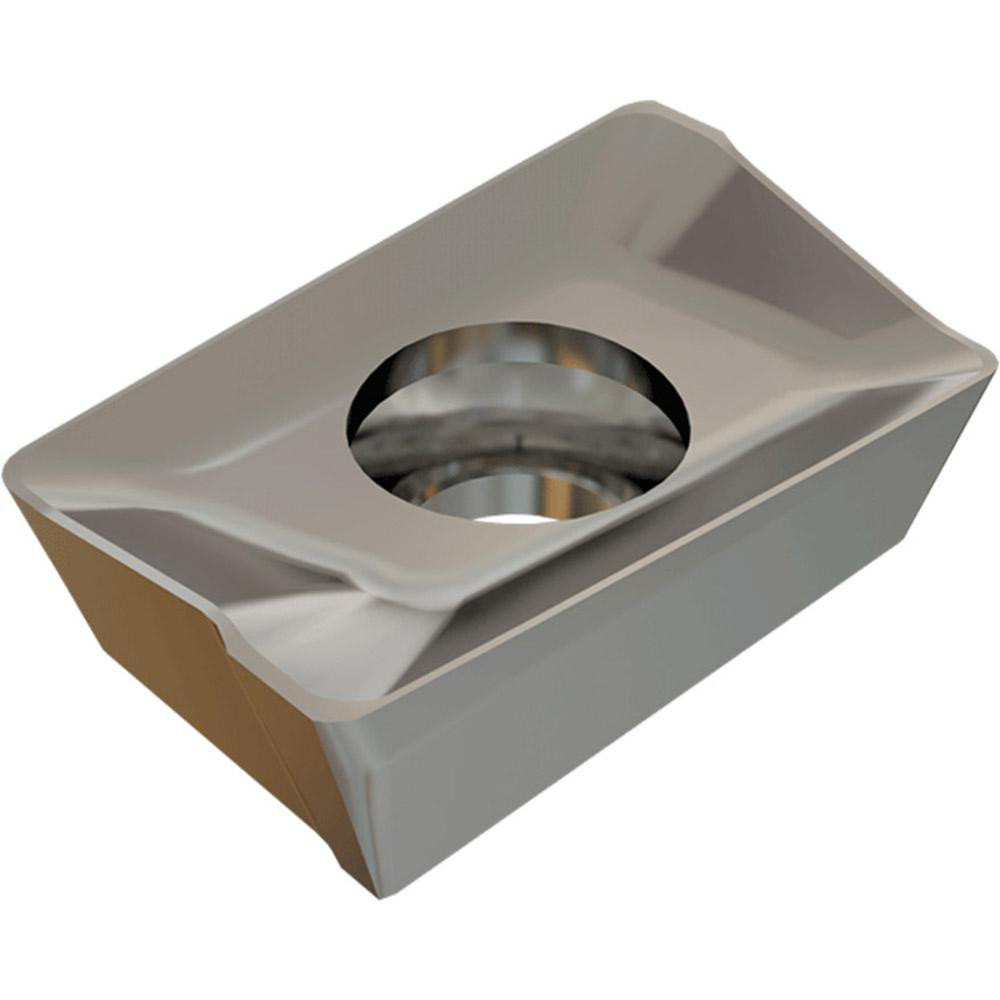

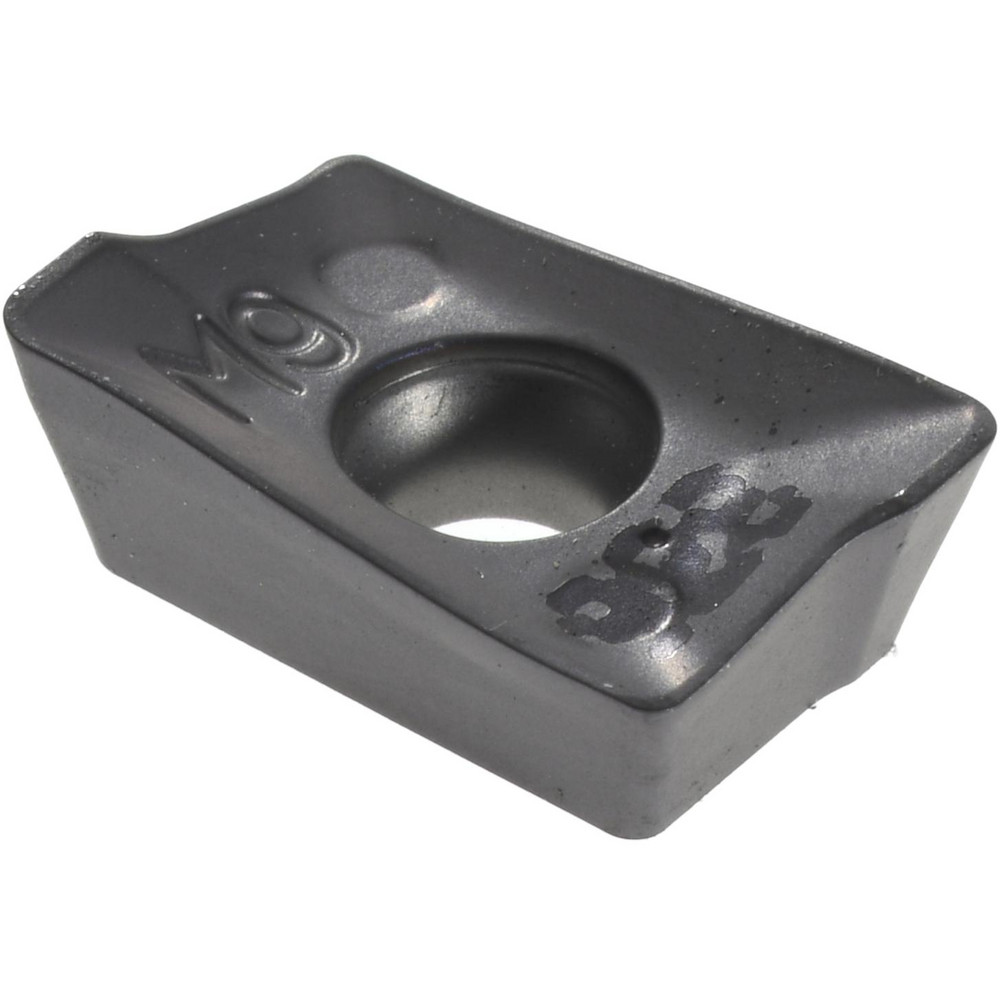

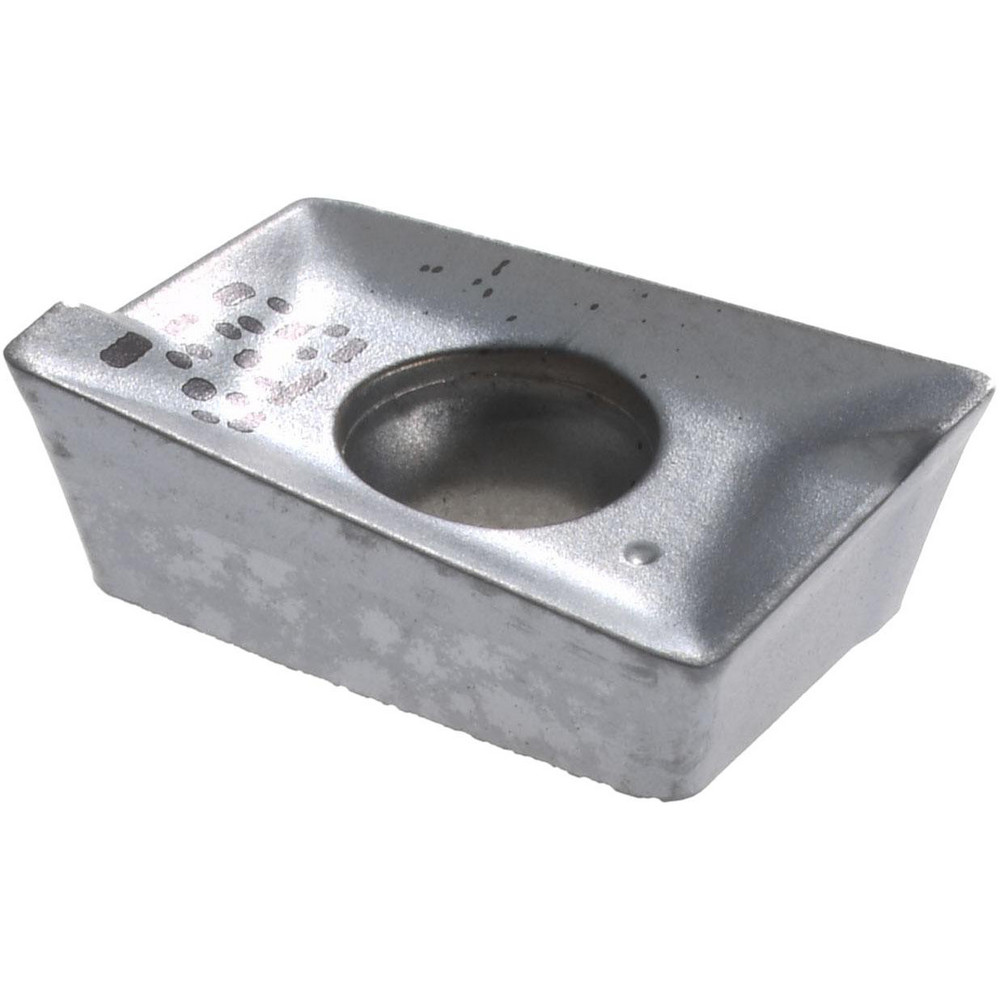

| Complete Insert Compatibility | AP... 1003; HM90 APKT |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | HM90 F90AP D2.00-6-.75 |
| Keyway Depth (Decimal Inch) | 0.1875 |
| Coolant Through | No |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Israel |
| MSC Number | MSC# 88848726 |
