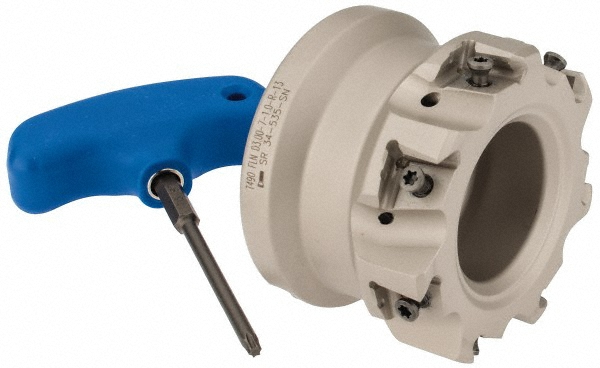

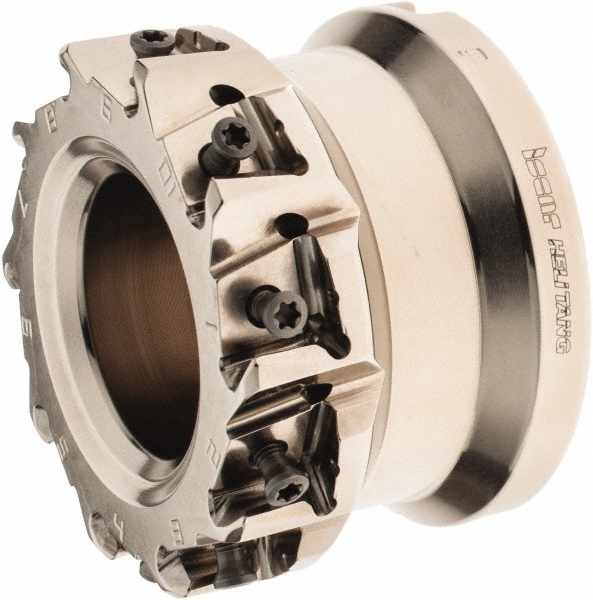

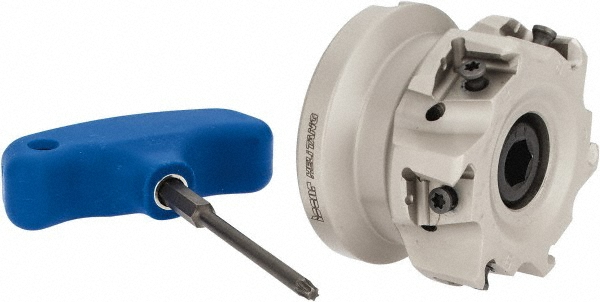

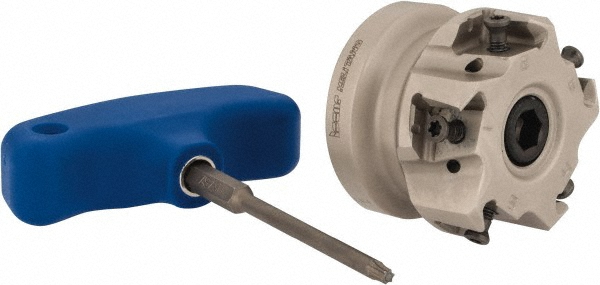

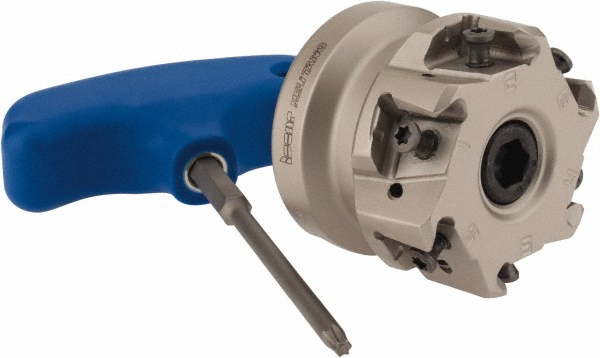

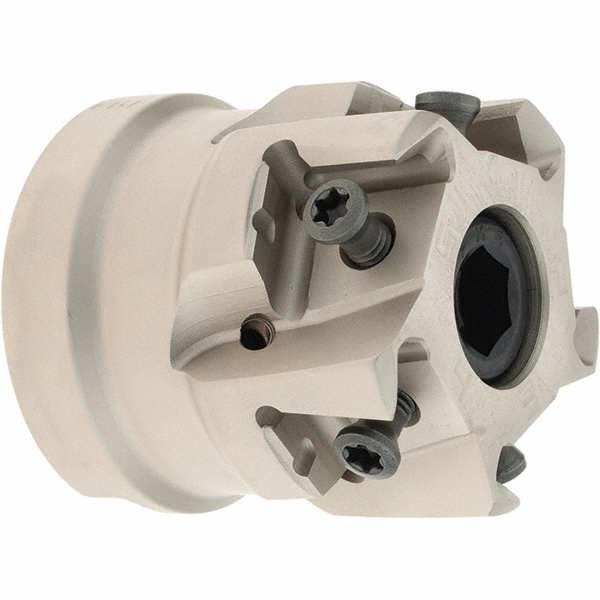

Takes 6 Inserts, 0/90° Lead Angle, 1.57" High, T490 LN.T 1306 Insert Style, Through Coolant, Series Helitang

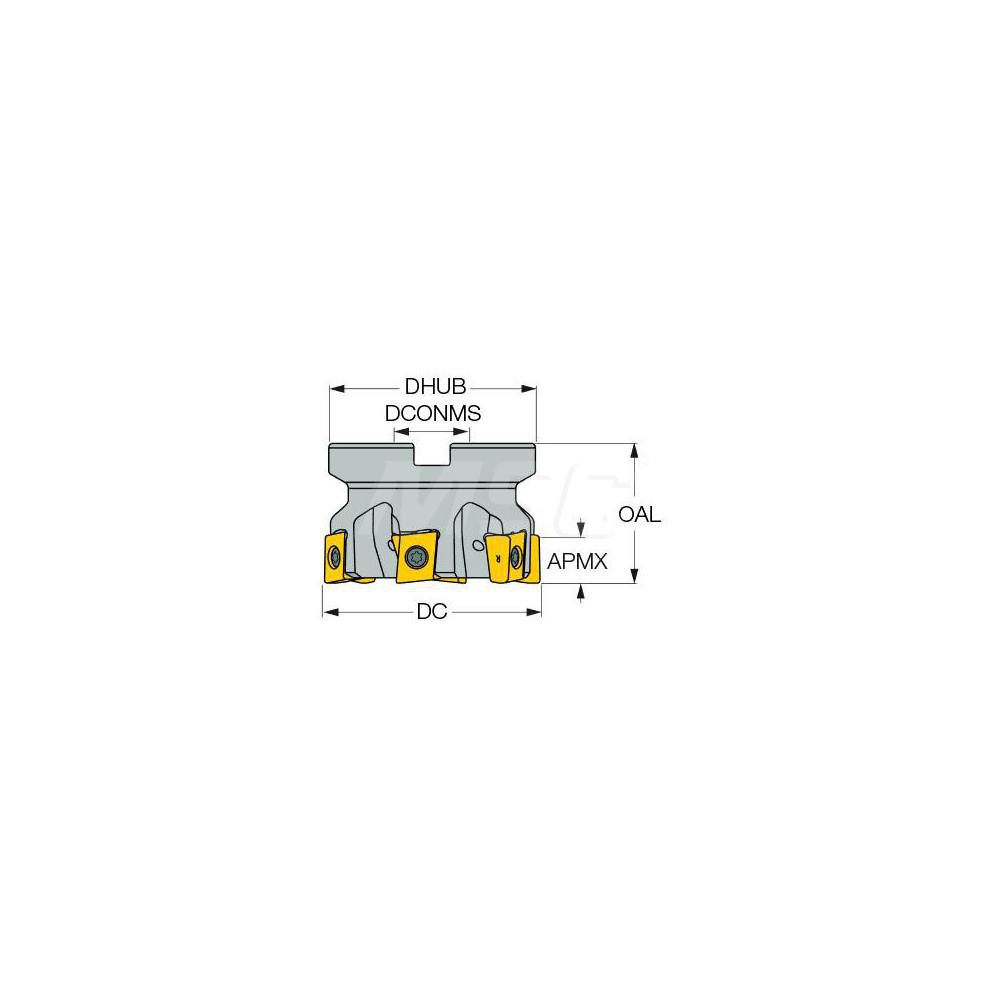

| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | T490 LNT 1306 |
| Cutter Style | T490 FLN-13 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Helitang |
| Maximum Ramping Angle | 1.50 |
| Overall Height (Decimal Inch) | 1.5700 |
| Hub Diameter (Decimal Inch) | 1.8500 |
| Standards | ISO |
| Cutting Edge Length (Decimal Inch) | 0.4920 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |

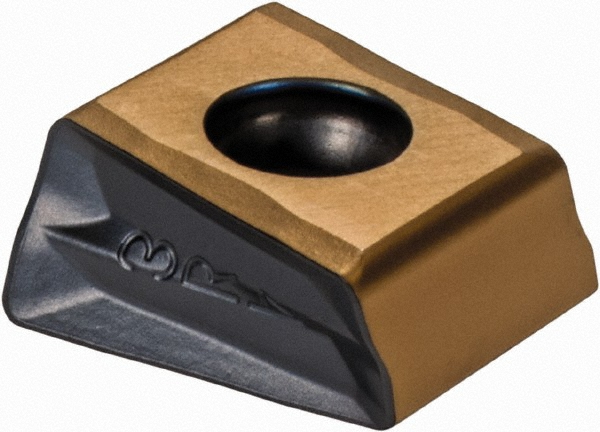

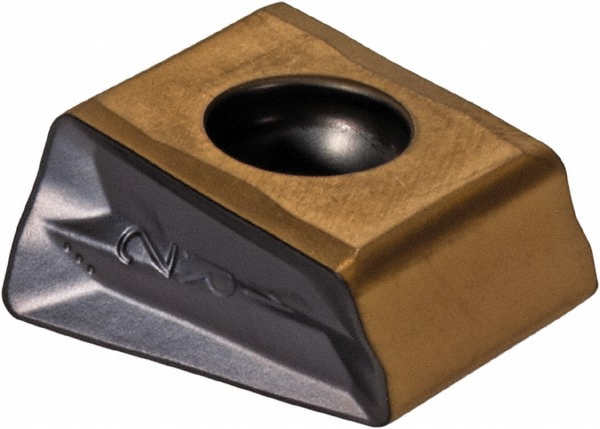

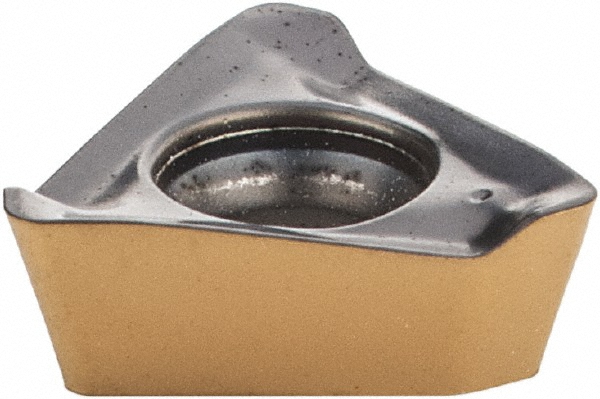

| Complete Insert Compatibility | LNHT 1306; T490 LNMT |
| UNSPSC Code | 27112803 |

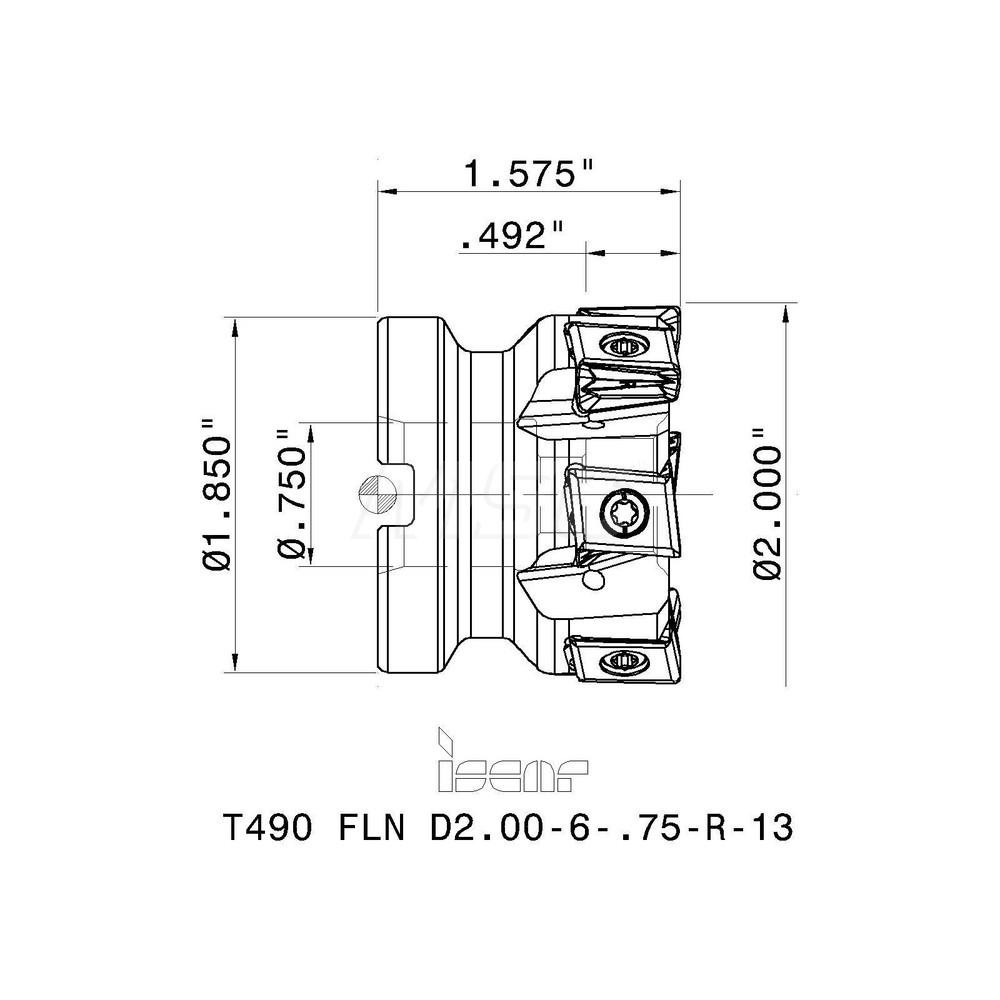

| Manufacturers Catalog Number | T490 FLN D2.00-6-.75-R-13 |
| Maximum Insert Radius (Decimal Inch) | 0.2500 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Israel |
| MSC Number | MSC# 91173427 |
