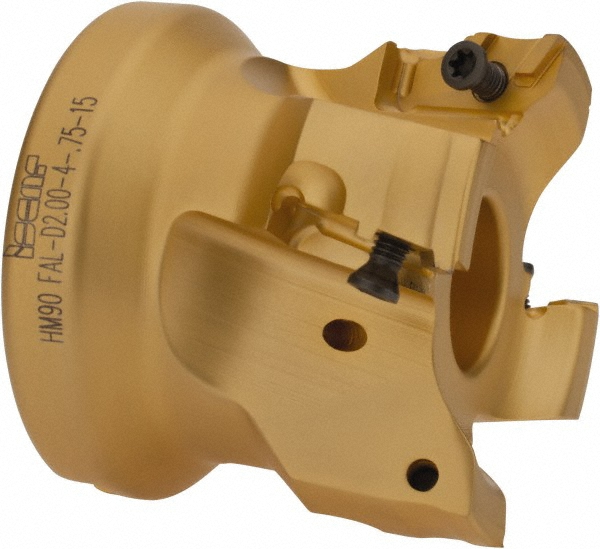

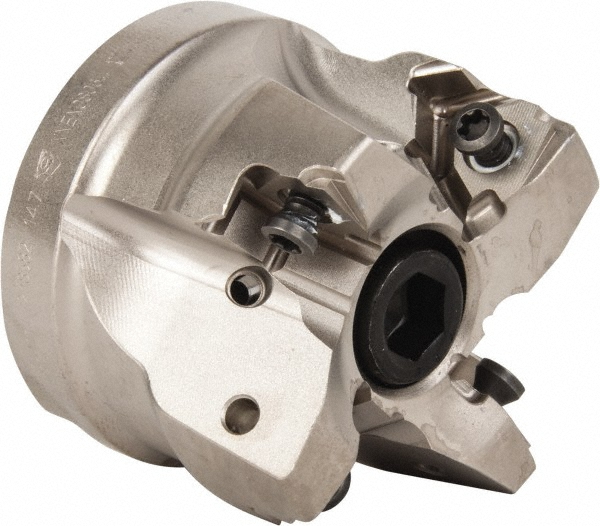

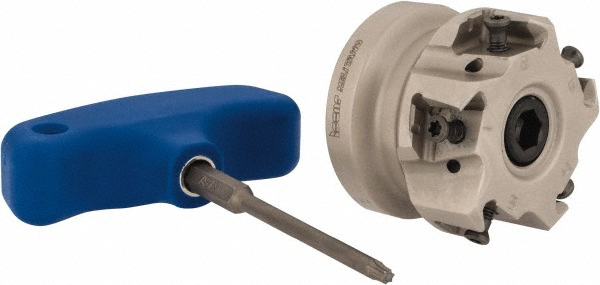

Takes 4 Inserts, 0/90° Lead Angle, 1-3/4" High, HM90 AXCR 1505 Insert Style, Through Coolant, Series Helialu
| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |

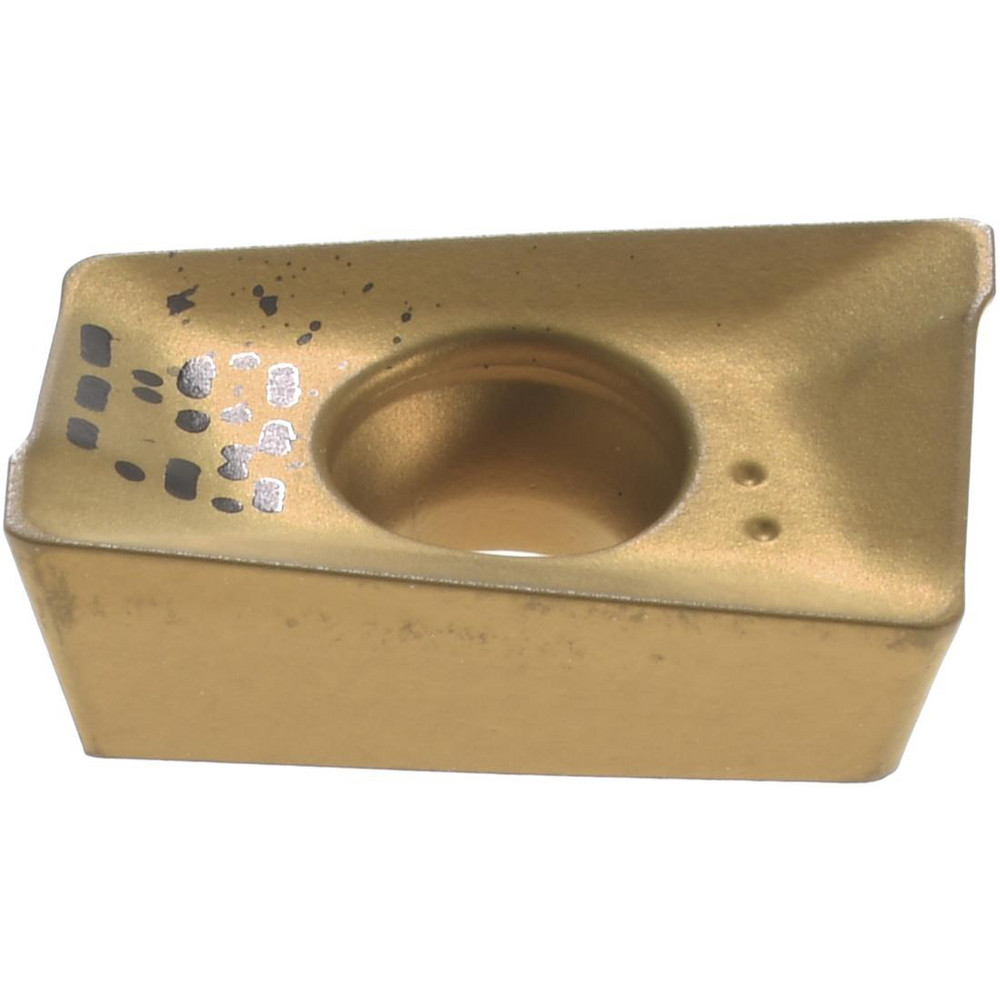

| Compatible Insert Size Code | HM90 AXCR 1505 |
| Cutter Style | HM90 FAL-15 |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Helialu |
| Maximum Ramping Angle | 6.50 |
| Overall Height (Decimal Inch) | 1.7500 |
| Hub Diameter (Decimal Inch) | 1.9300 |
| Standards | ISO |
| Cutting Edge Length (Decimal Inch) | 0.5310 |
| Minimum Insert Radius (Decimal Inch) | 0.0080 |
| Complete Insert Compatibility | HM90 AXCR 1505 |
| UNSPSC Code | 27112803 |

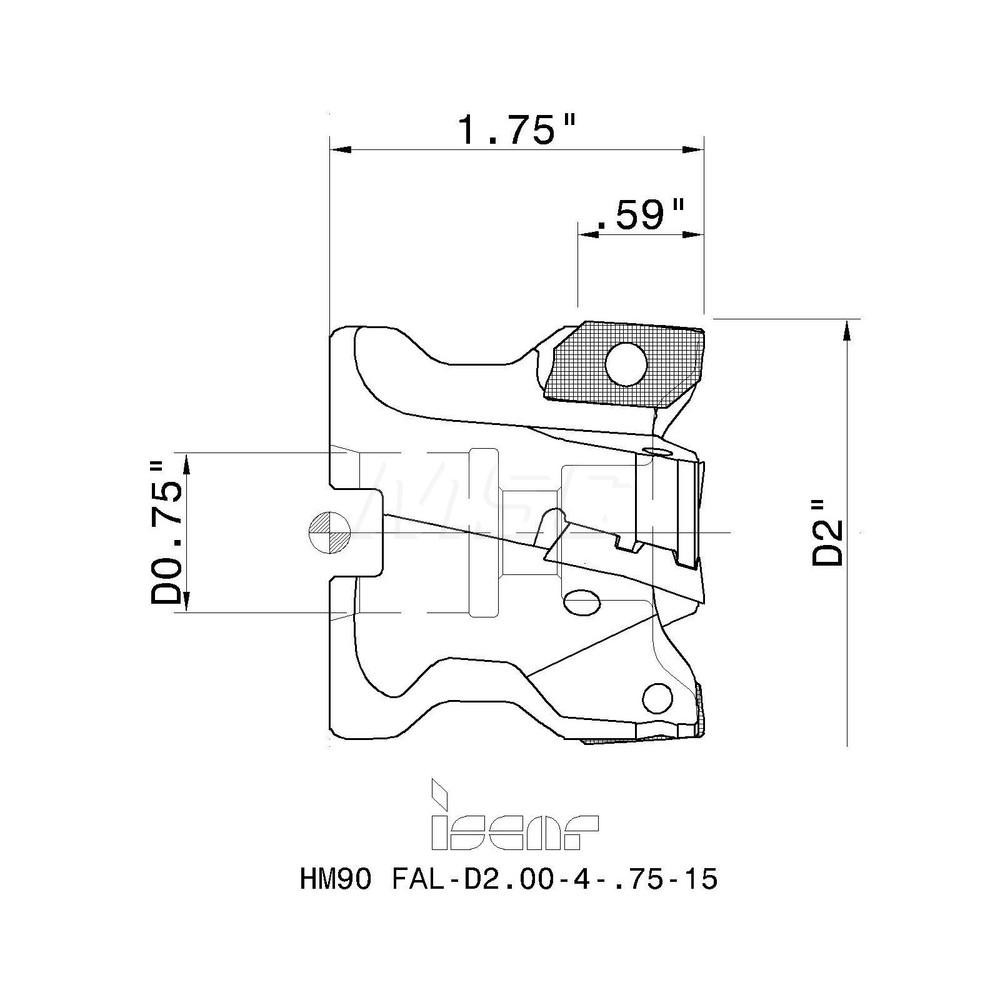

| Manufacturers Catalog Number | HM90 FAL-D2.00-4-.75-15 |
| Maximum Insert Radius (Decimal Inch) | 0.1570 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 77462877 |
