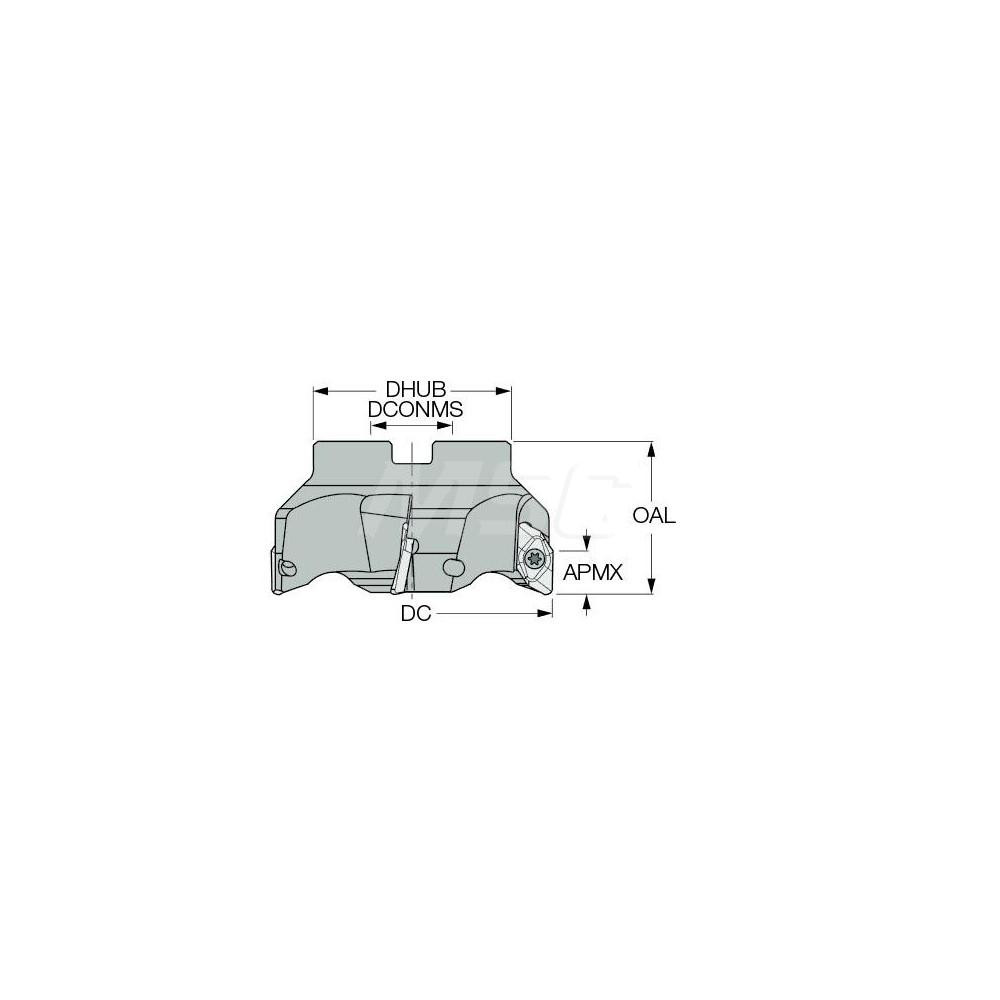

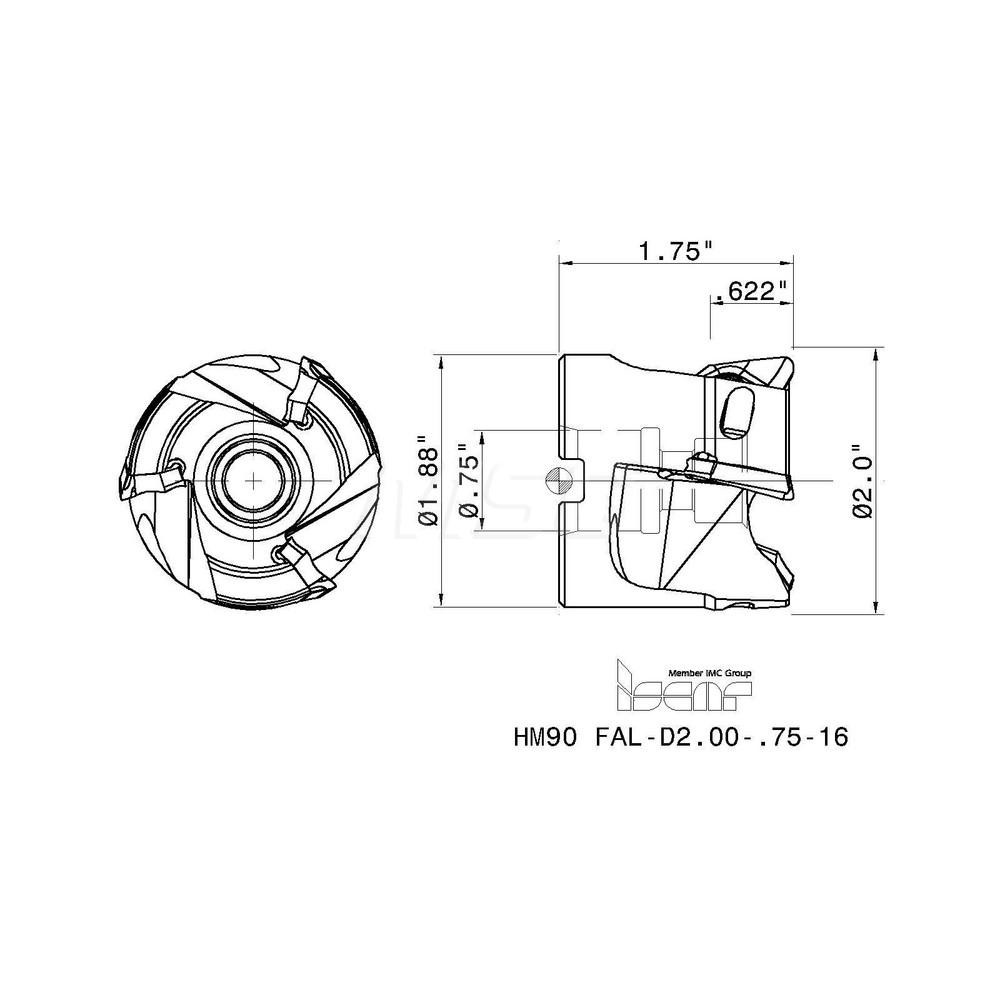

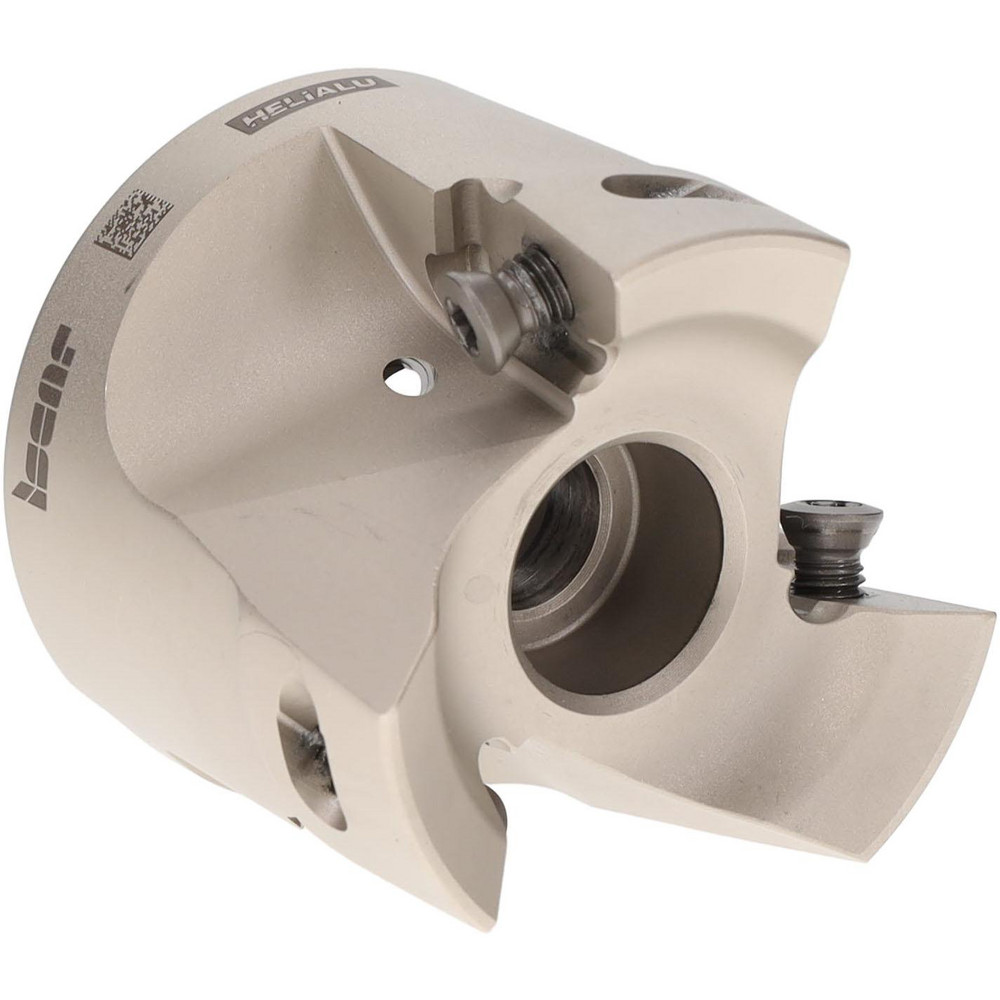

Takes 3 Inserts, 0/90° Lead Angle, 1-3/4" High, HM90 APCR 1605... Insert Style, Series HM90
| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6220 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | HM90 APCR 1605 |
| Cutter Style | HM90 FAL-16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0/90 |
| Series | HM90 |
| Maximum Ramping Angle | 10.40 |
| Overall Height (Decimal Inch) | 1.7500 |
| Hub Diameter (Decimal Inch) | 1.8800 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | HM90 FAL-D2.00-.75-16 |
| Coolant Through | No |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Country of Origin | VARIOUS |
| undefined | undefined |
| MSC Number | MSC# 06061774 |
