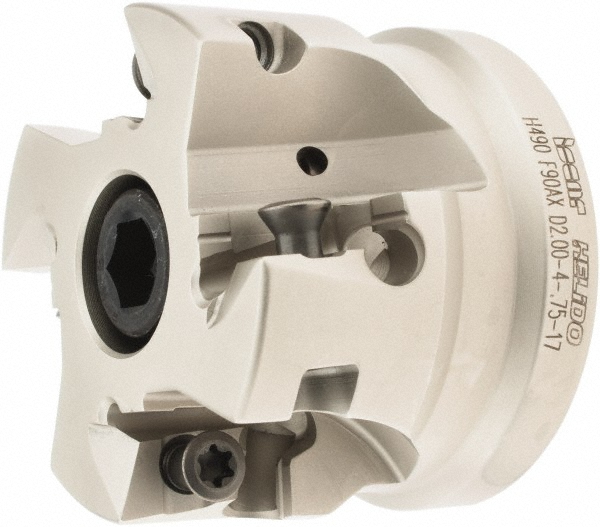

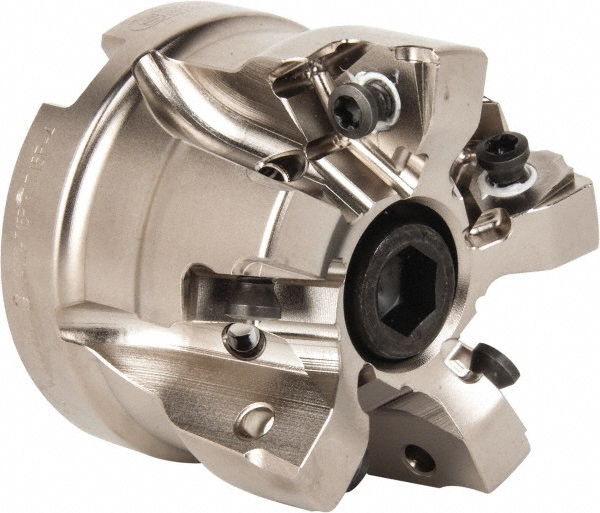

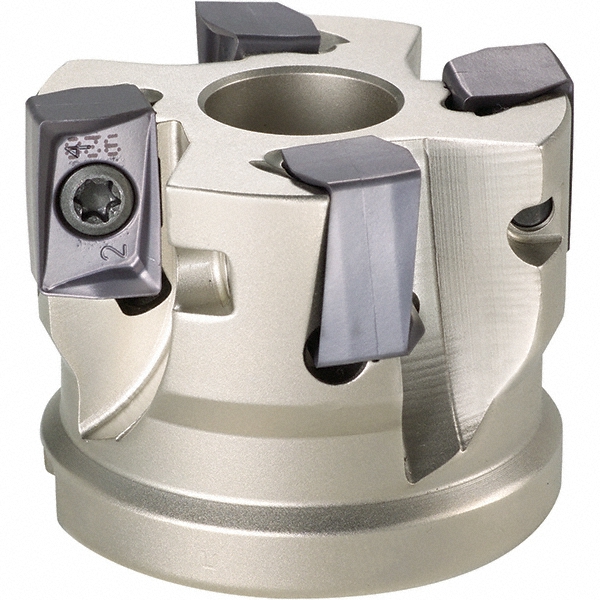

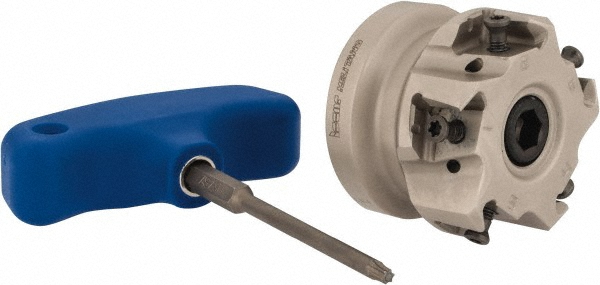

Takes 4 Inserts, 0/90° Lead Angle, 1.57" High, H490 AN.X 1706 Insert Style, Through Coolant, Series Helido
| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6420 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | H490 AN.X 1706 |
| Cutter Style | H490 F90AX-17 |
| Cutting Direction | Right Hand |

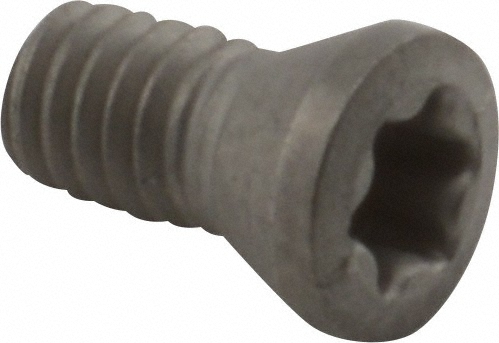

| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | Helido |
| Maximum Ramping Angle | 3.80 |
| Overall Height (Decimal Inch) | 1.5700 |
| Hub Diameter (Decimal Inch) | 1.8900 |
| Standards | ISO |

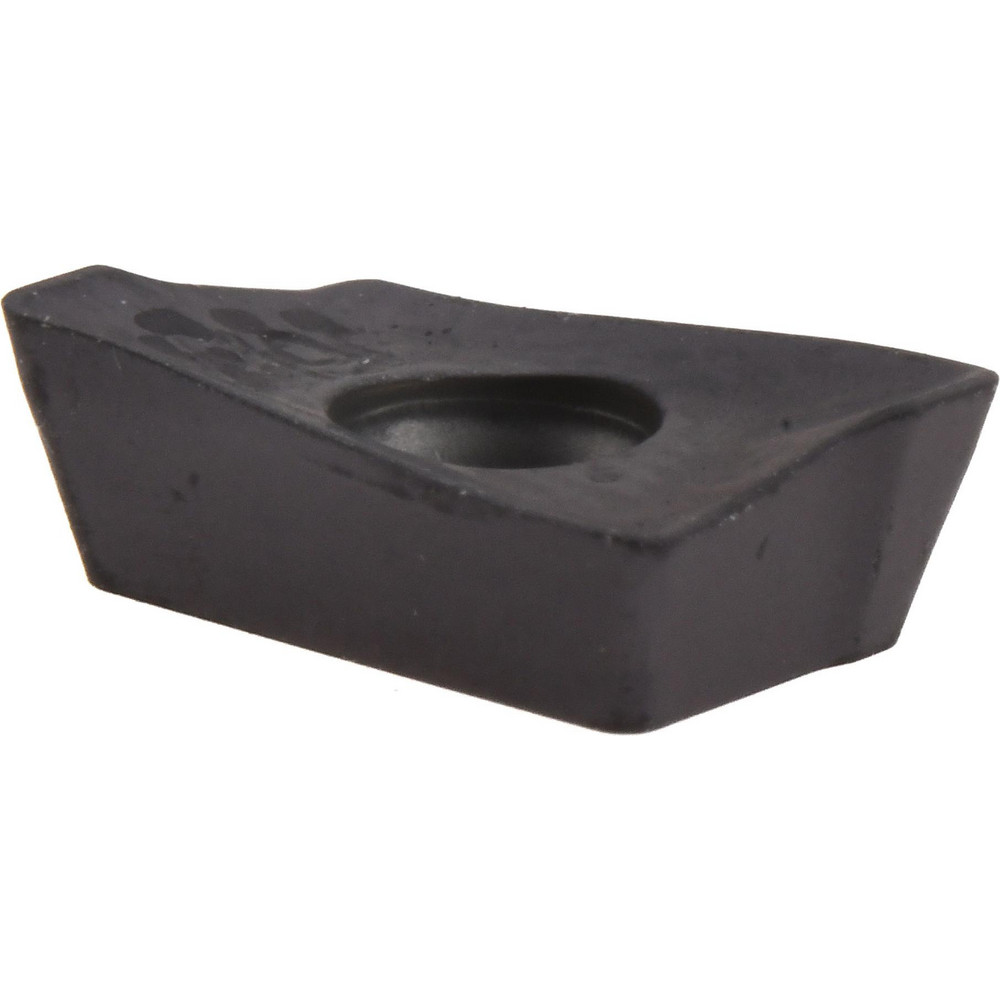

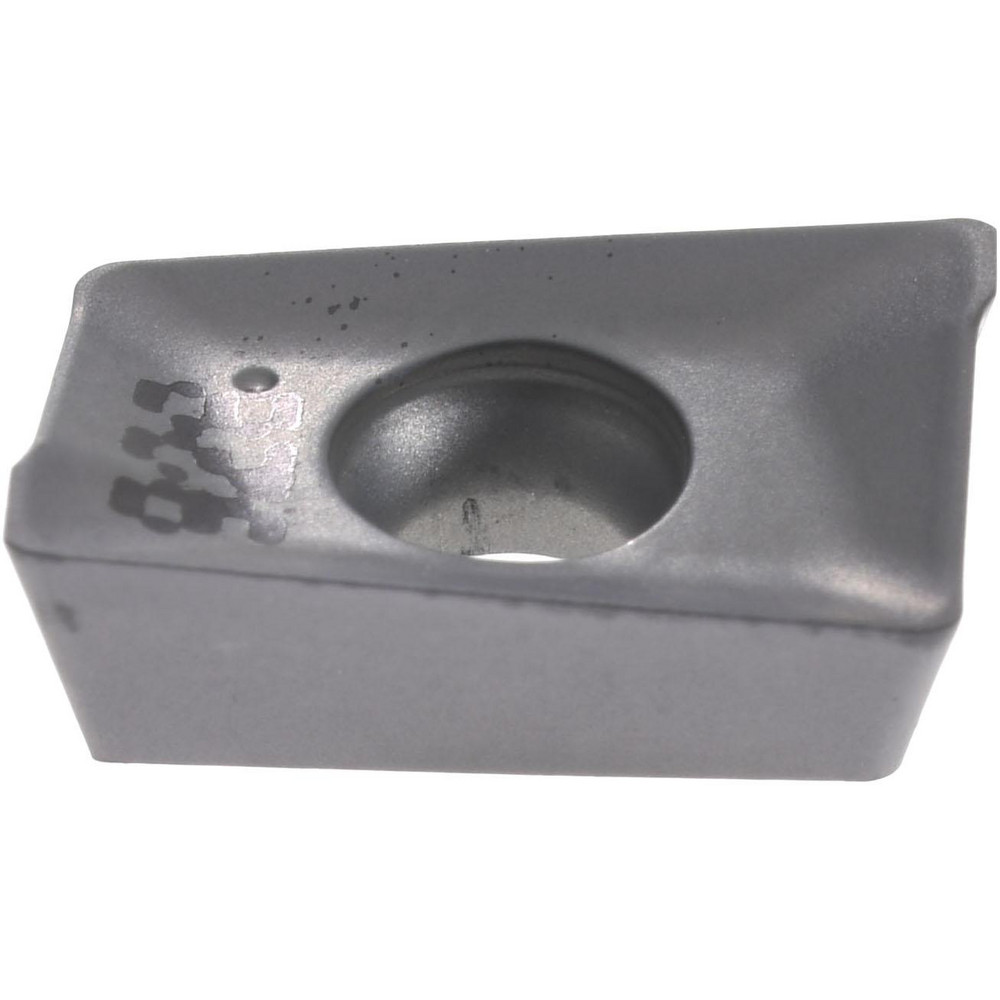

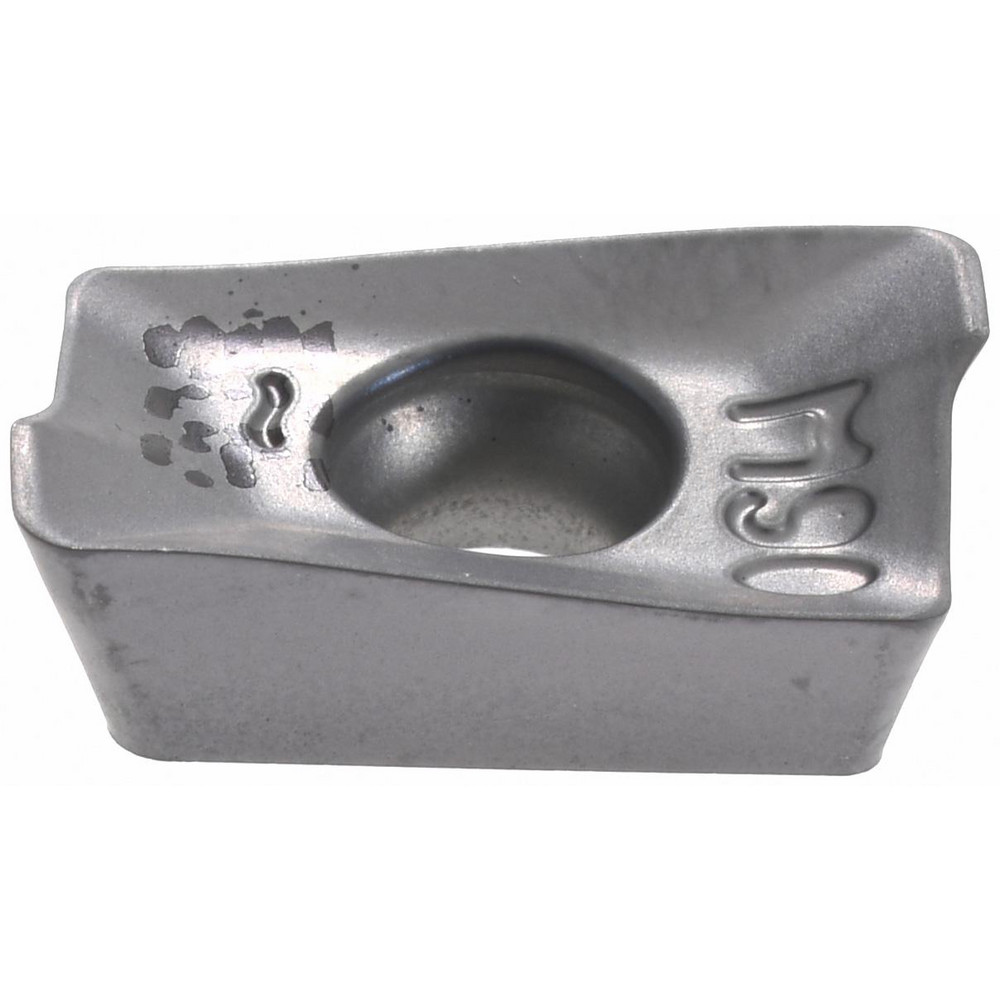

| Complete Insert Compatibility | H490 ANKX 170612PNTR; H490 ANKX 170620PNTR; H490 ANKX 170624PNTR; H490 ANCX 1706R15T-FF; H490 ANKX 170616PNTR; H490 ANKX 1706R15T-FF; H490 ANCX 170608PDR |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | Israel |
| MSC Number | MSC# 63441265 |
