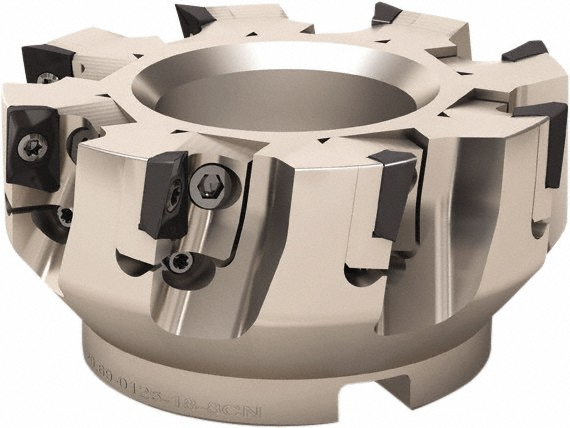

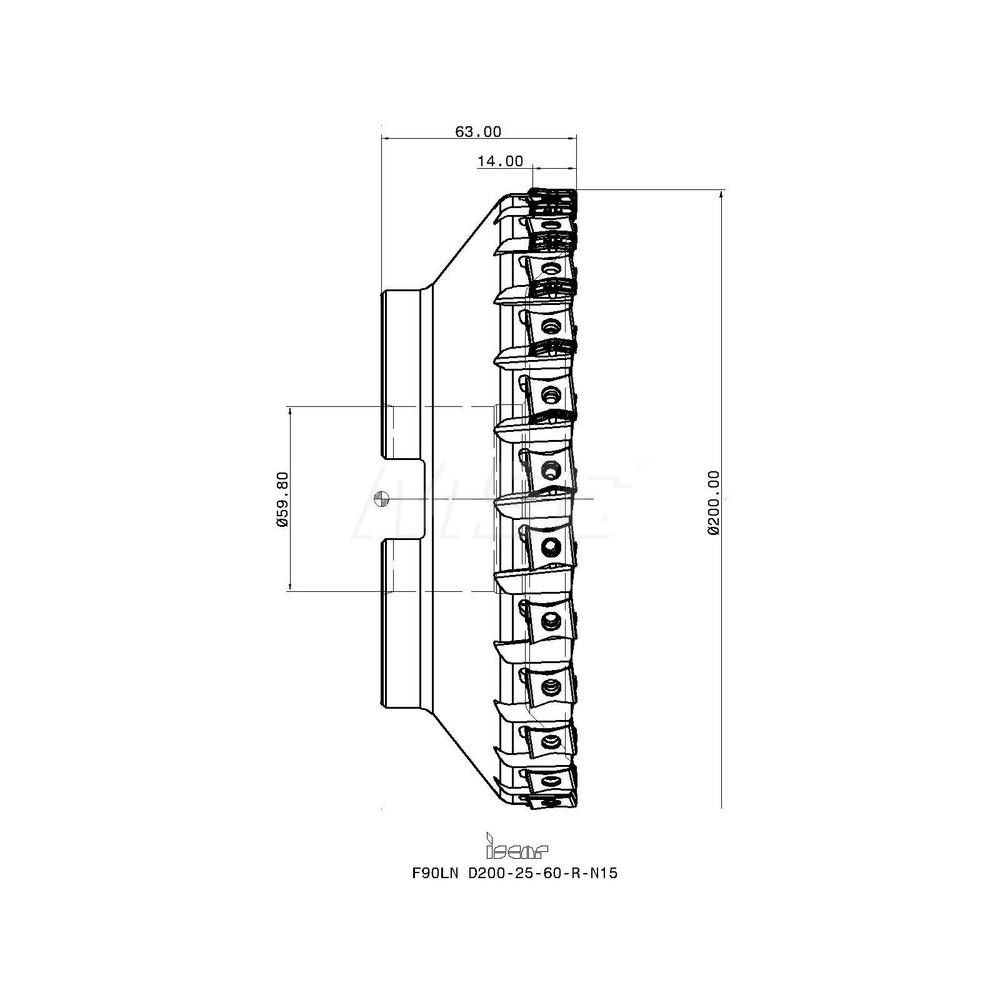

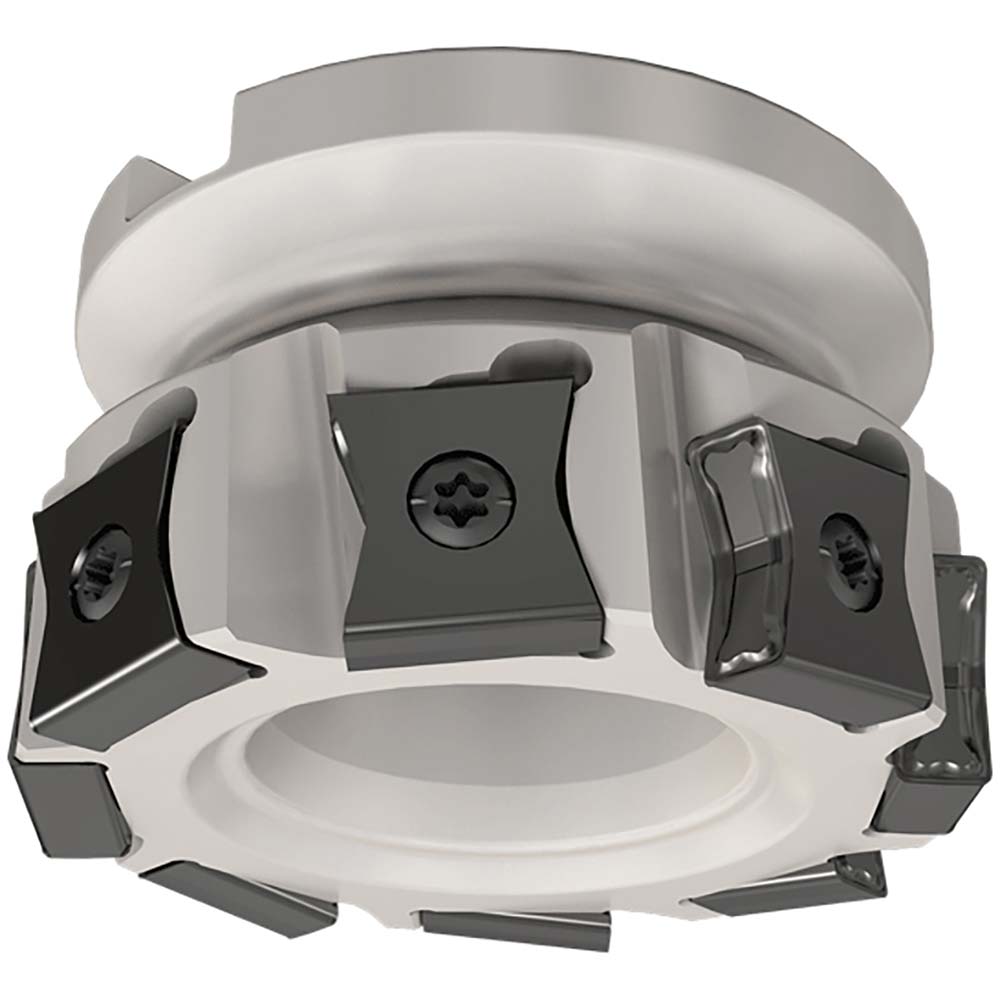

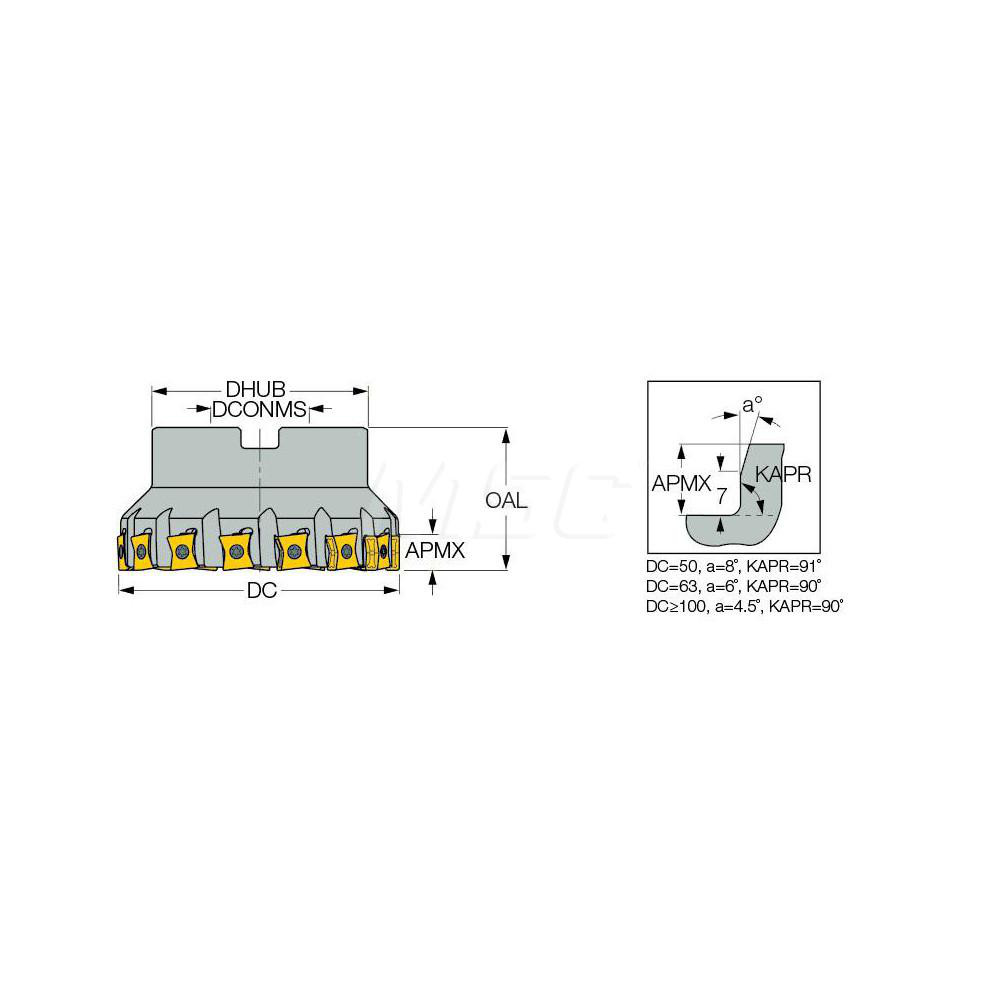

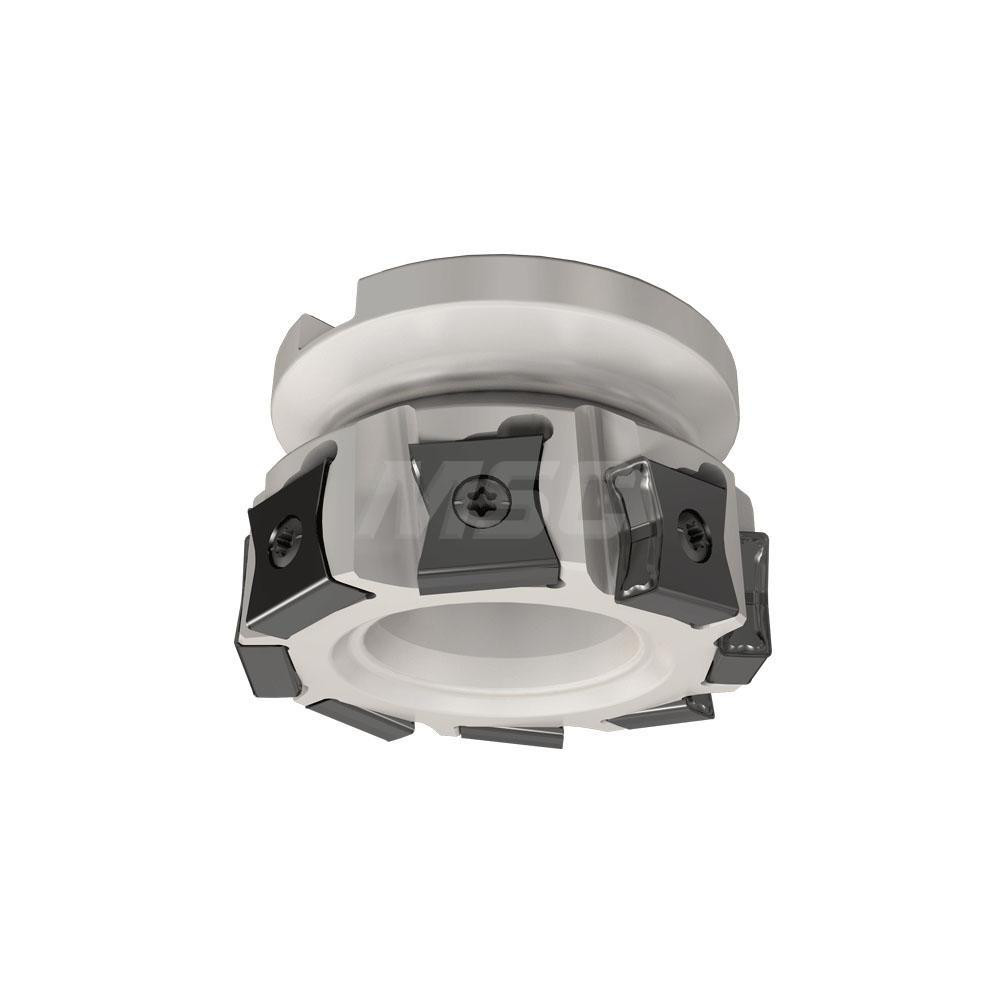

Takes 25 Inserts, 0° Lead Angle, 63mm High, LN.. 1506.. Insert Style, Series TangMill
| Maximum Cutting Diameter (Decimal Inch) | 7.8740 |
|---|---|
| Maximum Cutting Diameter (mm) | 200.00 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3622 |
| Compatible Insert Size Code | LN 1506 |
| Cutter Style | F90LN-N15 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | TangMill |
| Overall Height (Decimal Inch) | 2.4803 |
| Keyway Width (mm) | 25.70 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Hub Diameter (mm) | 135.00 |
| Standards | ISO |
| Complete Insert Compatibility | LNKX 1506 1.5X45PN-N; LNAR 1506 PN-N-P; LNKX 1506PN-N PL; LNKX 150612-PNTN; LNMT 1506PN-N MM; LNMT 1506PNTN; LNKX 1506PN-N MM; LNHW 1506 PNTN; LNKX 1506PNTN |
| UNSPSC Code | 27112803 |
| Coolant Through | No |
| Number Of Cutter Inserts | 25 |
| Number Of Flutes | 25 |
| Country of Origin | Israel |
| MSC Number | MSC# 30707327 |
