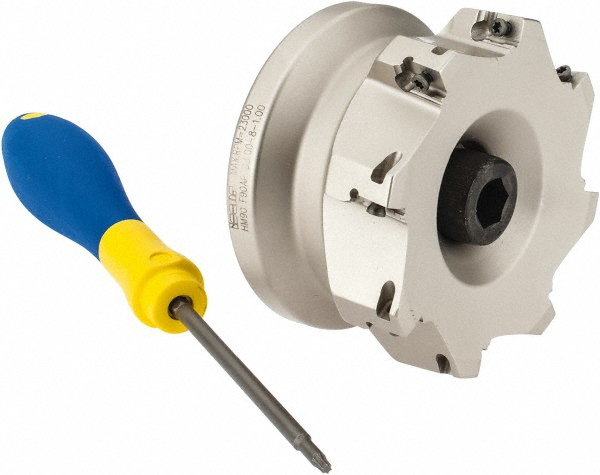

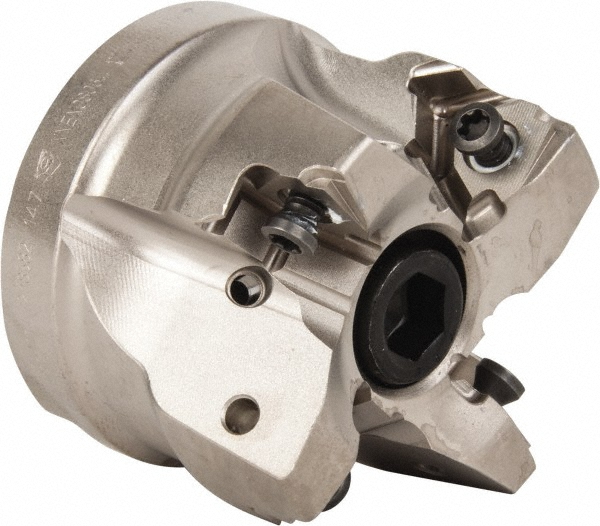

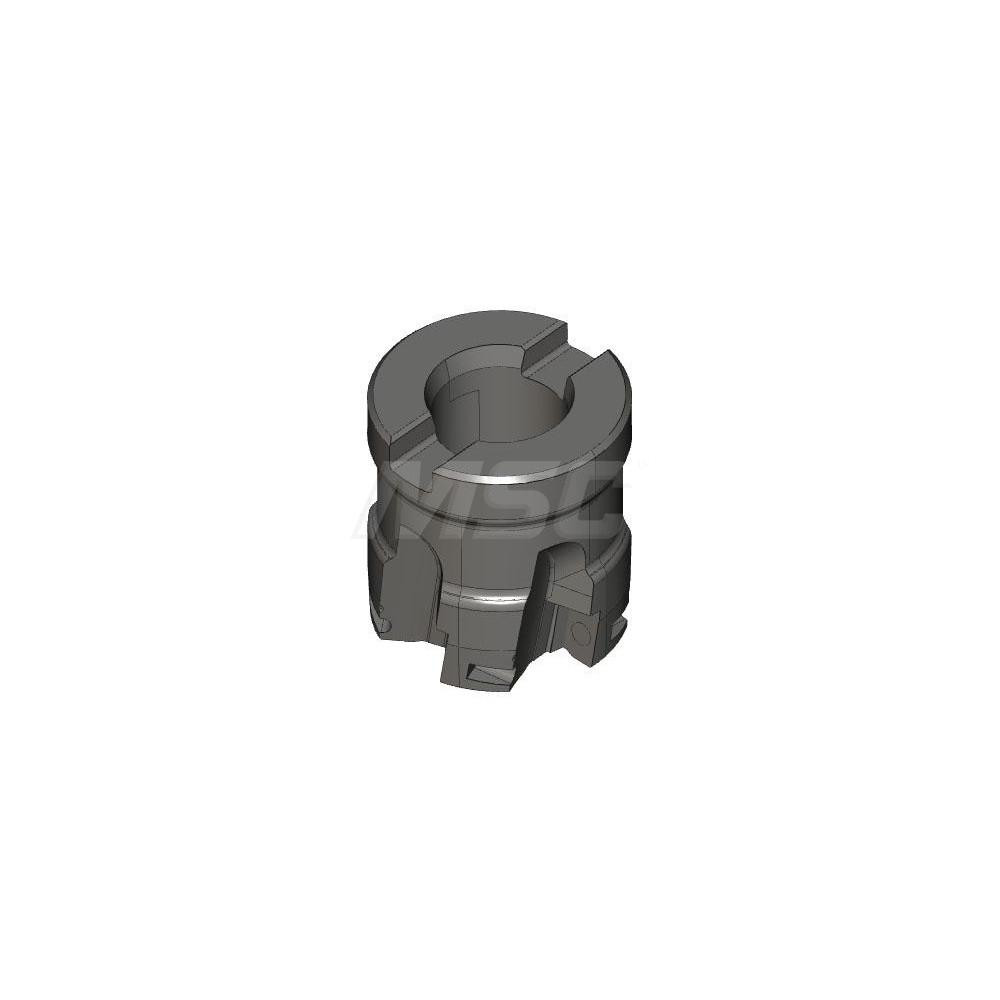

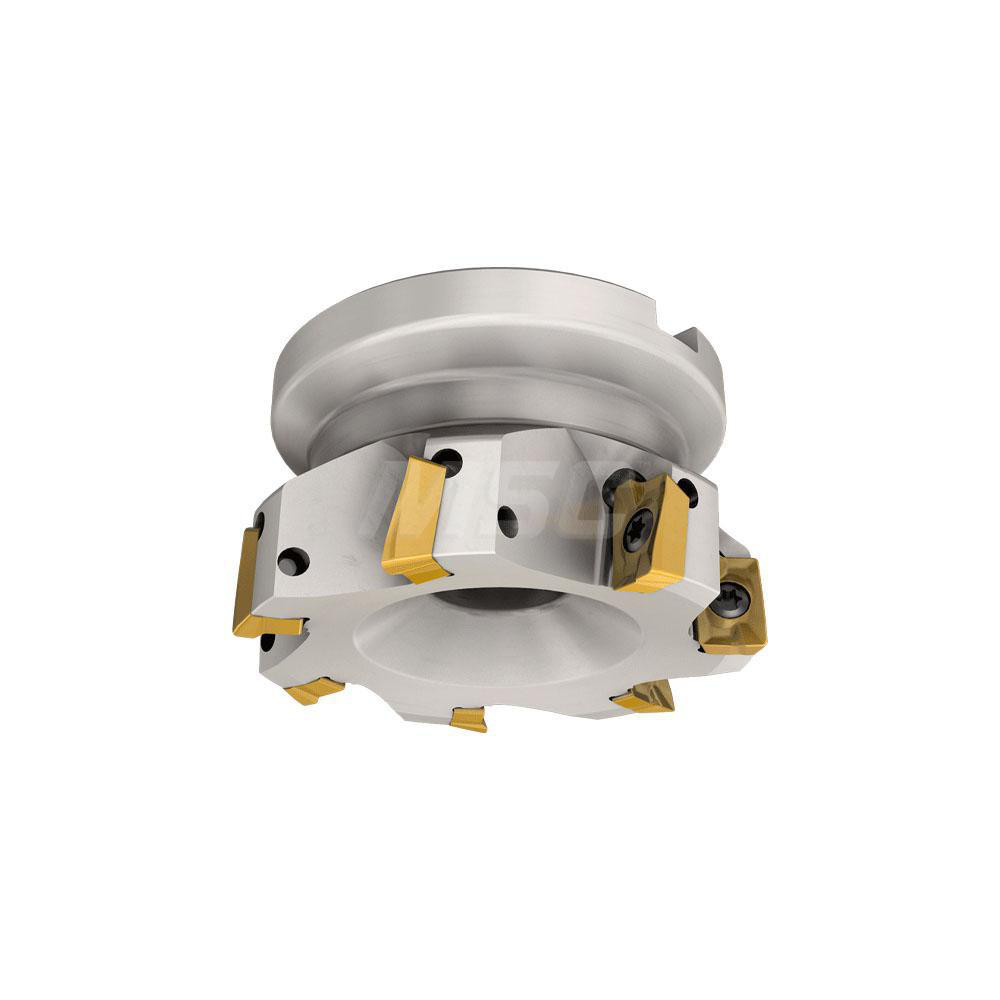

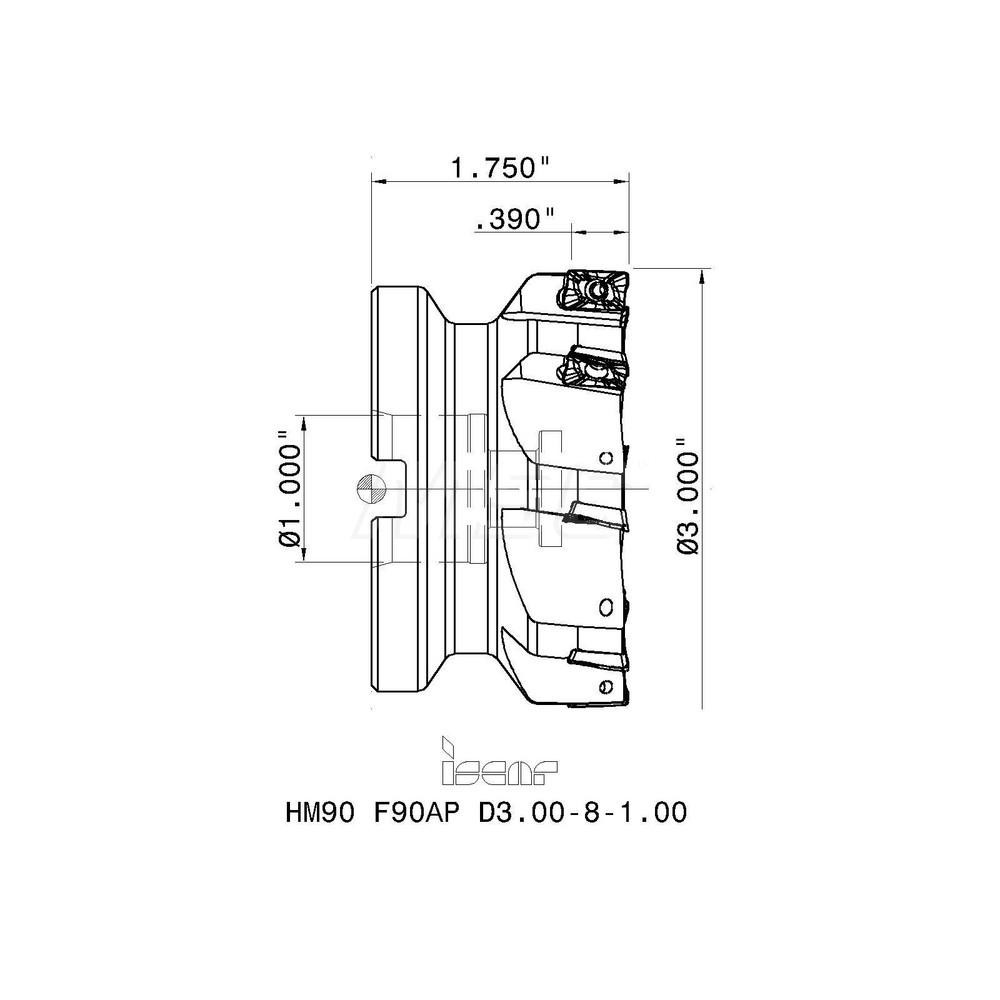

Takes 8 Inserts, 0/90° Lead Angle, 1-3/4" High, AP..1003.., HM90 AP..1003.. Insert Style, Series HM90

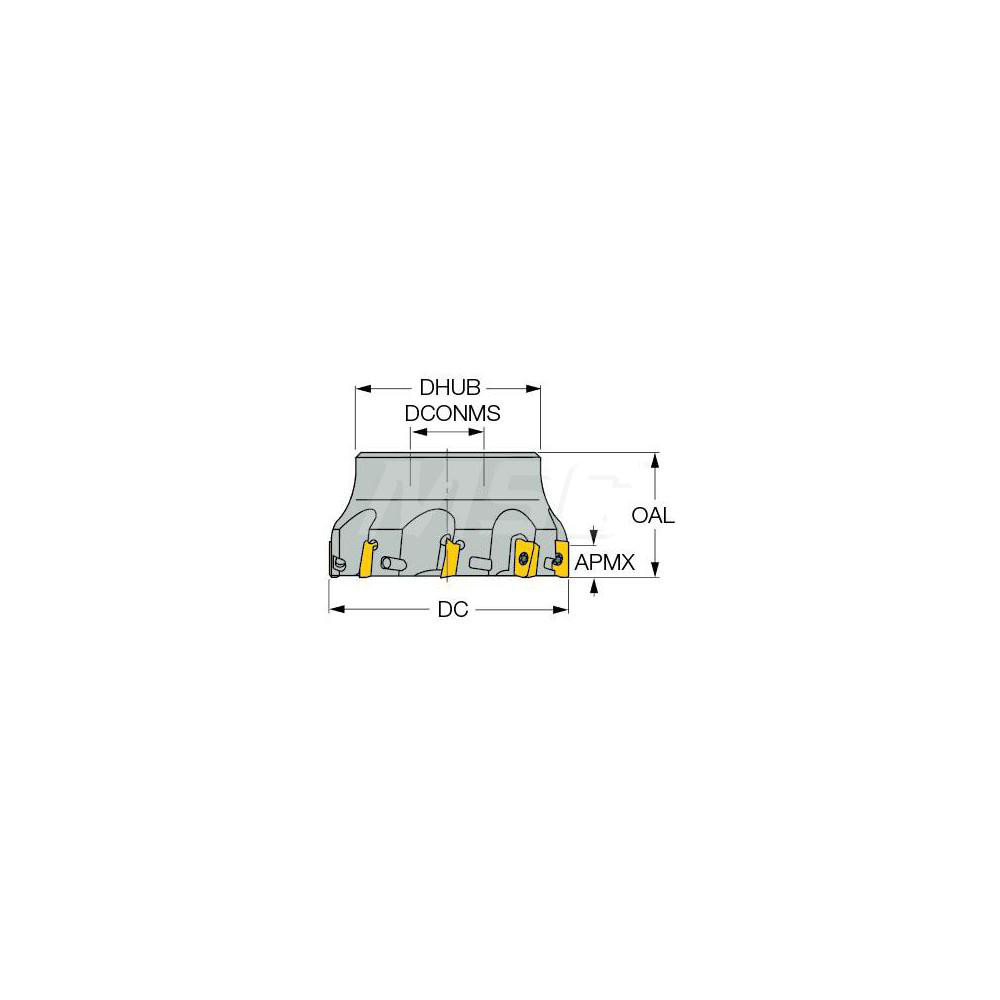

| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | AP 1003; HM90 AP 1003 |
| Cutter Style | HM90 F90AP-10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0/90 |
| Series | HM90 |
| Maximum Ramping Angle | 0.90 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (Decimal Inch) | 2.7600 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 0.7800 |

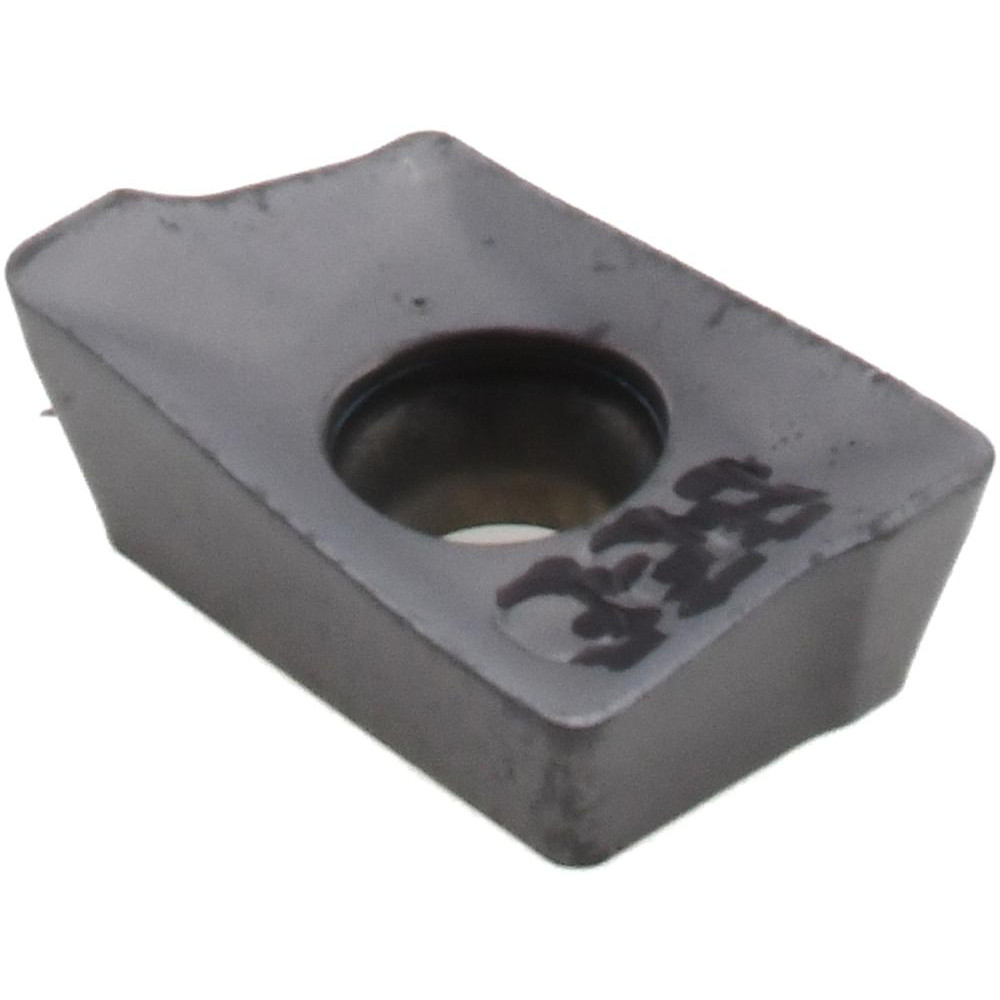

| Complete Insert Compatibility | AP... 1003; HM90 APKT |
| UNSPSC Code | 27112803 |
| Manufacturers Catalog Number | HM90 F90AP D3.00-8-1.00 |
| Keyway Depth (Decimal Inch) | 0.2188 |
| Coolant Through | No |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Country of Origin | Germany |
| MSC Number | MSC# 88990262 |
