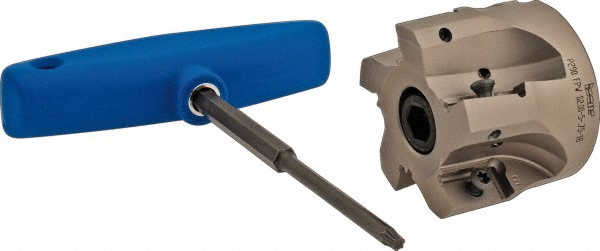

Takes 8 Inserts, 0° Lead Angle, 1-3/4" High, P290 AC.T 1806.. Insert Style, Through Coolant, Series MillShred
| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.7080 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | P290 AC T1806 |
| Cutter Style | P290 FPW |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | MillShred |
| Maximum Ramping Angle | 0.50 |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Hub Diameter (mm) | 2.17 |
| Hub Diameter (Decimal Inch) | 2.1700 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 0.7800 |
| Complete Insert Compatibility | P290 ACKT 1806PDR-FWR; P290 ACCT 1806PDR-HL; P290 ACKT 1806PDR-FWE; P290 ACKT 1806PDR-FW |
| Product Service Code | 3455 |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Country of Origin | Israel |
| MSC Number | MSC# 40875163 |
