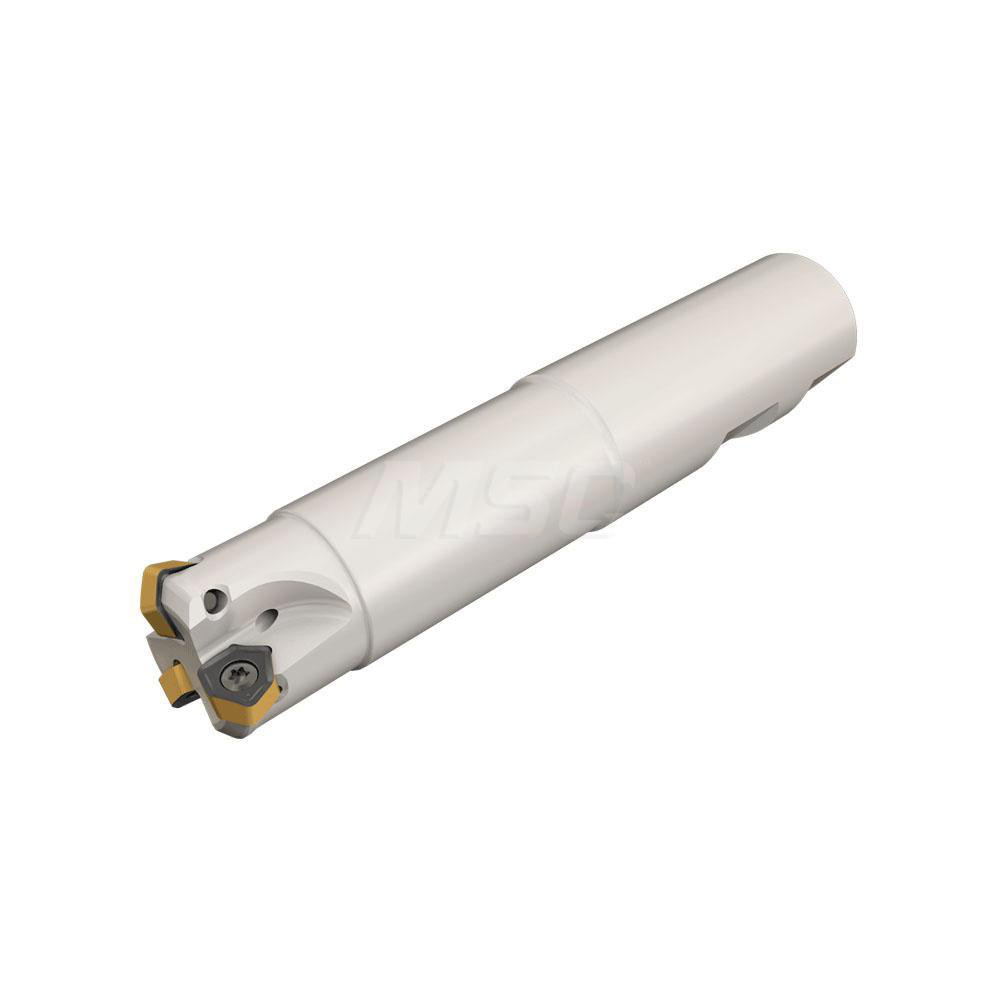

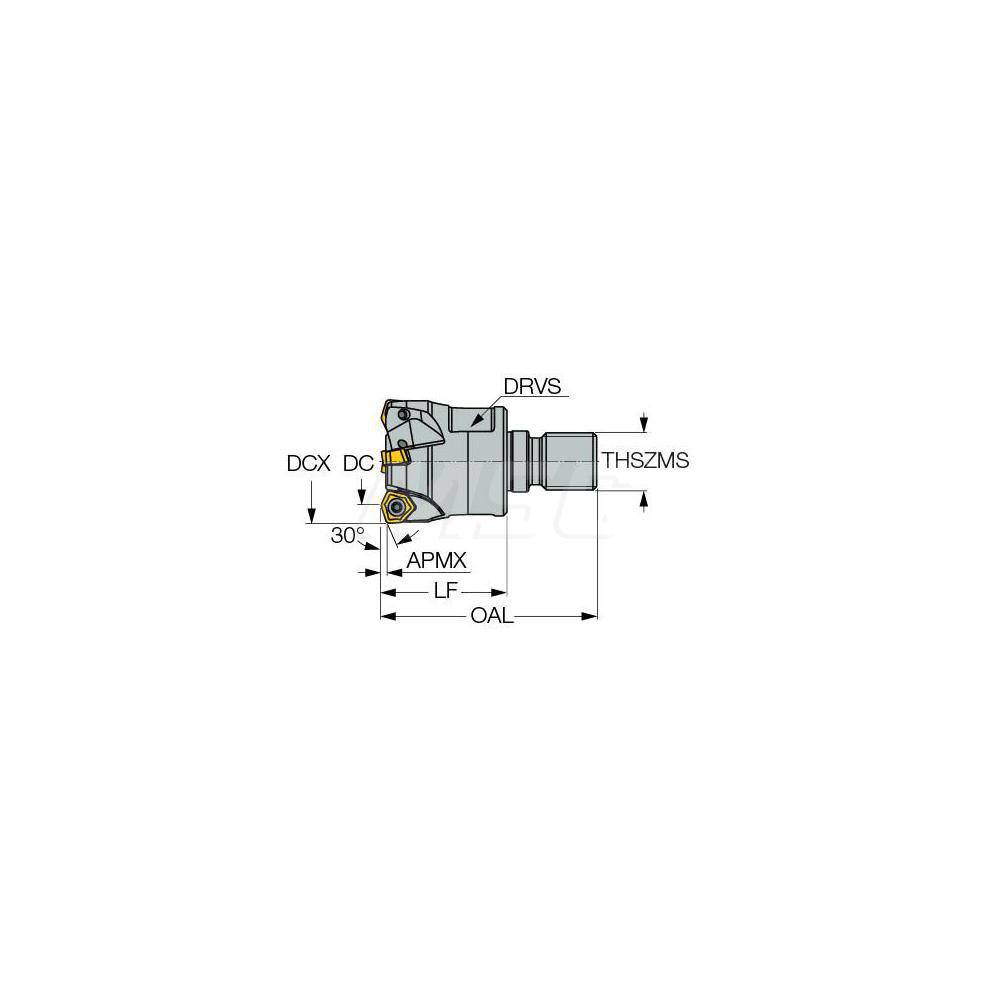

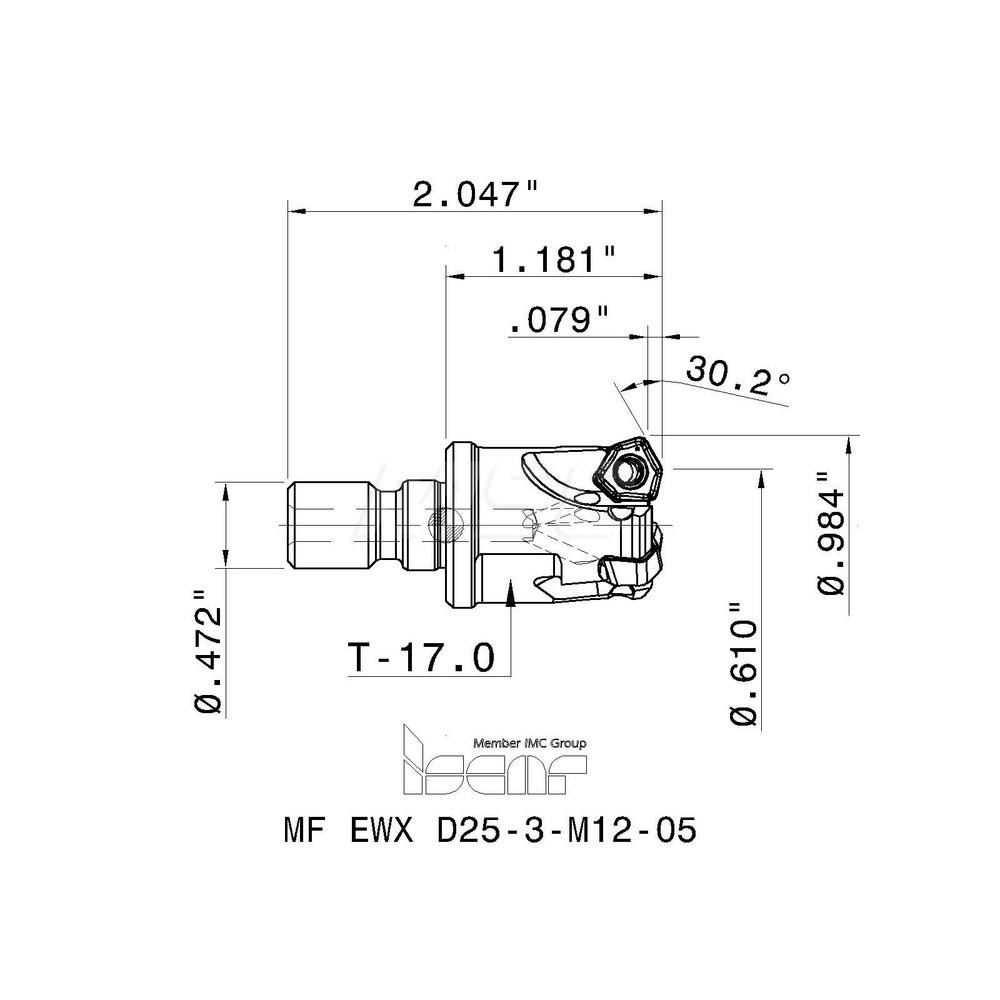

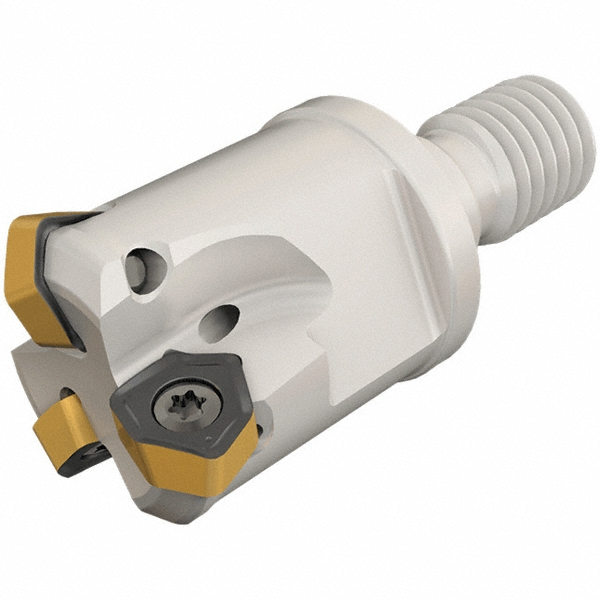

Takes 3 Inserts, H600 WXCU 05 Insert Style, MF EWX-M Toolholder, 52mm OAL, 0.0787" Max Depth of Cut
| Minimum Cutting Diameter (Decimal Inch) | 0.6102 |
|---|---|
| Minimum Cutting Diameter (mm) | 15.50 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9843 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.00 |
| Compatible Insert Size Code | H600 WXCU 05 |
| Number Of Cutter Inserts | 3 |
| Insert Style | H600 WXCU 05 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 2.0472 |
| Overall Length (mm) | 52.00 |
| Series | Helido |
| Toolholder Style | MF EWX-M |
| Functional Length (Decimal Inch) | 1.1810 |
| Modular Connection Size | M12 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (Decimal Inch) | 1.1811 |
| Head Length (mm) | 30.00 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| Shank Type | Modular Connection |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91122622 |
