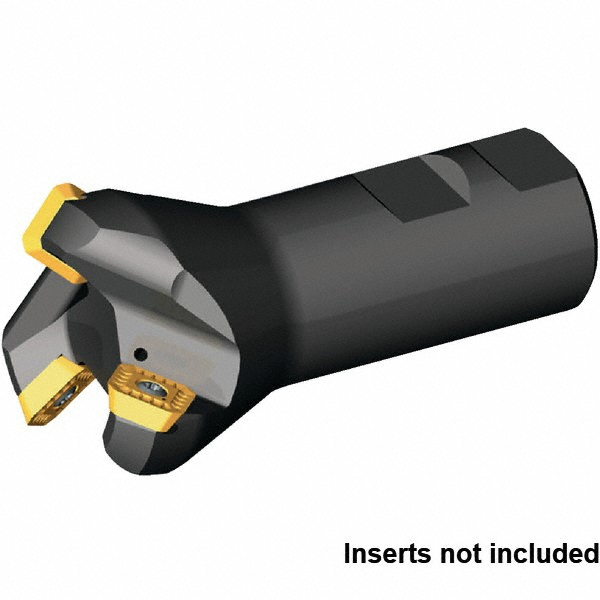

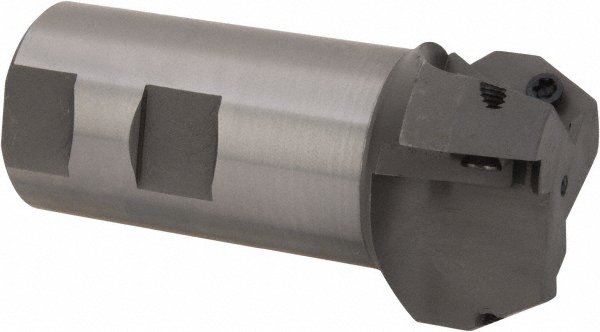

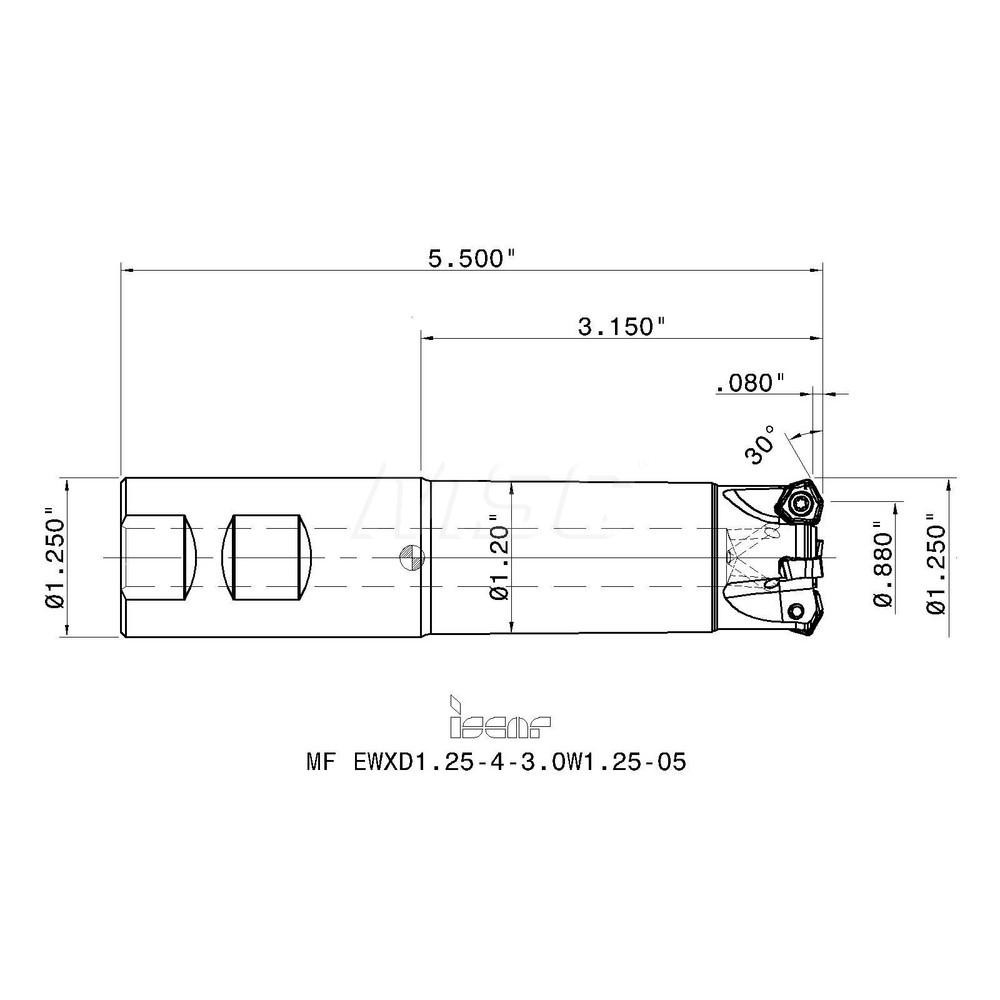

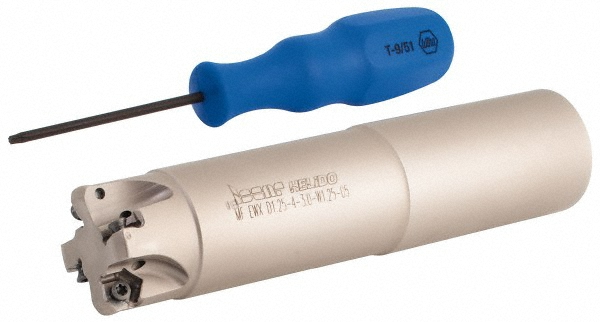

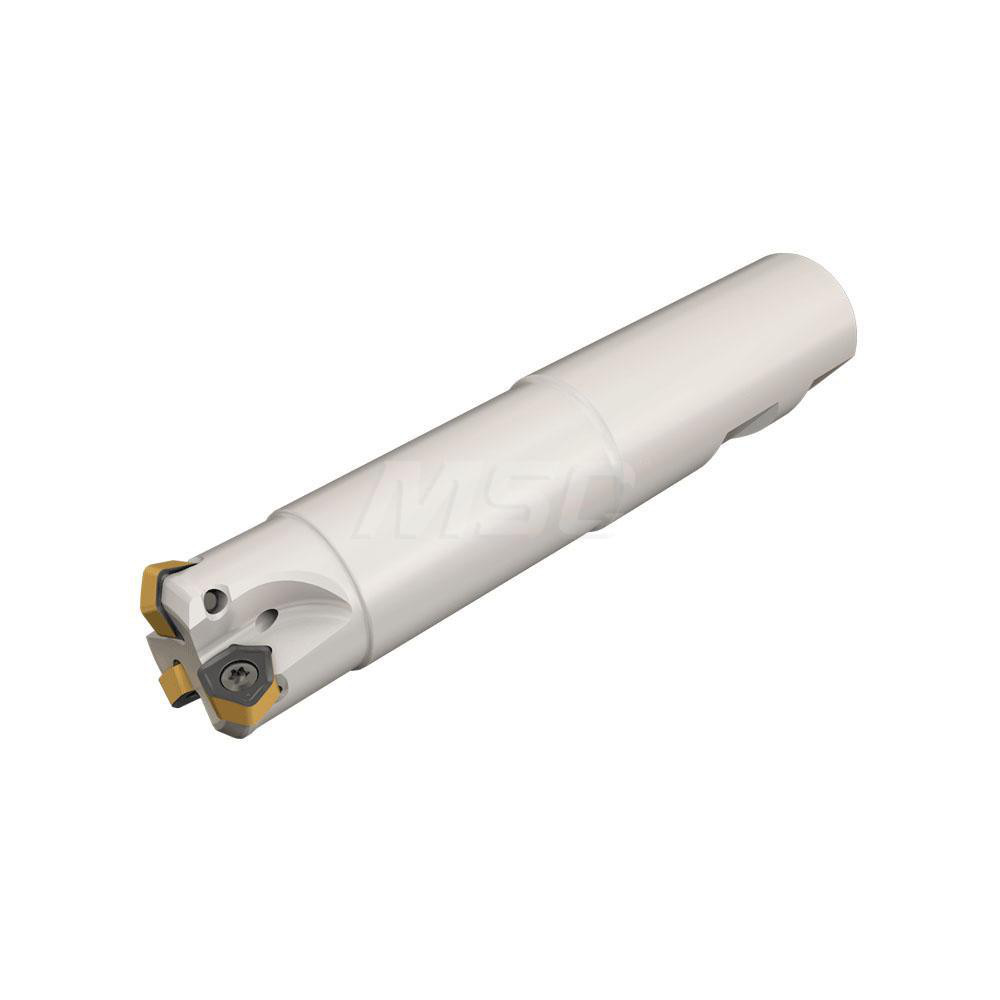

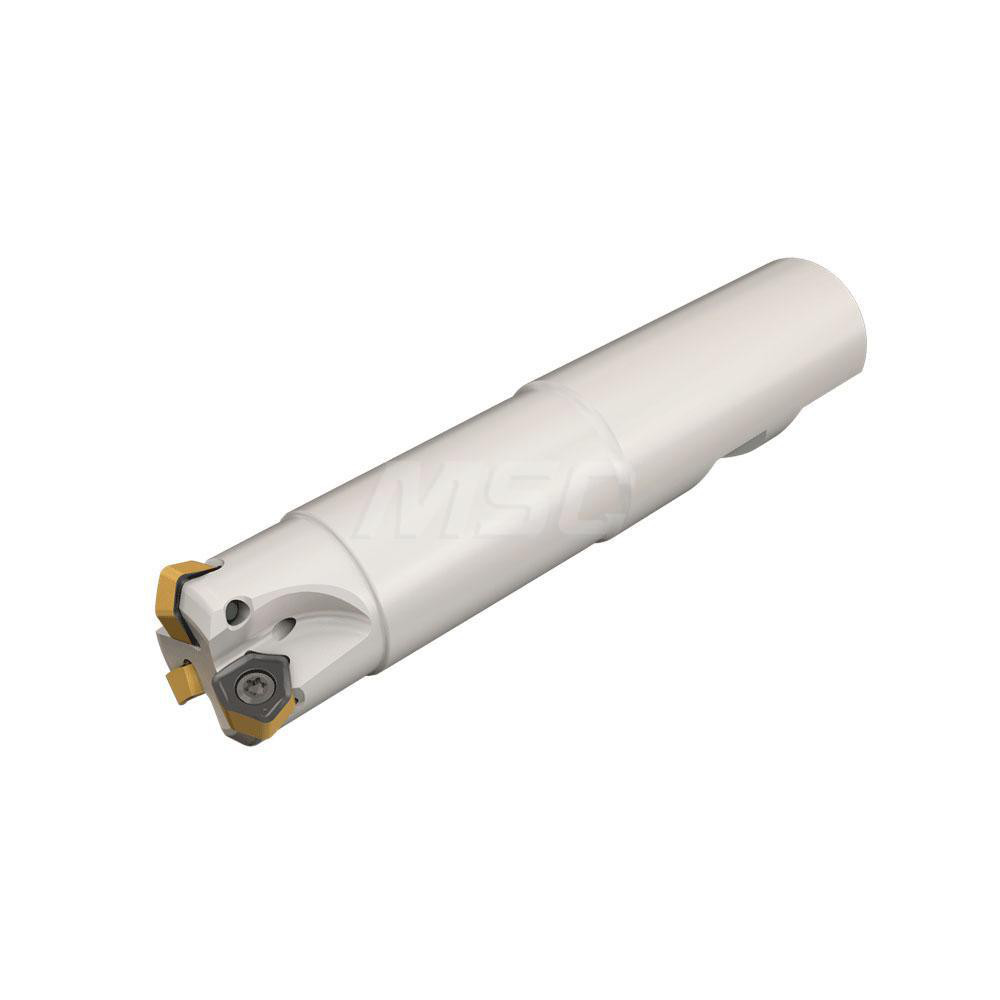

Takes 4 Inserts, H600 WXCU 05 Insert Style, MF EWX Toolholder, 5-1/2" OAL, 0.08" Max Depth of Cut
| Minimum Cutting Diameter (Decimal Inch) | 0.8800 |
|---|---|
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |

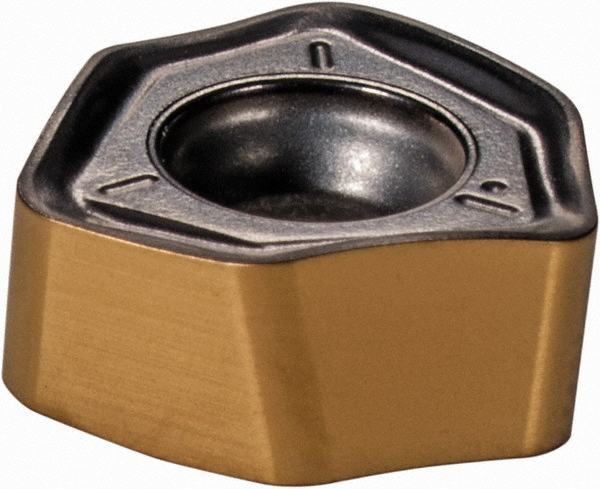

| Compatible Insert Size Code | H600 WXCU 05 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number Of Cutter Inserts | 4 |
| Insert Style | H600 WXCU 05 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 5.5000 |
| Series | Helido |
| Toolholder Style | MF EWX |
| Functional Length (Decimal Inch) | 3.1500 |
| Maximum Body Diameter (Decimal Inch) | 1.2500 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (Decimal Inch) | 3.1500 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| Shank Type | Weldon Flat |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 65895849 |
