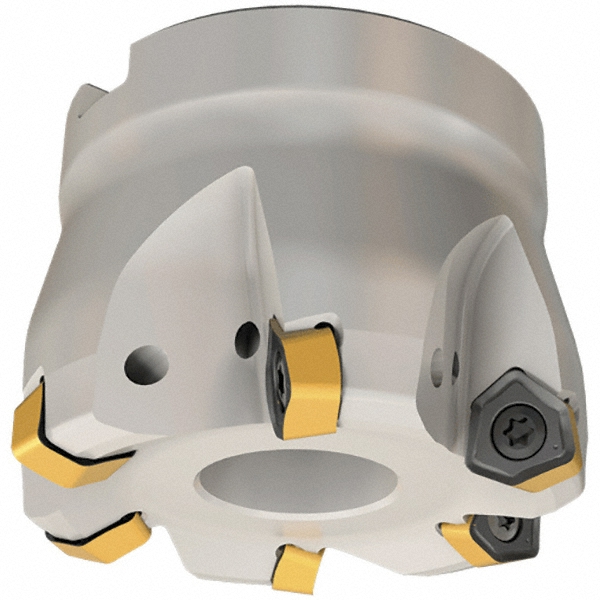

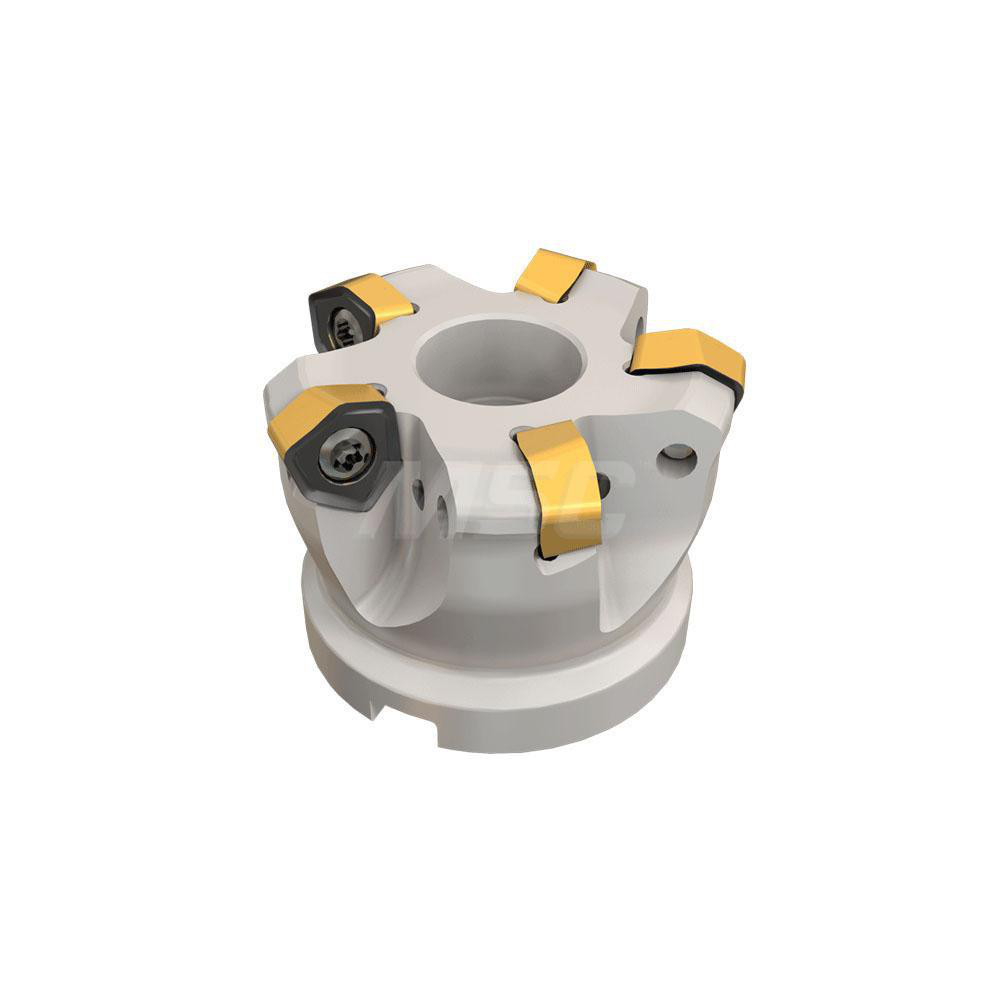

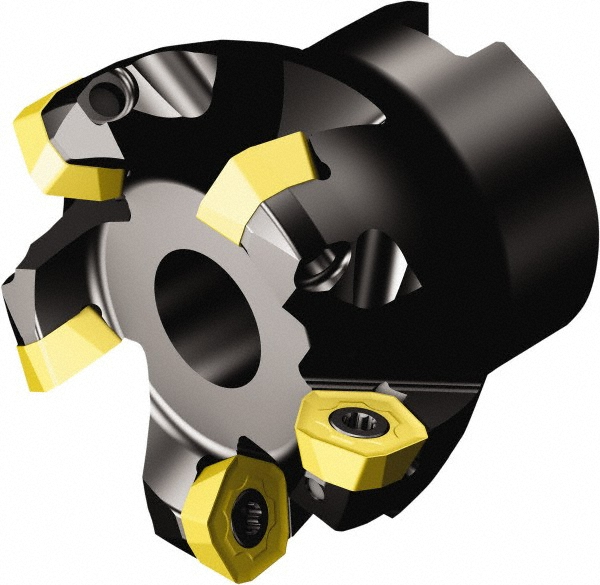

Takes 7 Inserts, H600 WXCU 08 Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series Helido

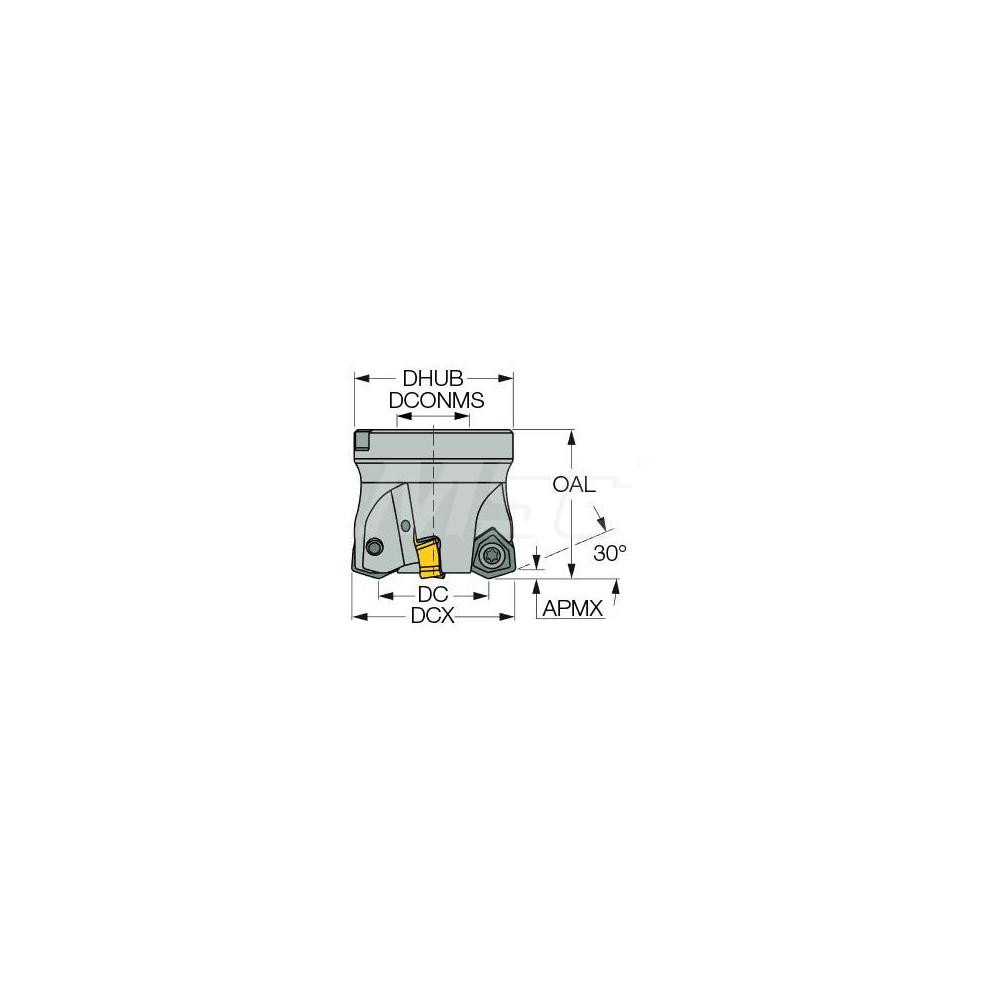

| Minimum Cutting Diameter (Decimal Inch) | 3.3980 |
|---|---|
| Maximum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |

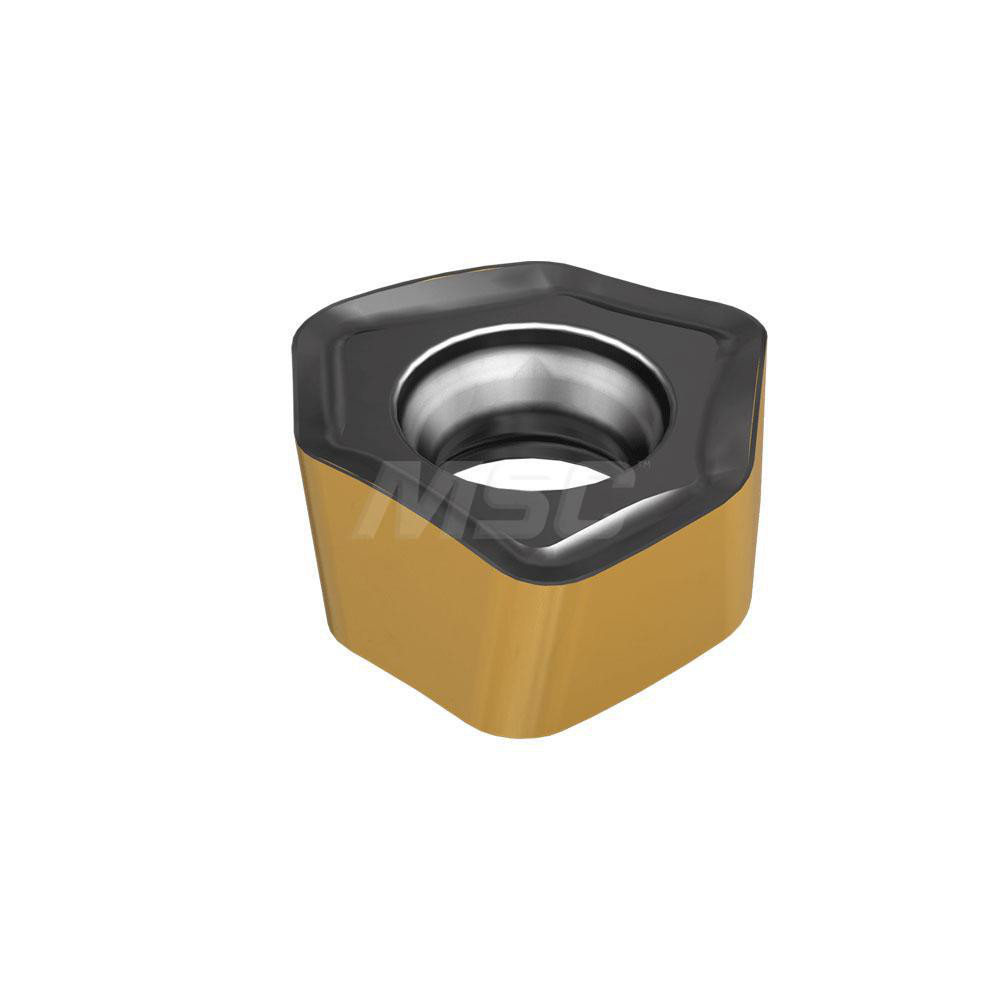

| Compatible Insert Size Code | H600 WXCU 08 |
| Cutter Style | MF FWX-08 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | Helido |
| Hub Diameter (Decimal Inch) | 3.1100 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum Body Diameter (Decimal Inch) | 4.0000 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0470 |
| Complete Insert Compatibility | H600 WXCU 08 |

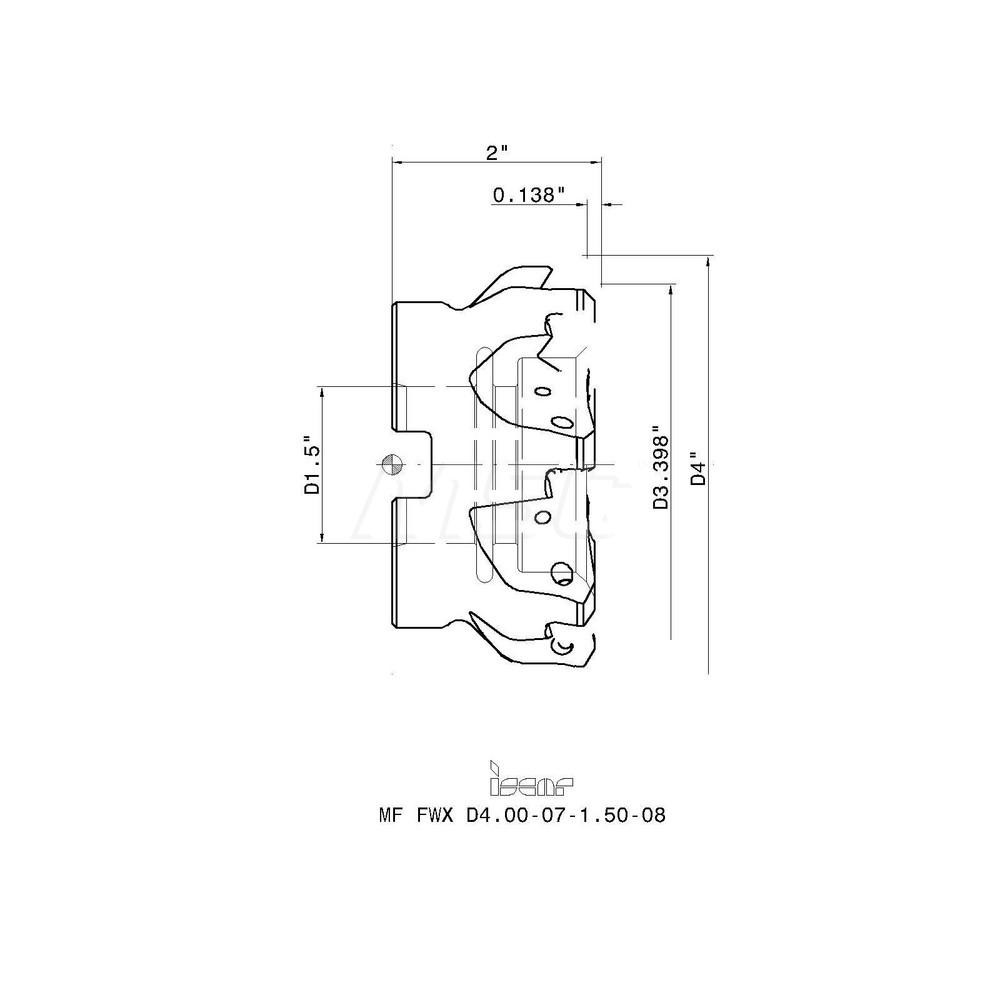

| Manufacturers Catalog Number | MF FWX D4.00-07-1.50-08 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Number Of Flutes | 7 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 37767399 |
