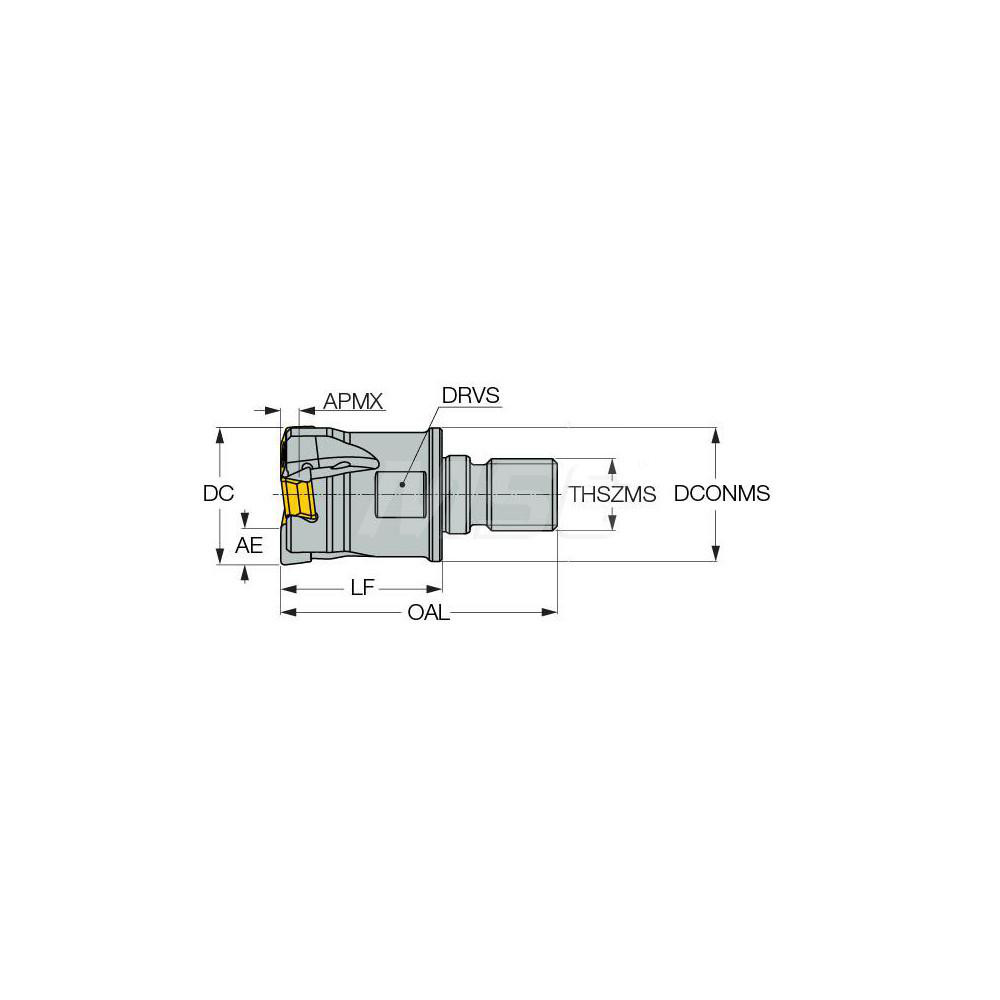

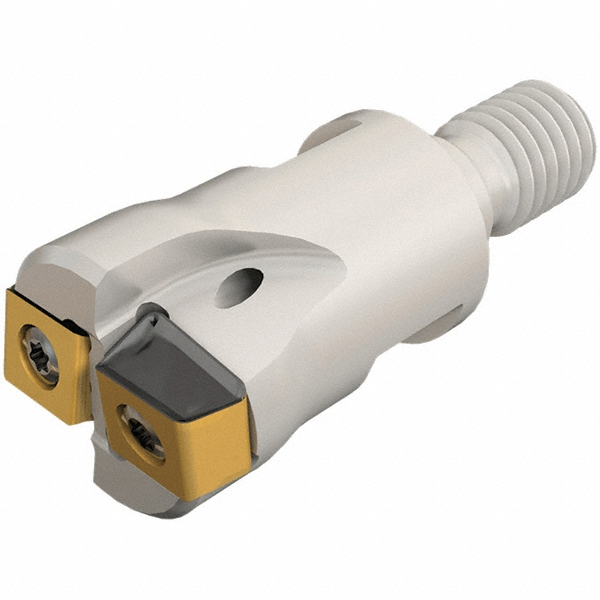

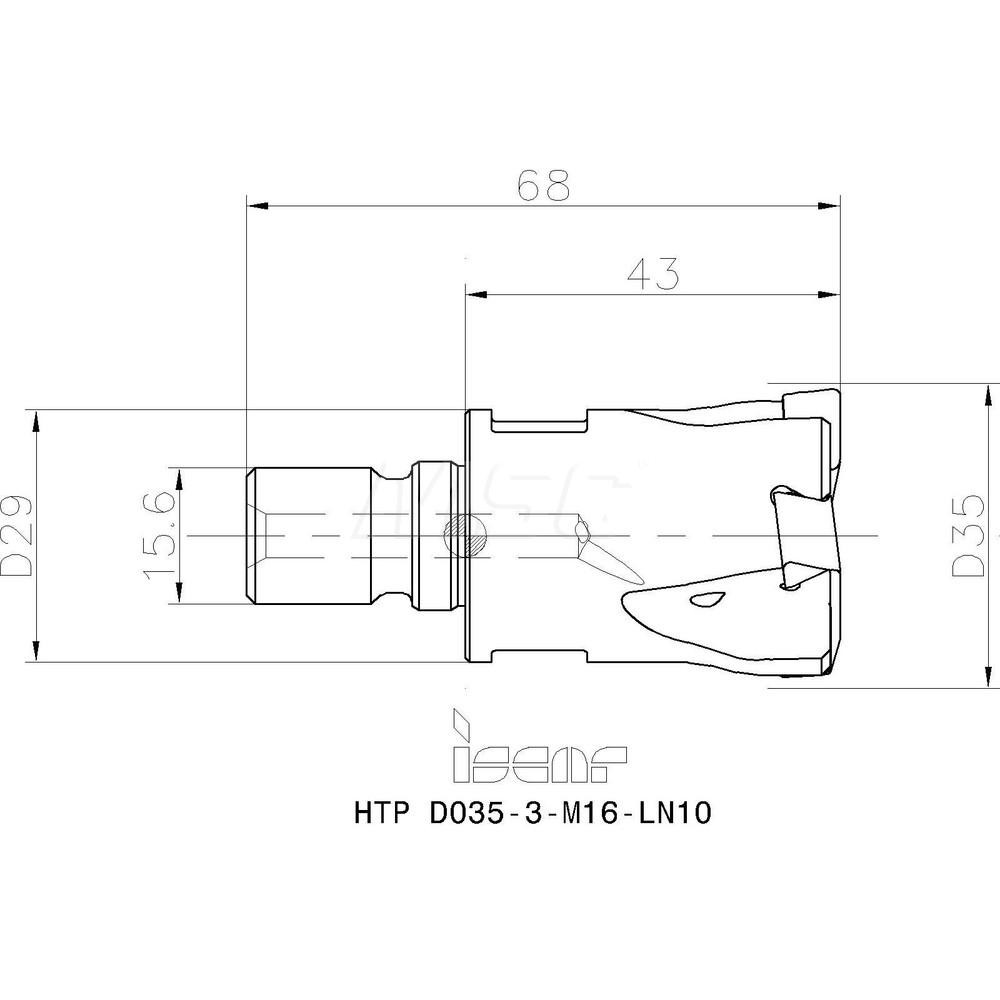

M16 Modular Connection, Uses HTP LNHT 1006 Insert Style, HTP-M-LN10 Toolholder Style, Through Coolant, Series FlexFit, TangPlunge
| Maximum Cutting Diameter | 35 mm |
|---|---|
| Toolholder Style | HTP-M-LN10 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 29.00 |
| Compatible Insert Style | HTP LNHT 1006 |
| Compatible Insert Size Code | 1006 |
| Insert Holding Method | Clamp |
| Number Of Cutter Inserts | 3 |
| Through Coolant | Yes |
| Series | FlexFit, TangPlunge; TangPlunge |
| Shank Length | 25 mm |
| Functional Length | 43 mm |
| Rake | Positive |
| Modular Connection Size | M16 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Standards | ISO 13399 |
| Number Of Flutes | 3 |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91149112 |
