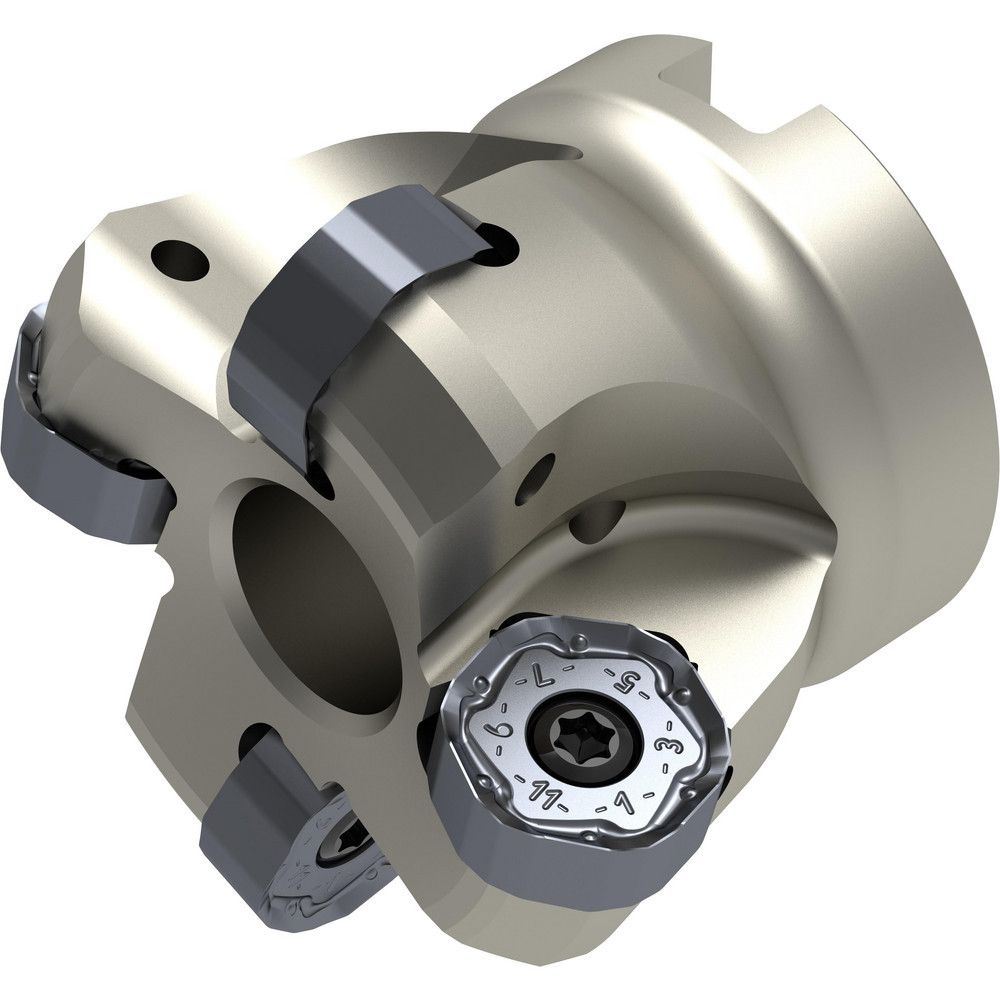

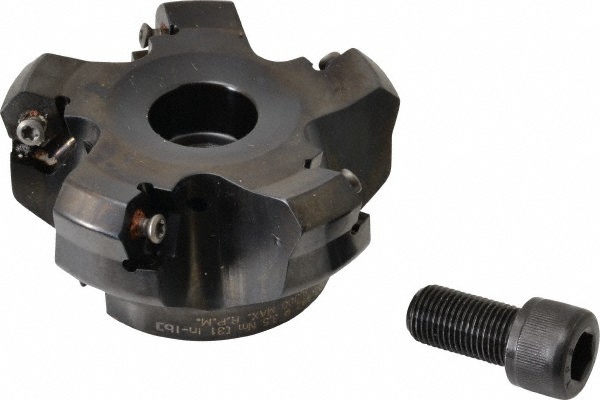

Takes 6 Inserts, LN.. 1506.. Insert, Right Hand Cut, 6 Flutes, Series TangMill
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.7900 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | LN 1506 |

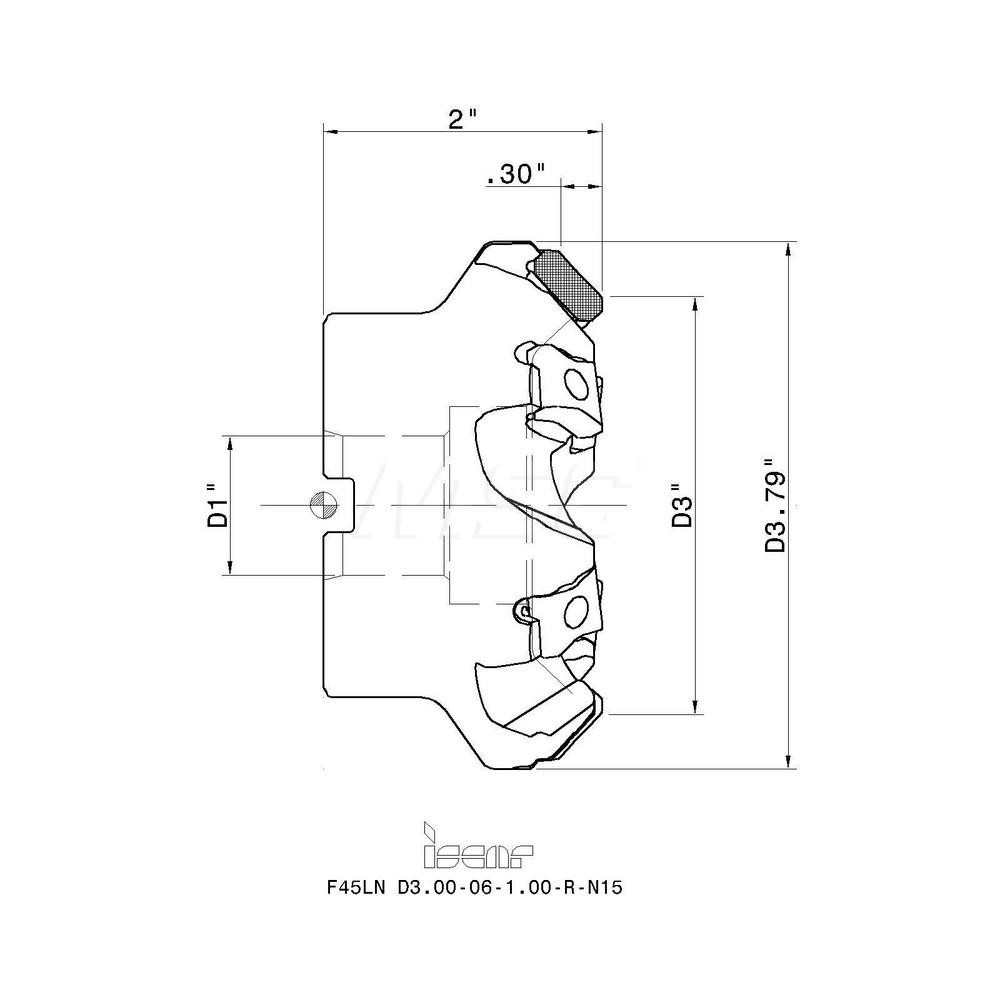

| Cutter Style | F45LN-N15 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | TangMill |
| Hub Diameter (Decimal Inch) | 2.7600 |
| Overall Height (Decimal Inch) | 2.0000 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | LNKX 150608ANTN MM; LNHW 1506 ANTN; LNMW 150608 ANTN; LNKX 150608AN-N PL; LNMT 150608ANTN MM; LNAT 1506AN-W |
| Number Of Cutter Inserts | 6 |
| Coolant Through | No |
| Number Of Flutes | 6 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 81006637 |
