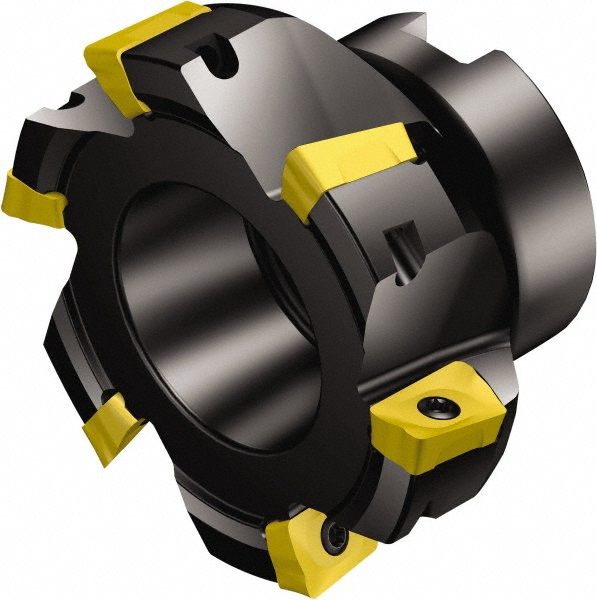

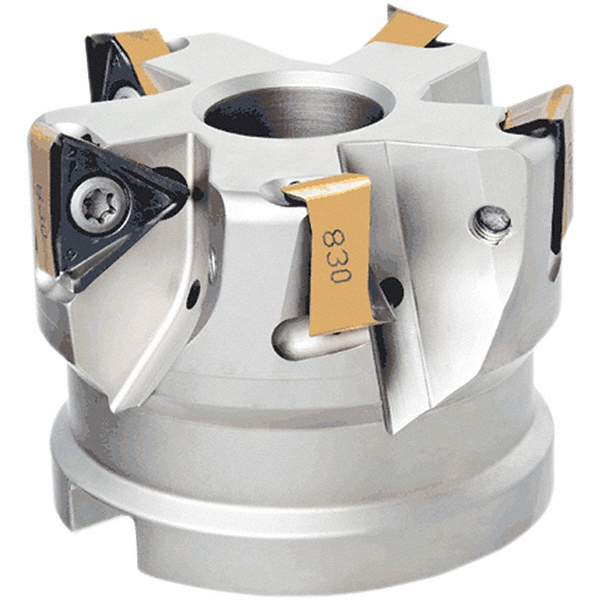

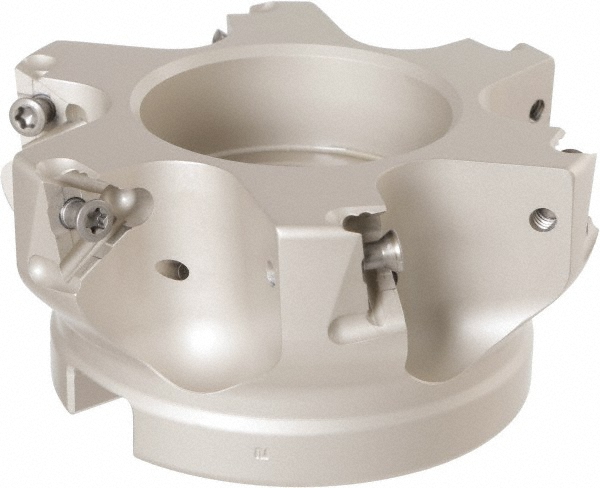

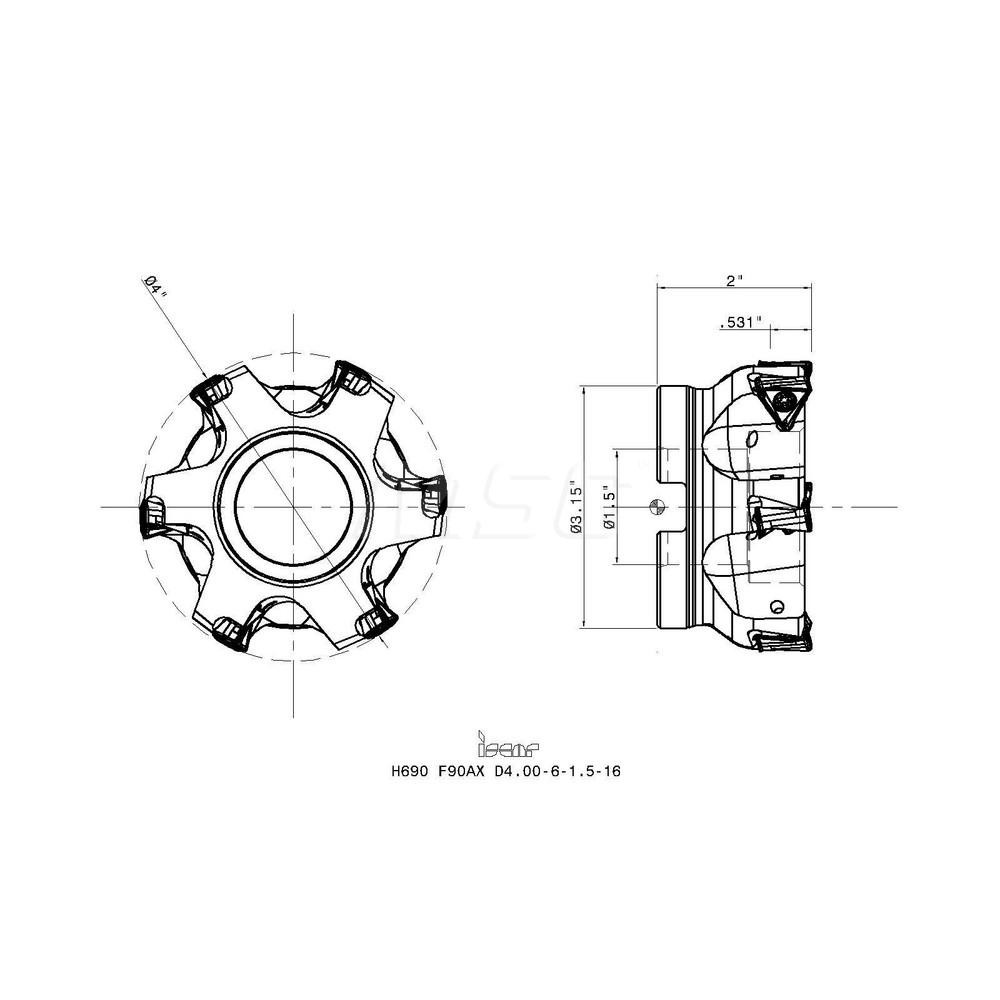

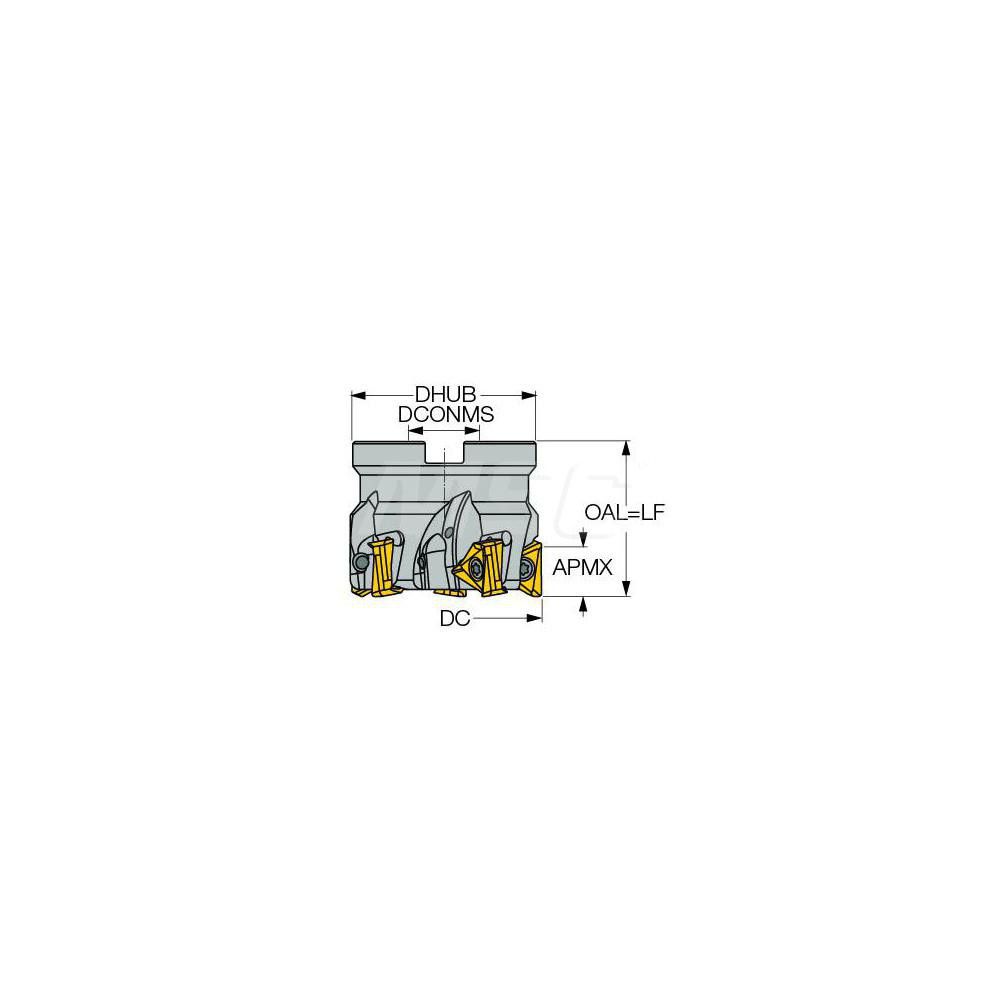

Takes 6 Inserts, 90° Lead Angle, 2" High, H690 TNKX 160610 Insert Style, Through Coolant
| Maximum Cutting Diameter (Inch) | 4 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5310 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | H690 TNKX 160610 |
| Cutter Style | H690 F90AX |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | Helido |
| Maximum Ramping Angle | 1.00 |
| Overall Height (Decimal Inch) | 2.0000 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Hub Diameter (mm) | 3.15 |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 2.0300 |
| Complete Insert Compatibility | H690 TNKX 160610PNTR |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.3750 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Israel |
| MSC Number | MSC# 40509713 |
