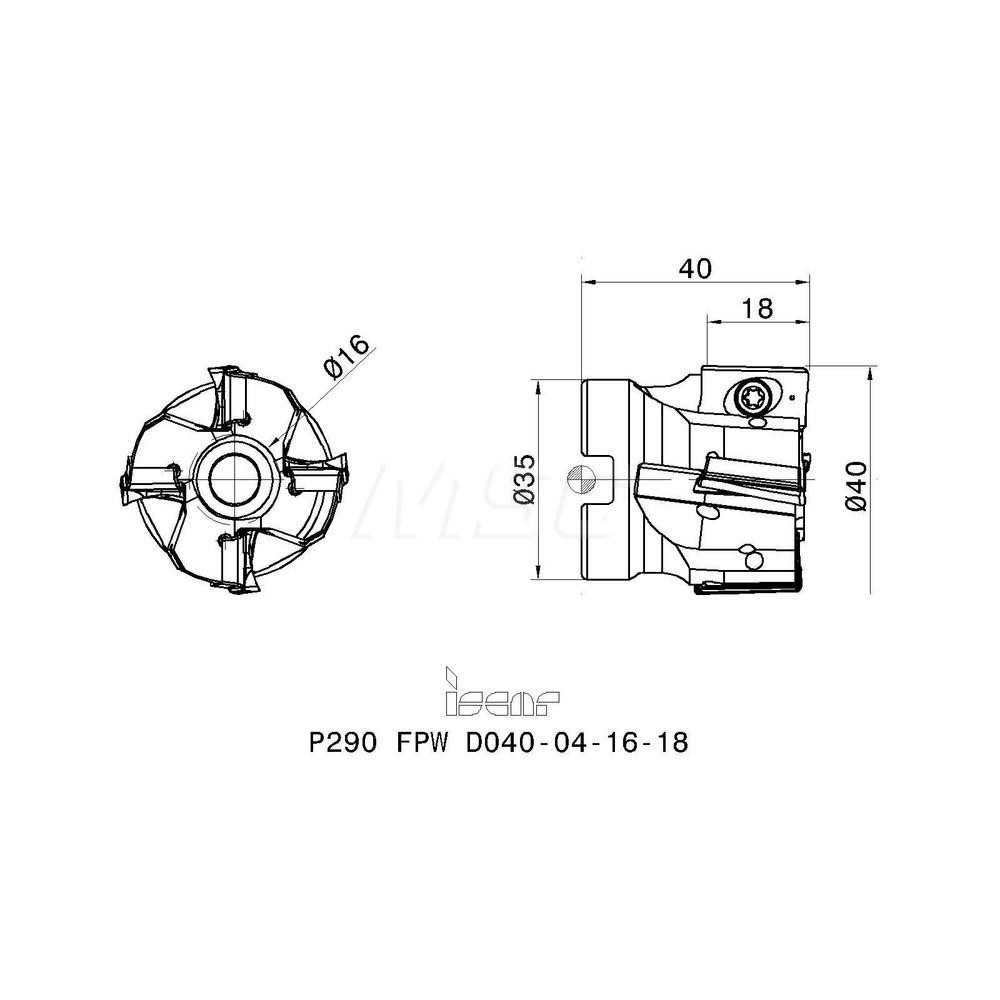

Takes 4 Inserts, 0° Lead Angle, 40mm High, P290 AC.T 1806.. Insert Style, Through Coolant, Series MillShred
| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
|---|---|
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Compatible Insert Size Code | P290 AC T1806 |
| Cutter Style | P290 FPW |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | MillShred |
| Maximum Ramping Angle | 1.50 |
| Overall Height (Decimal Inch) | 1.5748 |
| Keyway Width (mm) | 8.40 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Hub Diameter (mm) | 35.00 |
| Hub Diameter (Decimal Inch) | 1.3780 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 0.5315 |
| Complete Insert Compatibility | P290 ACKT 1806PDR-FWR; P290 ACCT 1806PDR-HL; P290 ACKT 1806PDR-FWE; P290 ACKT 1806PDR-FW |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30708952 |
