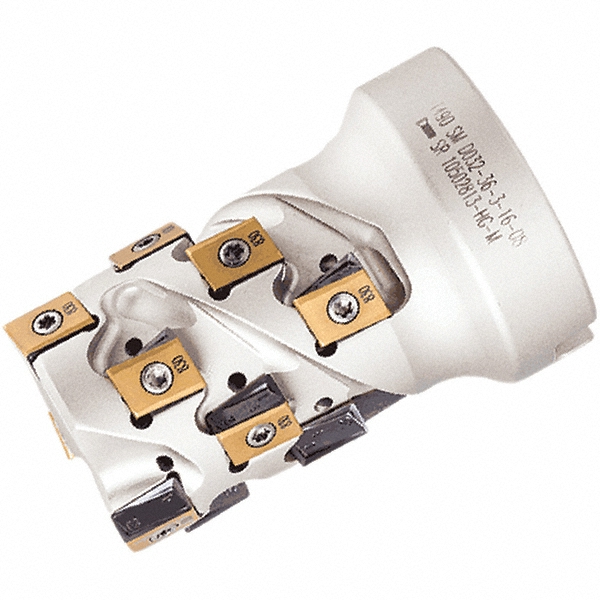

Takes 24 Inserts, 0° Lead Angle, 65mm High, T490 LN.. Insert Style, Through Coolant, Series Helitang
| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
|---|---|
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 44.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.7323 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Compatible Insert Size Code | T490 LN |
| Cutter Style | T490 SM-08 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | Helitang |
| Overall Height (Decimal Inch) | 2.5591 |
| Keyway Width (mm) | 8.40 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Hub Diameter (mm) | 38.00 |
| Hub Diameter (Decimal Inch) | 1.4961 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 0.5315 |
| Complete Insert Compatibility | T490 LNHT 080412PNR; T490 LNHT 080408PNR; T490 LNMT 080408PNR; T490 LNMT 0804PNR; T490 LNHT 080404PNR |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 24 |
| Number Of Flutes | 4 |
| Country of Origin | Israel |
| MSC Number | MSC# 30708150 |
