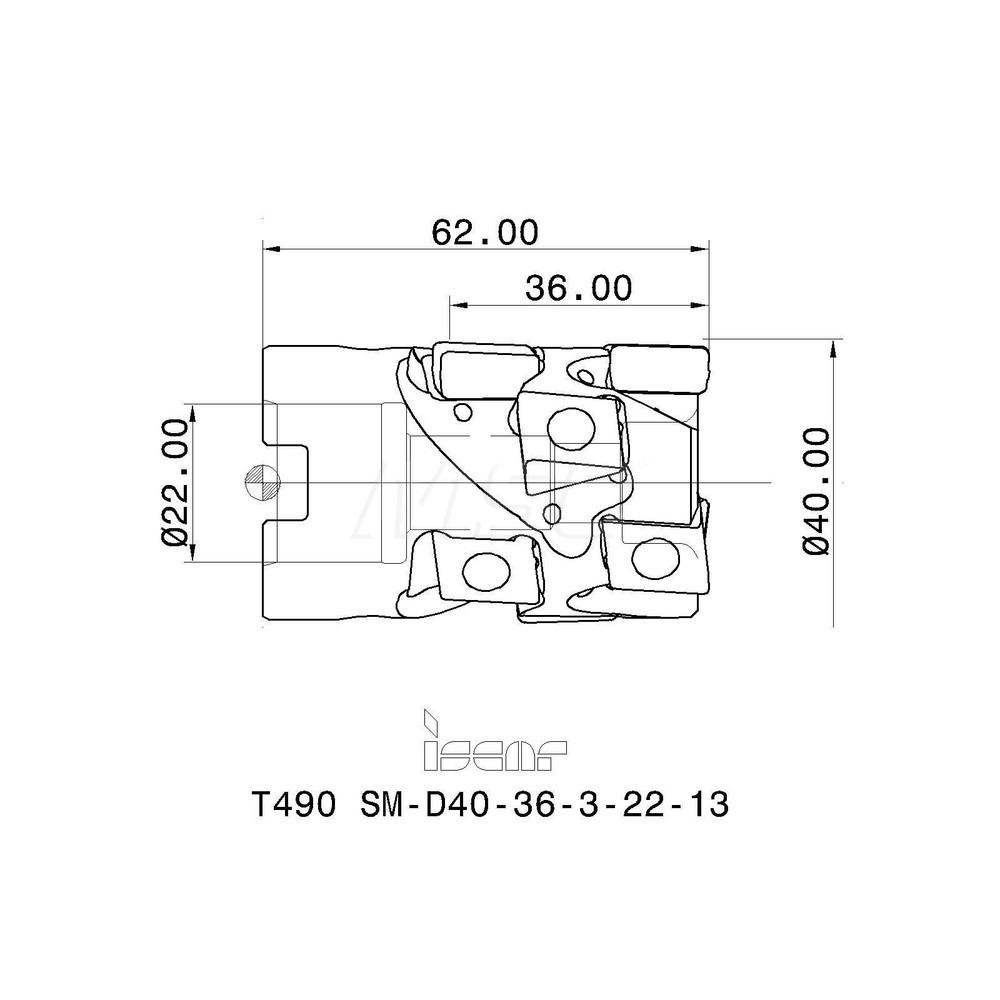

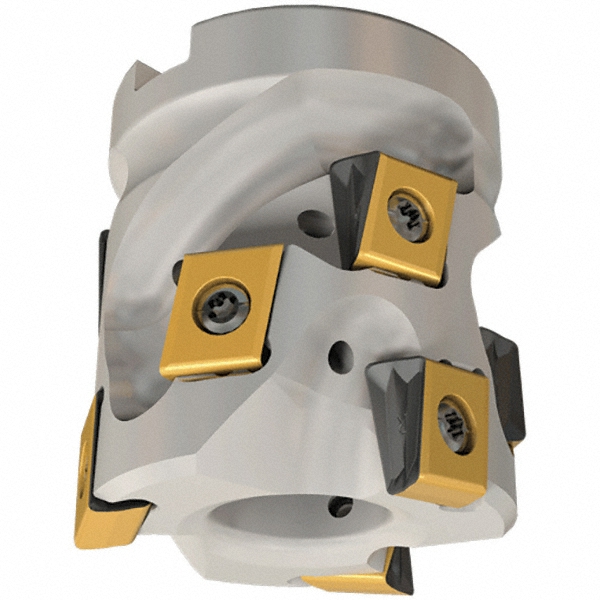

Takes 9 Inserts, 0° Lead Angle, 62mm High, T490 LN.. Insert Style, Through Coolant, Series Helitang

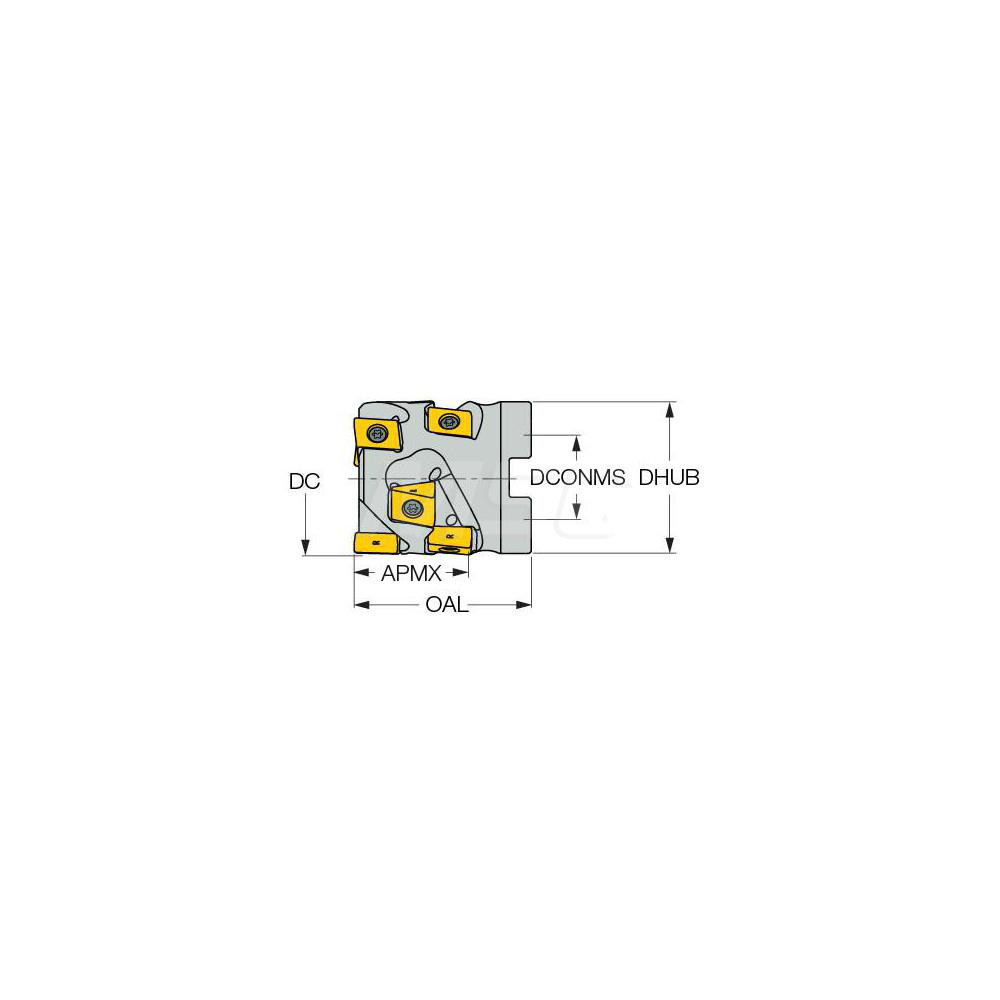

| Maximum Cutting Diameter (Decimal Inch) | 1.5748 |
|---|---|
| Maximum Cutting Diameter (mm) | 40.00 |
| Maximum Depth of Cut (mm) | 36.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.4173 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | T490 LN 1306 |
| Cutter Style | T490 SM-13 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | Helitang |
| Overall Height (Decimal Inch) | 2.4409 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Hub Diameter (mm) | 38.00 |
| Hub Diameter (Decimal Inch) | 1.4961 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 0.7087 |
| Complete Insert Compatibility | T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNAR 1306PN-R-P; T490 LNAR 1306PN-R; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 3 |
| Country of Origin | Israel |
| MSC Number | MSC# 30707533 |
