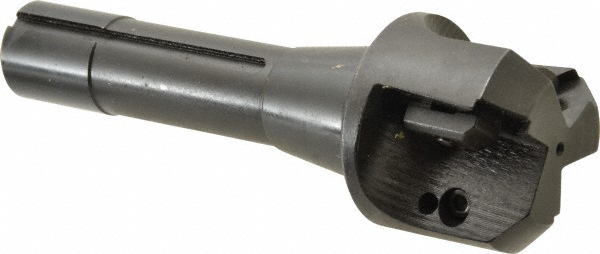

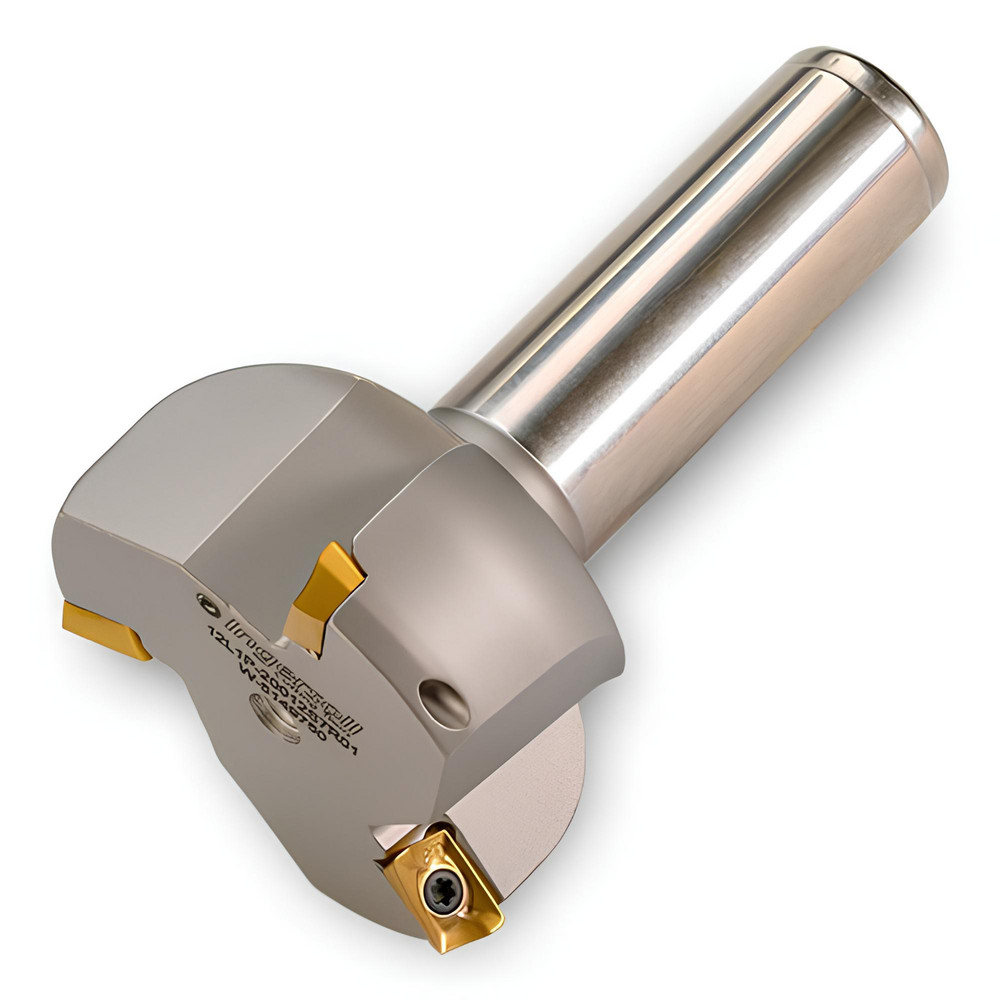

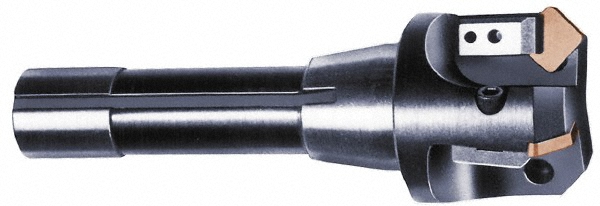

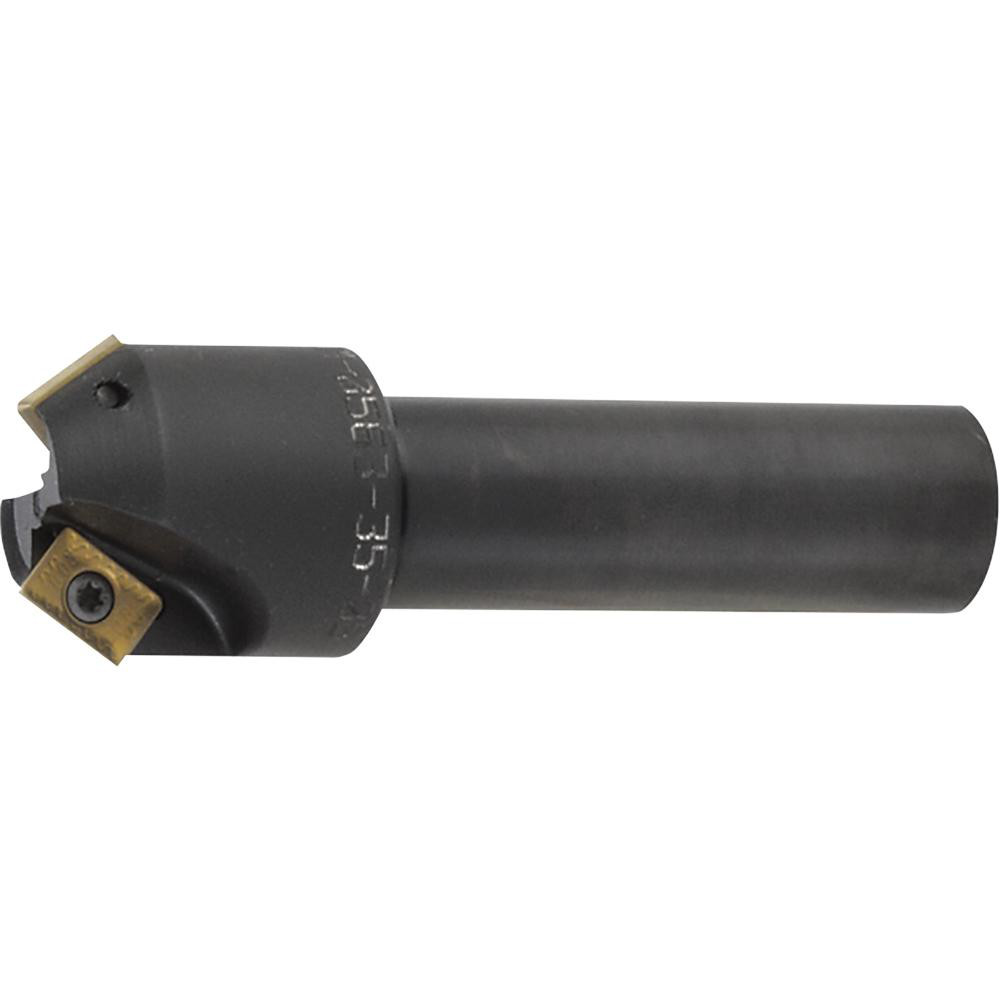

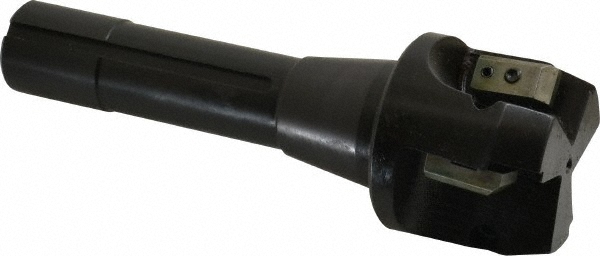

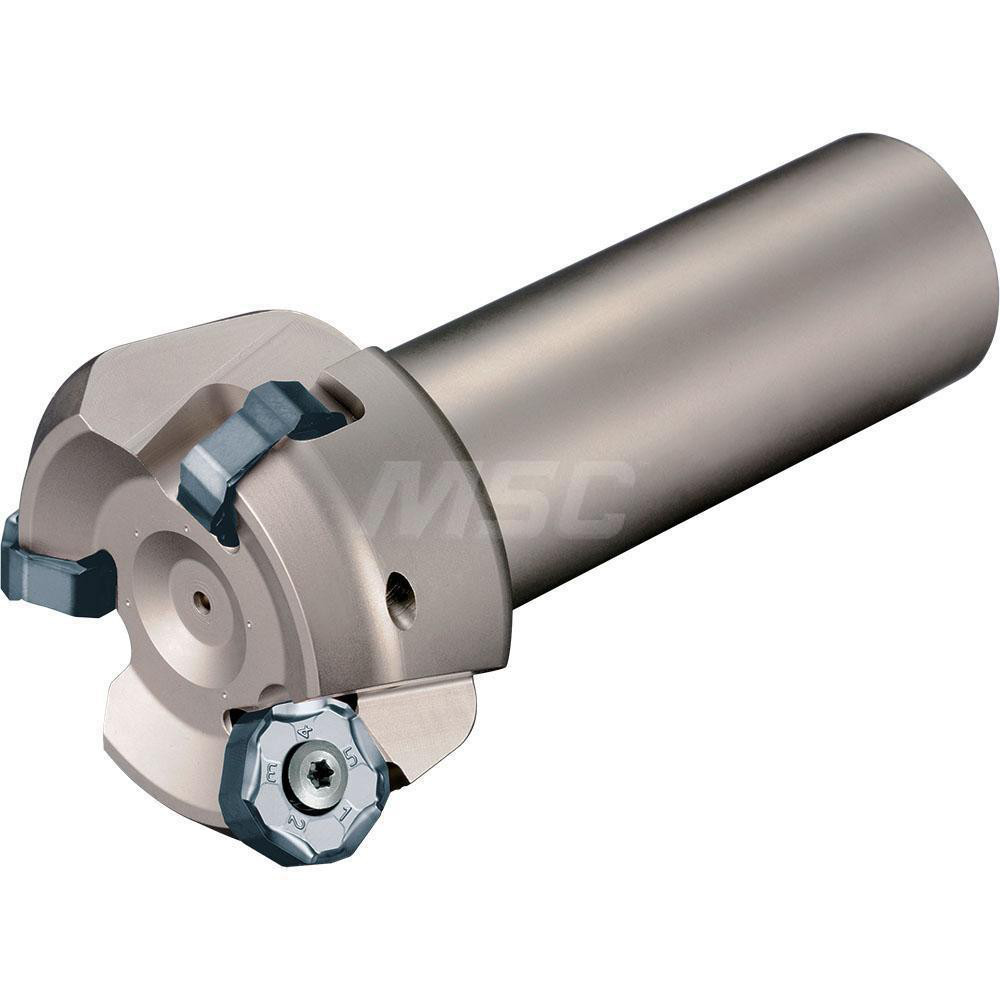

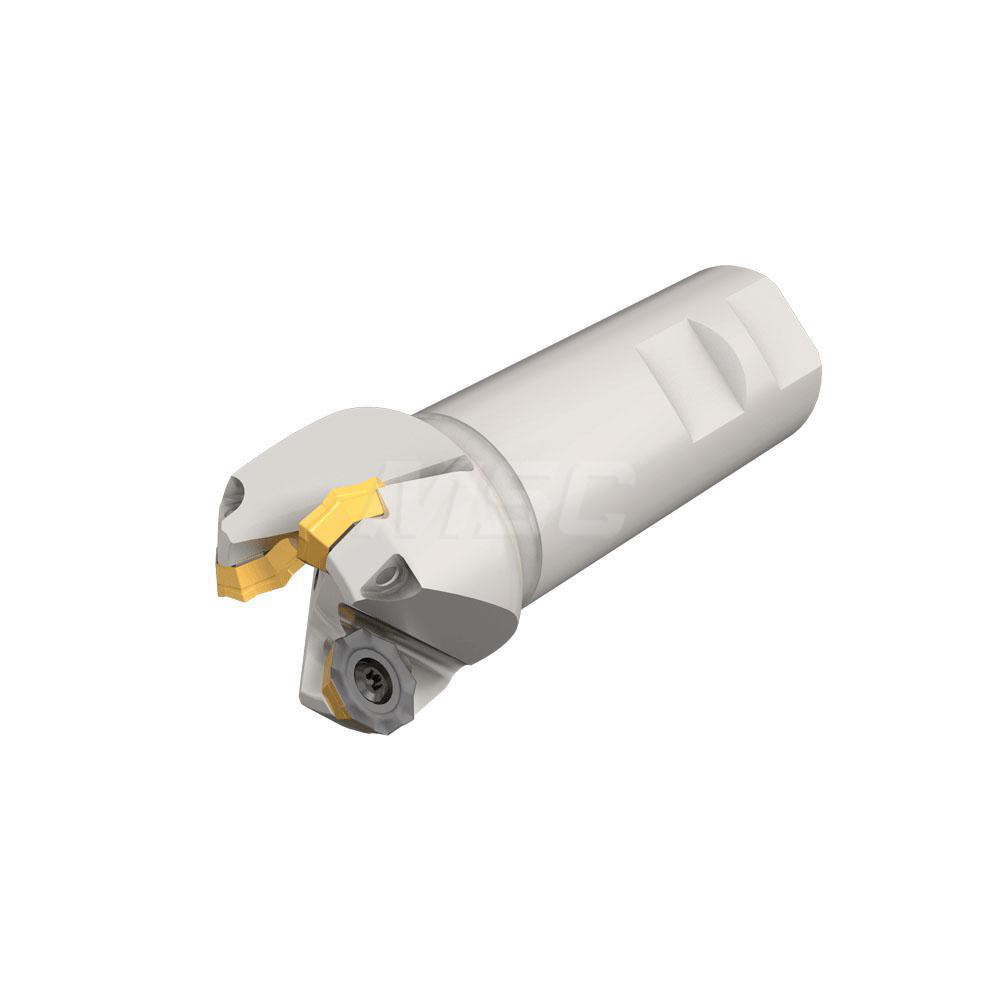

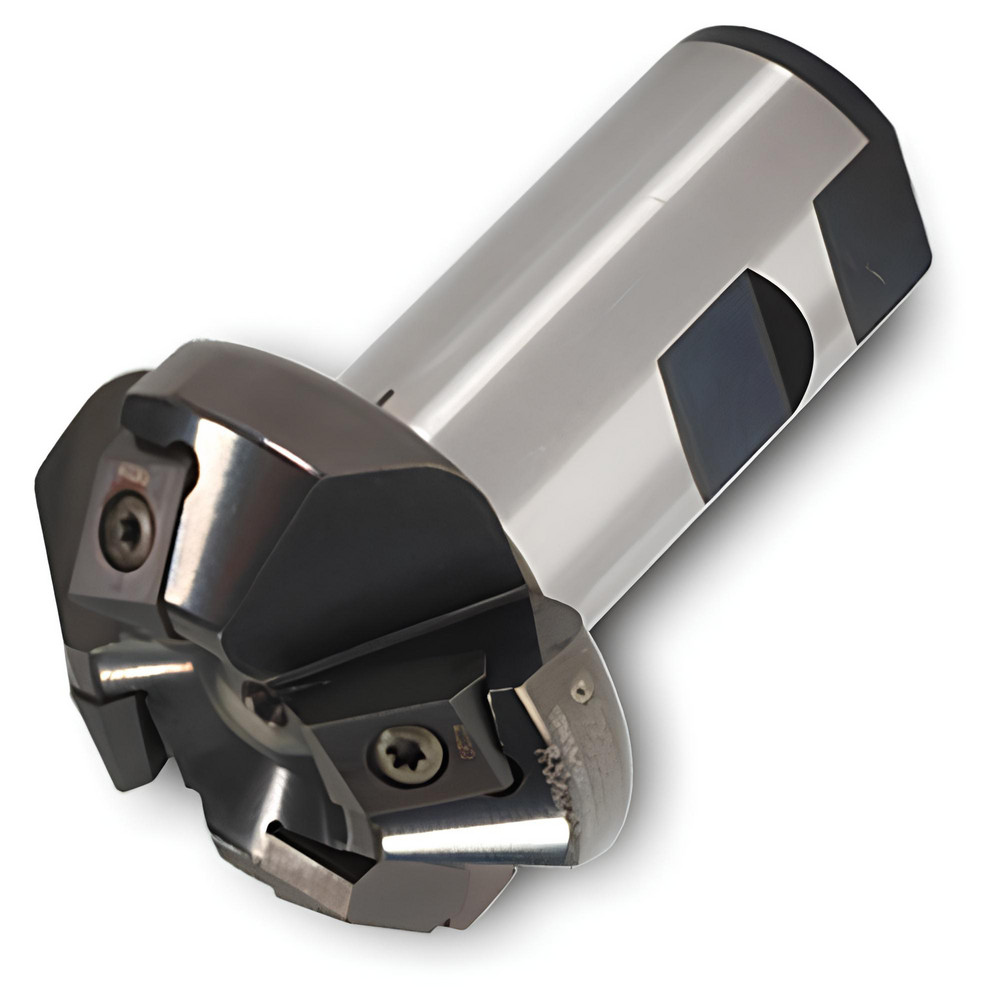

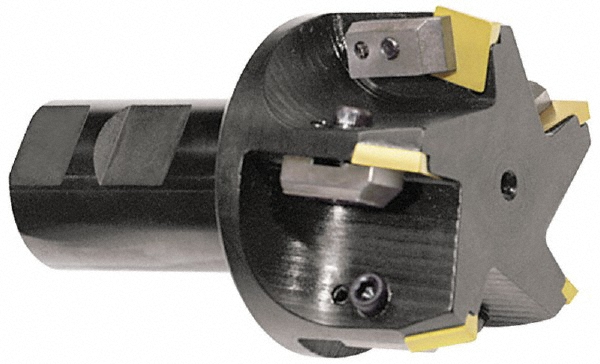

Takes 4 Inserts, OECR, OEMT, OEMW-AETN, REMT, SEMT Insert Style, HOE-R06 Toolholder, 4-1/2" OAL, 0.1" Max Depth of Cut

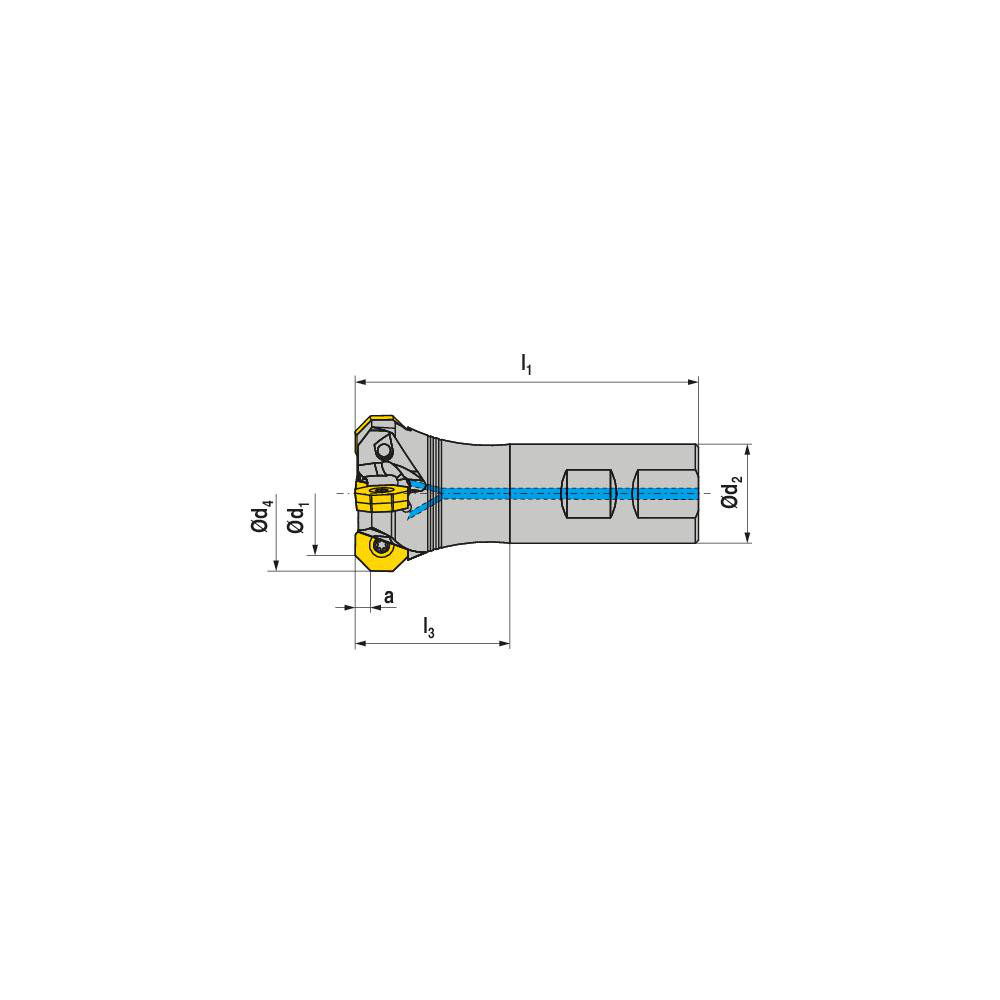

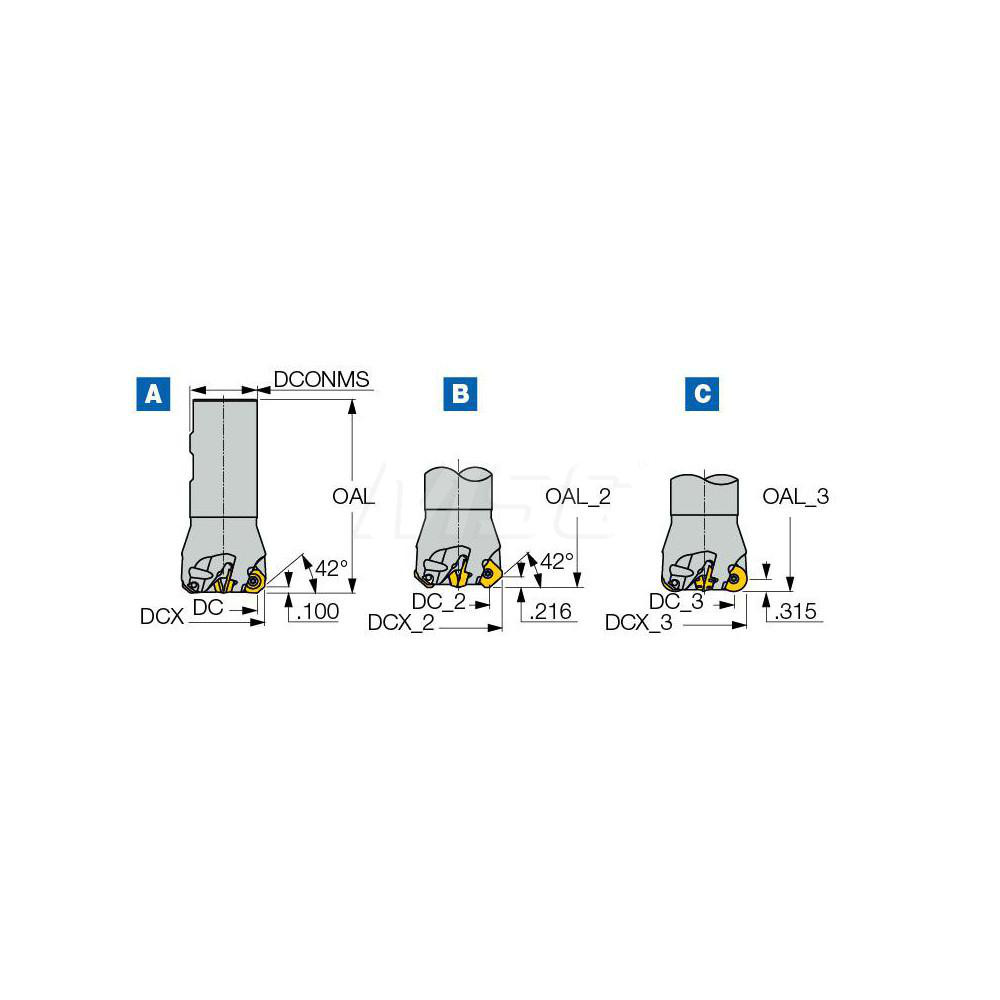

| Minimum Cutting Diameter (Inch) | 2 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.3700 |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number Of Cutter Inserts | 4 |
| Insert Style | OECR; OEMW-AETN; OEMT; REMT; SEMT |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 4.5000 |
| Series | Heliocto |
| Toolholder Style | HOE-R06 |
| Maximum Body Diameter (Decimal Inch) | 1.5000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Complete Insert Compatibility | OEKT 060405AER; OEMW 060405-AETN; OECR 060405AER-P; SEMT 140405ATR; OEMT 060405AER-76; OECR 060405AER; REMT 1505-LM-76 |
| UNSPSC Code | 23291600 |
| Coolant Through | Yes |
| Shank Type | Weldon Flat |
| Country of Origin | Israel |
| MSC Number | MSC# 50067545 |
