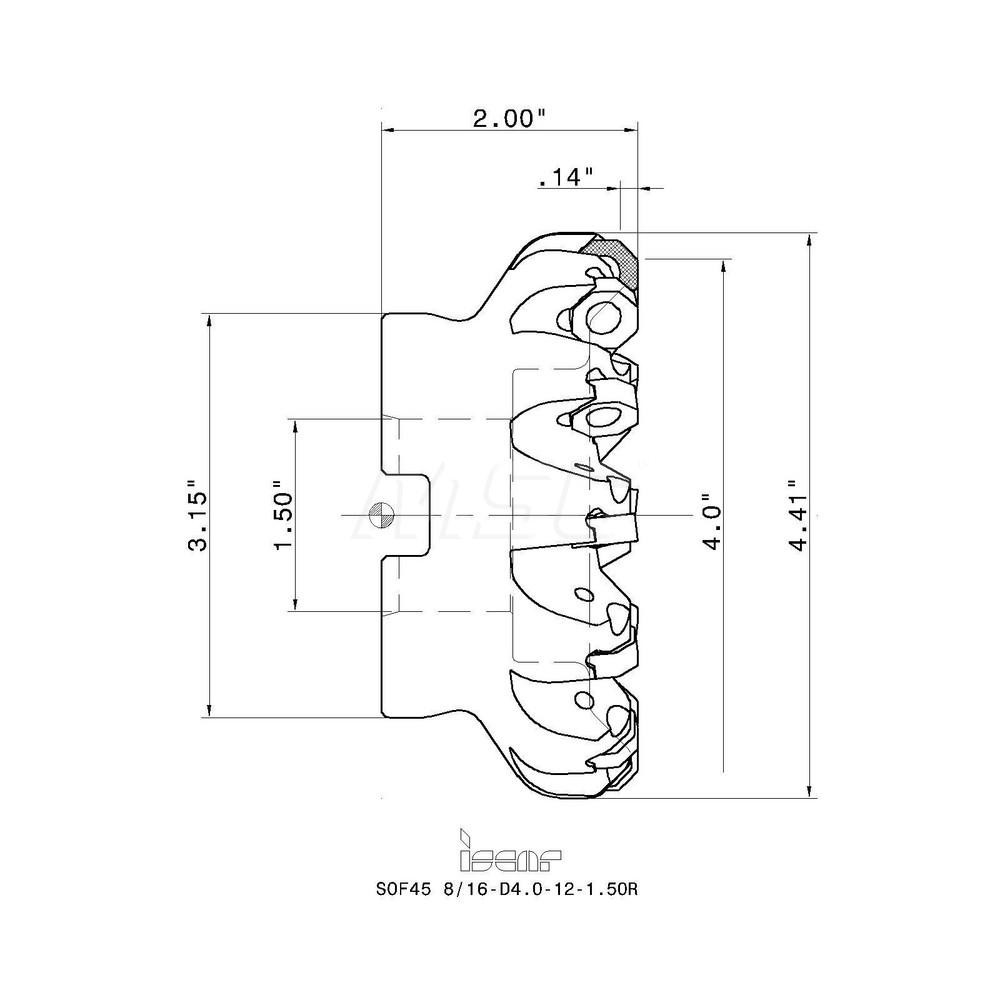

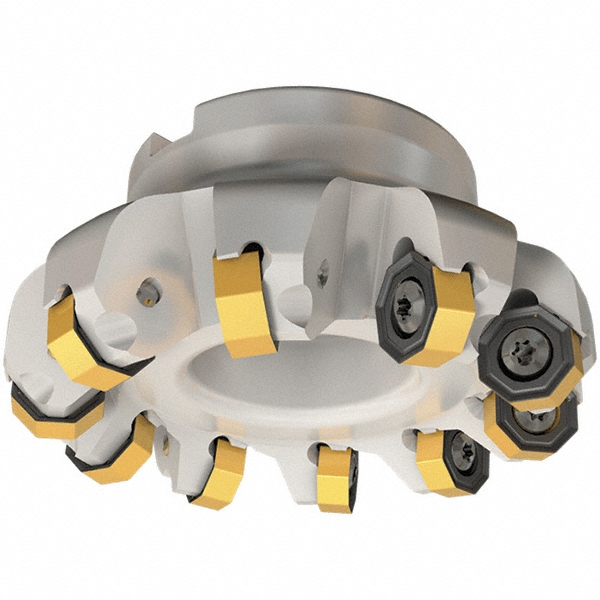

Takes 12 Inserts, ON.. 05..\xB6OXMT 0507\xB6RXMT 1607\xB6S845 SN.U 13 Insert, Right Hand Cut, 12 Flutes, Through Coolant, Series Helido
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 4.4090 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | 13; 05; 0507; 1607 |
| Cutter Style | SOF45 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | Helido |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum Body Diameter (Decimal Inch) | 4.4090 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | ONHU 0505-W; S845 SNHU 1305-W; S845 SNMU/SNHU-13; OXMT 0507; ONHU/ONMU-05; RXMT 1607 |
| Number Of Cutter Inserts | 12 |
| Coolant Through | Yes |
| Number Of Flutes | 12 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| MSC Number | MSC# 03655883 |
