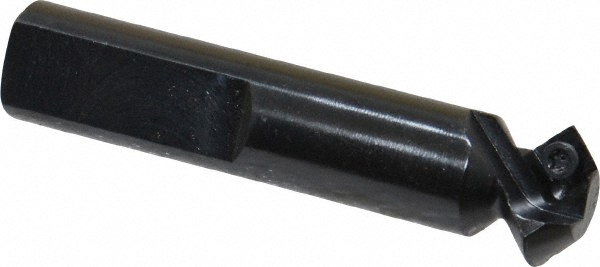

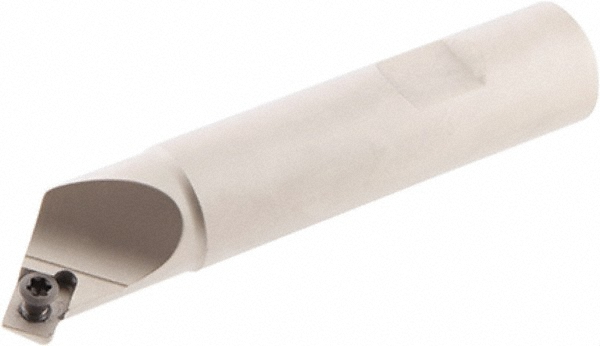

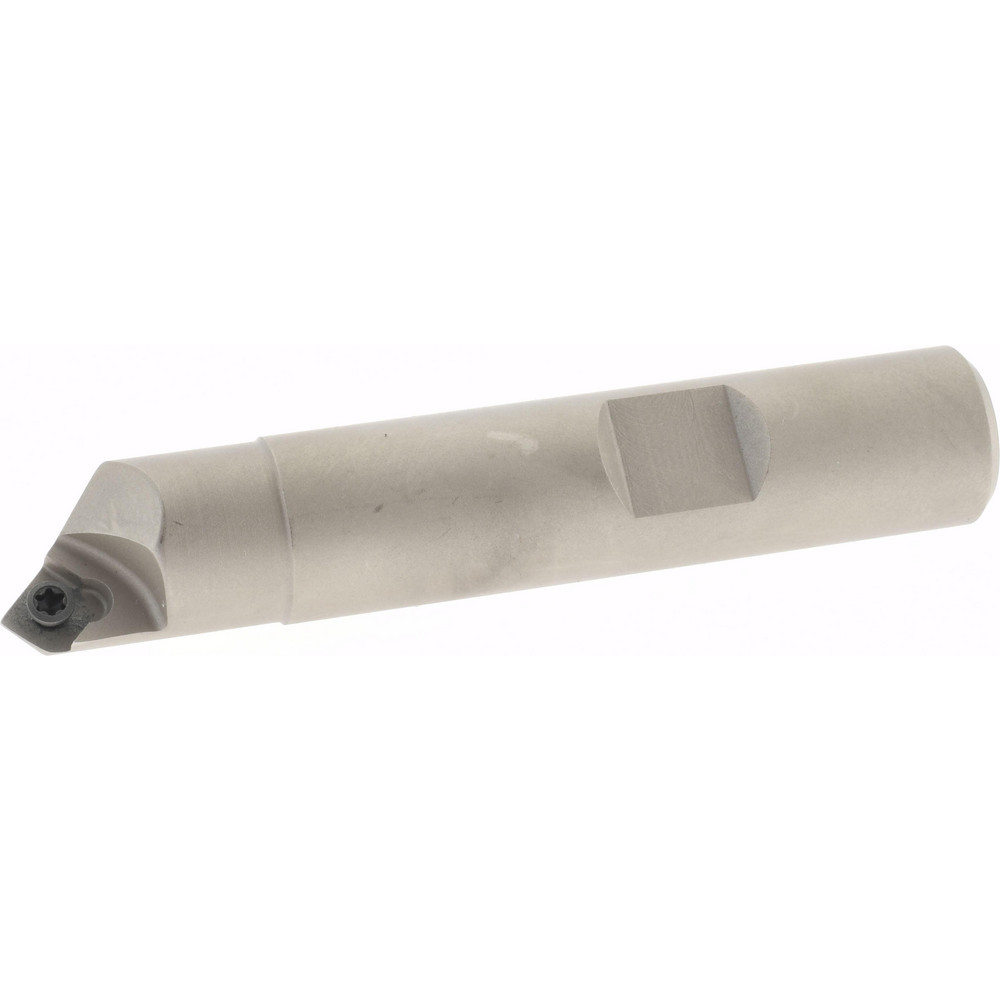

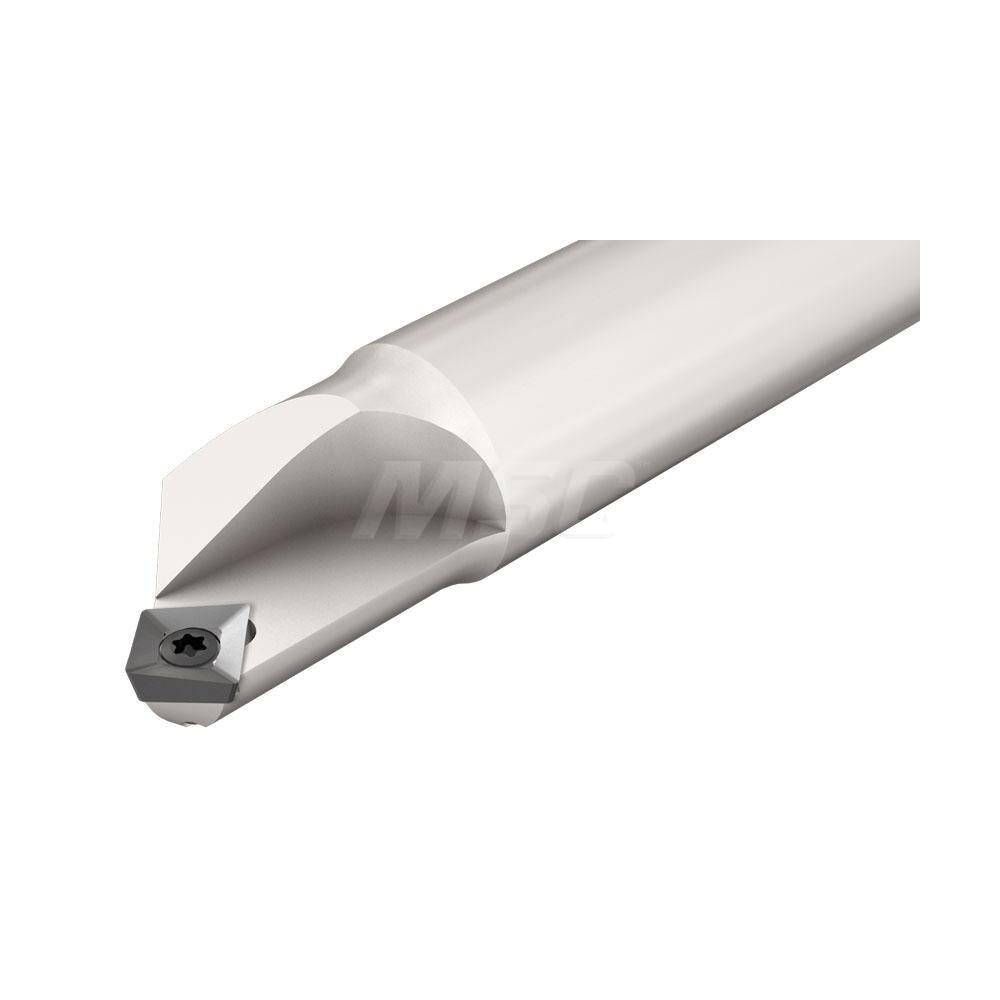

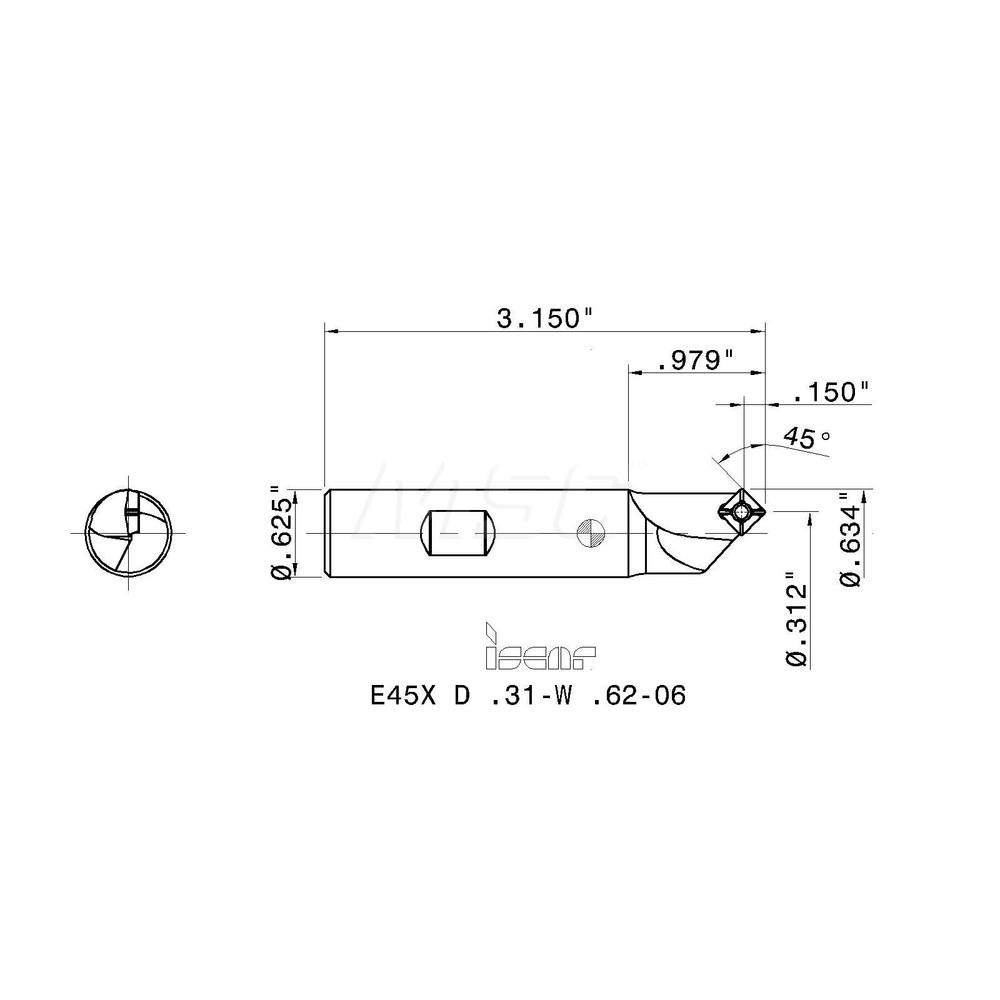

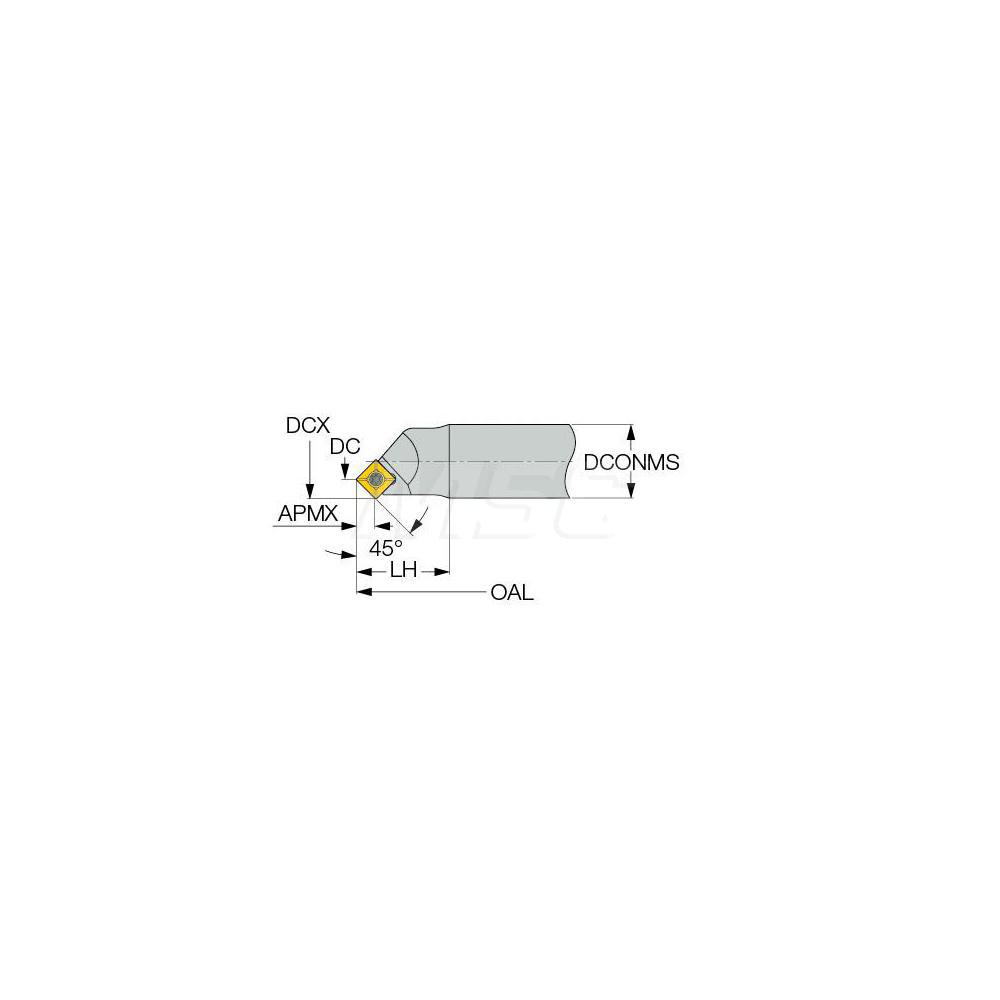

Takes 1 Insert, SDMT..AD.N Insert Style, E45 Toolholder, 3-1/4" OAL, 0.15" Max Depth of Cut
| Minimum Cutting Diameter (Decimal Inch) | 0.3120 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.6300 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Compatible Insert Size Code | SDMT-AD-N |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number Of Cutter Inserts | 1 |
| Insert Style | SDMT..AD.N |
| Insert Holding Method | Screw Clamping |
| Overall Length (Decimal Inch) | 3.2500 |
| Series | Heliquad |
| Toolholder Style | E45X; E45 |
| Functional Length (Decimal Inch) | 1.0000 |
| Maximum Body Diameter (Decimal Inch) | 0.6250 |
| Maximum RPM | 7000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 2.2500 |
| UNSPSC Code | 23291600 |
| Number of Inserts Included in Order | 1 |
| Manufacturers Catalog Number | E45X D .31-W .62-06 |
| Number Of Flutes | 1 |
| Coolant Through | No |
| Included Angle Degree | 45 |
| Shank Type | Weldon Flat |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52707312 |
