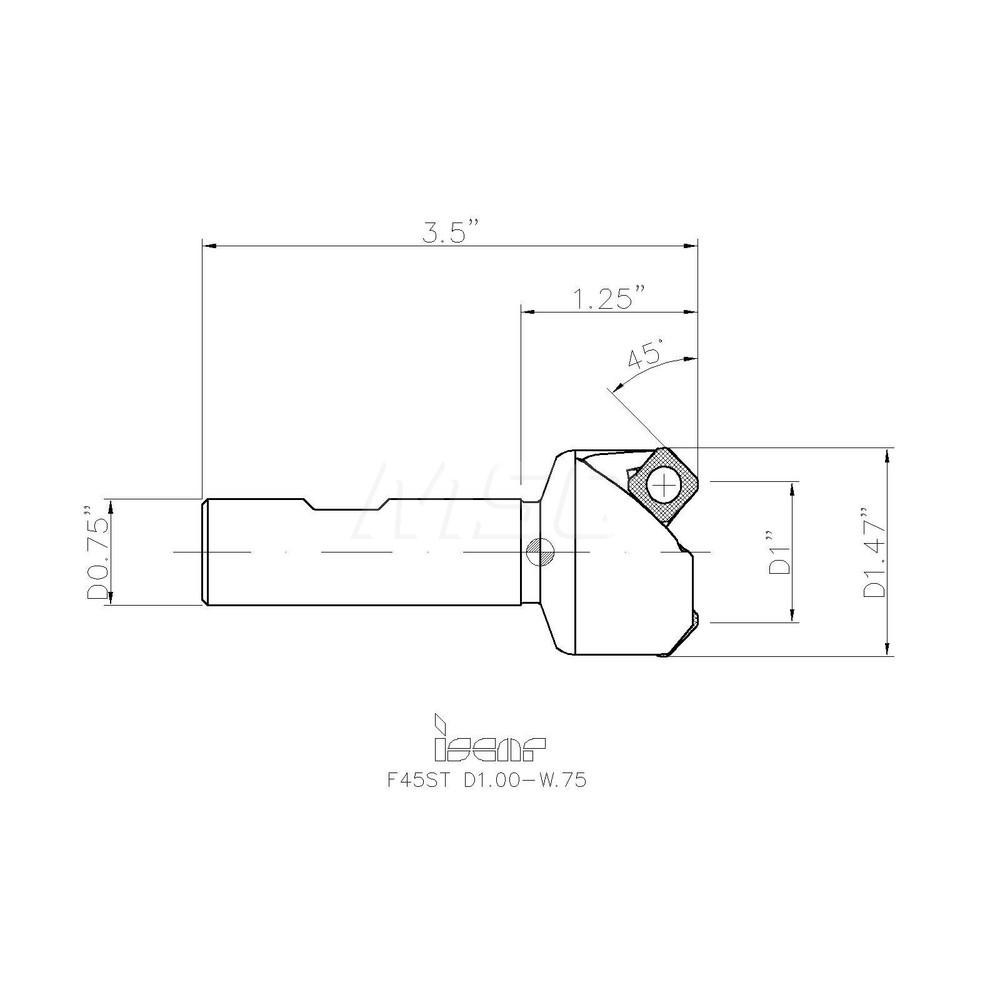

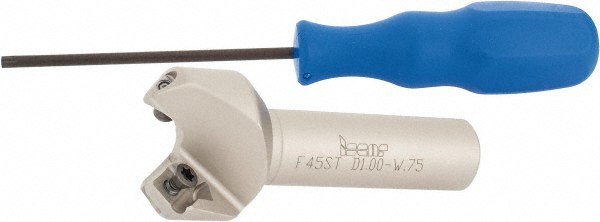

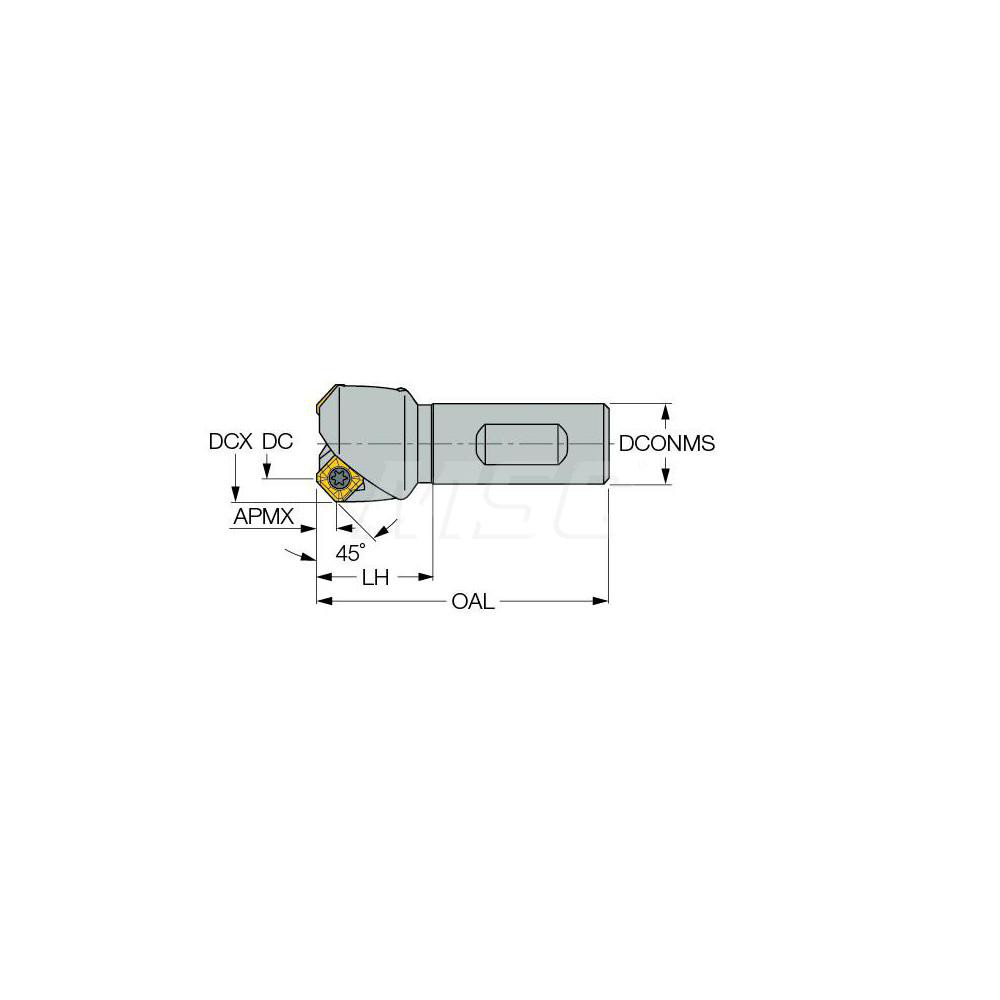

Takes 2 Inserts, SE.. 1204, SE.. 12T3.. Insert Style, F45ST Toolholder, 3.5" OAL, 0.26" Max Depth of Cut
| Minimum Cutting Diameter (Inch) | 1 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.4700 |
| Maximum Depth of Cut (Decimal Inch) | 0.2600 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 2 |
| Insert Style | SE.. 12T3..; SE.. 1204 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.5000 |
| Series | IscarMill |
| Toolholder Style | F45ST |
| Functional Length (Decimal Inch) | 1.2500 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (Decimal Inch) | 1.2500 |
| UNSPSC Code | 23291600 |
| Manufacturers Catalog Number | F45ST D1.00-W.75 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Shank Type | Weldon Flat |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60842648 |
