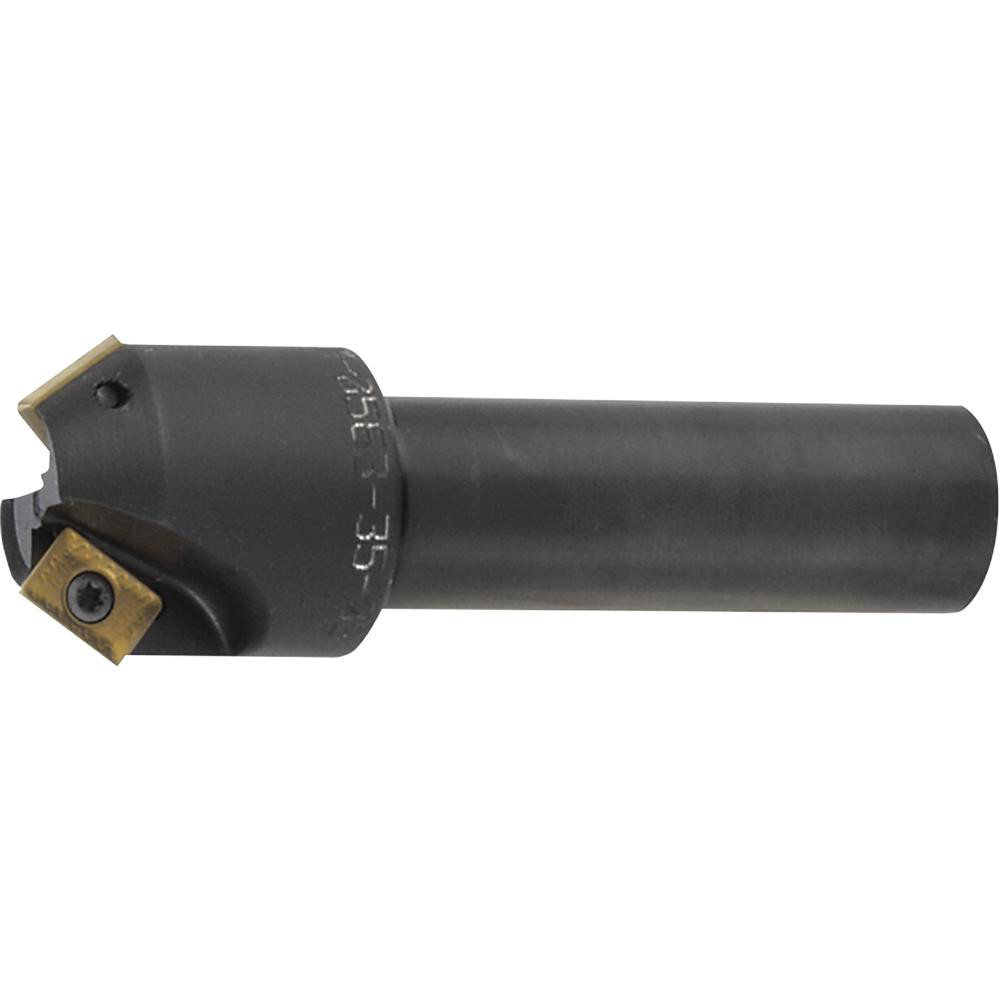

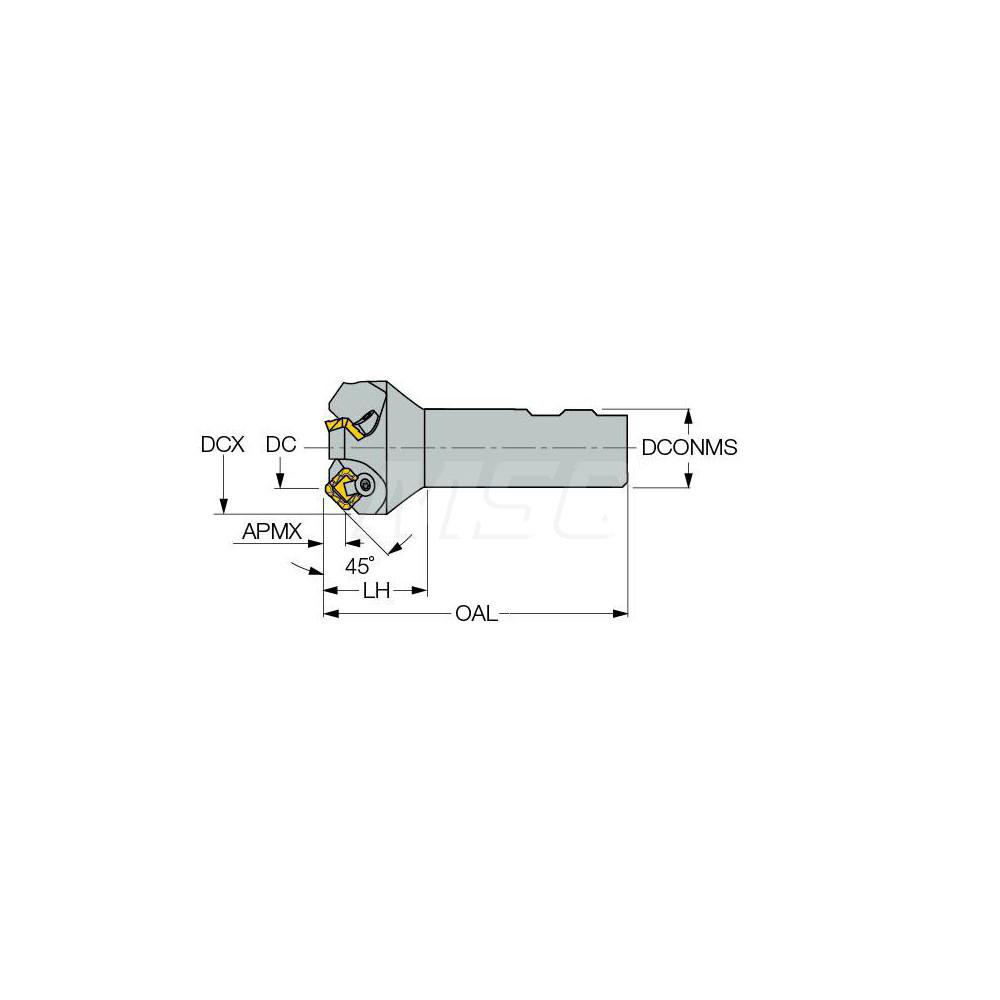

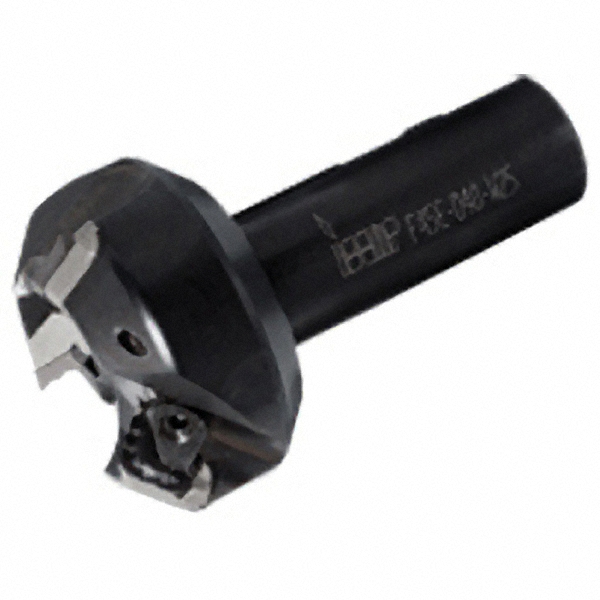

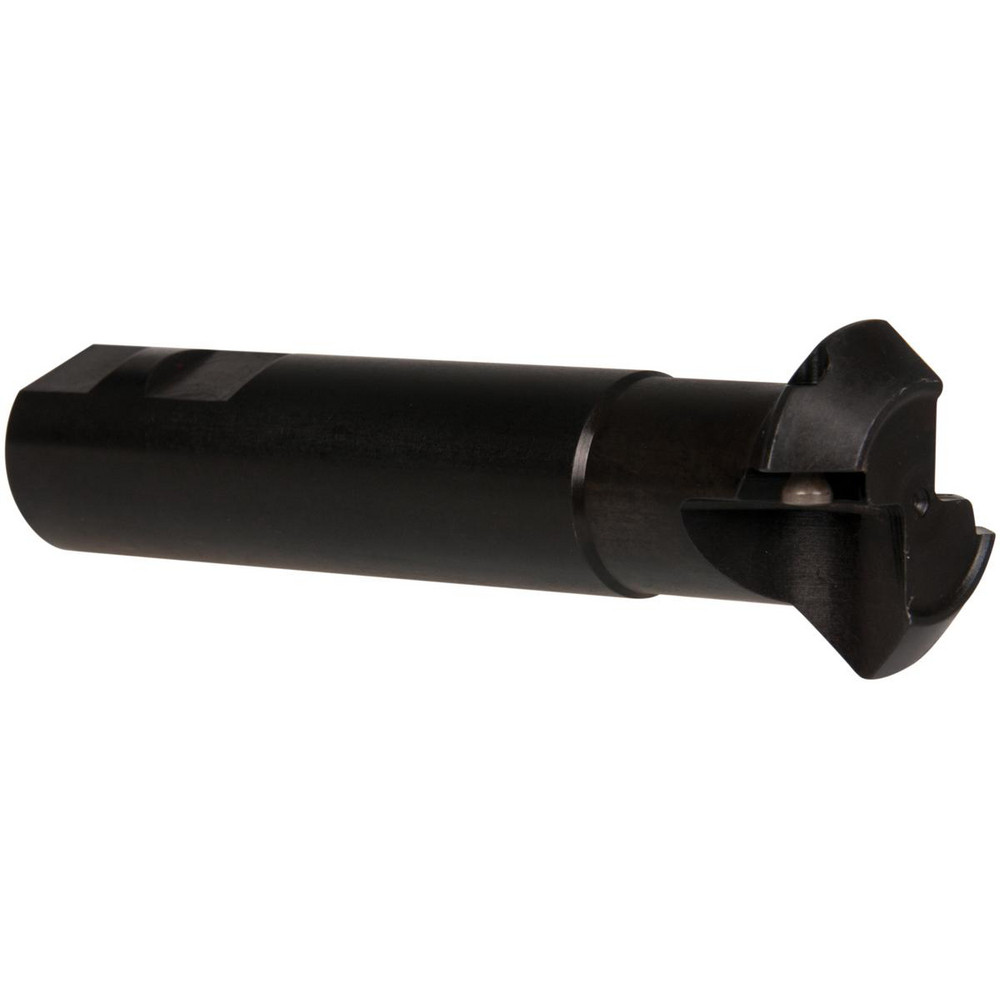

Takes 2 Inserts, SEKN/R 12 Insert Style, F45E Toolholder, 3.5" OAL, 0.236" Max Depth of Cut
| Minimum Cutting Diameter (Inch) | 1 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.7000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Compatible Insert Size Code | SEKN/R 12 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 2 |
| Insert Style | SEKN/R 12 |
| Insert Holding Method | Wedge |
| Overall Length (Decimal Inch) | 3.5000 |
| Series | Heliquad |
| Toolholder Style | F45E |
| Functional Length (Decimal Inch) | 1.2500 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 2.2500 |
| UNSPSC Code | 23291600 |
| Manufacturers Catalog Number | F45E D1.00-W.75 |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Shank Type | Weldon Flat |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60842366 |
