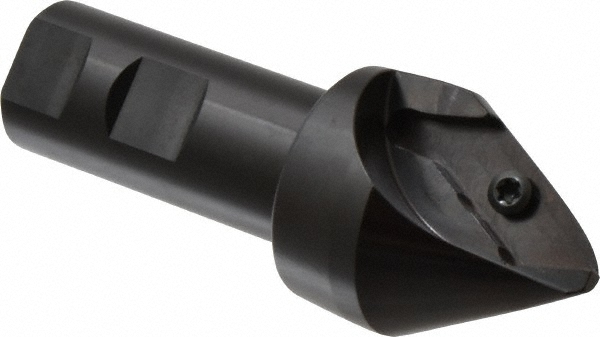

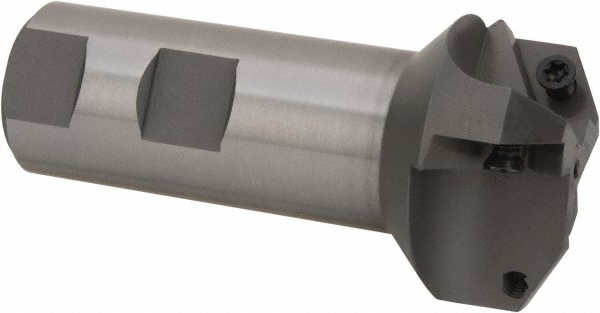

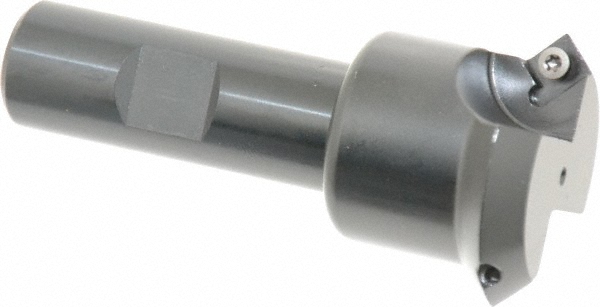

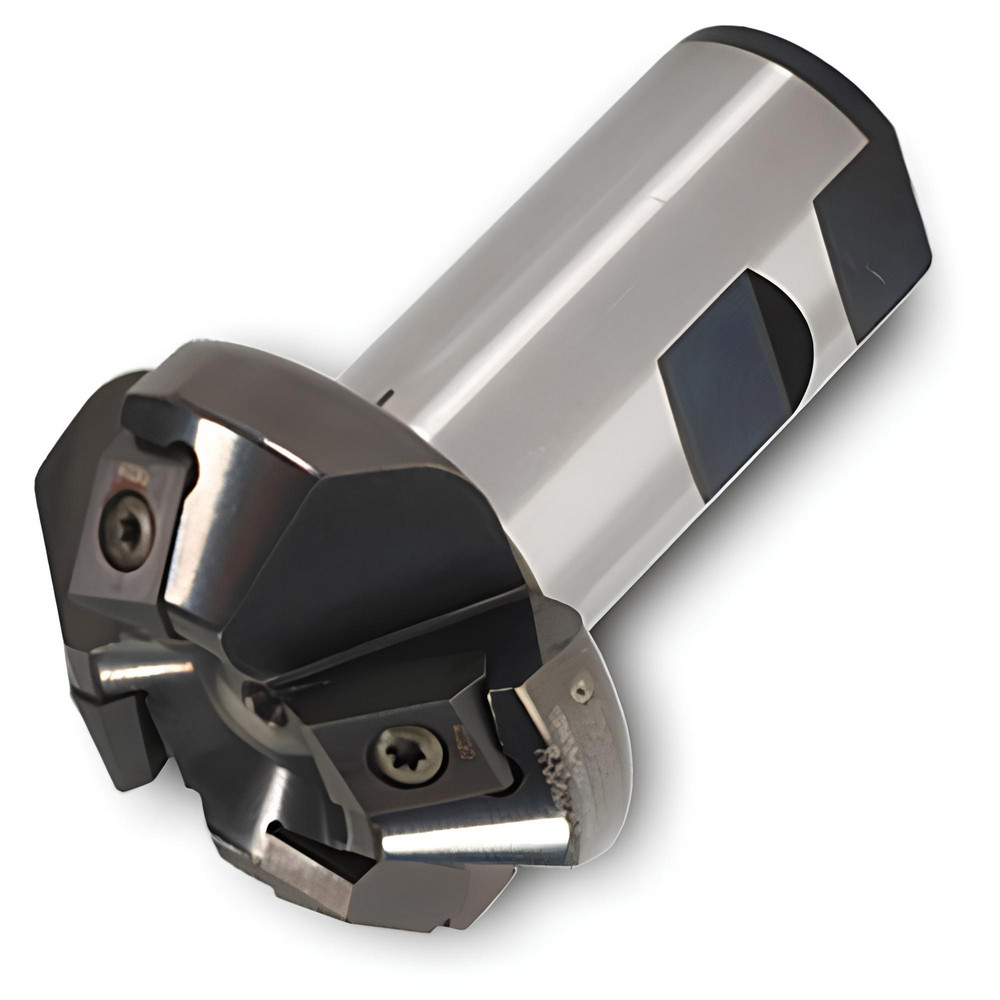

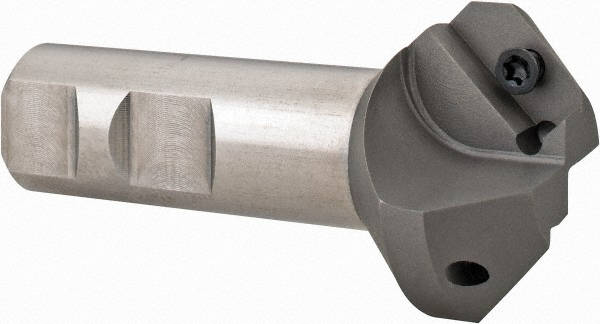

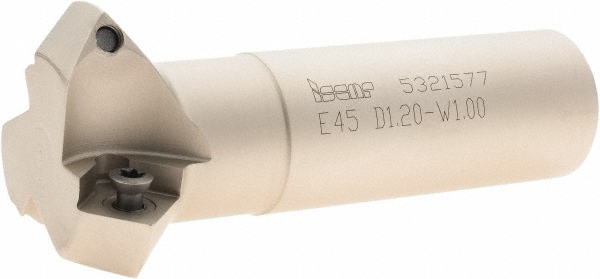

Takes 3 Inserts, SCMT-19, SCMW, SDMT-AD-N, TPMT Insert Style, E45 Toolholder, 3-3/4" OAL, 0.31" Max Depth of Cut
| Minimum Cutting Diameter (Decimal Inch) | 1.2000 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.8150 |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number Of Cutter Inserts | 3 |
| Insert Style | SCMT-19; TPMT; SDMT-AD-N; SCMW |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.7500 |
| Series | IscarMill |
| Toolholder Style | E45 |
| Functional Length (Decimal Inch) | 1.3800 |
| Maximum Body Diameter (Decimal Inch) | 1.0000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (Decimal Inch) | 1.3800 |
| Shank Length (Decimal Inch) | 2.3700 |
| Complete Insert Compatibility | SCMT 3-2-19; SCMW 3-1; TPMT 2-1; TPMT 2-0; TPMT 2-2; SDMT 32AD-N; SCMT 432-19; SCMW 432; TPMT 321; TPMT 322 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 3 |
| Coolant Through | No |
| Shank Type | Weldon Flat |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60840220 |
