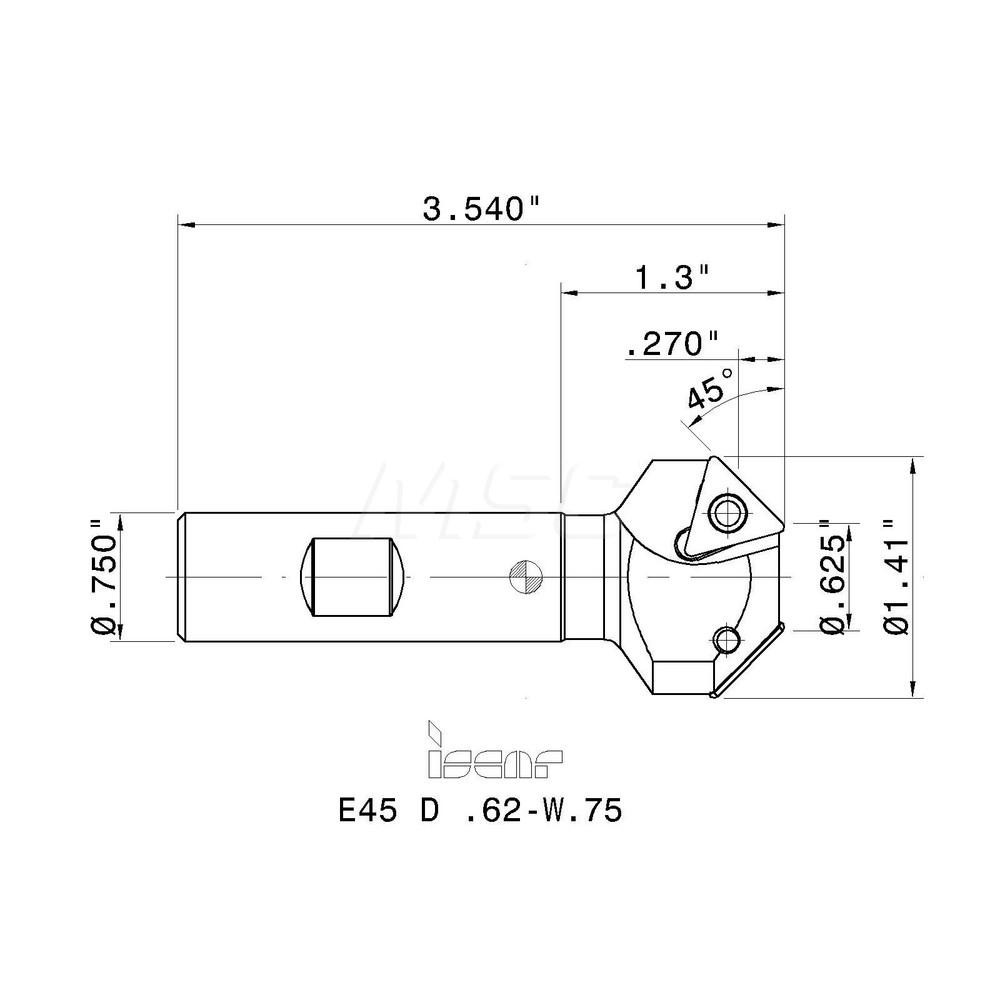

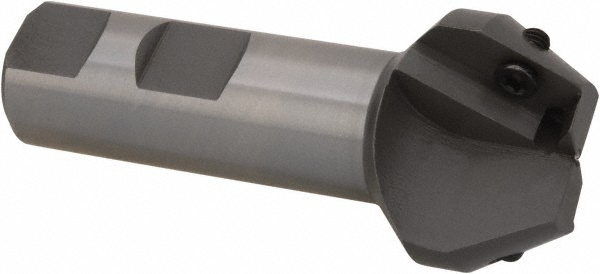

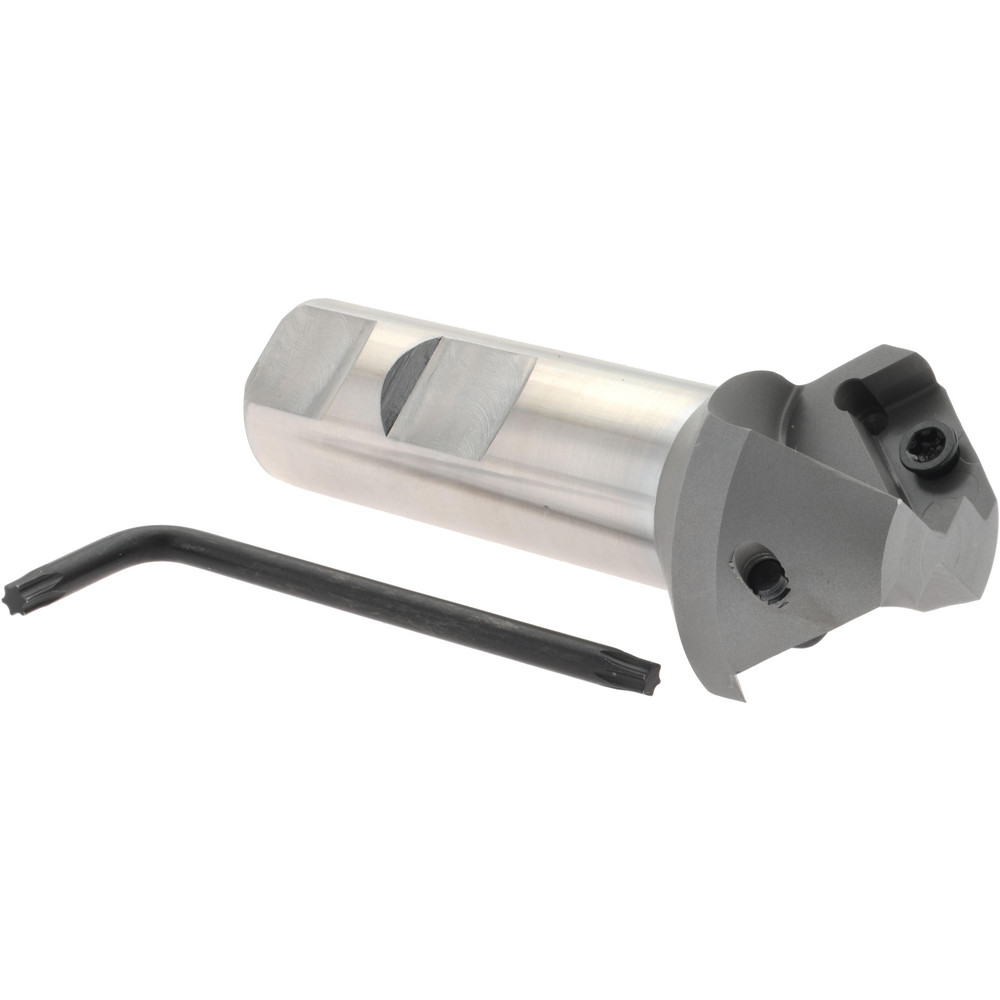

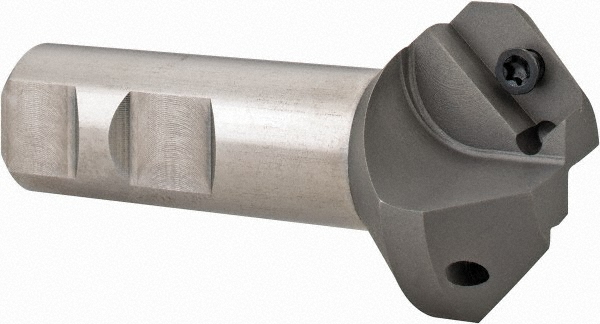

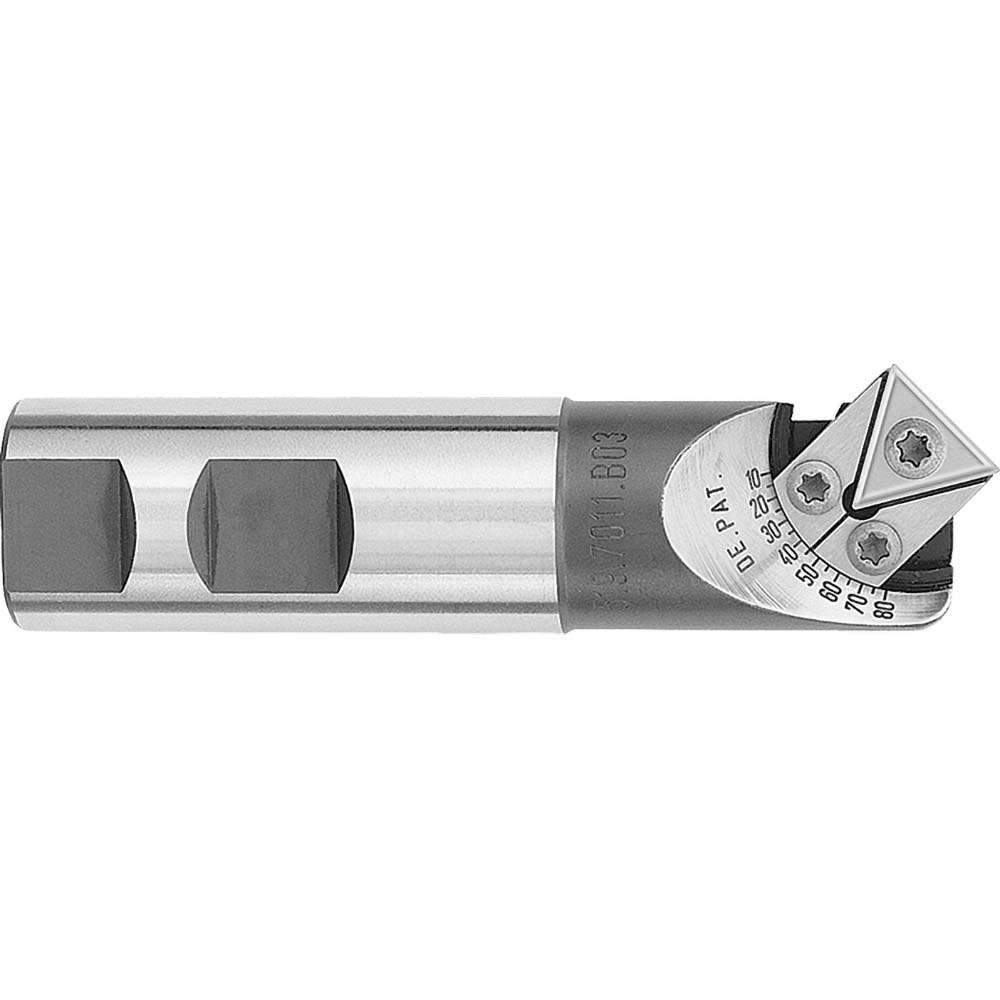

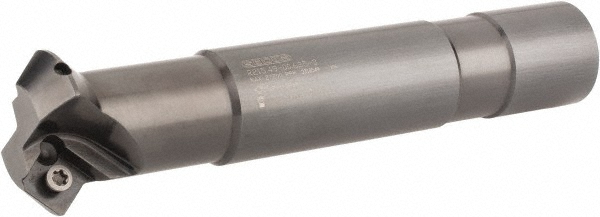

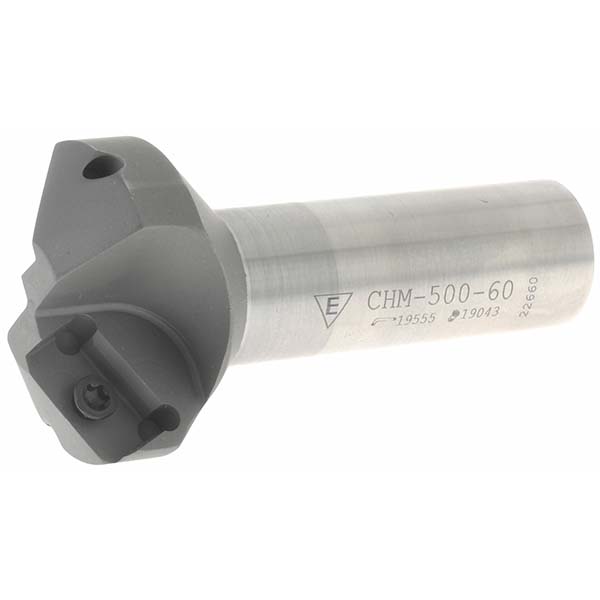

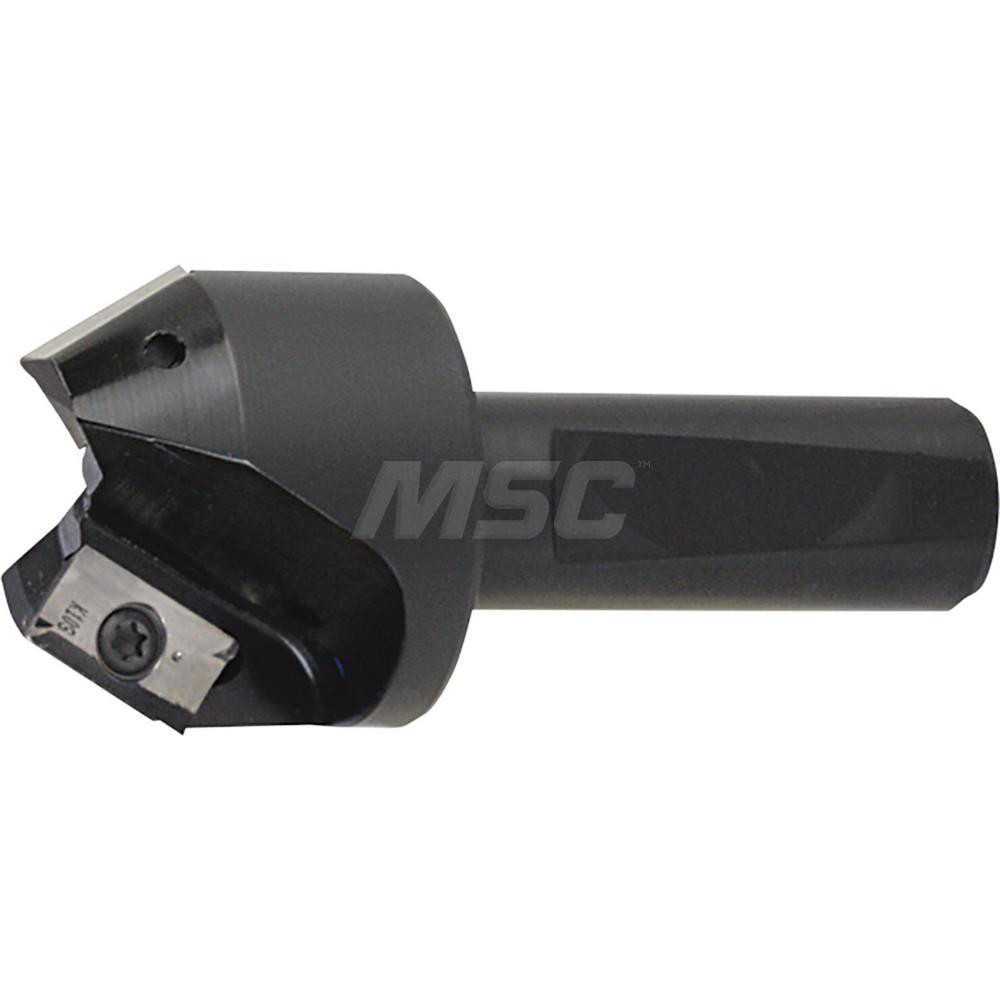

Takes 2 Inserts, TPMT 321, TPMT 322 Insert Style, E45 Toolholder, 3.54" OAL, 0.27" Max Depth of Cut
| Minimum Cutting Diameter (Inch) | 5/8 |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Cutting Diameter (Decimal Inch) | 1.4100 |
| Maximum Depth of Cut (Decimal Inch) | 0.2700 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number Of Cutter Inserts | 2 |
| Insert Style | TPMT 321; TPMT 322 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.5400 |
| Series | IscarMill |

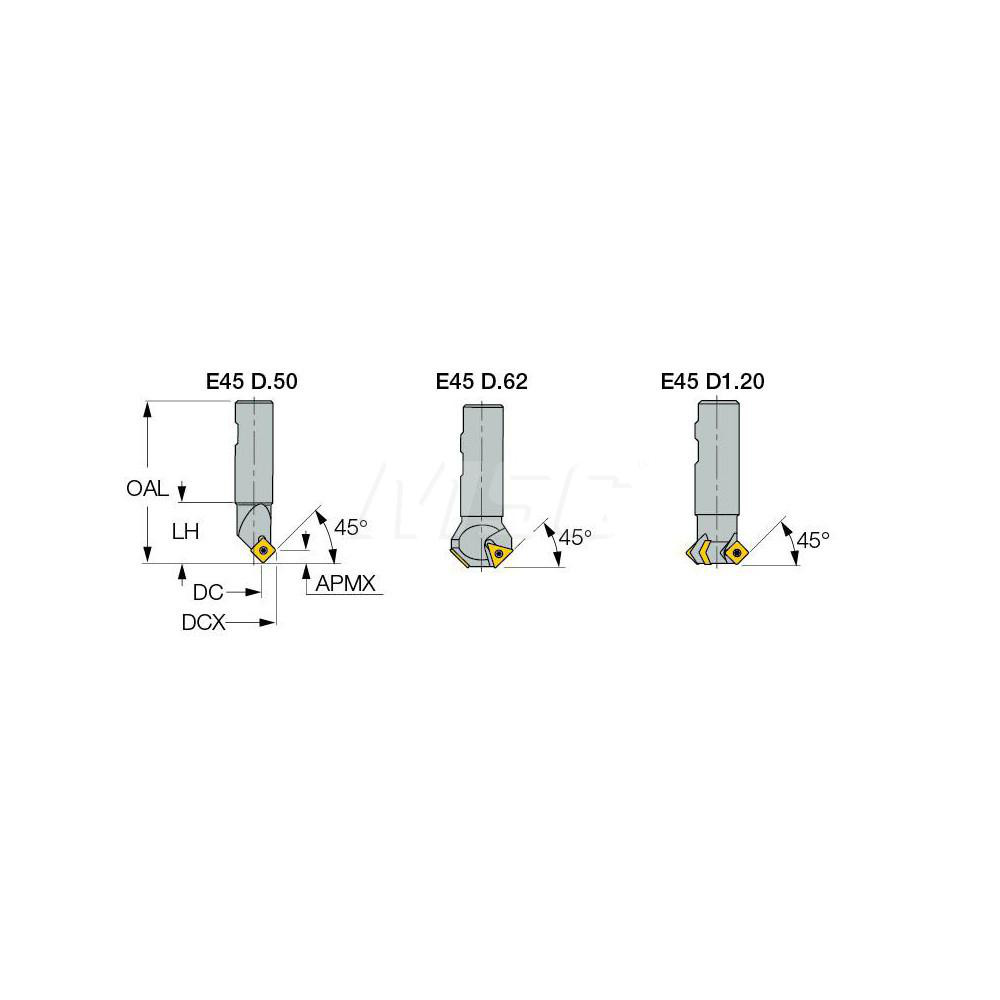

| Toolholder Style | E45 |
| Functional Length (Decimal Inch) | 1.3000 |
| Maximum Body Diameter (Decimal Inch) | 0.7500 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (Decimal Inch) | 1.3000 |
| UNSPSC Code | 23291600 |

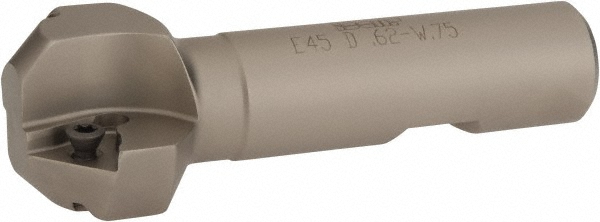

| Manufacturers Catalog Number | E45 D .62-W.75 |
| Shank Type | Weldon Flat |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60840261 |
