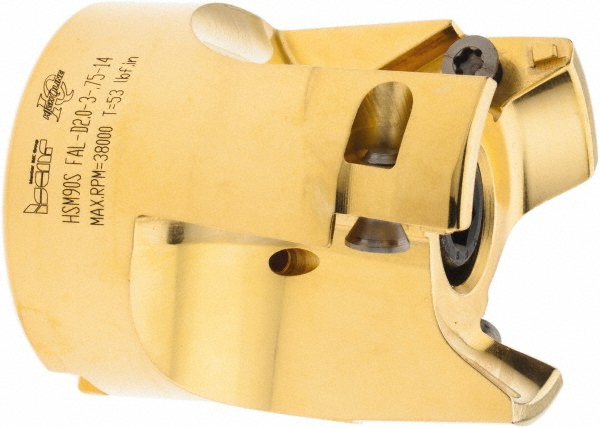

Takes 3 Inserts, 0° Lead Angle, 57mm High, HSM90S APCR 1405.. Insert Style, Through Coolant, Series Helialu
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | HSM90S APCR 1405 |
| Cutter Style | HSM90S FAL-14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | Helialu |
| Maximum Ramping Angle | 8.00 |
| Overall Height (Decimal Inch) | 2.2441 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 0.7087 |
| Complete Insert Compatibility | HSM90S APCR 140532R-P; HSM90S APCR 140508R-P; HSM90S APCR 140516R-P; HSM90S APCR 140530R-P; HSM90S APCR 140520R-P |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30707707 |
