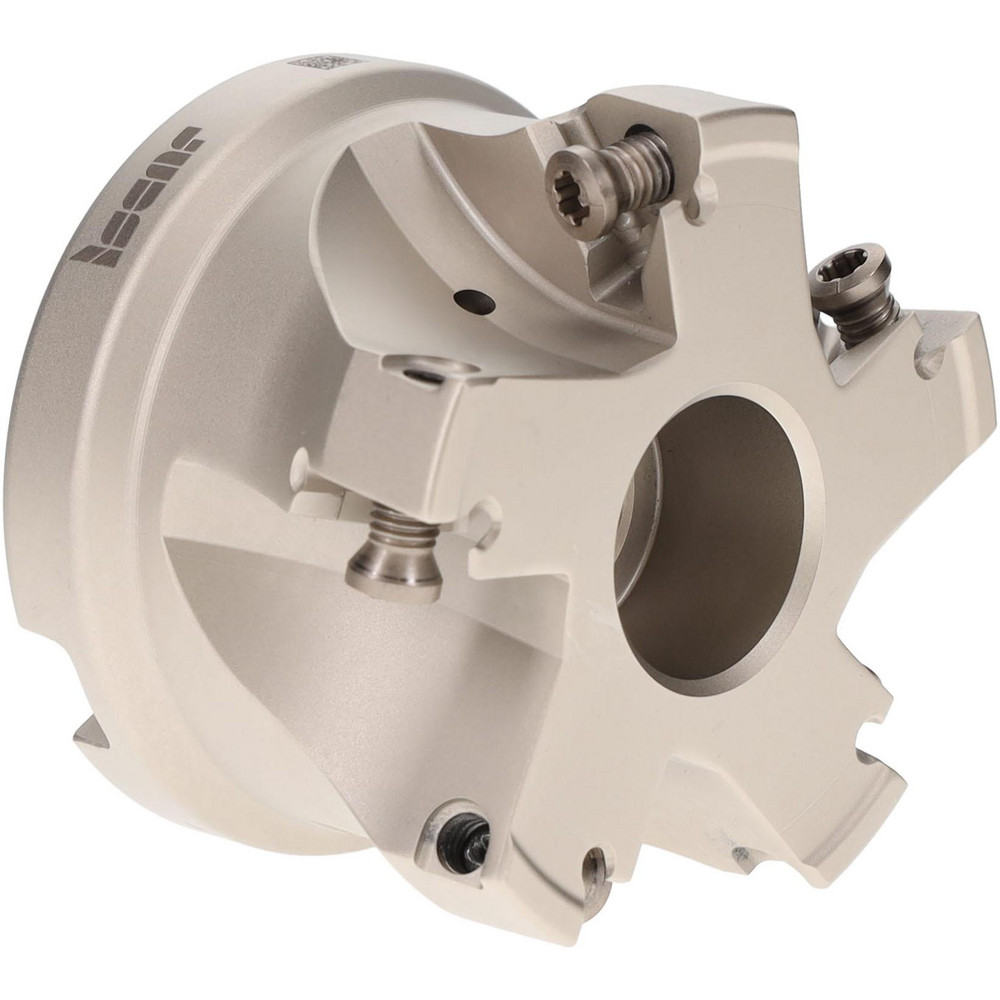

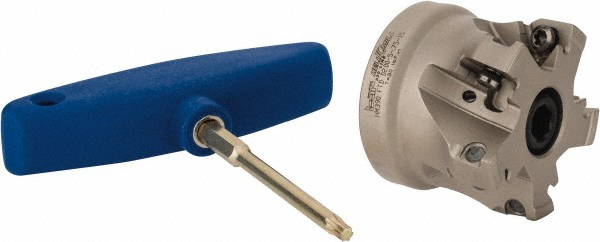

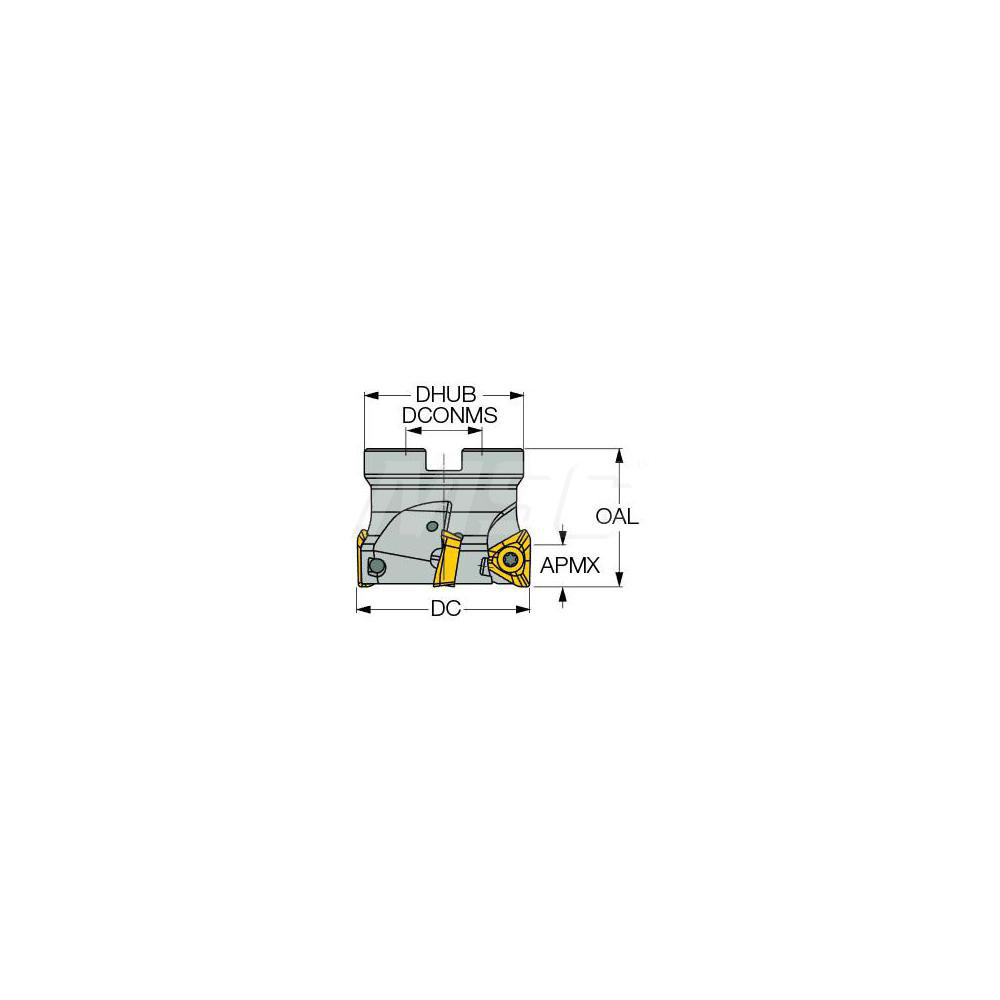

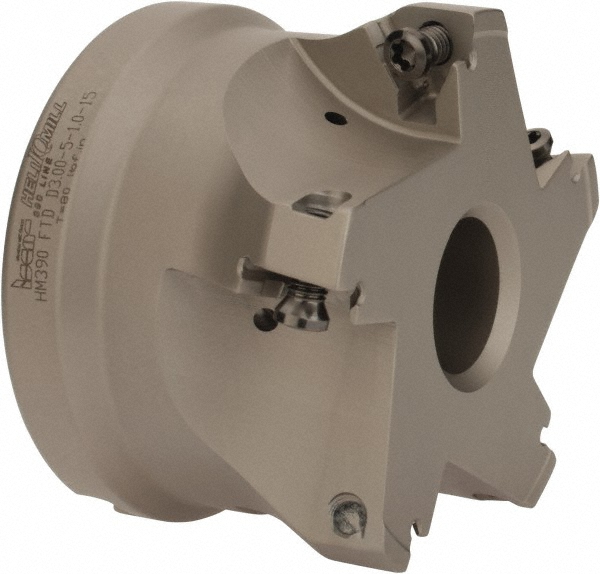

Takes 5 Inserts, 0° Lead Angle, 40mm High, HM390 TDKT 1505.. Insert Style, Through Coolant, Series HeliIQMill

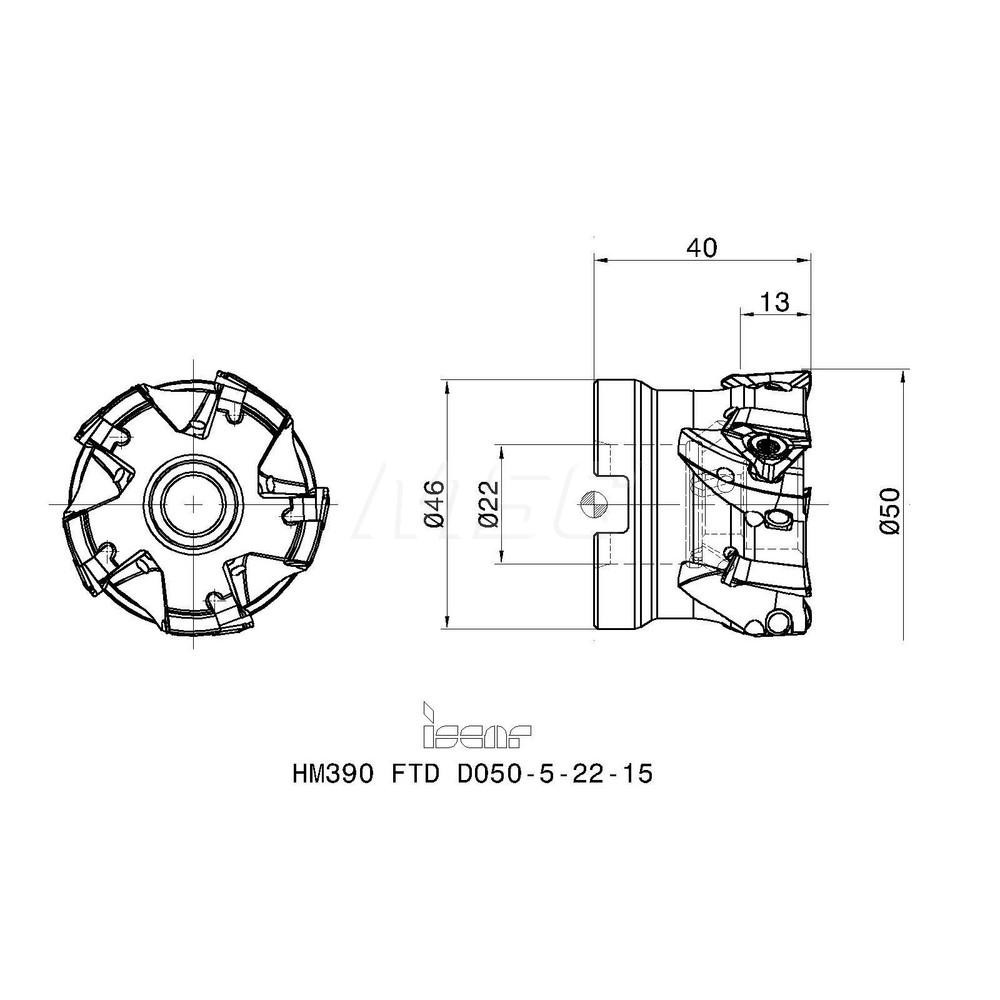

| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
|---|---|
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5118 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Compatible Insert Size Code | HM390 TDKT 1505 |
| Cutter Style | HM390 FTD-15 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | HeliIQMill |
| Maximum Ramping Angle | 1.60 |
| Overall Height (Decimal Inch) | 1.5748 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Hub Diameter (mm) | 46.00 |
| Hub Diameter (Decimal Inch) | 1.8110 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 0.7087 |
| Complete Insert Compatibility | HM390 TDKT 150516-PDR; HM390 TDKT 150524PDR; HM390 TDKT 150532PDR; HM390 TDKT 1505PDR |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 40561029 |
