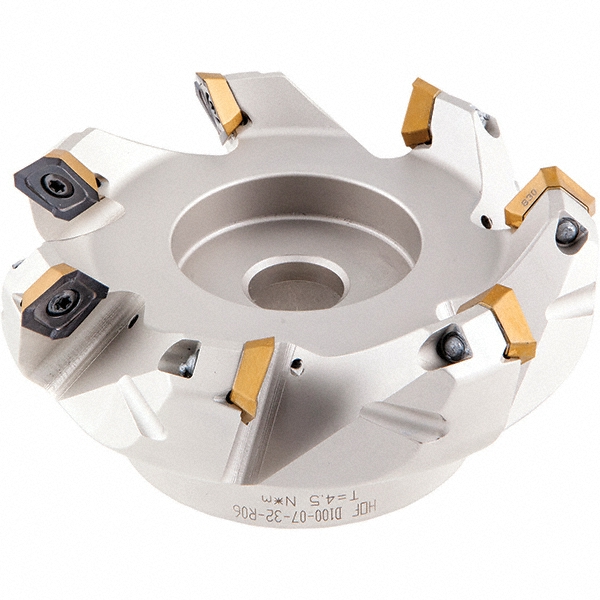

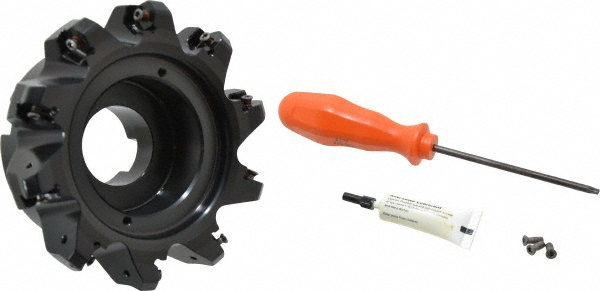

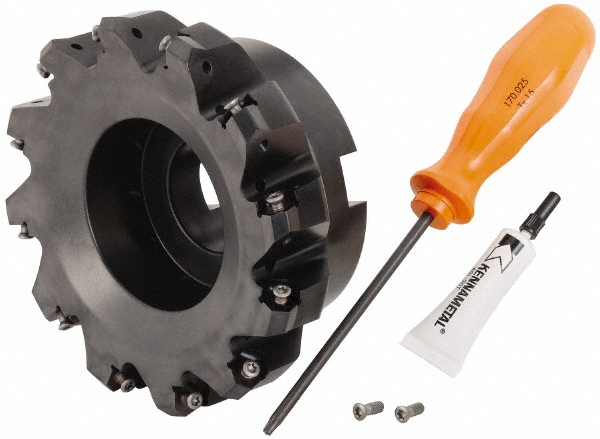

Takes 8 Inserts, OE.. 060405\xB6OEMW 060405-AETN\xB6REMT 1505-LM-76 Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series Heliocto
| Minimum Cutting Diameter (Decimal Inch) | 5.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.3700 |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | 060405-AETN; 1505-LM-76 |
| Cutter Style | HOF |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | Heliocto |
| Hub Diameter (Decimal Inch) | 3.2200 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 2.0300 |
| Complete Insert Compatibility | OEKT 060405AER; OEMW 060405-AETN; OECR 060405AER-P; SEMT 140405ATR; OEMT 060405AER-76; OECR 060405AER; REMT 1505-LM-76 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Yes |
| Number Of Flutes | 8 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| MSC Number | MSC# 50067123 |
