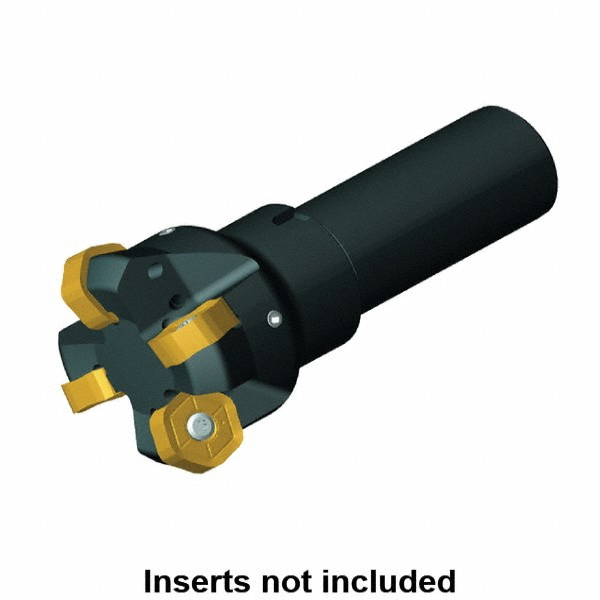

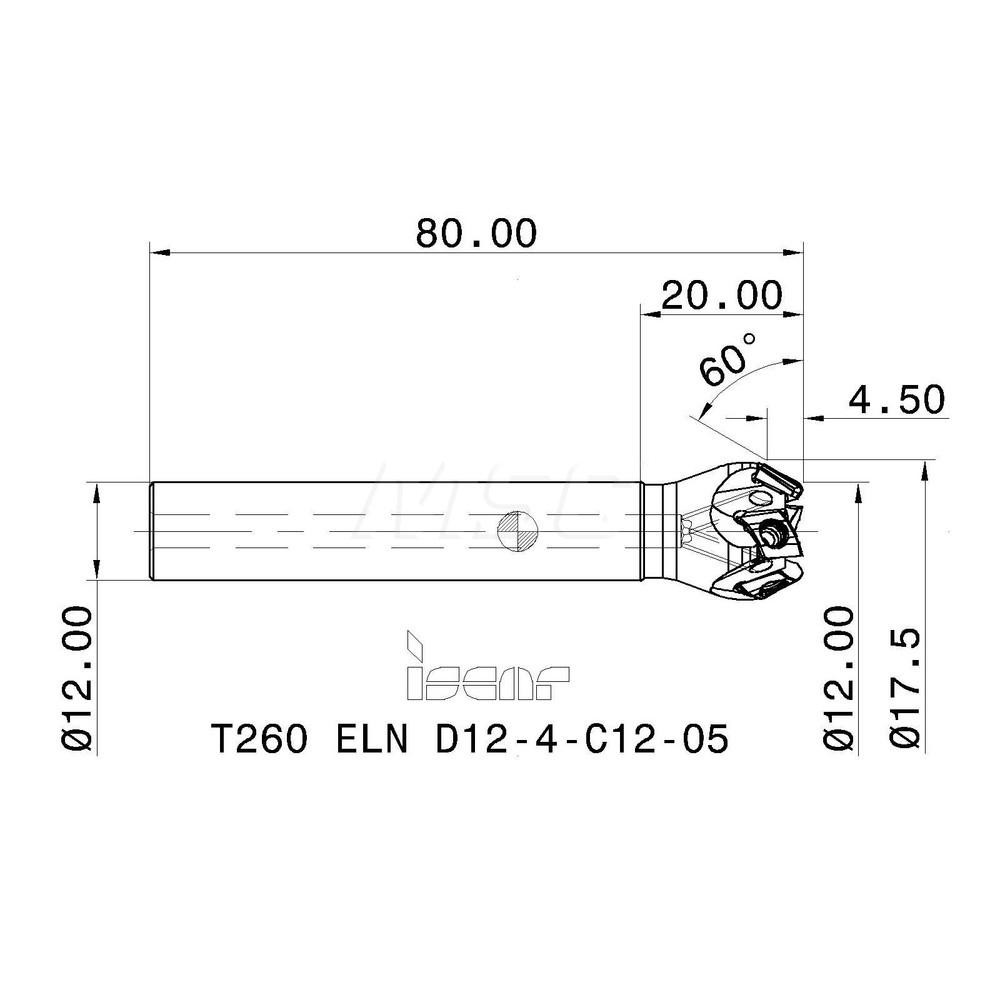

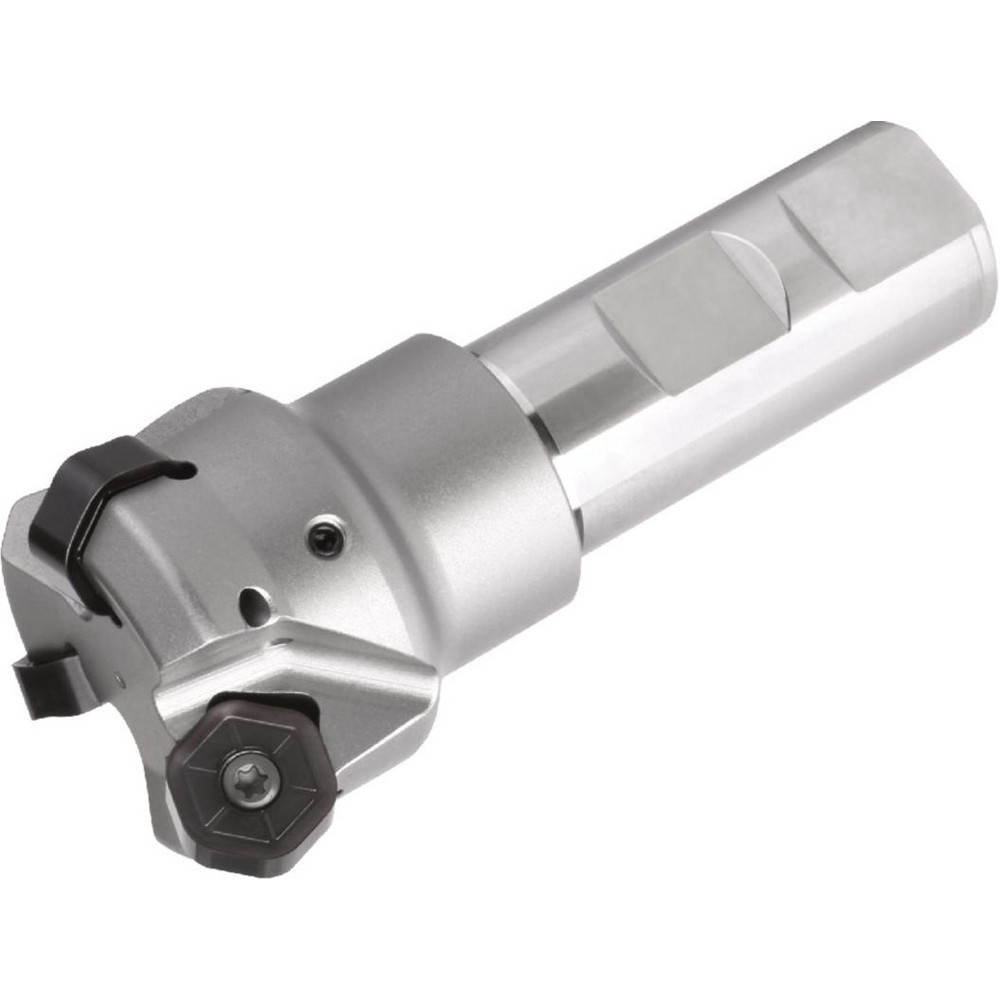

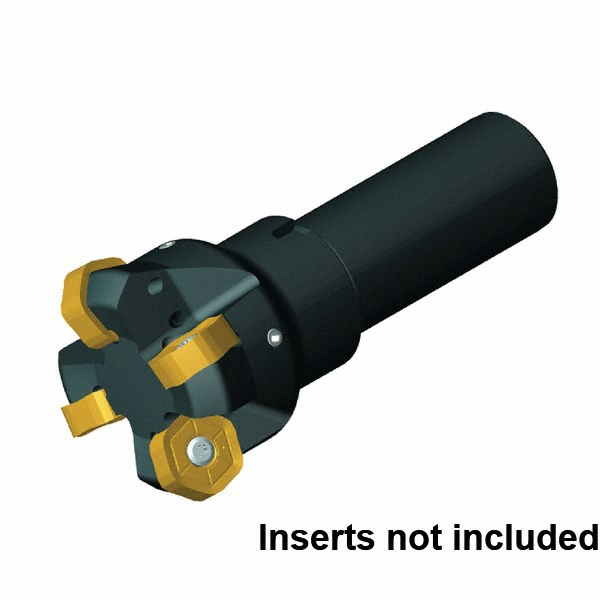

Takes 4 Inserts, T290 LNMT/LNHT 0502 Insert Style, T260 Toolholder, 80mm OAL, 4.5mm Max Depth of Cut
| Minimum Cutting Diameter (mm) | 12.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 17.50 |
| Maximum Depth of Cut (mm) | 4.50 |
| Compatible Insert Size Code | T290 LNMT/LNHT 0502 |
| Shank Diameter (mm) | 12.00 |
| Number Of Cutter Inserts | 4 |
| Insert Style | T290 LNMT/LNHT 0502 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 80.00 |
| Series | IscarMill |

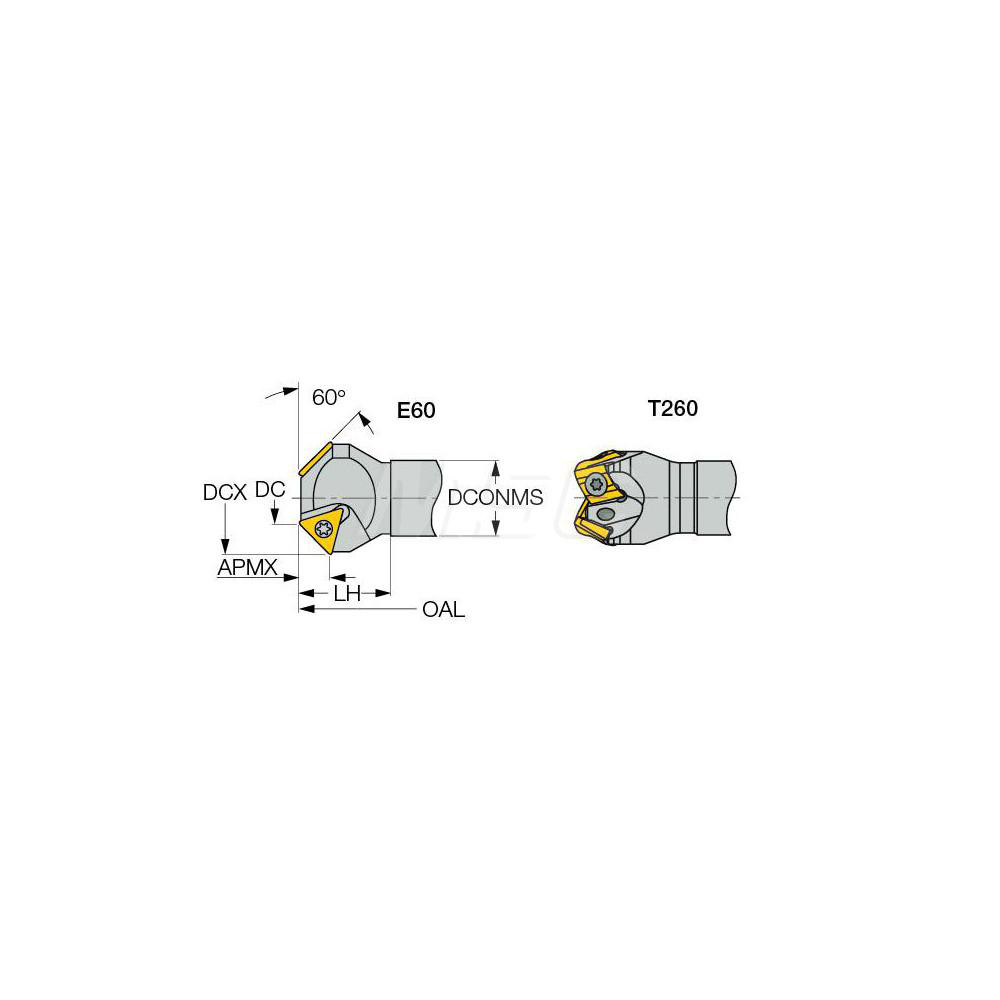

| Toolholder Style | T260 |
| Functional Length (mm) | 20.00 |
| Maximum Body Diameter (mm) | 12.00 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Head Length (mm) | 20.00 |
| UNSPSC Code | 23291600 |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91123174 |
