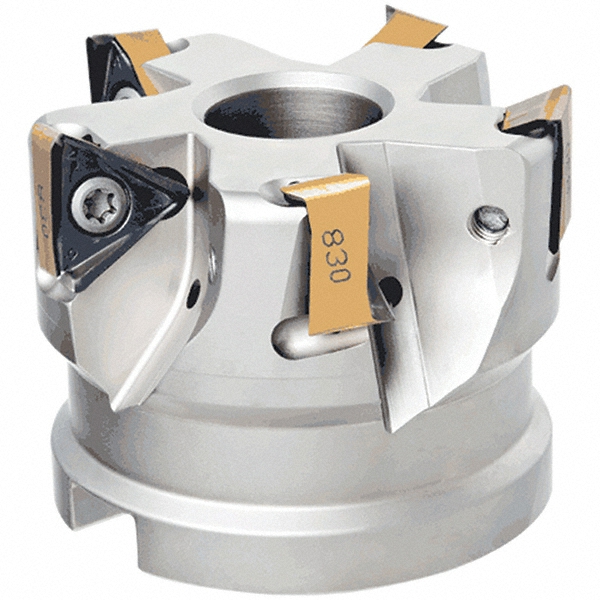

Takes 4 Inserts, 0° Lead Angle, 50mm High, H690 TNKX 160610PNTR Insert Style, Through Coolant, Series Helido
| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
|---|---|
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 13.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.5315 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Compatible Insert Size Code | H690 TNKX 160610PNTR |
| Cutter Style | H690 F90AX |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | Helido |
| Maximum Ramping Angle | 2.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Hub Diameter (mm) | 59.00 |
| Hub Diameter (Decimal Inch) | 2.3228 |
| Standards | ISO |
| Counterbore Diameter (Decimal Inch) | 1.4961 |
| Complete Insert Compatibility | H690 TNKX 160610PNTR |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30707871 |
