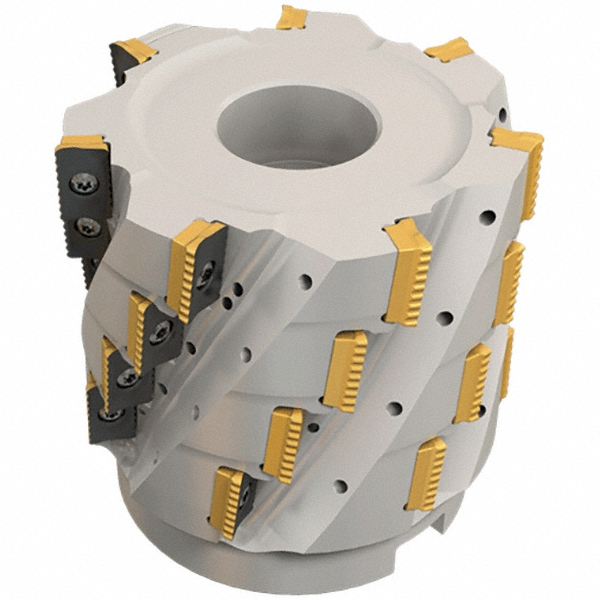

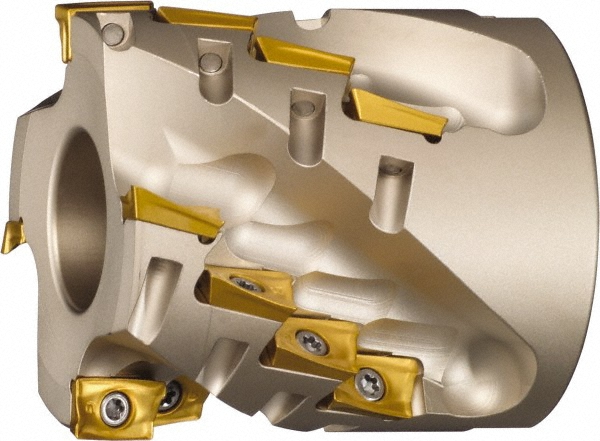

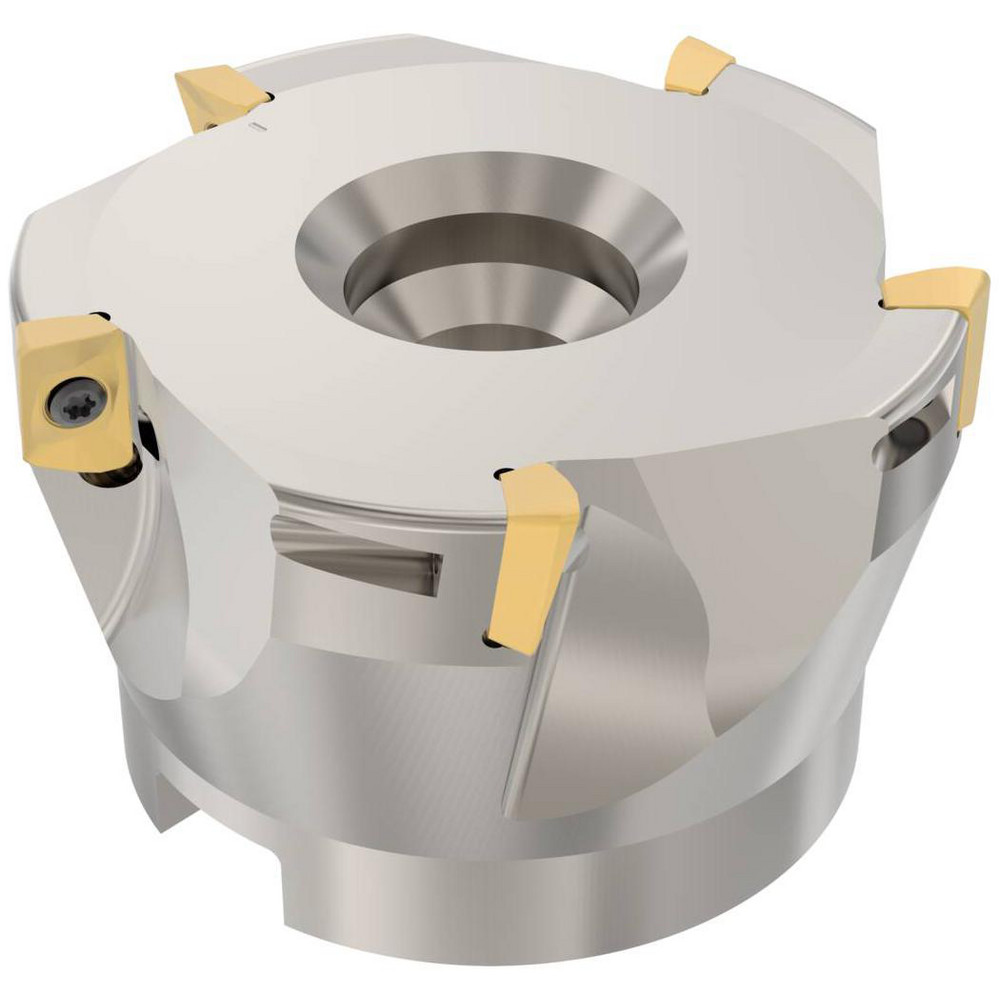

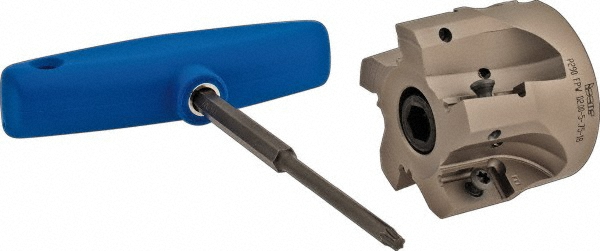

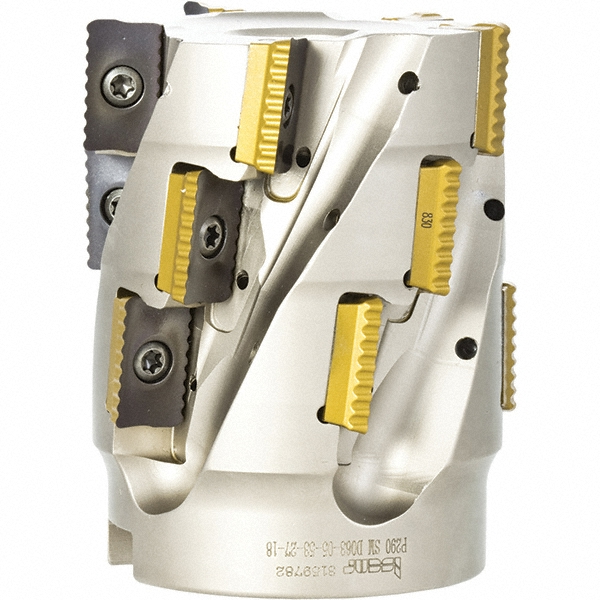

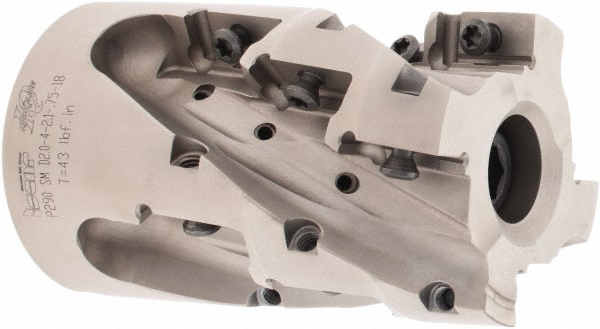

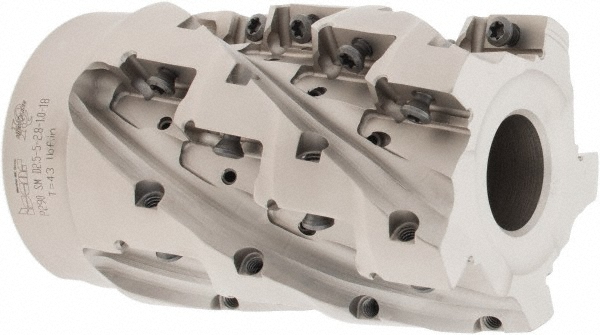

Takes 15 Inserts, 0° Lead Angle, 80mm High, P290 AC.T 1806.. Insert Style, Through Coolant, Series MillShred

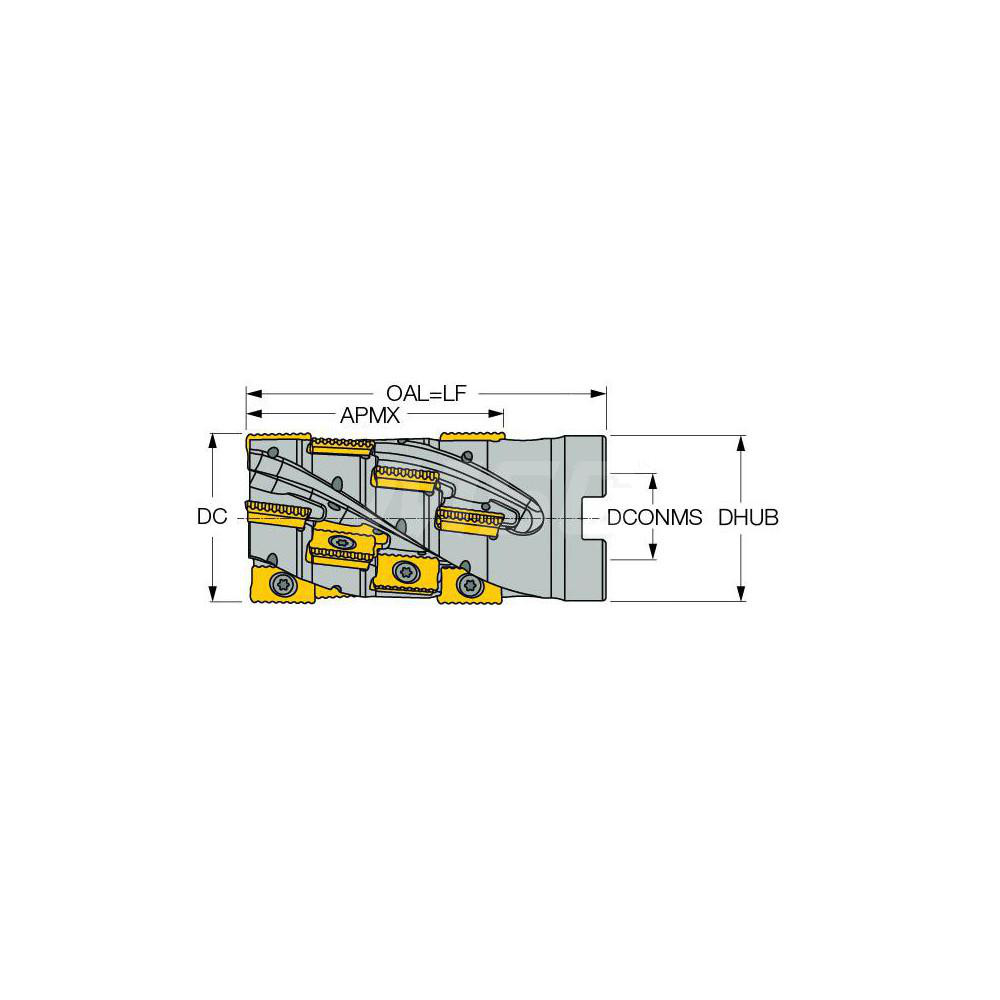

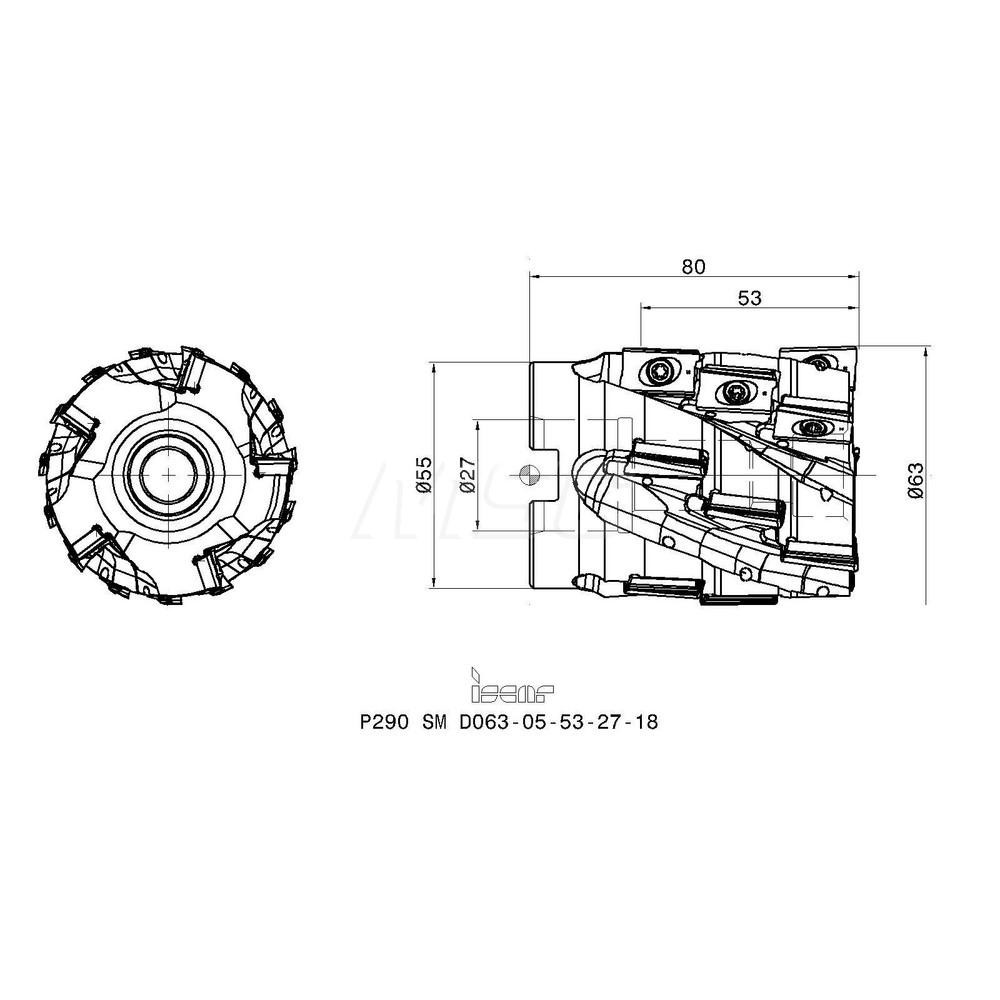

| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
|---|---|
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 53.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0866 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Compatible Insert Size Code | P290 AC T1806 |
| Cutter Style | P290 SM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 0 |
| Series | MillShred |
| Maximum Ramping Angle | 0.80 |
| Overall Height (Decimal Inch) | 3.1496 |
| Hub Diameter (mm) | 55.00 |
| Hub Diameter (Decimal Inch) | 2.1654 |
| Standards | ISO |
| Complete Insert Compatibility | P290 ACKT 1806PDR-FWR; P290 ACCT 1806PDR-HL; P290 ACKT 1806PDR-FWE; P290 ACKT 1806PDR-FW |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 15 |
| Number Of Flutes | 5 |
| Country of Origin | Israel |
| MSC Number | MSC# 30708945 |
