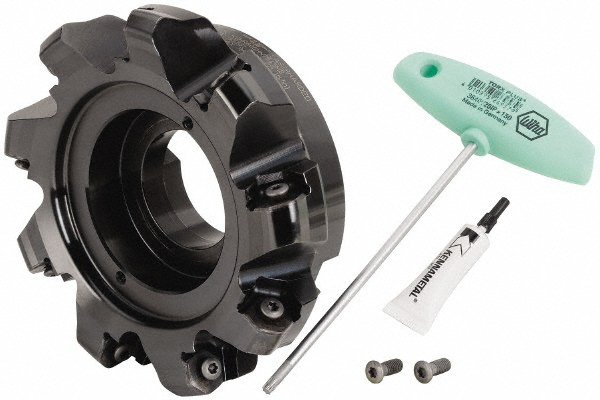

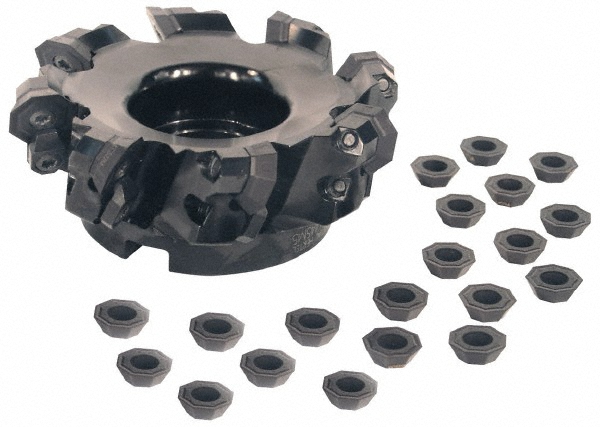

Takes 10 Inserts, ONH.. Insert, Right Hand Cut, 10 Flutes, Series 16Mill

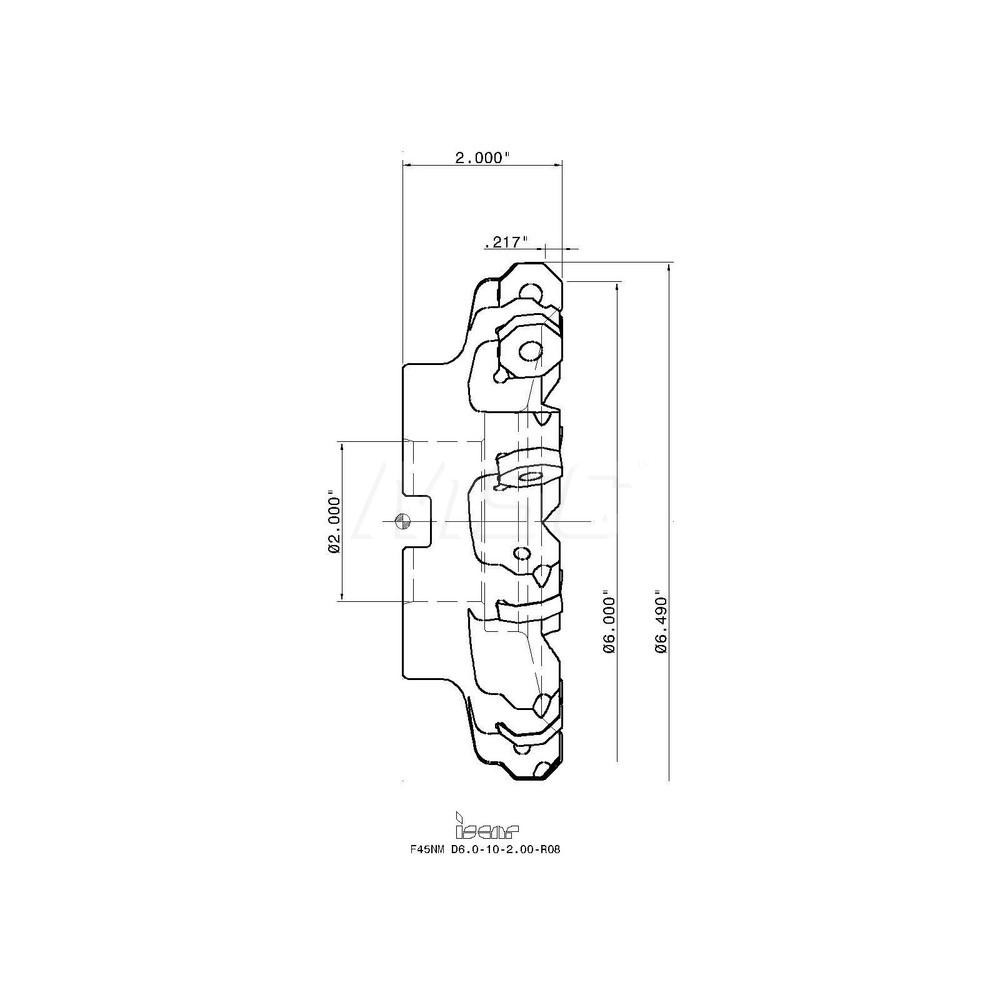

| Minimum Cutting Diameter (Decimal Inch) | 6.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 6 |
| Maximum Cutting Diameter (Decimal Inch) | 6.4900 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 2 |
| Compatible Insert Size Code | ONH |
| Cutter Style | F45NM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | 16Mill |

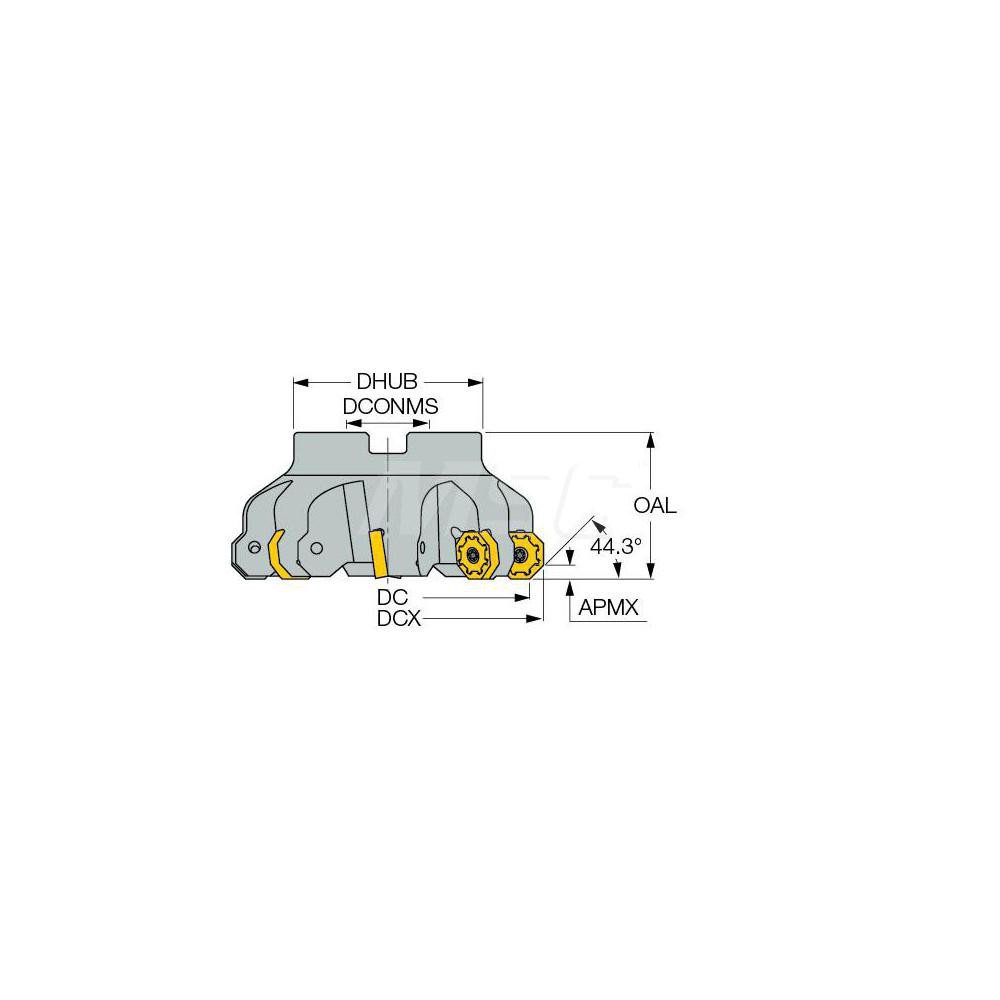

| Hub Diameter (Decimal Inch) | 3.9400 |
| Overall Height (Decimal Inch) | 2.0000 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0510 |
| Complete Insert Compatibility | ONHU 0806-N-PL; ONHU/ONMU-08-TN/HL; ONHU/ONMU-08-TN-MM; ONHU/ONMU 080608 AN-N-HP; ONHQ-TN; ONHU 0806AN-W |
| Number Of Cutter Inserts | 10 |
| Coolant Through | No |
| Number Of Flutes | 10 |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 84146976 |
