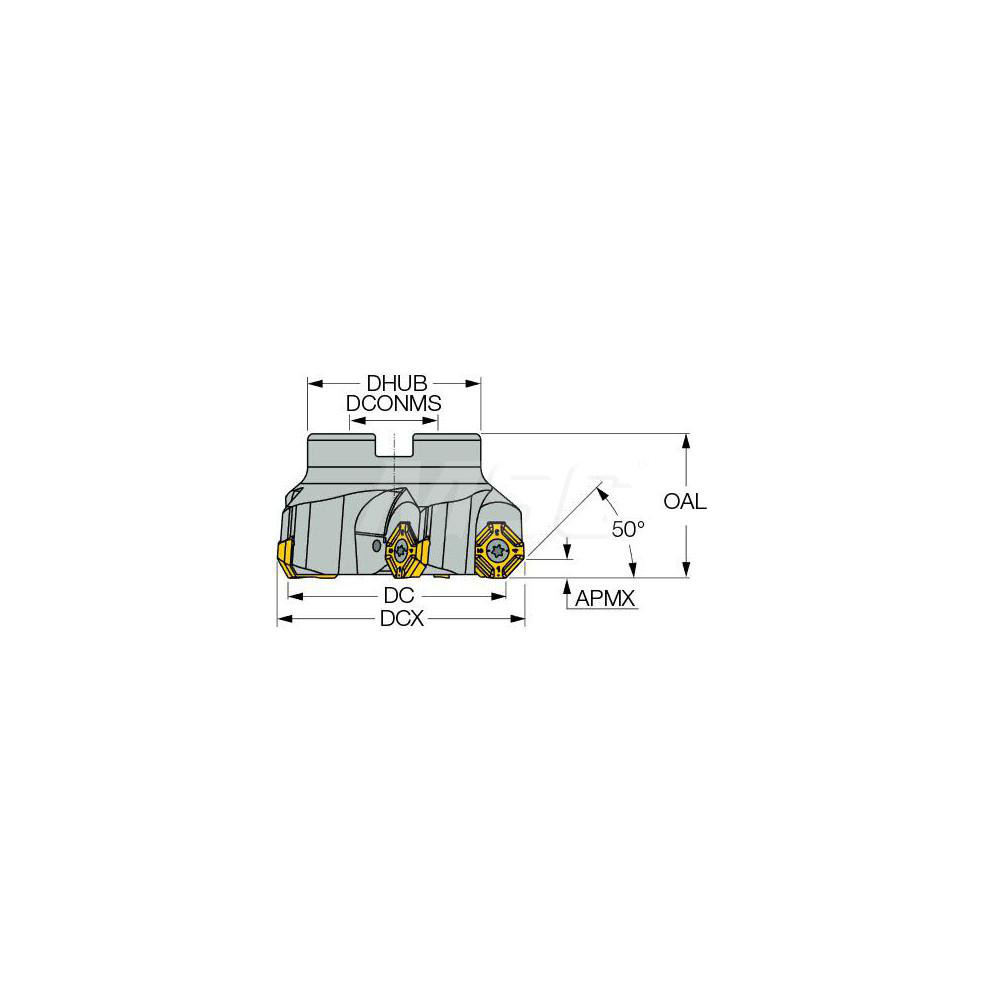

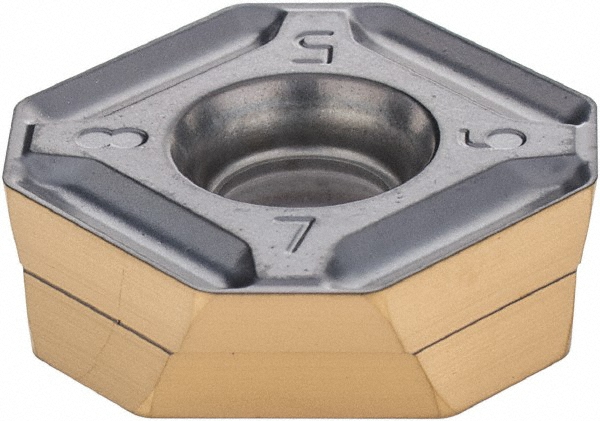

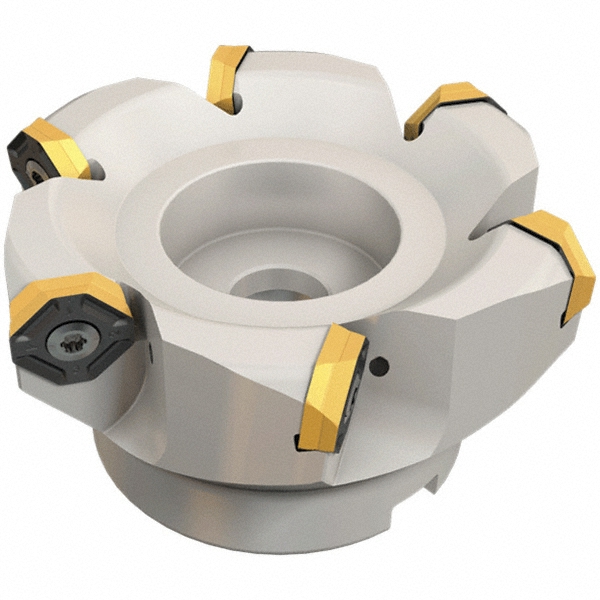

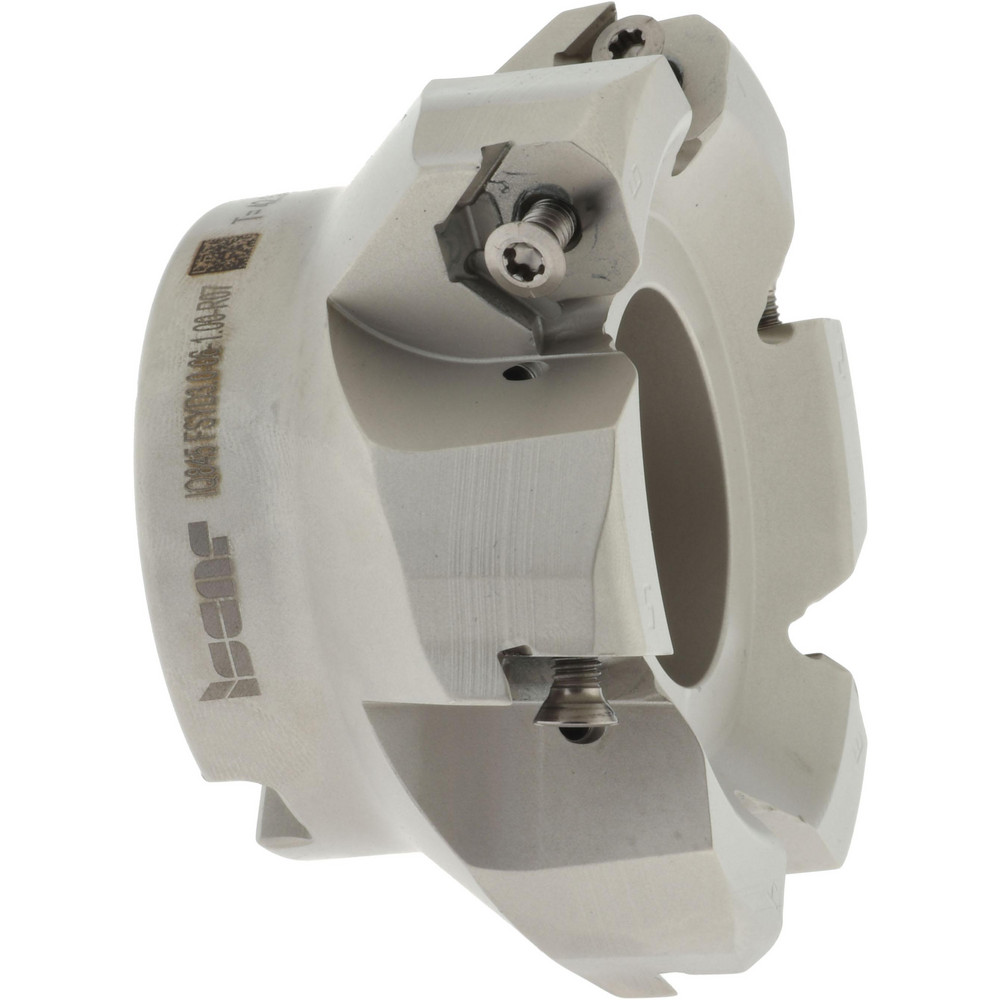

Takes 14 Inserts, IQ845 SYHU 07.. Insert, Right Hand Cut, Series DoveIQMill

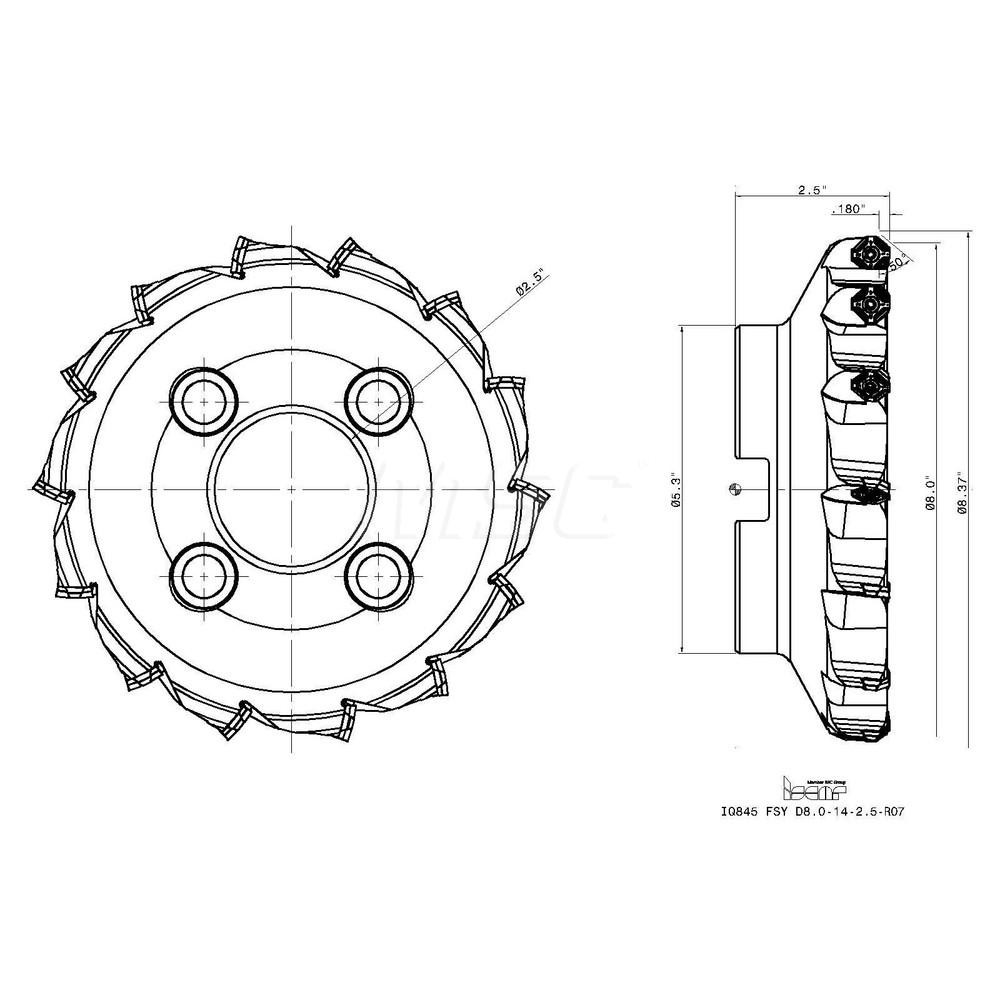

| Minimum Cutting Diameter (Decimal Inch) | 8.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 8 |
| Maximum Cutting Diameter (Decimal Inch) | 8.3700 |
| Maximum Depth of Cut (Decimal Inch) | 0.1800 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 2-1/2 |
| Compatible Insert Size Code | 07 |
| Cutter Style | IQ845 FSY-R07 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | DoveIQMill |
| Hub Diameter (Decimal Inch) | 5.3000 |
| Keyway Width (Decimal Inch) | 1.0000 |
| Keyway Width (Inch) | 1 |
| Overall Height (Decimal Inch) | 2.5000 |
| Standards | ISO |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 4.0000 |
| Complete Insert Compatibility | IQ845 SYHU 0704ADN; IQ845 SYHU 0704ADN-MM; IQ845 SYHU 0704ADTN; IQ845 SYHU 070400ADN; IQ845 SYHU 070400N-MM |
| Number Of Cutter Inserts | 14 |
| Coolant Through | No |
| UNSPSC Code | 23291600 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 61590139 |
