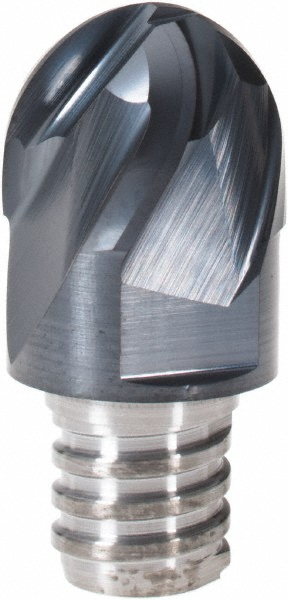

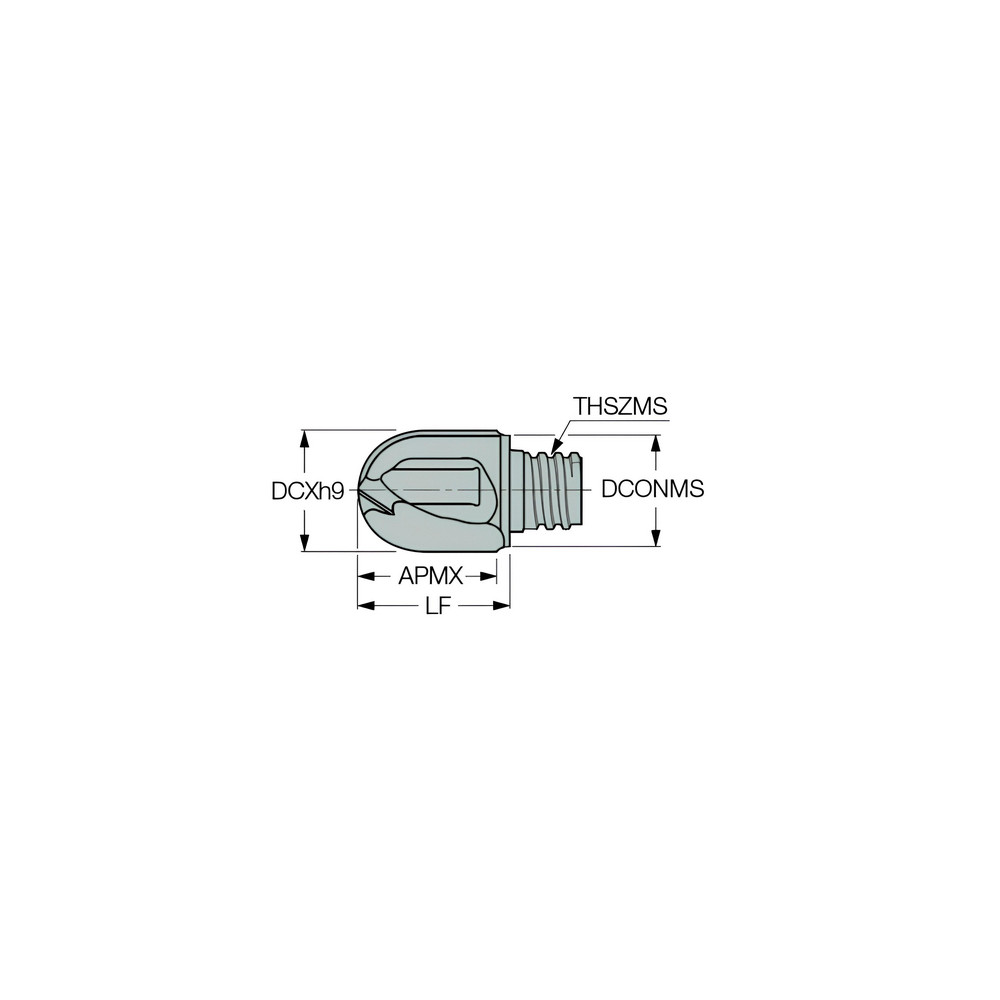

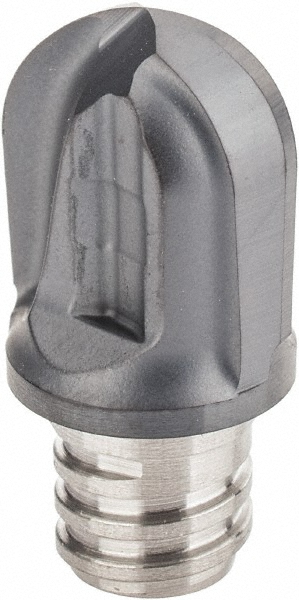

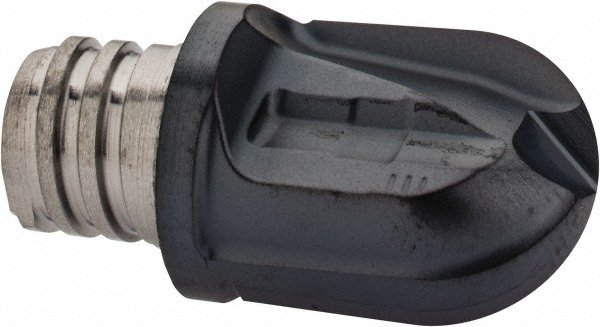

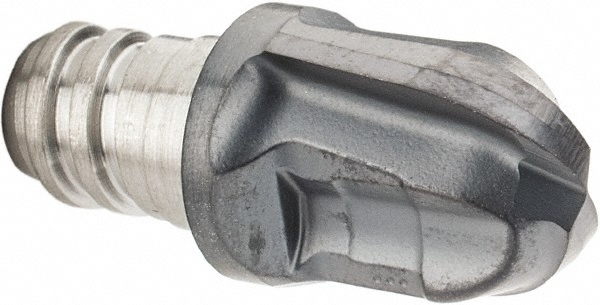

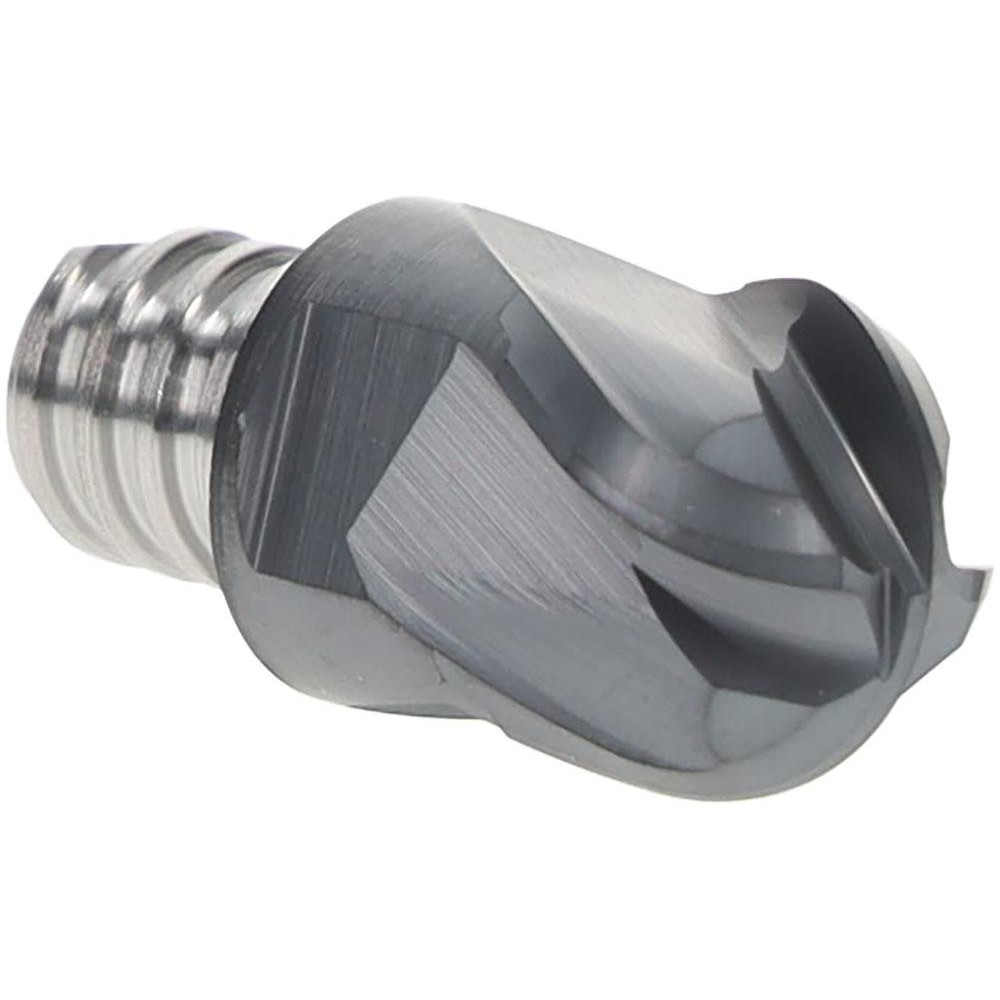

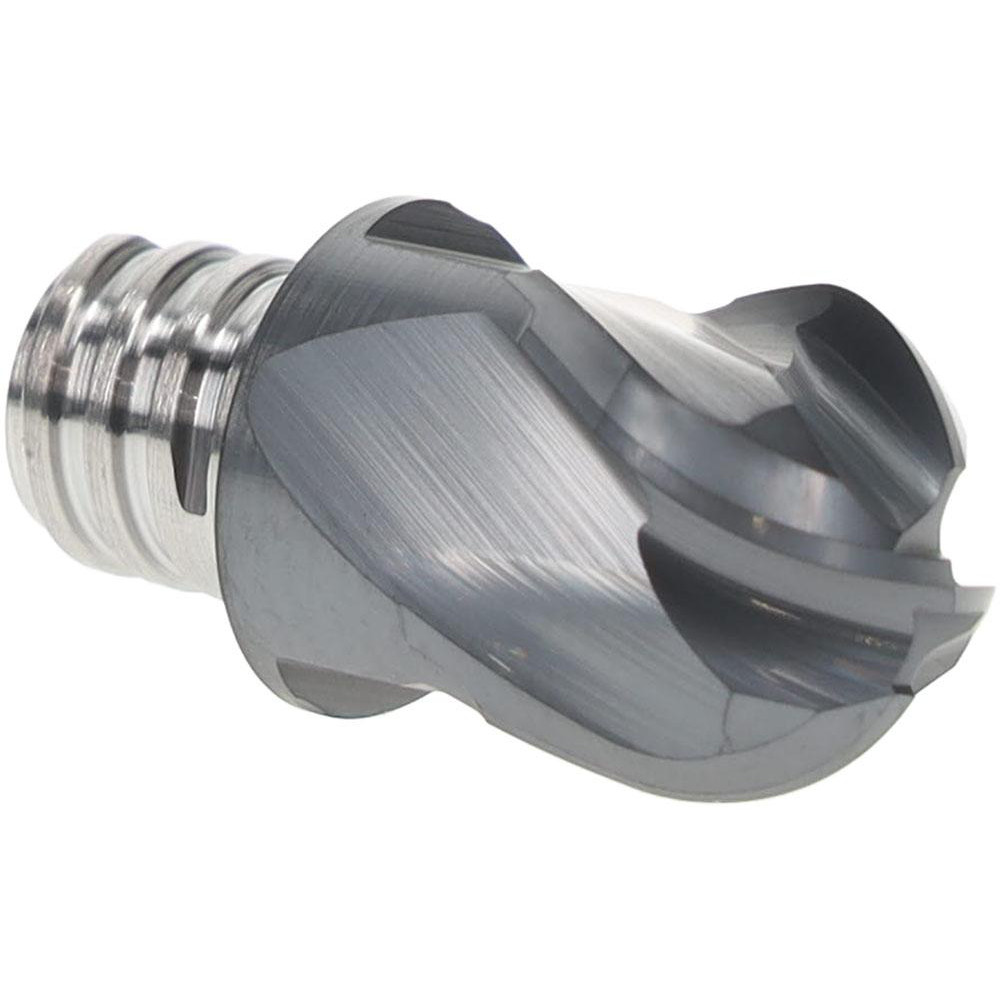

TiAlN, 2 Flutes, 1/2" Cutting Dia, Series MM HCR
| Milling Tip Type | Ball Nose |
|---|---|
| Milling Tip Style | MM HCR |
| Maximum Depth of Cut (Decimal Inch) | 0.5080 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM HCR |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.5000 |
| Cutting Width (Decimal Inch) | 0.5 |
| Functional Length (Decimal Inch) | 0.6460 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ANSI |

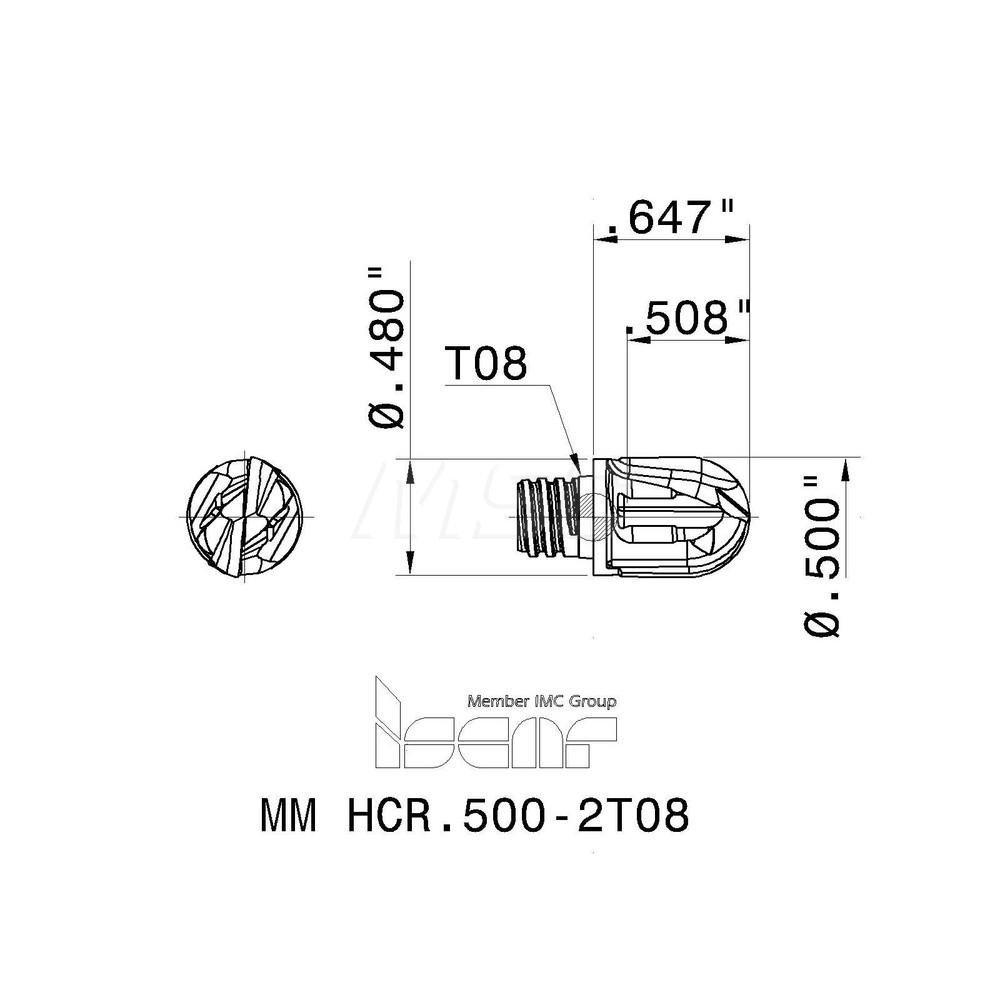

| Milling Tip Full Description | MM HCR.500-2T08 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 5603204 |
| Chamfer Angle | 0 |
| Overall Length (Decimal Inch) | 0.646 |
| Insert Size | .500 |
| Coolant Through | No |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5080 |
| Number Of Flutes | 2 |
| Extension From Holder (Inch) | 0.6460 |
| Country of Origin | Israel |
| MSC Number | MSC# 62078324 |
