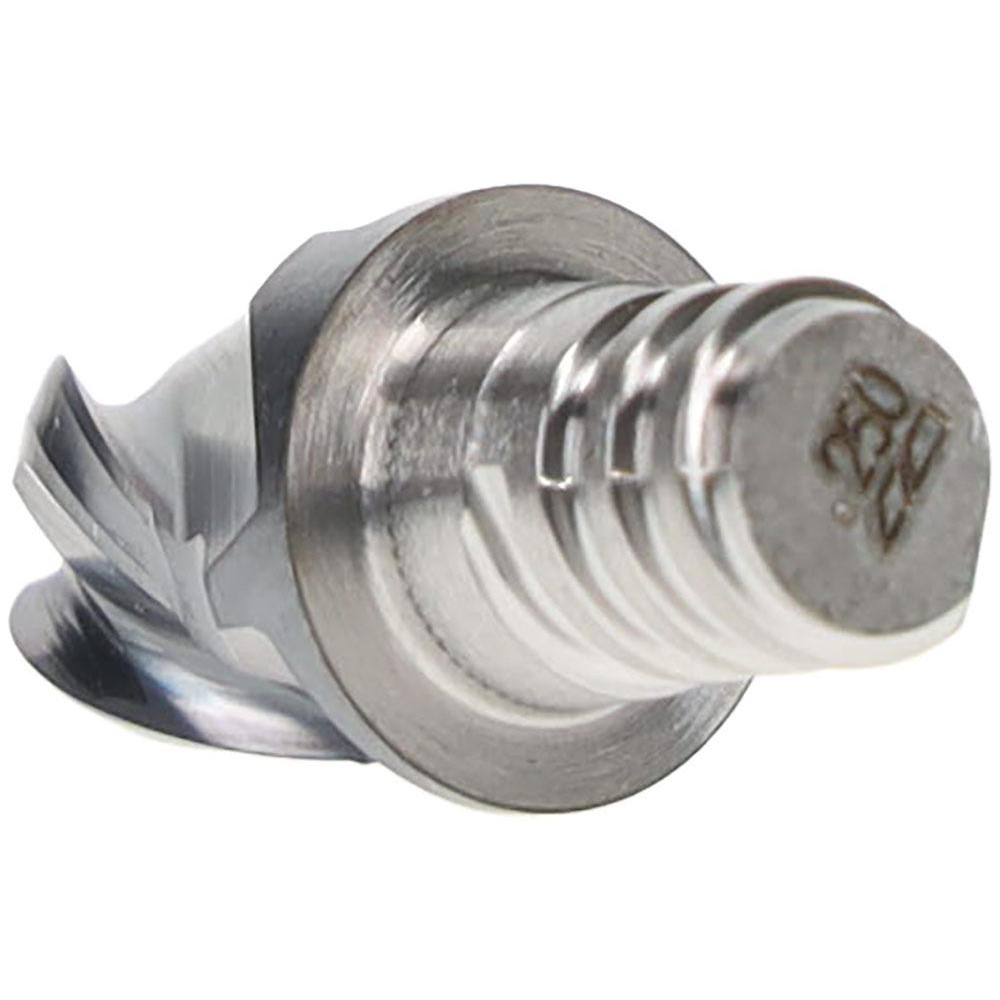

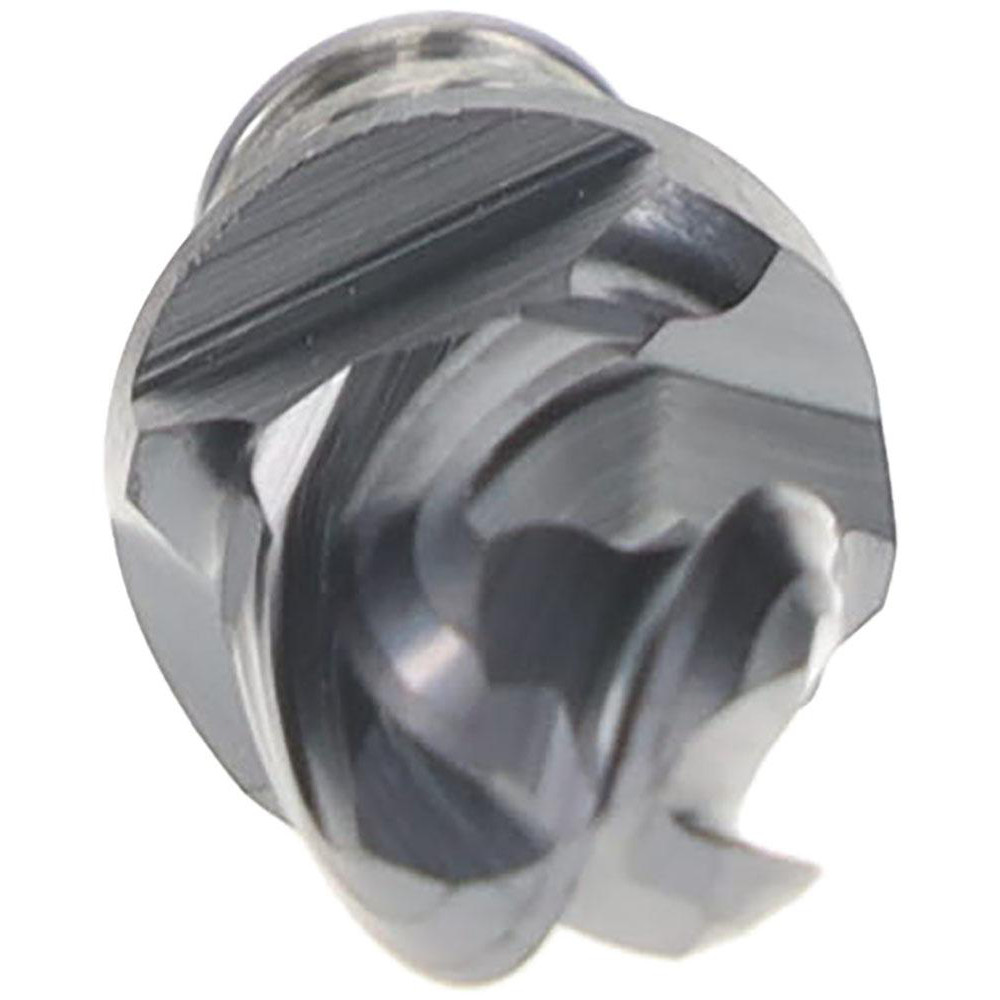

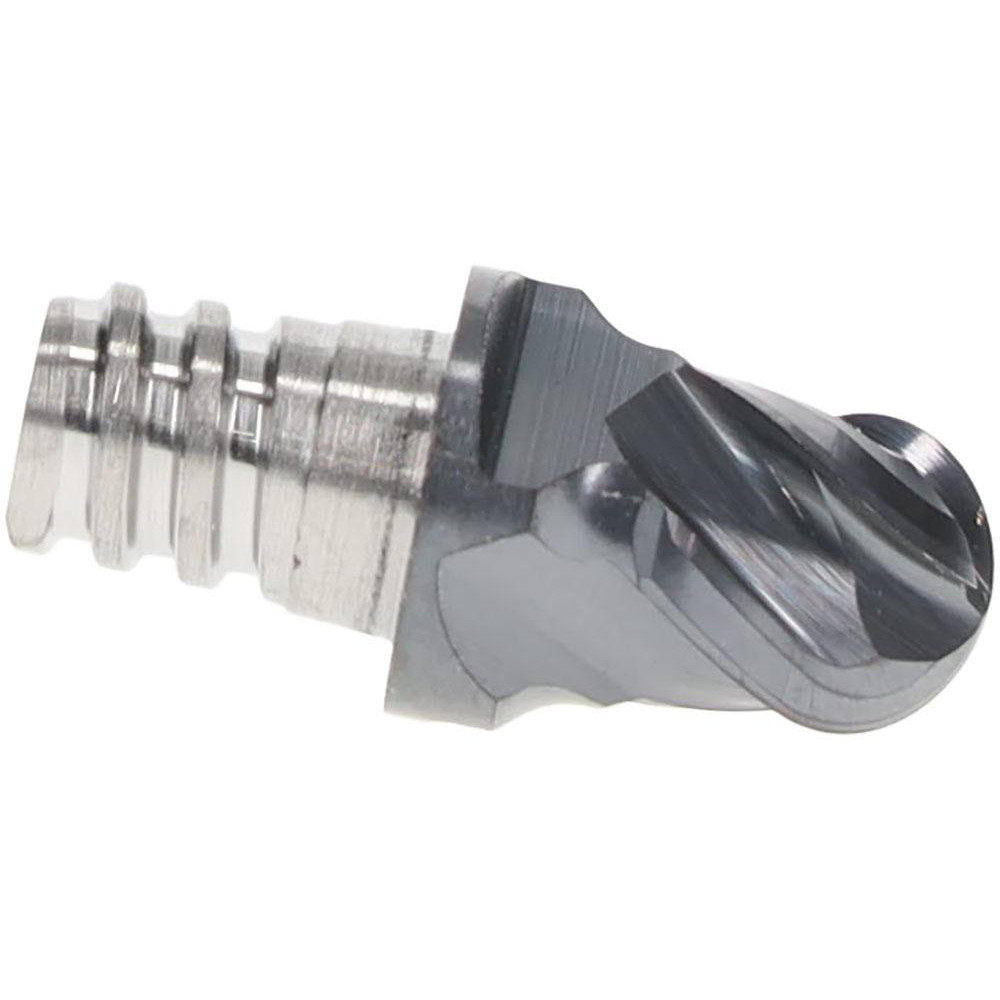

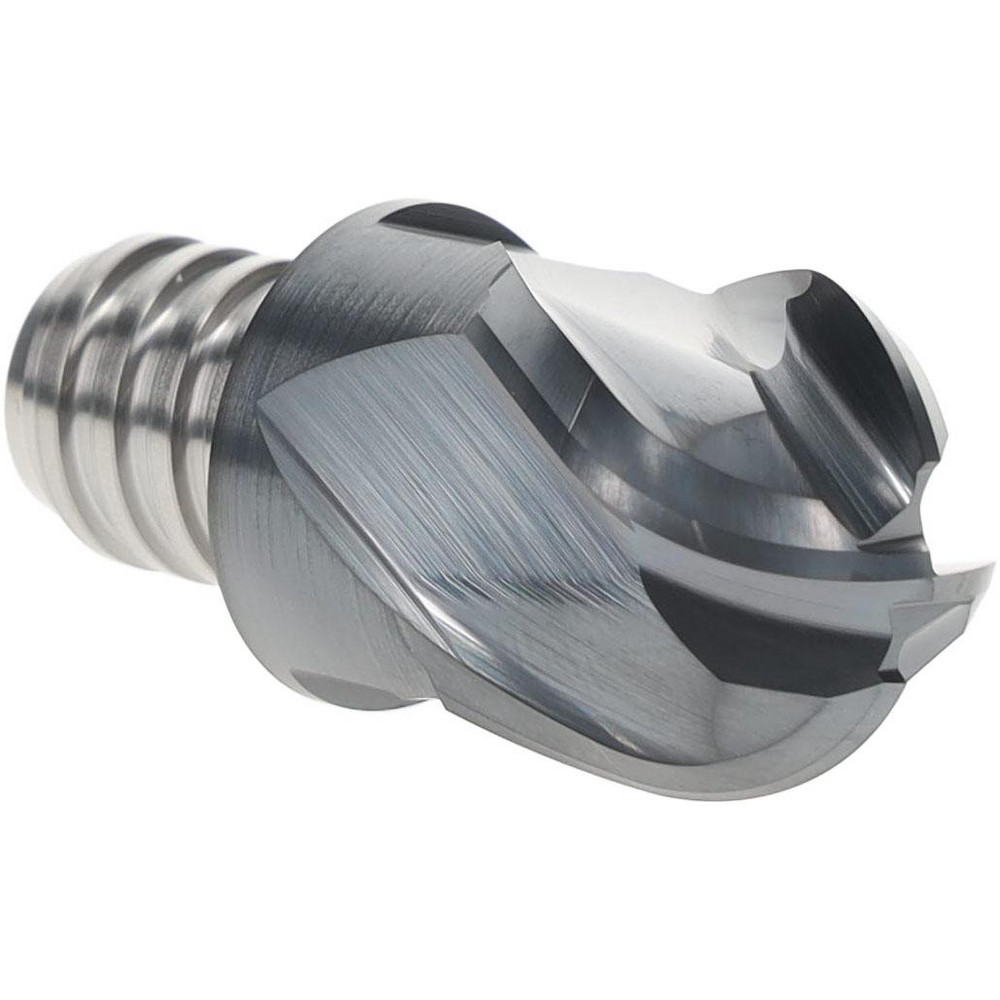

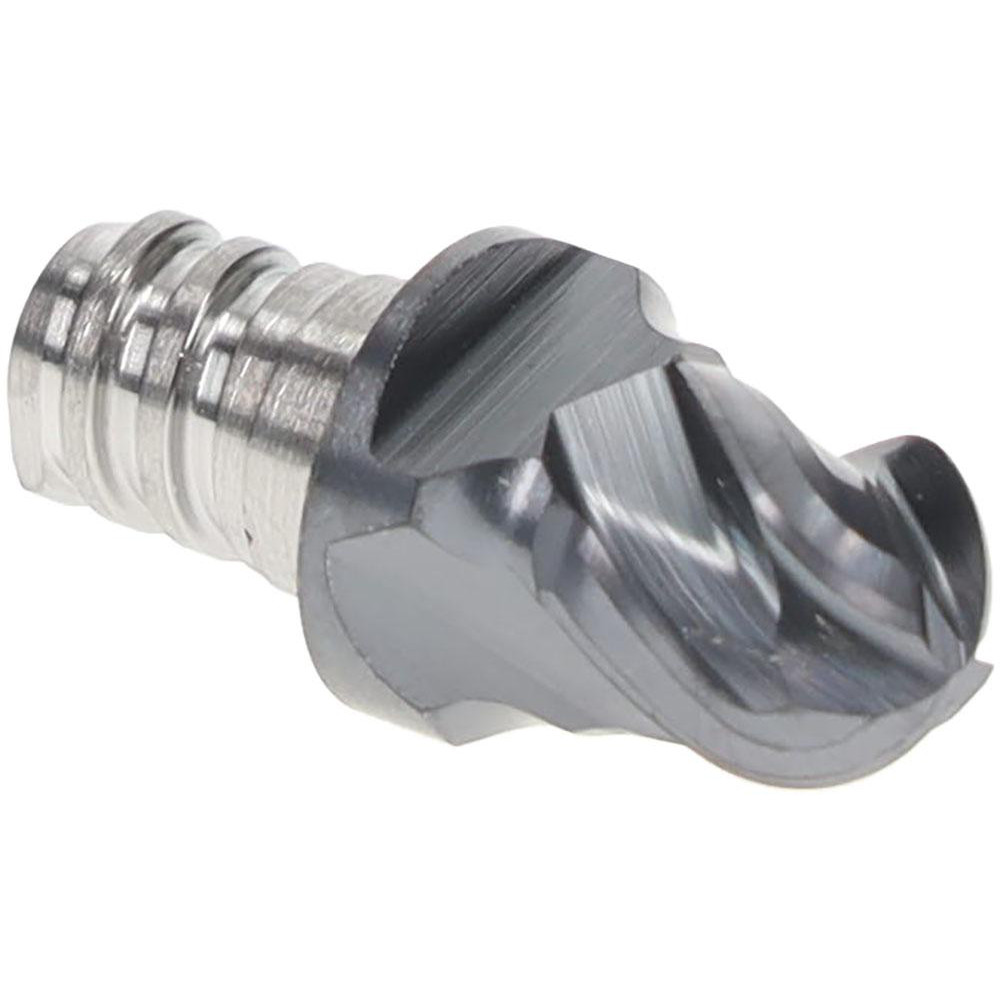

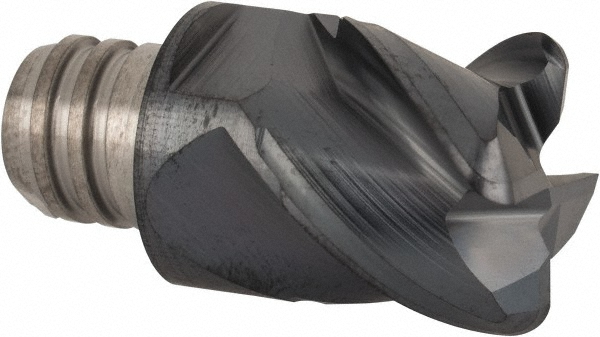

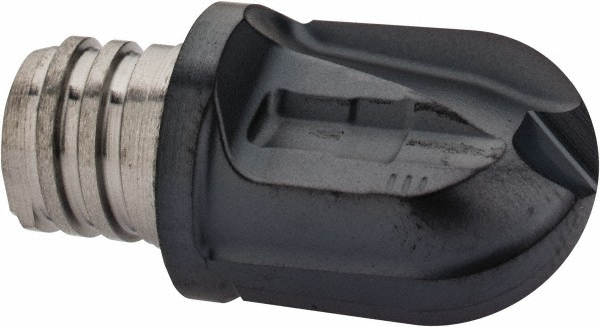

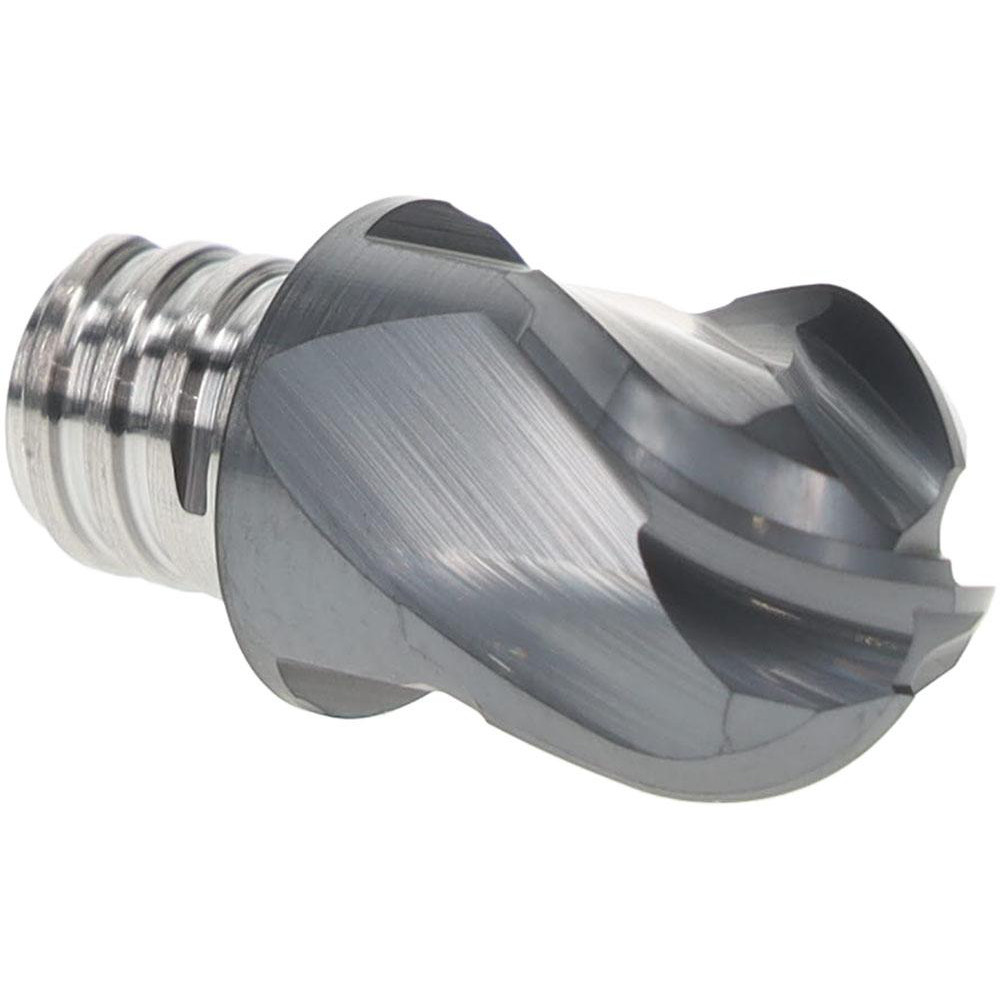

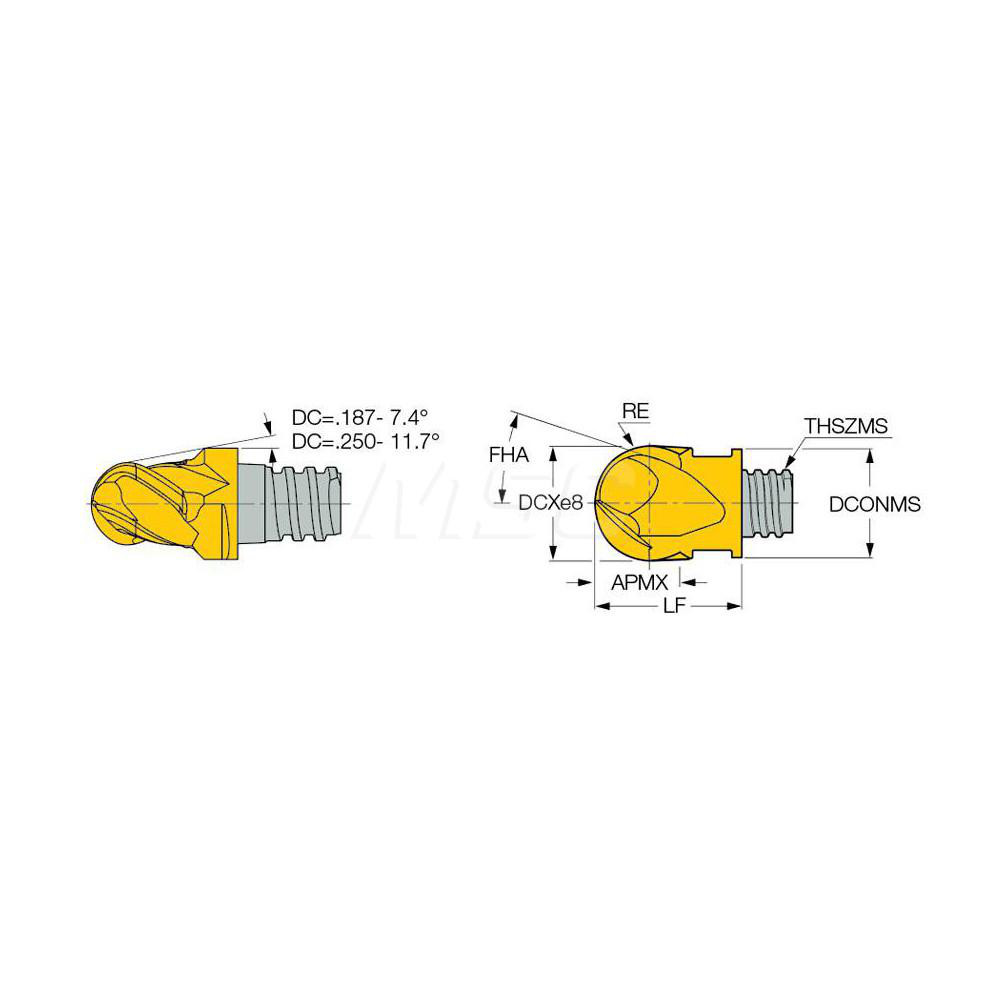

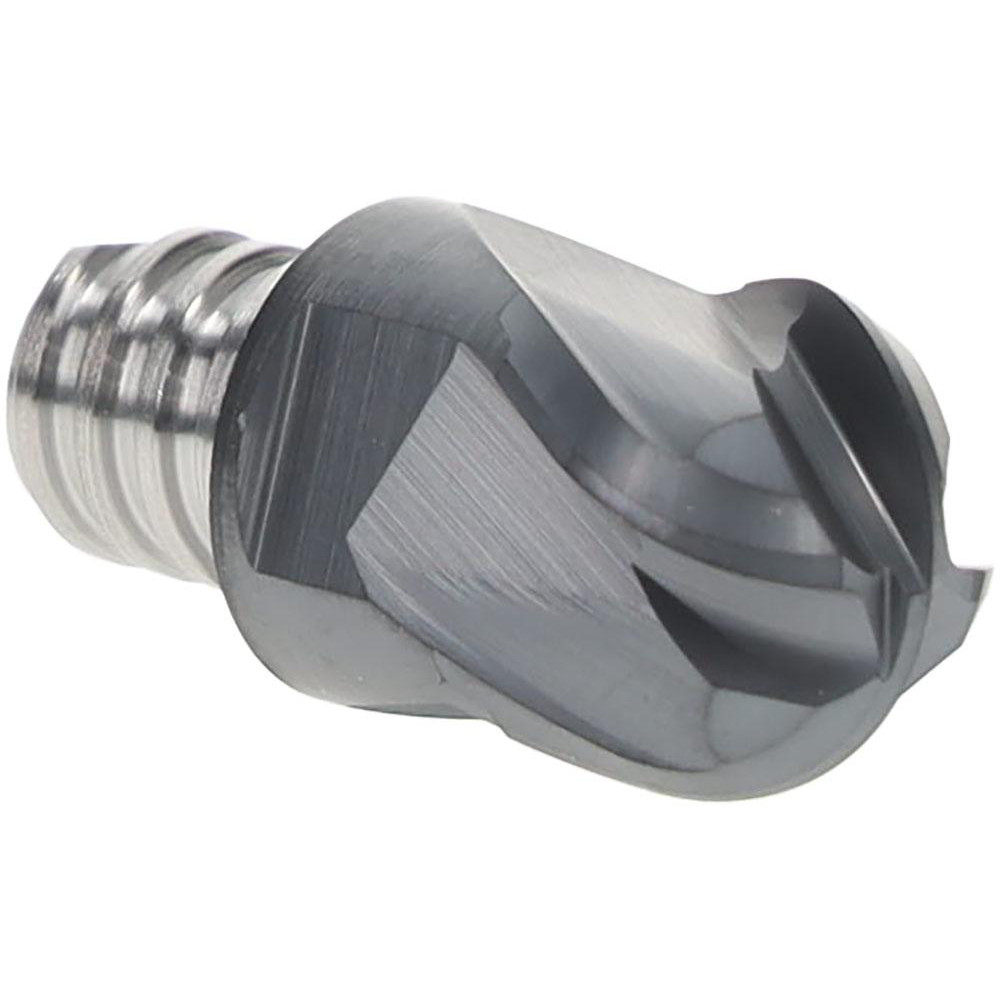

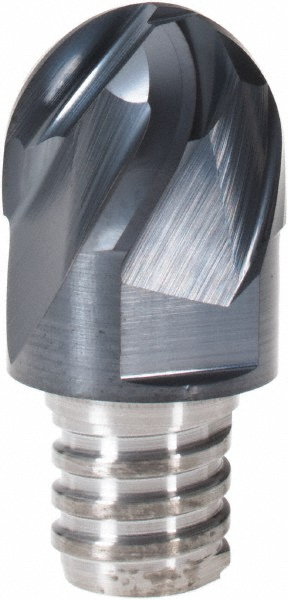

TiAlN, 4 Flutes, 1/4" Cutting Dia, Series MM EB
| Milling Tip Type | Ball Nose |
|---|---|
| Milling Tip Style | MM EB |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM EB |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.1300 |
| Cutting Width (Decimal Inch) | 0.25 |
| Functional Length (Decimal Inch) | 0.3900 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ANSI |

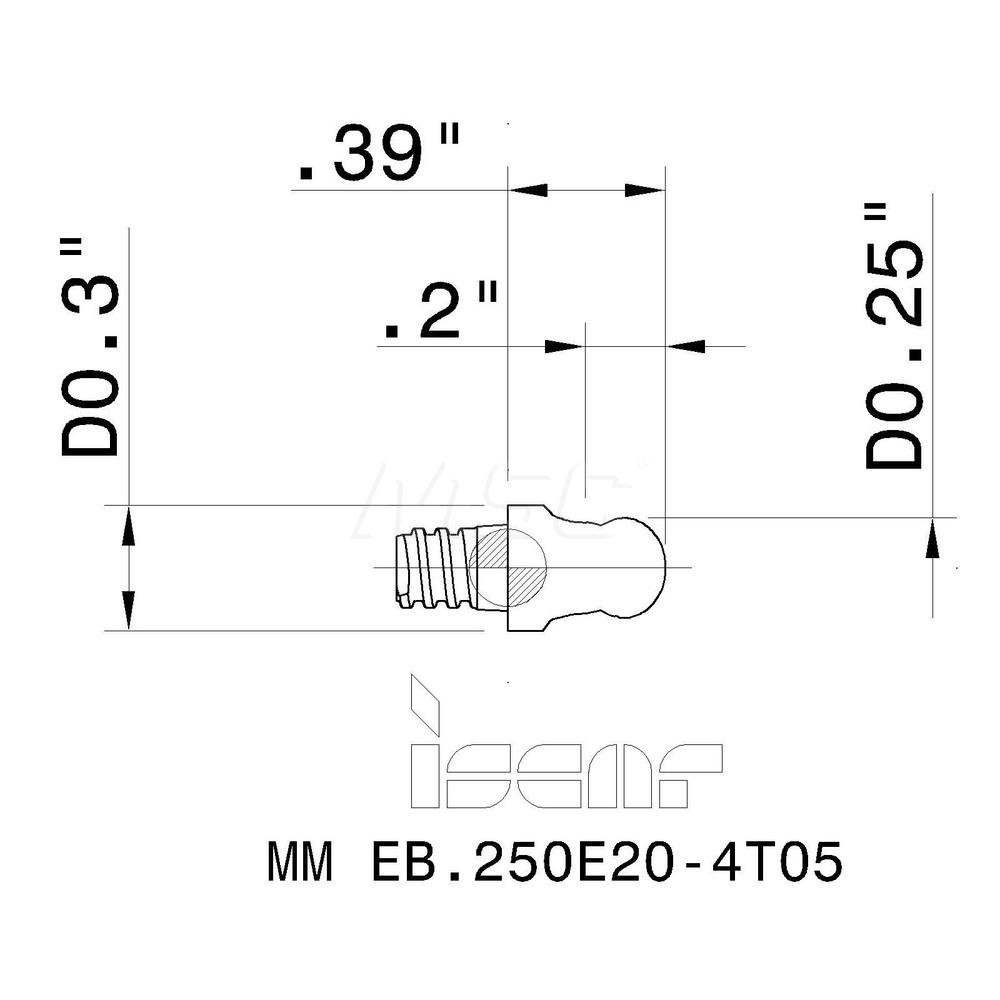

| Milling Tip Full Description | MM EB.250E20-4T05 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 5622237 |
| Chamfer Angle | 0 |
| Overall Length (Decimal Inch) | 0.39 |
| Insert Size | .250E20 |
| Helix Angle | 38 |
| Coolant Through | No |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2000 |
| Number Of Flutes | 4 |
| Extension From Holder (Inch) | 0.3900 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91159301 |
