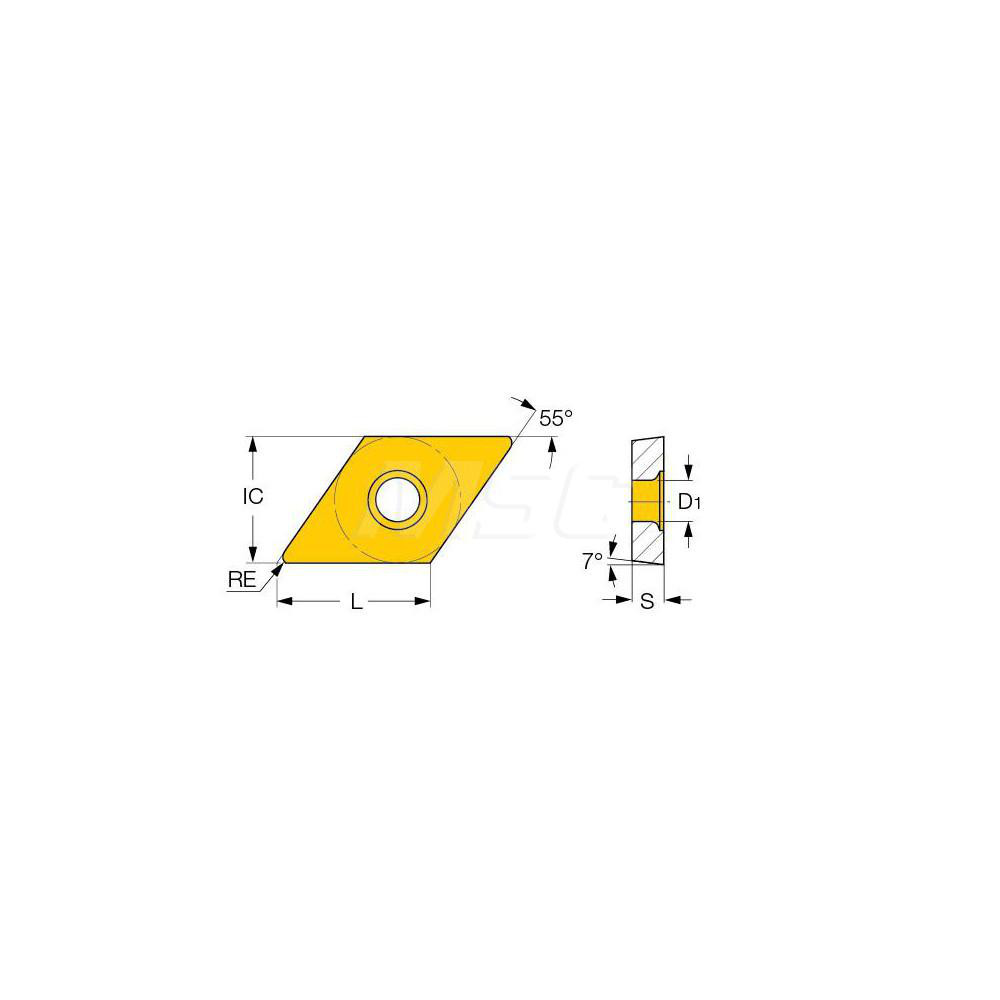

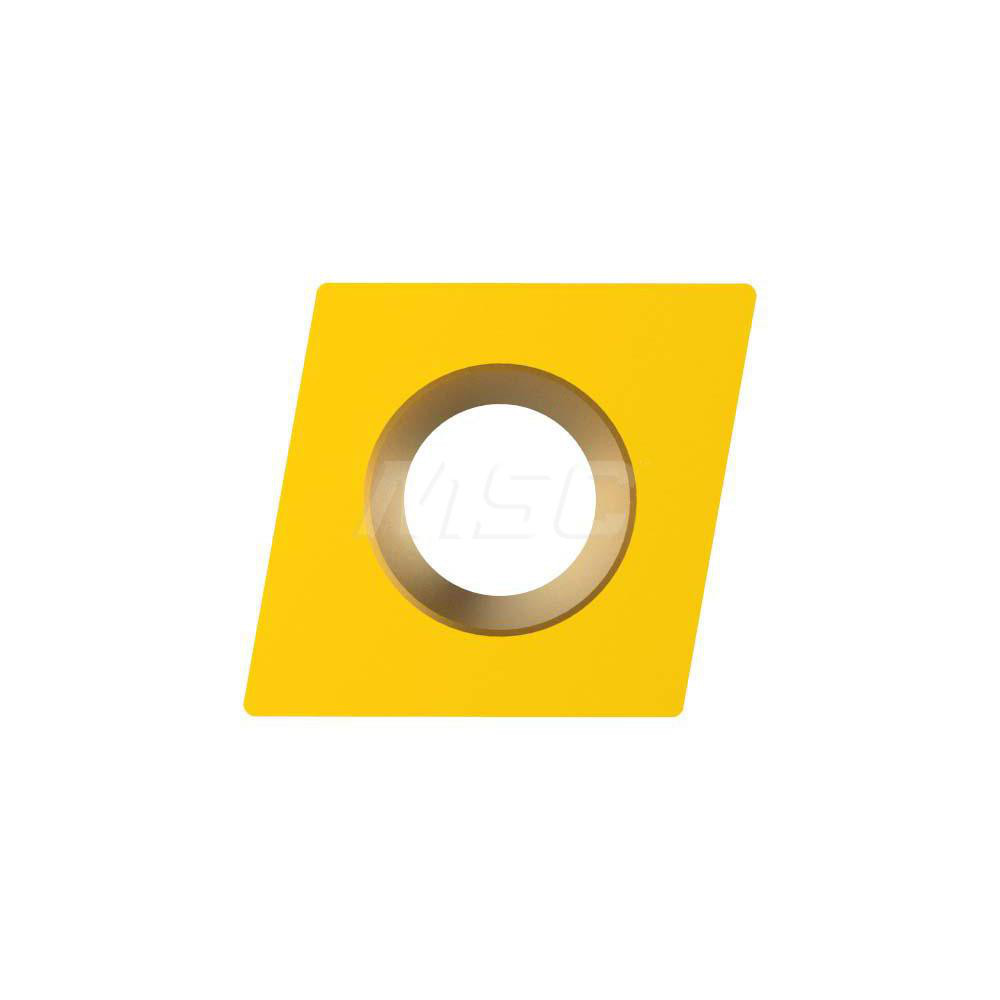

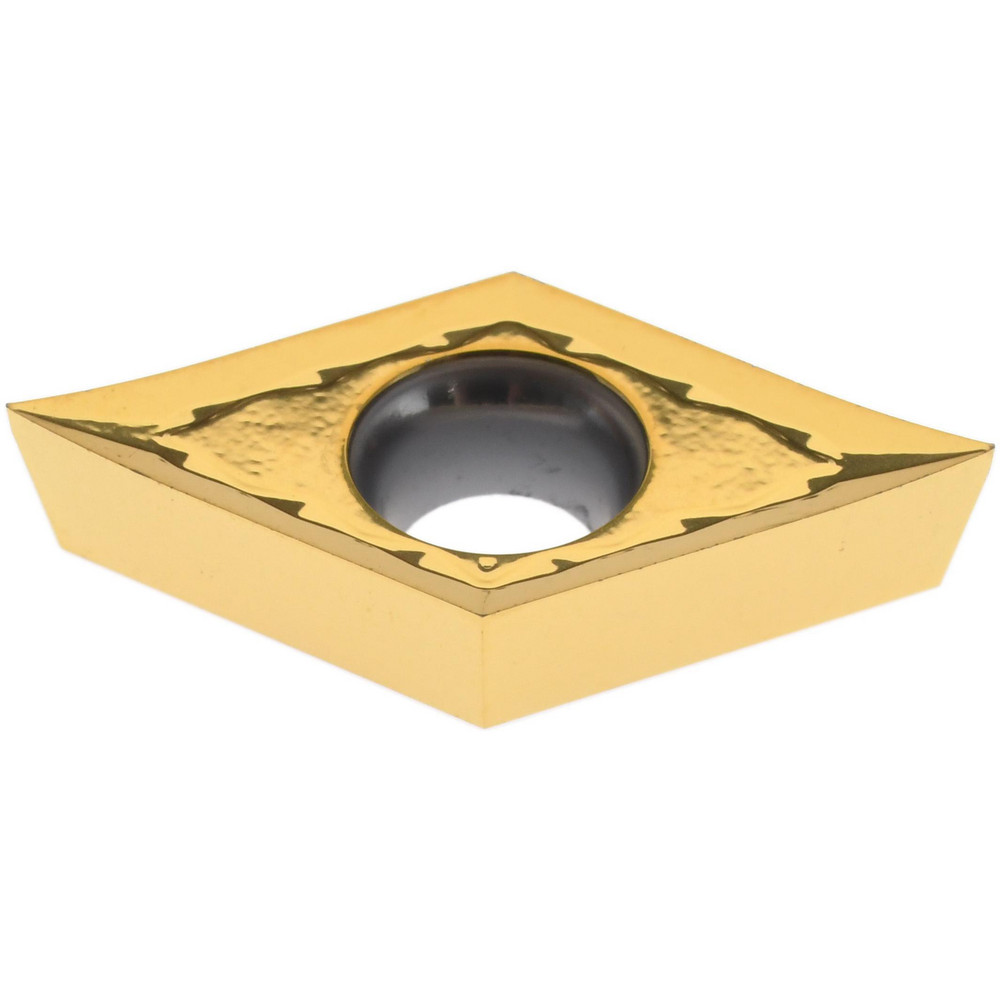

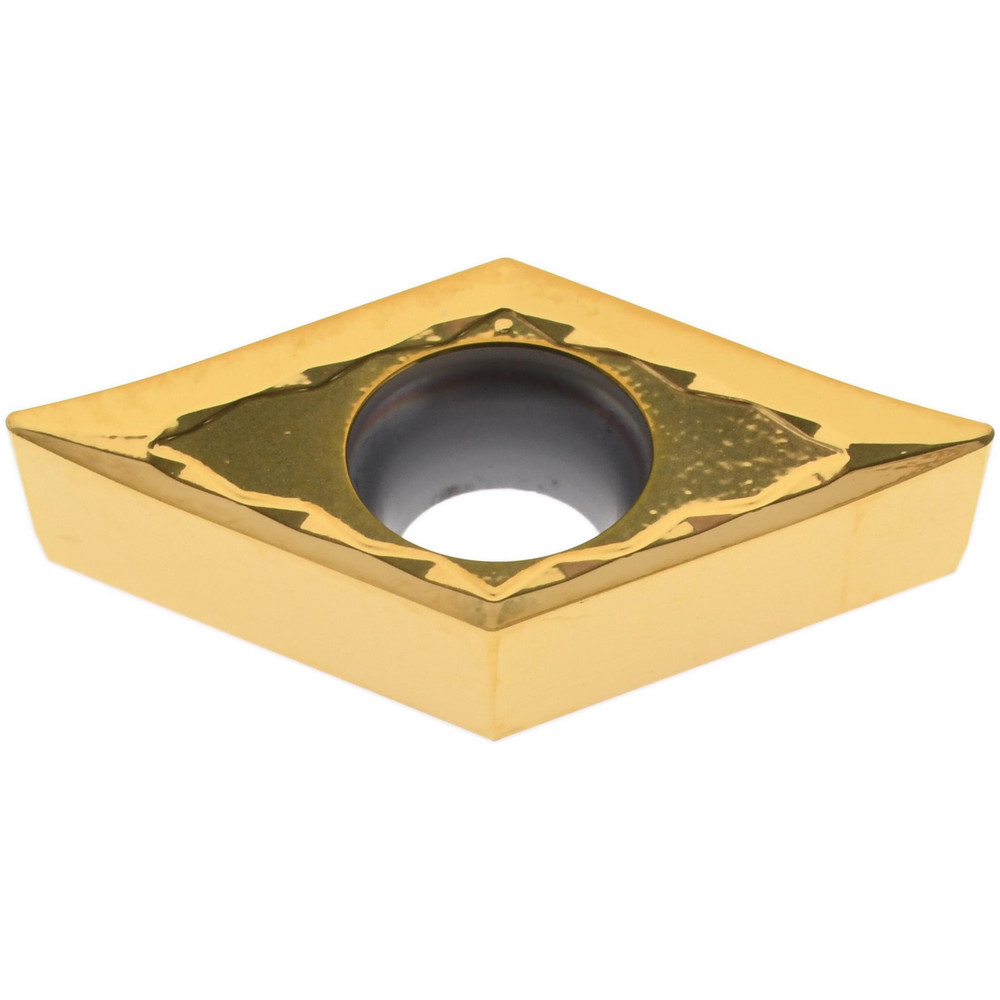

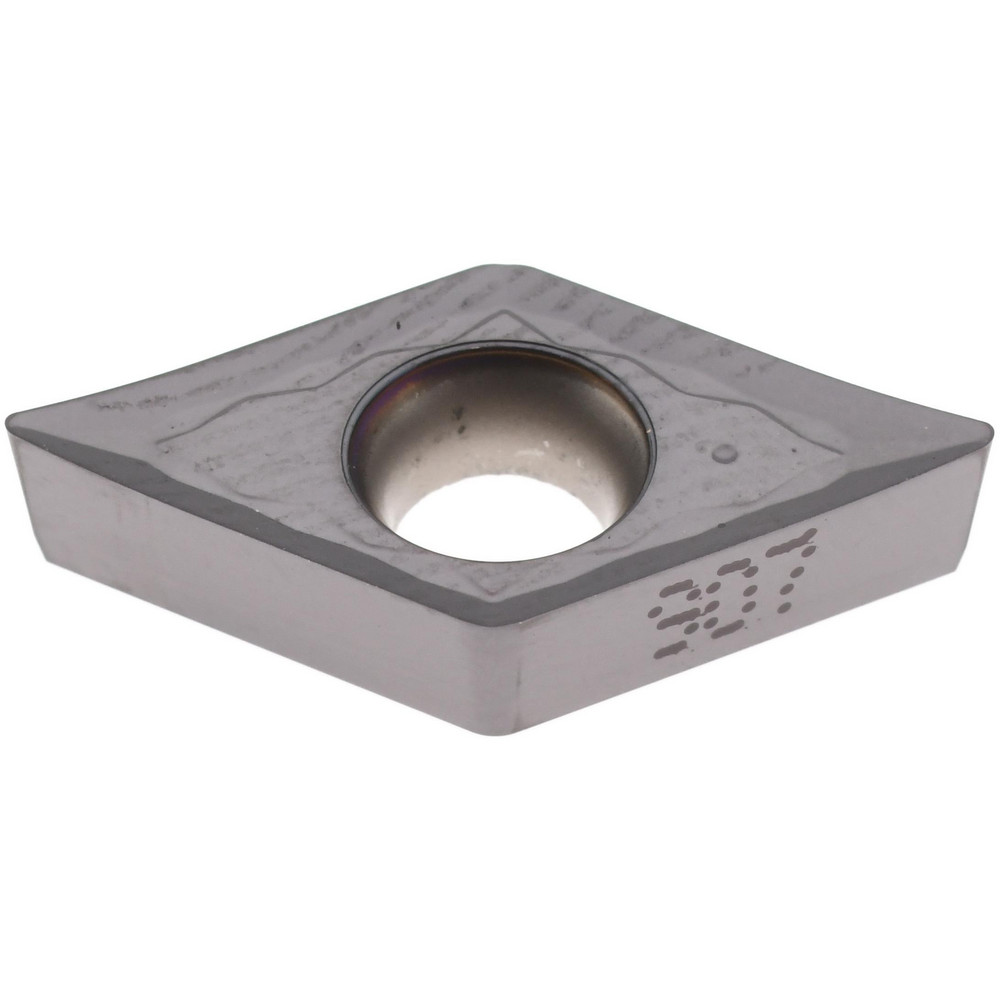

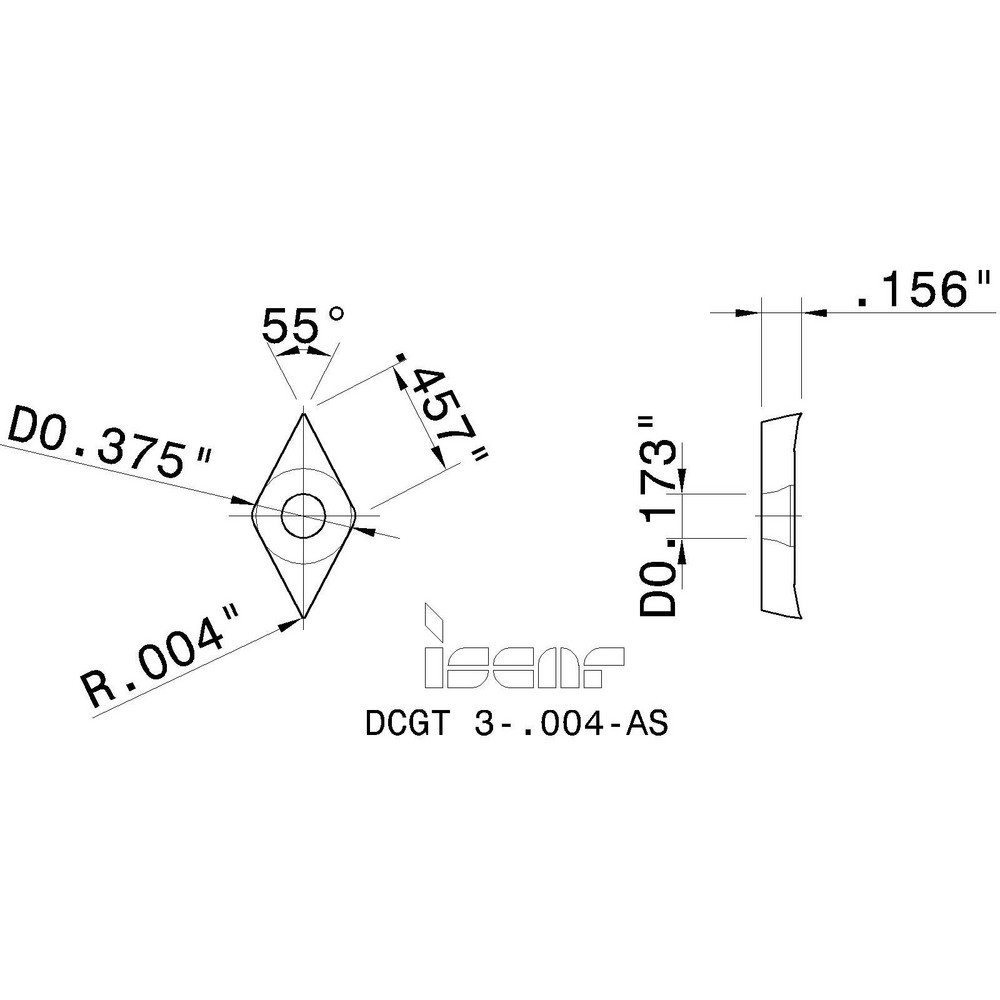

TiCN, TiN Coated, 55 ° Diamond, 0.004" Corner Radius, 3/8" Inscribed Circle, 5/32" Thick, 7 ° Relief Angle
| Insert Style | DCGT |
|---|---|
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC520 |
| Thickness (mm) | 3.97 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.3748 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.52 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | AS |
| Series | Isoturn |
| Coating Process | PVD |
| Included Angle | 55 |
| Insert Shape | Diamond |
| Primary Workpiece Material | Hard Material; Superalloy; Stainless Steel; Titanium |
| Primary Workpiece Material Code | S; M; N |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Shape | Diamond |
| Length (Decimal Inch - 4 Decimals) | 0.4567 |
| Coating/Finish | Titanium Nitride; TiCN |
| UNSPSC Code | 23242105 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Length (mm) | 11.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Country of Origin | South Korea |
| undefined | undefined |
| MSC Number | MSC# 05560883 |
