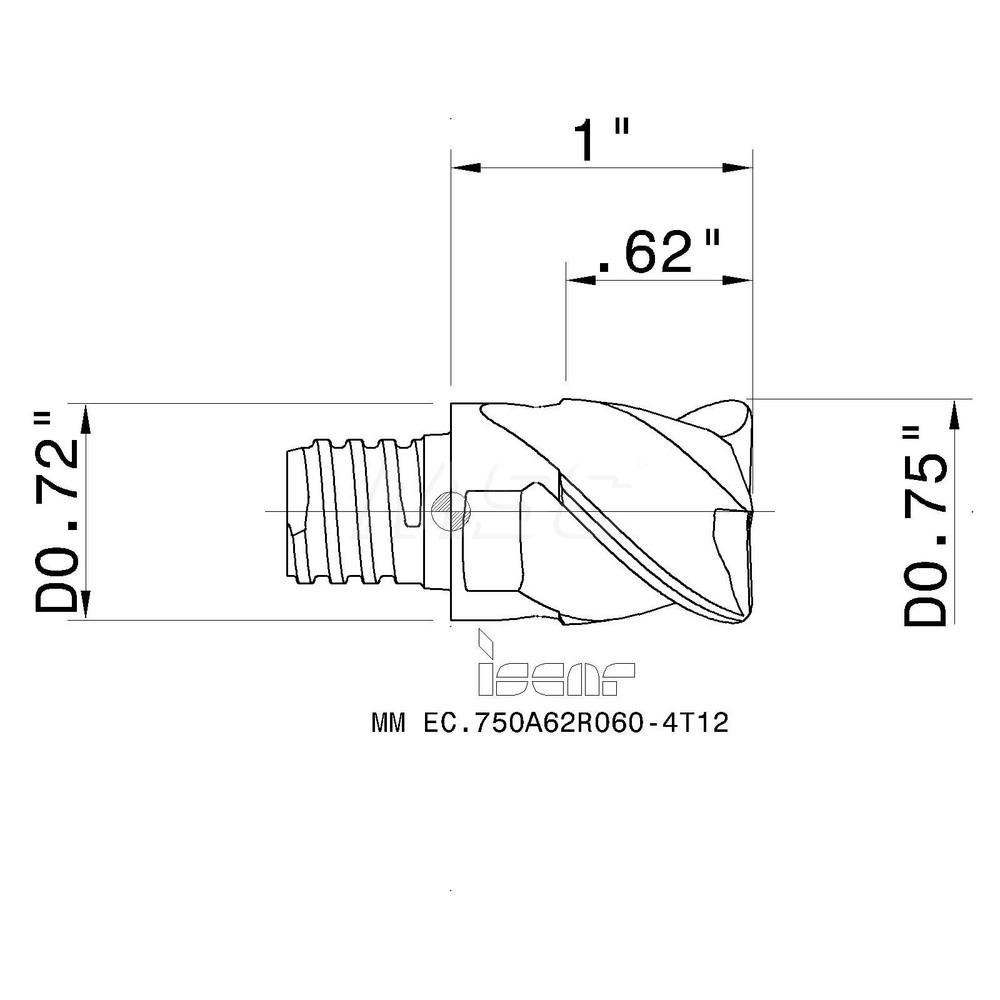

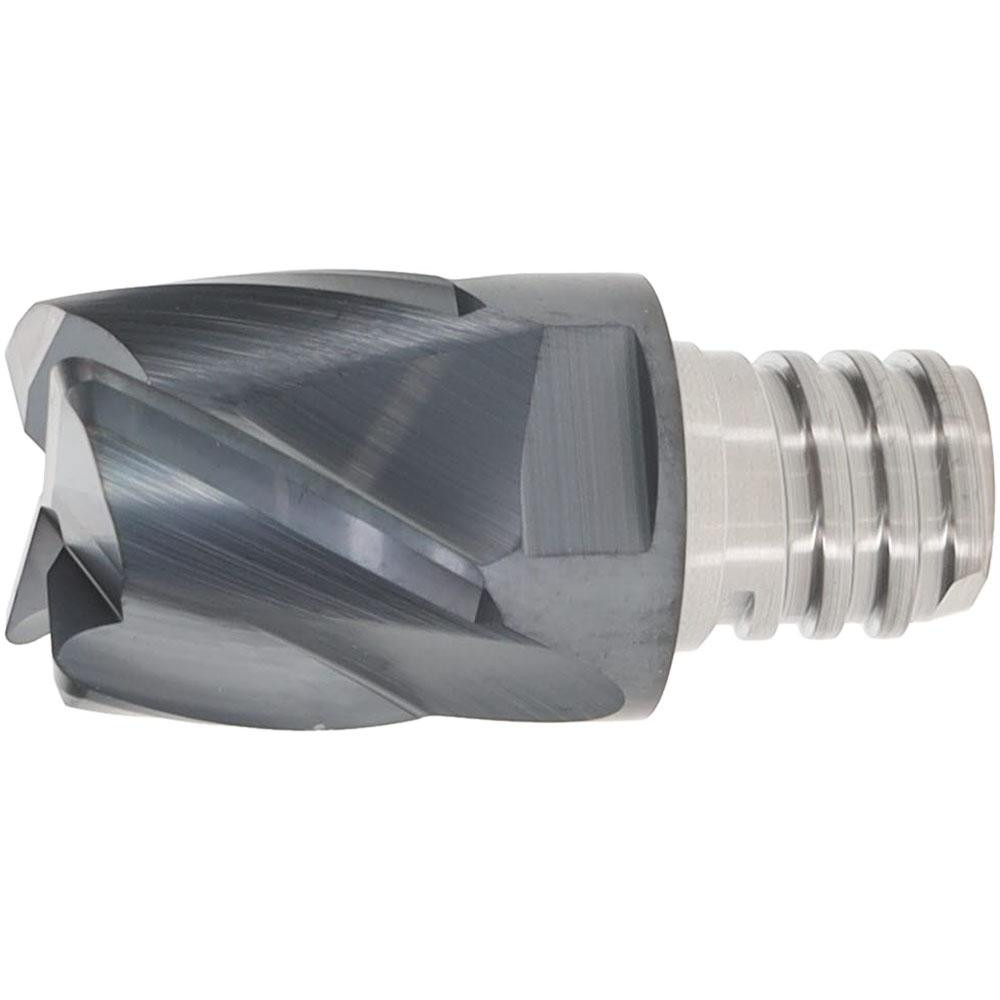

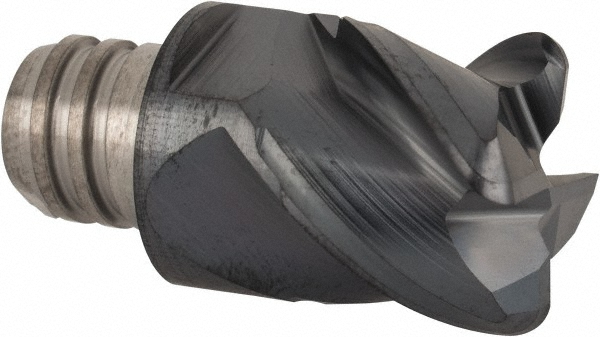

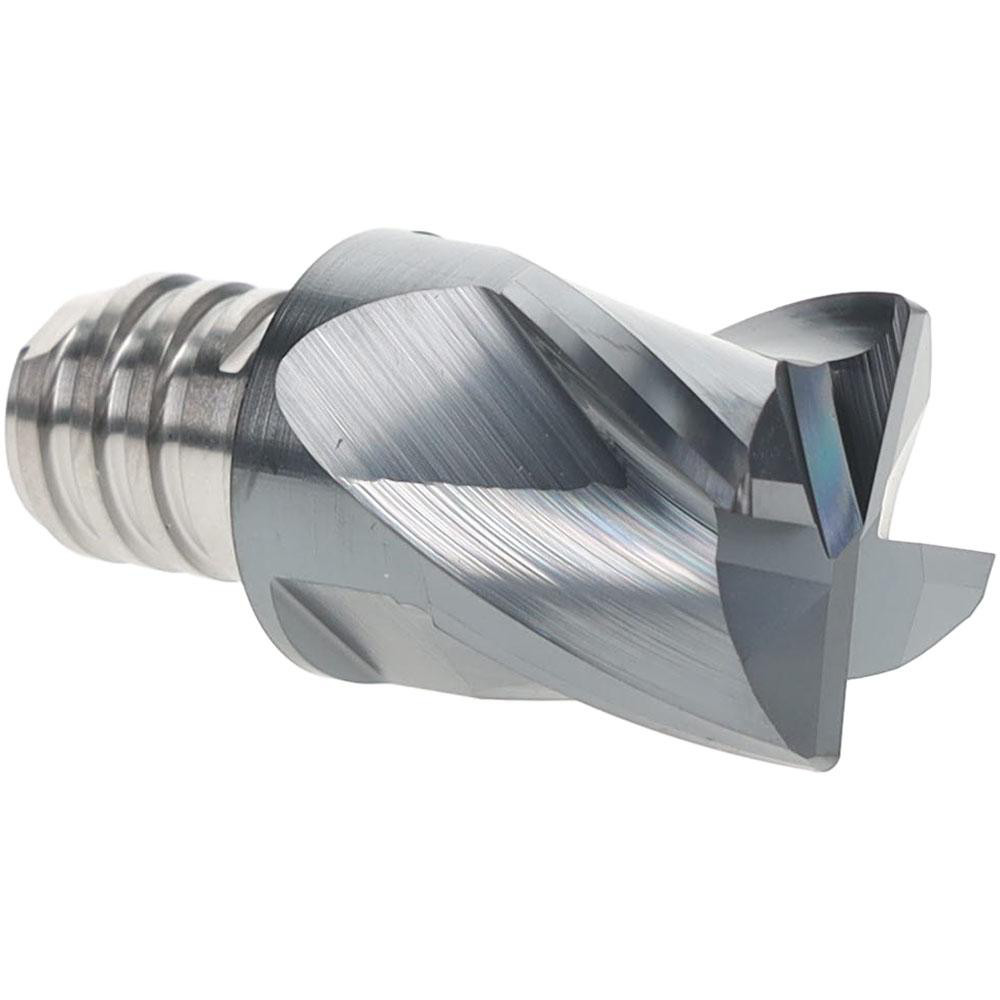

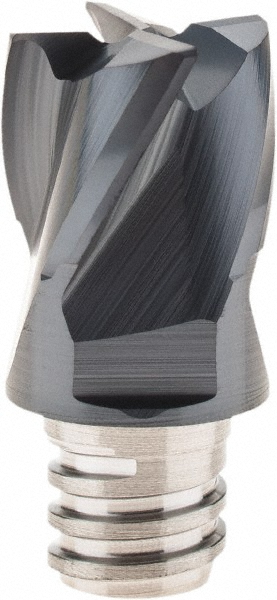

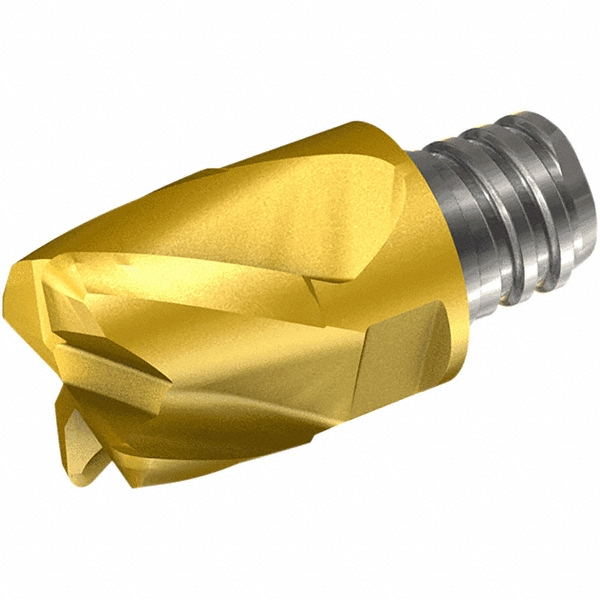

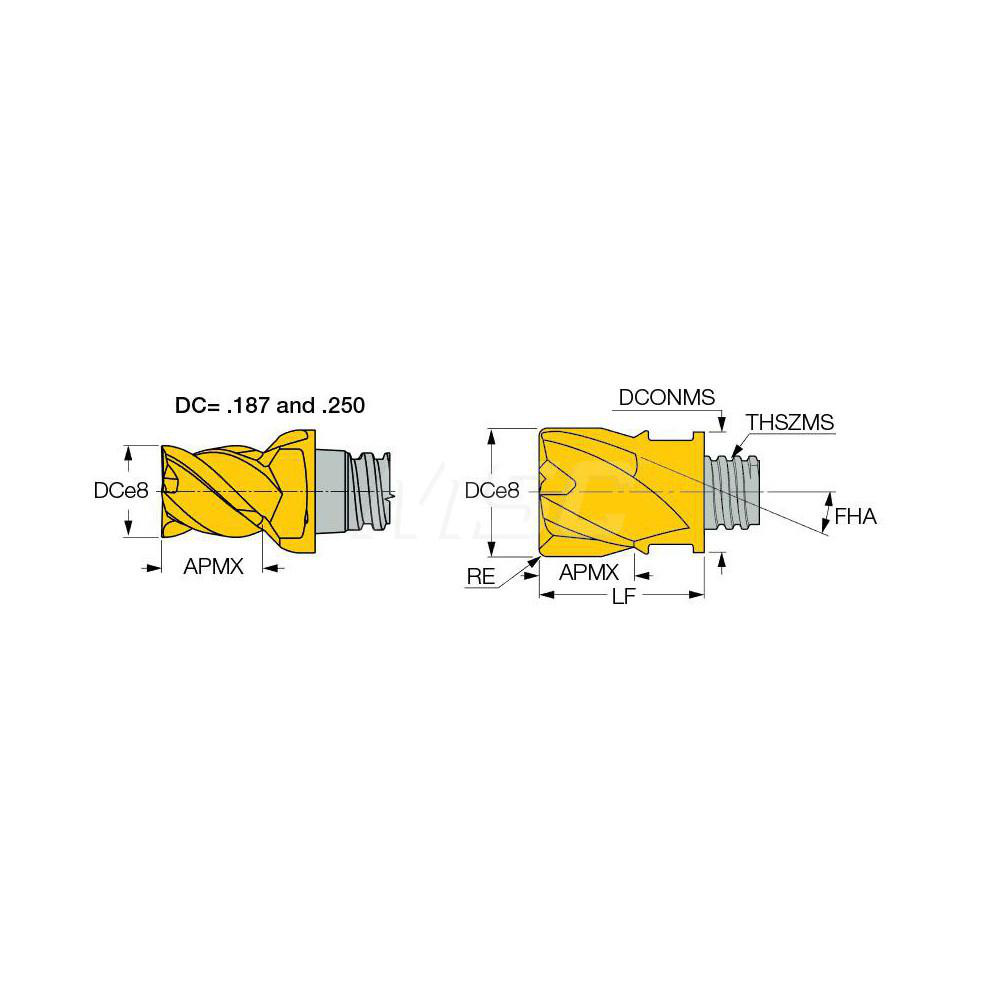

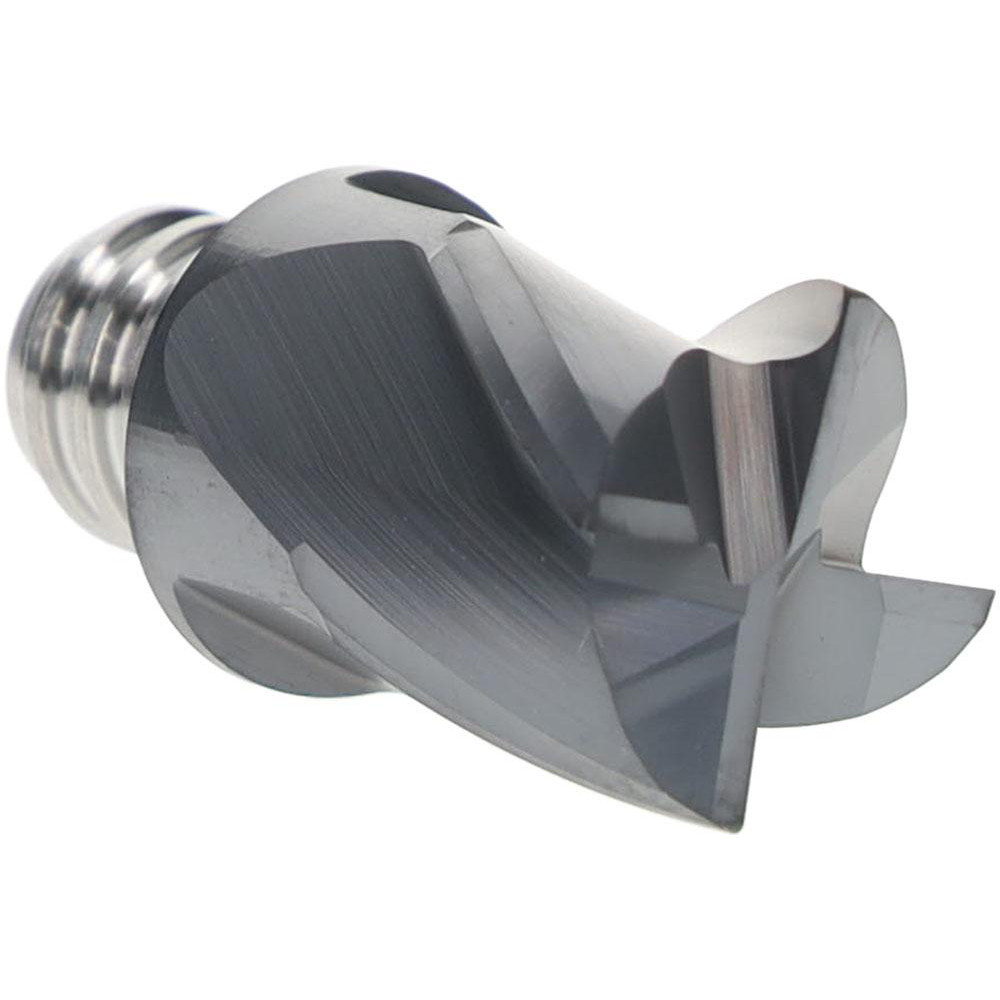

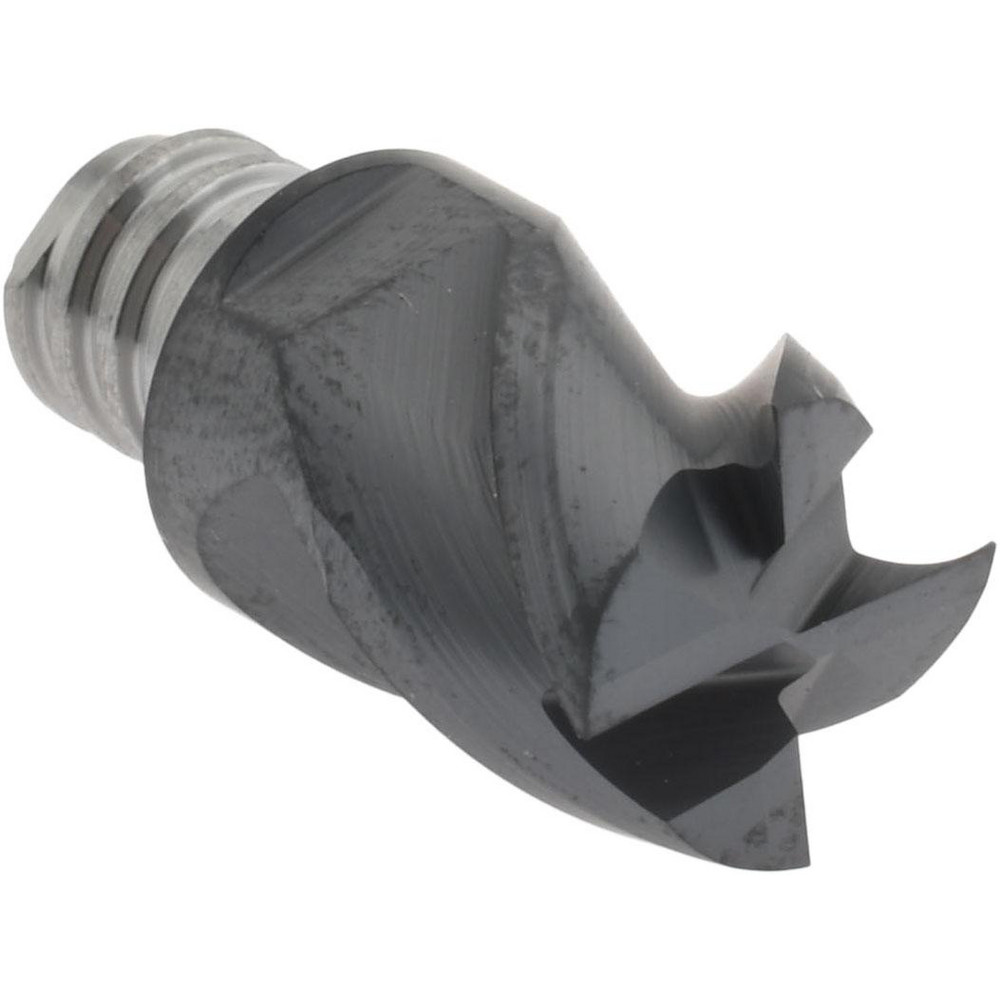

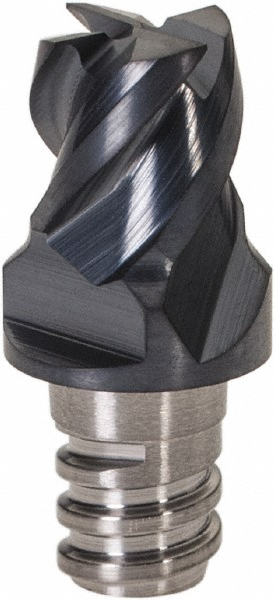

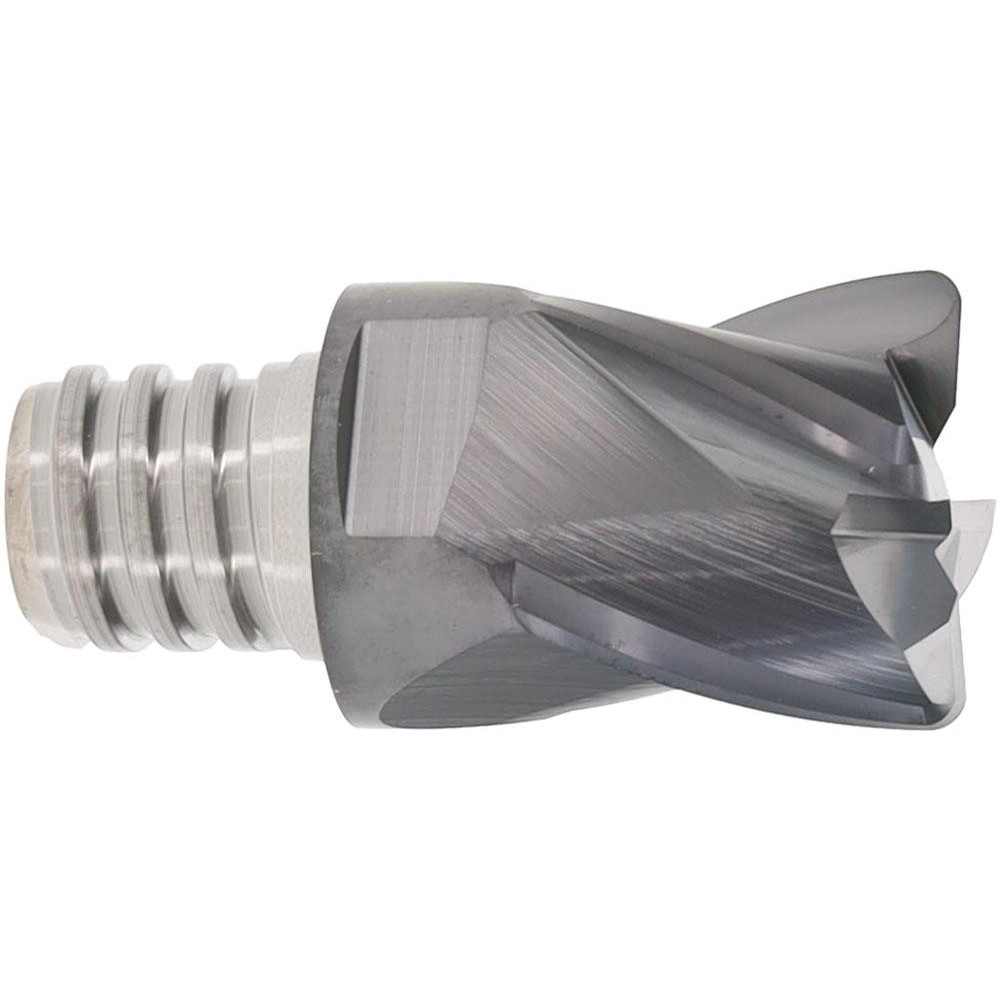

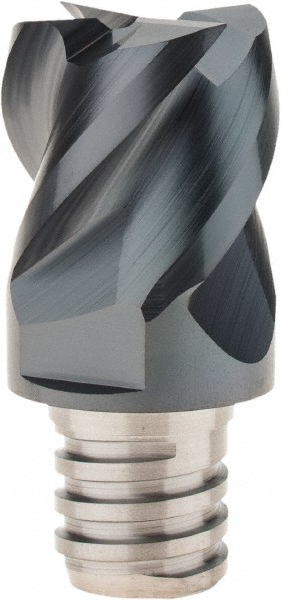

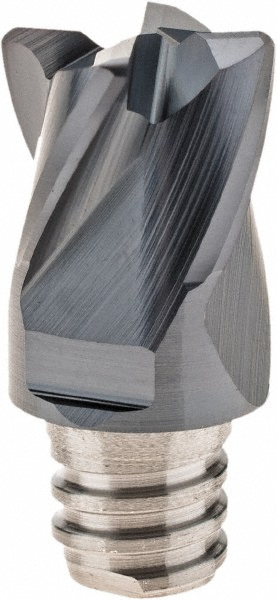

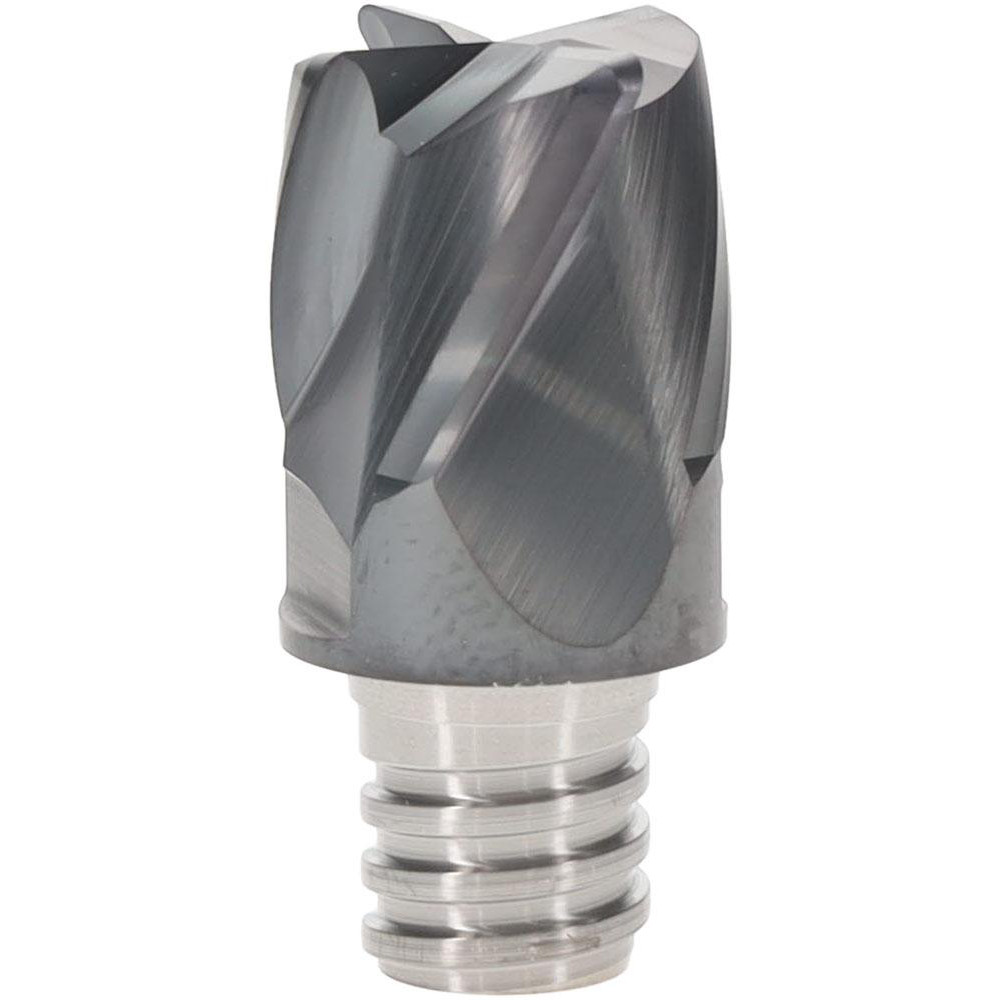

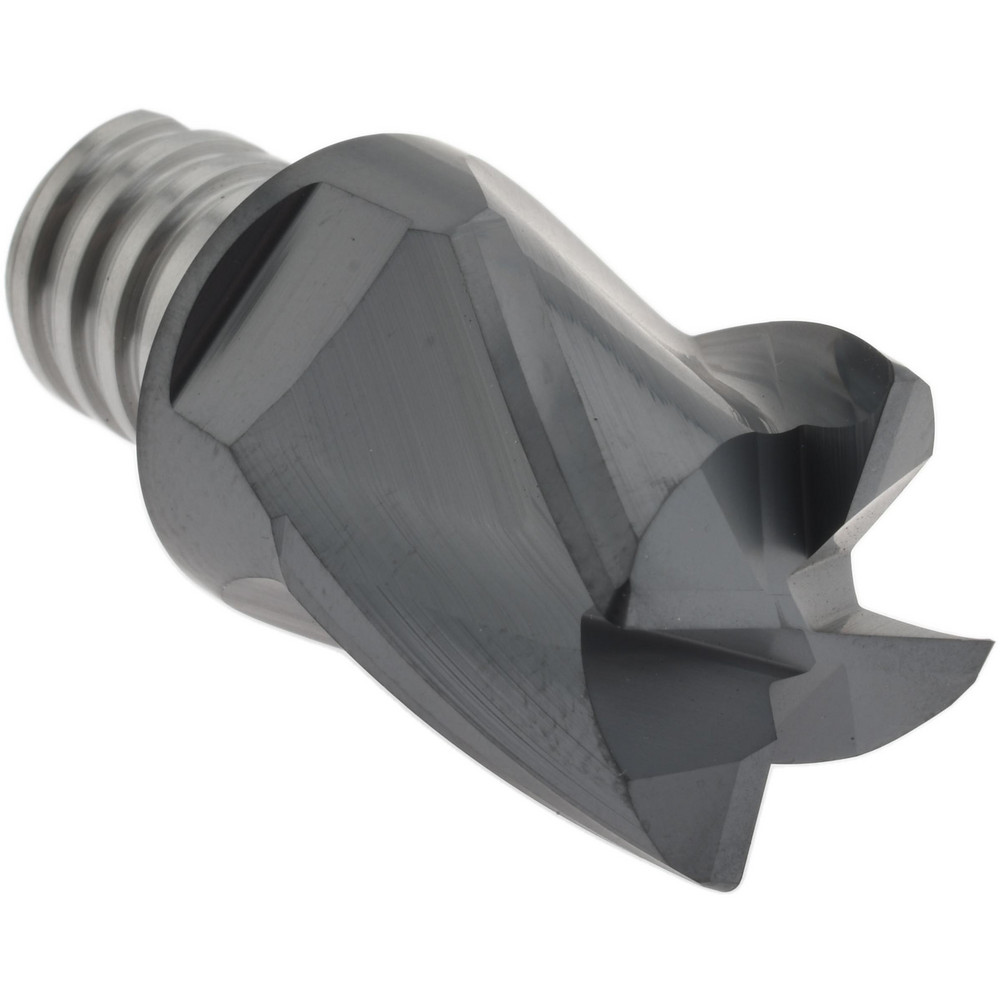

TiAlN, 4 Flutes, 3/4" Cutting Dia, Series MM EC-4
| Milling Tip Type | Corner Radius |
|---|---|
| Milling Tip Style | MM EC-4 |
| Maximum Depth of Cut (Decimal Inch) | 0.6200 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM EC-4 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0600 |
| Cutting Width (Decimal Inch) | 0.75 |
| Functional Length (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ANSI |
| Milling Tip Full Description | MM EC.750A62R060-4T12 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 5622373 |
| Chamfer Angle | 0 |
| Insert Size | .750A62R060 |
| Helix Angle | 30 |
| Coolant Through | No |
| Overall Length (Inch) | 1 |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6200 |
| Number Of Flutes | 4 |
| Extension From Holder (Inch) | 1.0000 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 79027975 |
