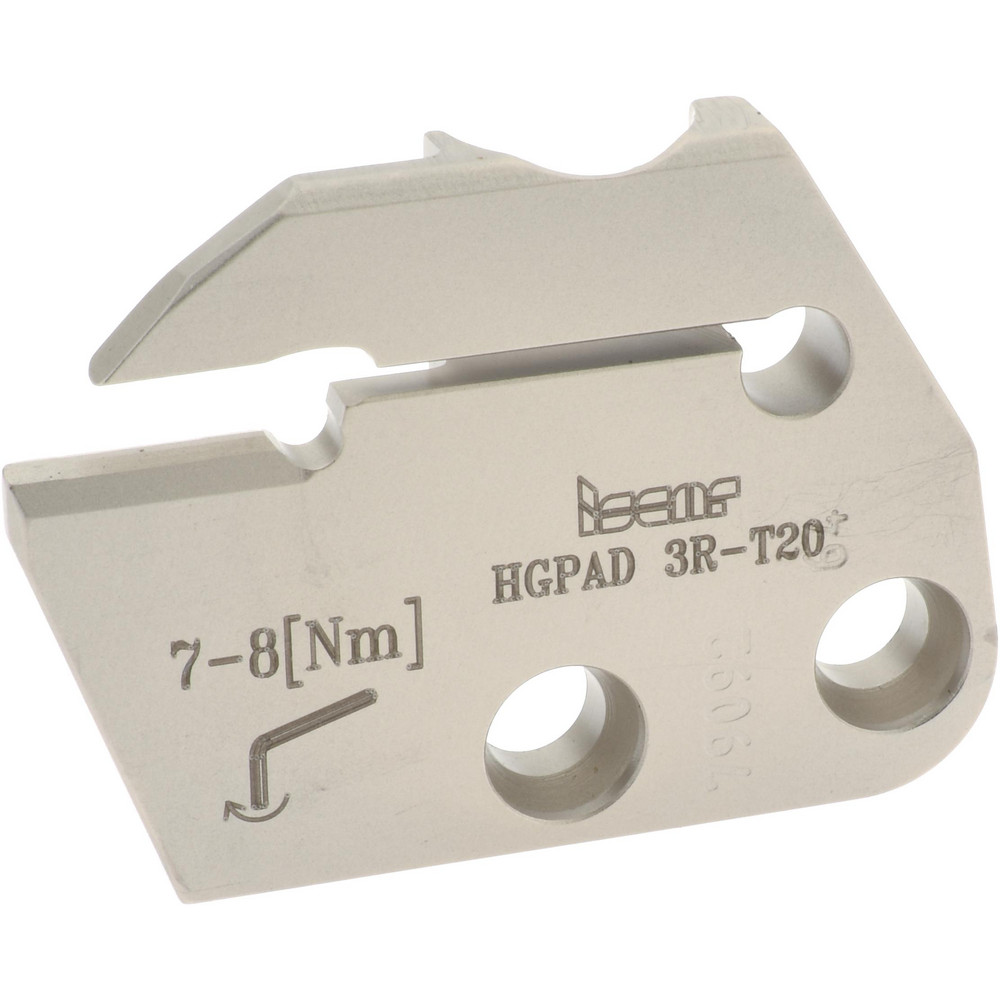

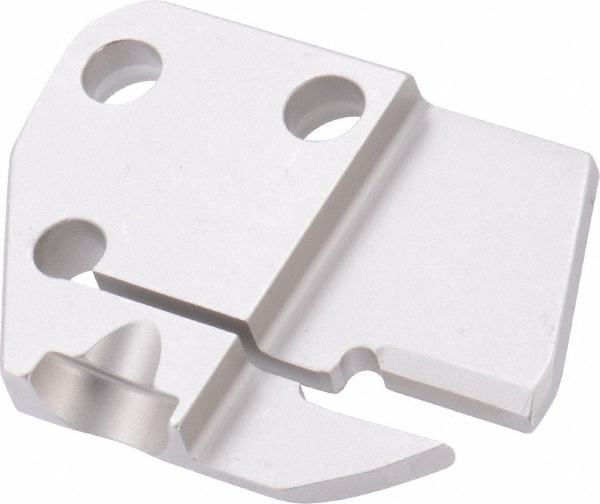

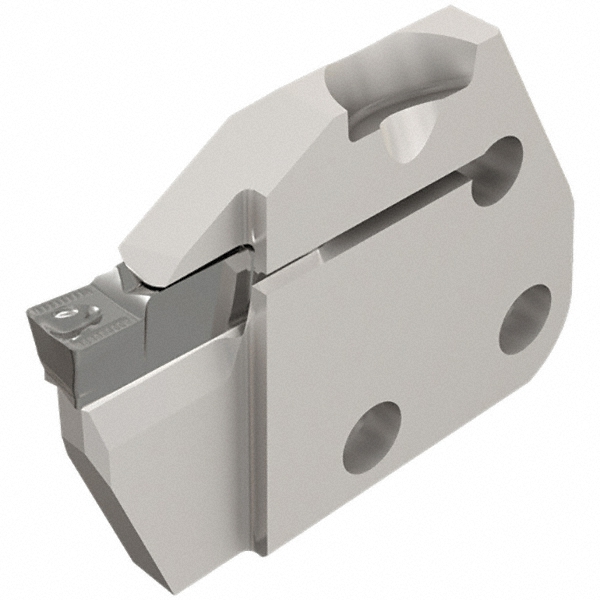

0.4724" Max Depth of Cut
| Cutting Direction | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Thickness (Decimal Inch) | 0.2360 |
| Blade Thickness (mm) | 6.00 |
| Insert Width (Inch) | 1/4 |
| Insert Width (Decimal Inch) | 0.2500 |
| Insert Width (mm) | 6.35 |
| Series | Heli; Modular Grip |
| Blade Overall Length (Decimal Inch) | 1.7010 |
| Blade Overall Length (mm) | 43.20 |
| Head Length Projection (Decimal Inch) | 0.2362 |
| Head Length Projection (mm) | 6.00 |
| UNSPSC Code | 23242100 |
| Country of Origin | Israel |
| MSC Number | MSC# 64249550 |
