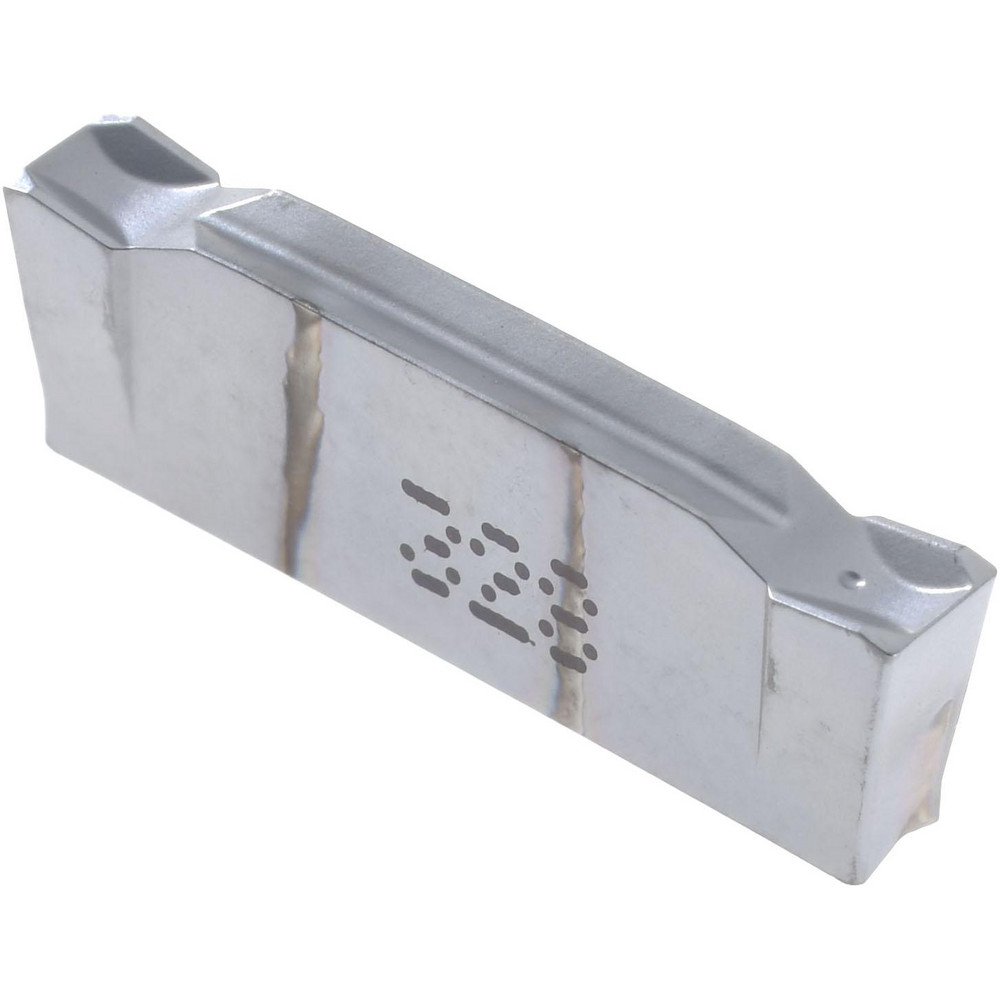

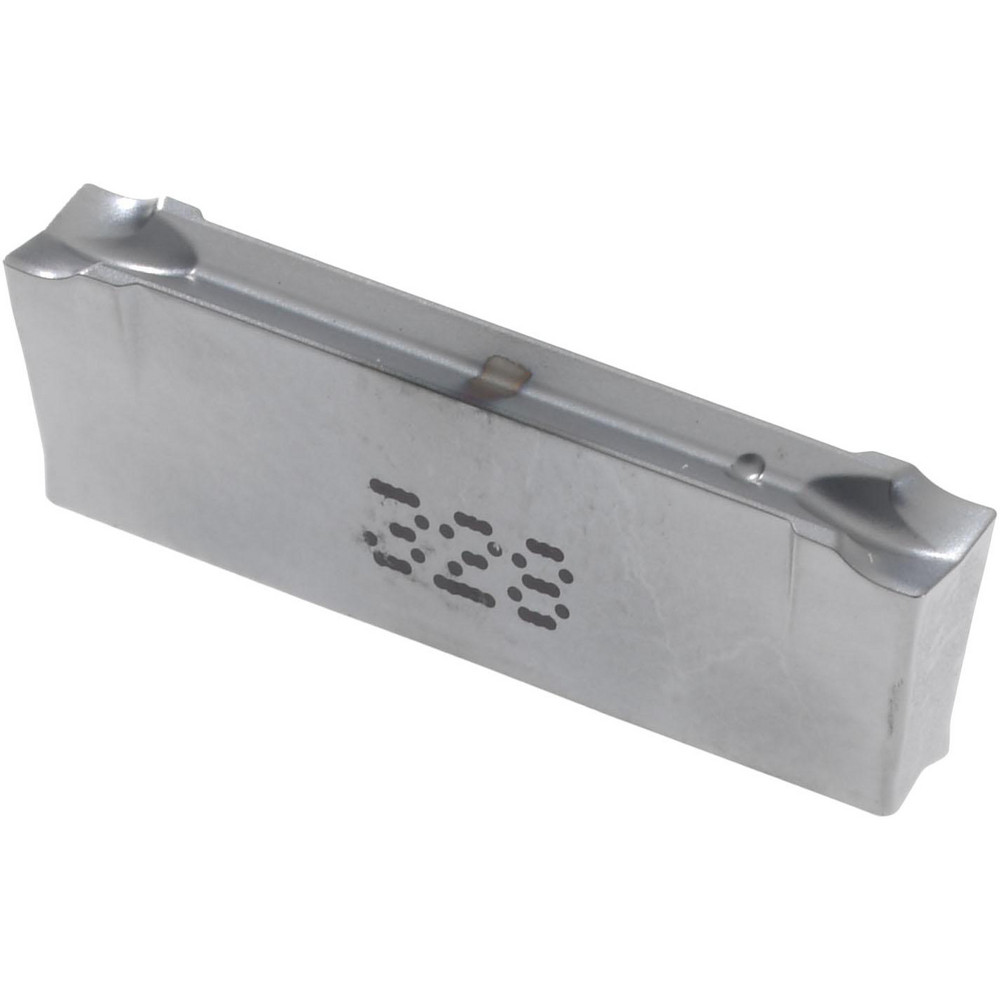

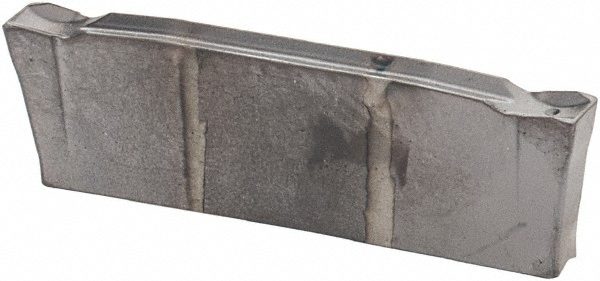

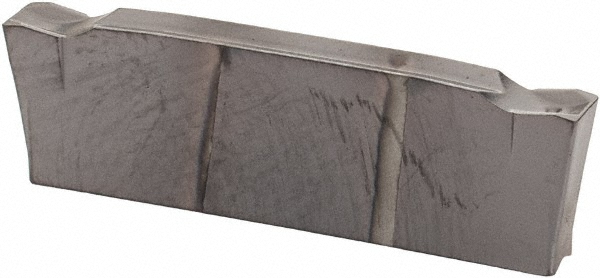

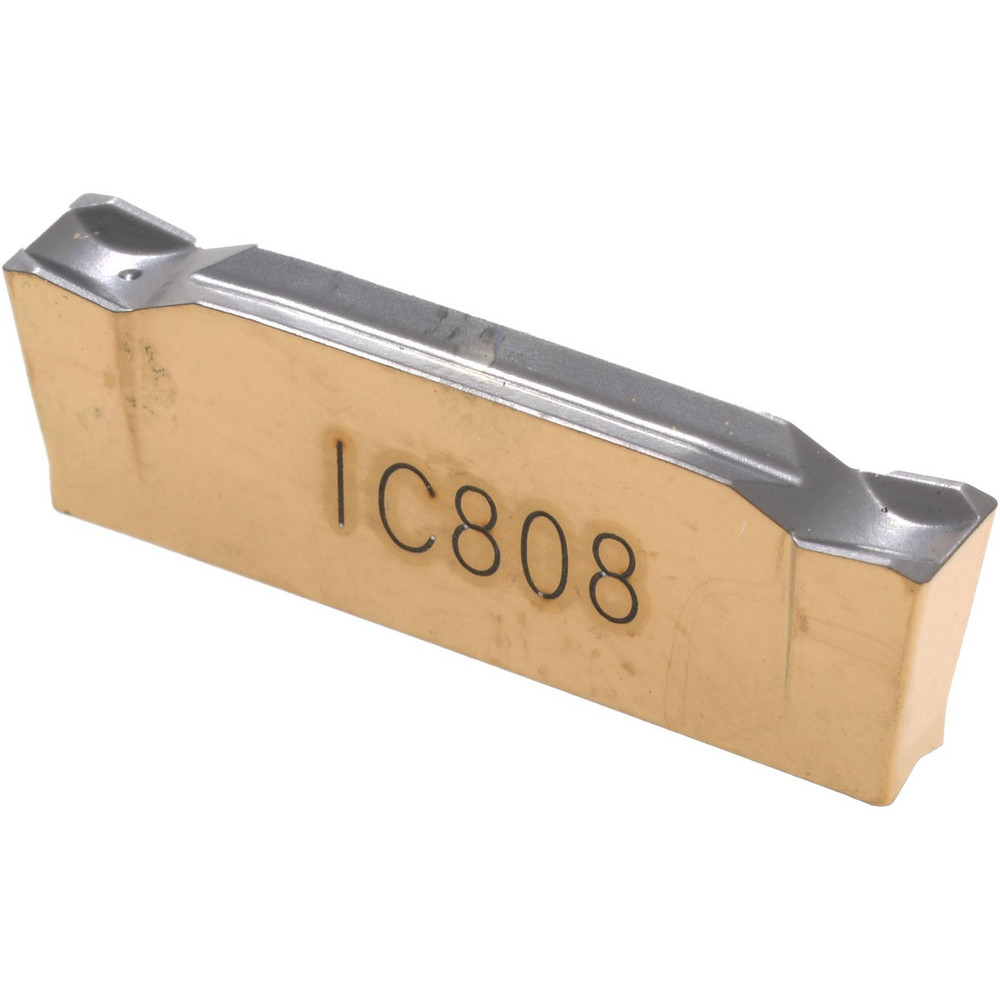

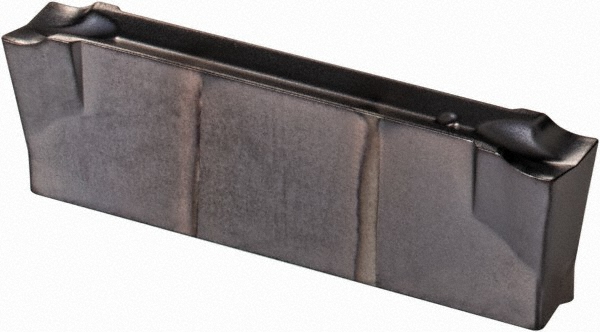

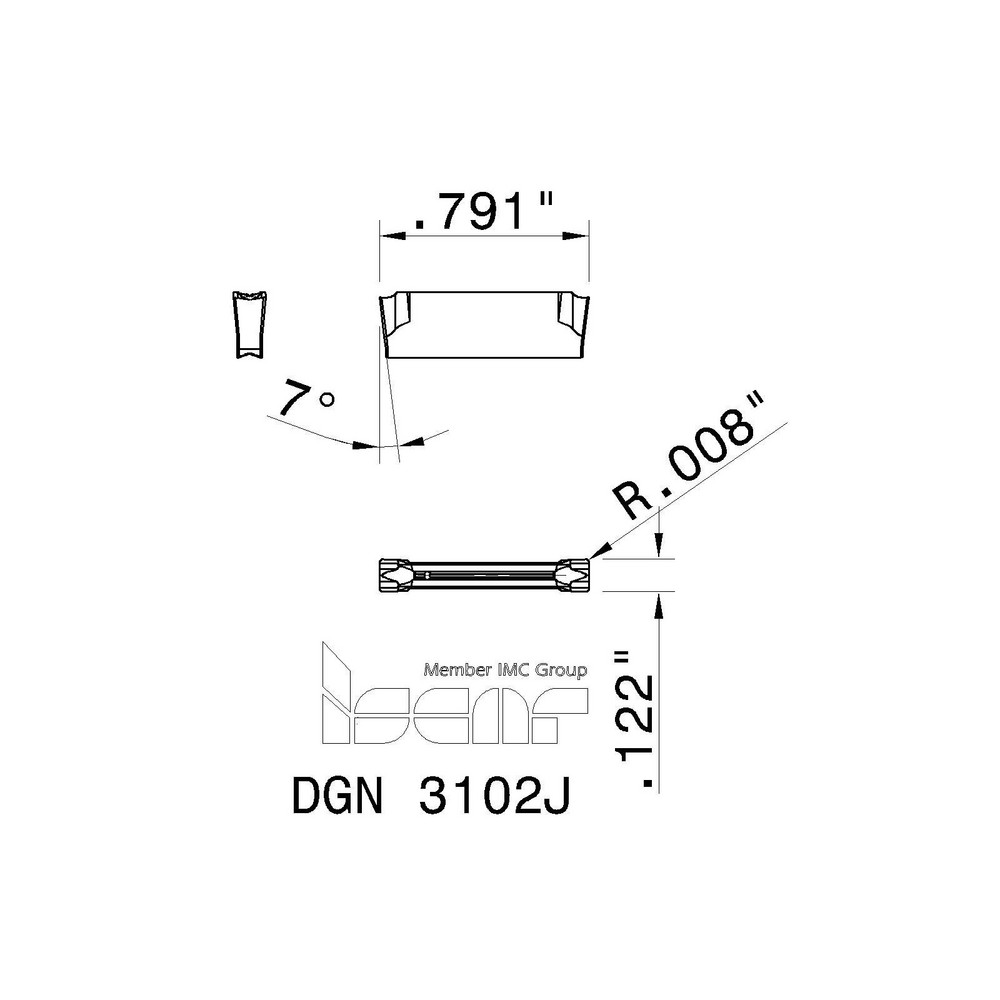

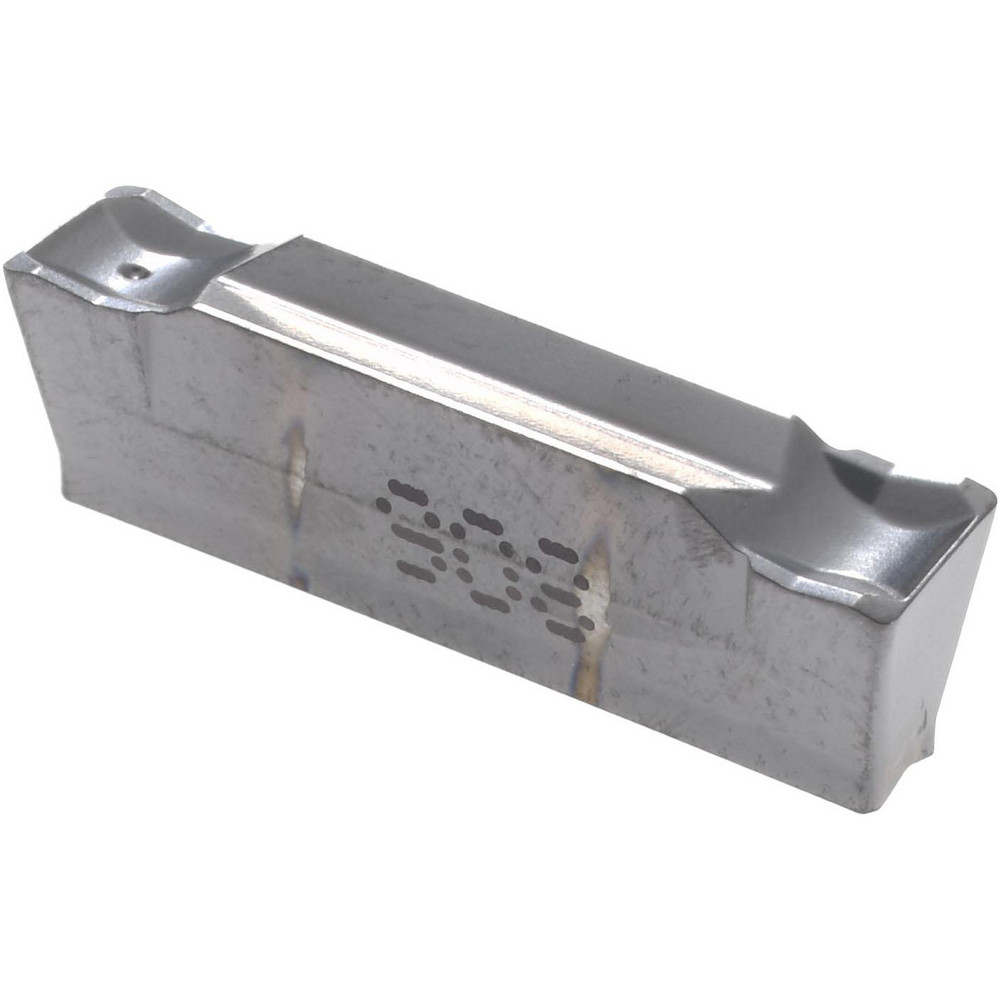

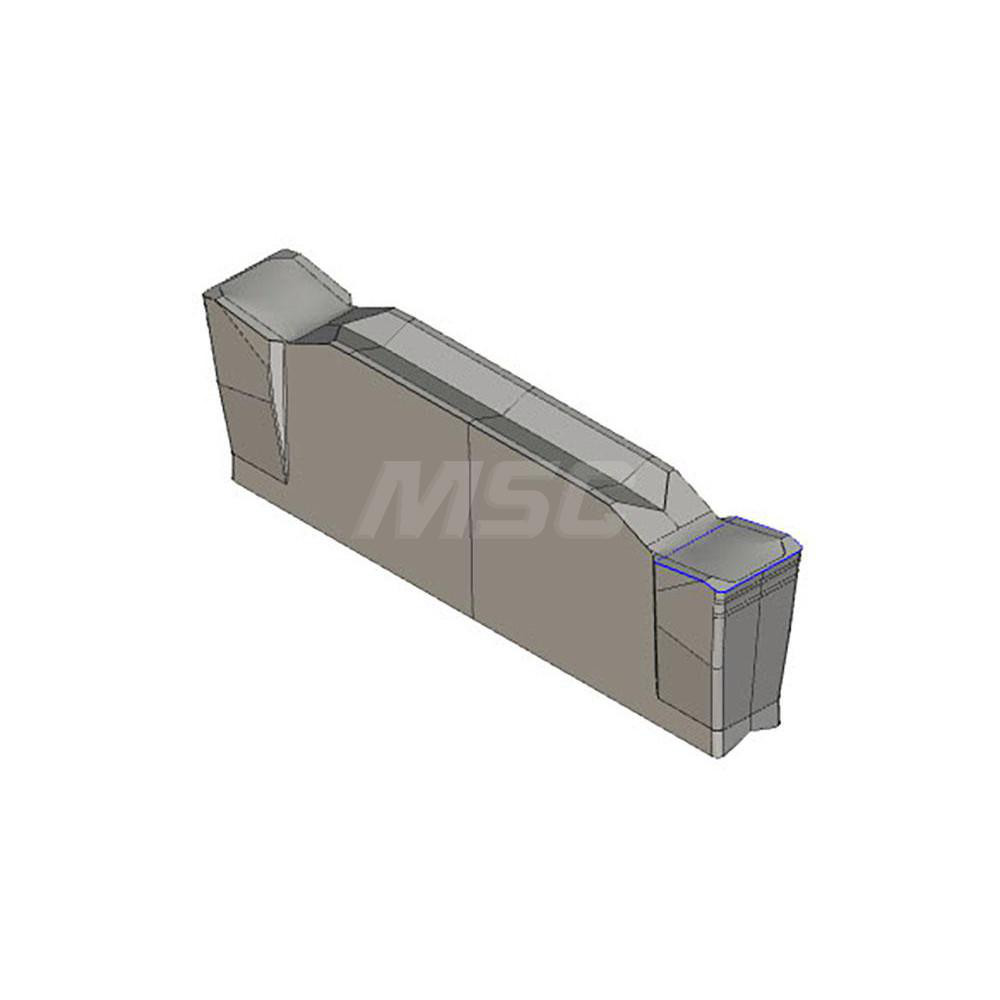

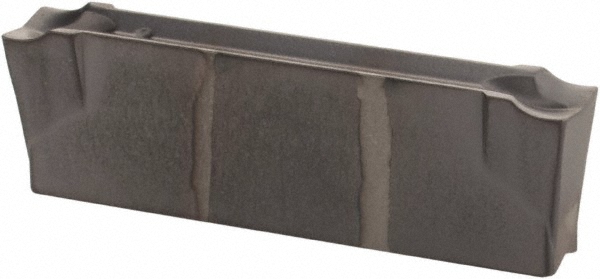

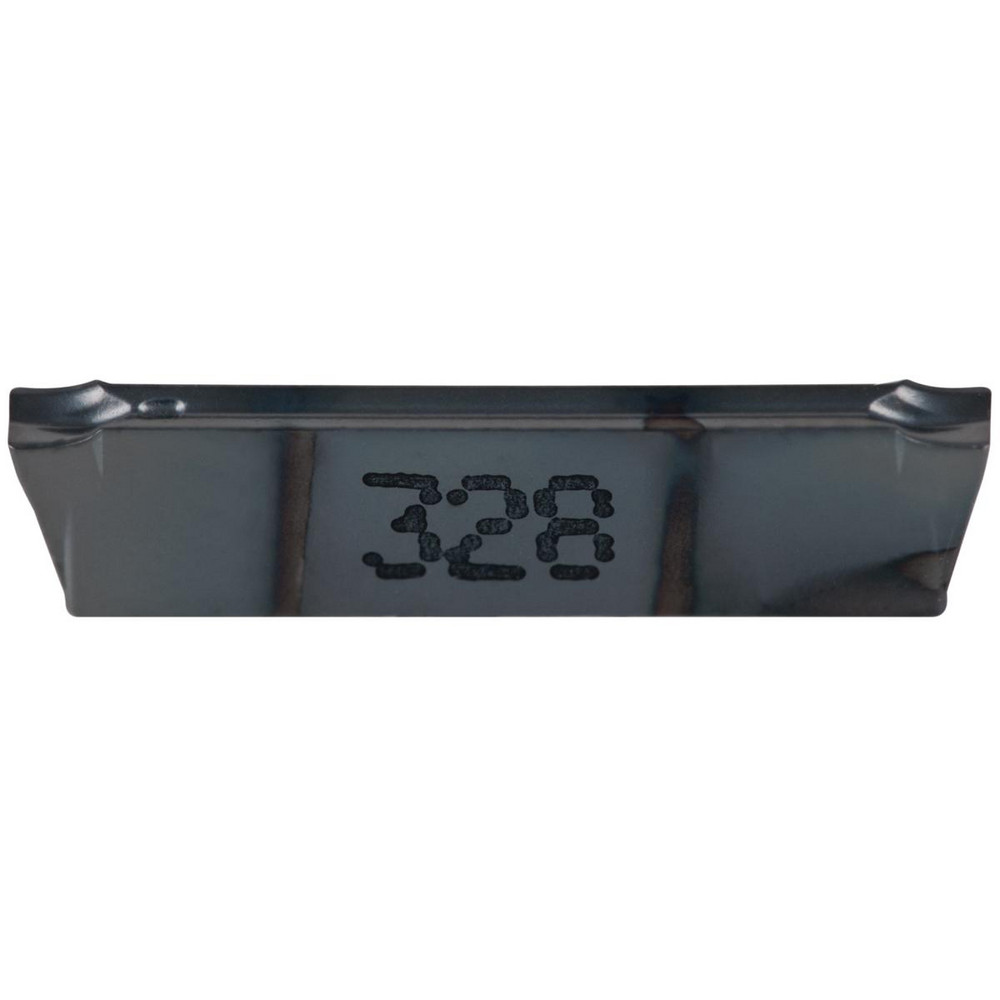

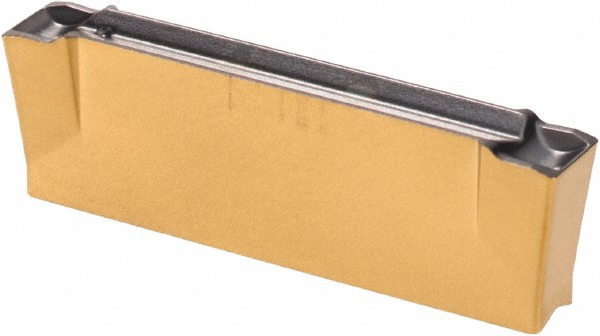

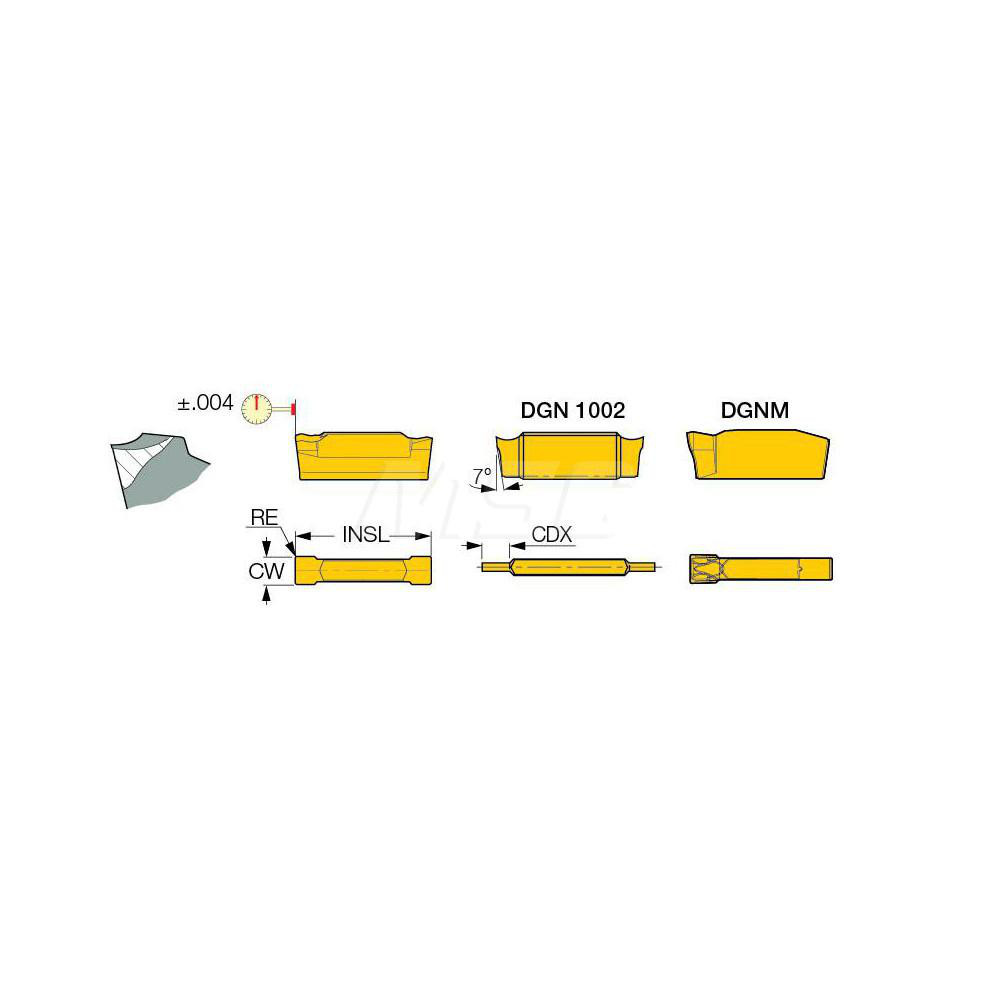

Neutral Lead Angle, Series Do-Grip
| Insert Style | DGN |
|---|---|
| Insert Size Code | 3102 |
| Insert Material | Carbide |
| Manufacturer Grade | IC808 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Cutting Width (mm) | 3.10 |
| Lead Angle Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | J |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | Do-Grip |
| Coating Process | PVD |
| Overall Length (mm) | 20.10 |
| Overall Length (Decimal Inch) | 0.7913 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Maximum Depth of Cut (mm) | 18.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1220 |
| Overall Width (mm) | 3.10 |
| Coating/Finish | TiAlN/AlTiN/TiN |
| Single Or Double End | Double |
| UNSPSC Code | 23242105 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 82635210 |
