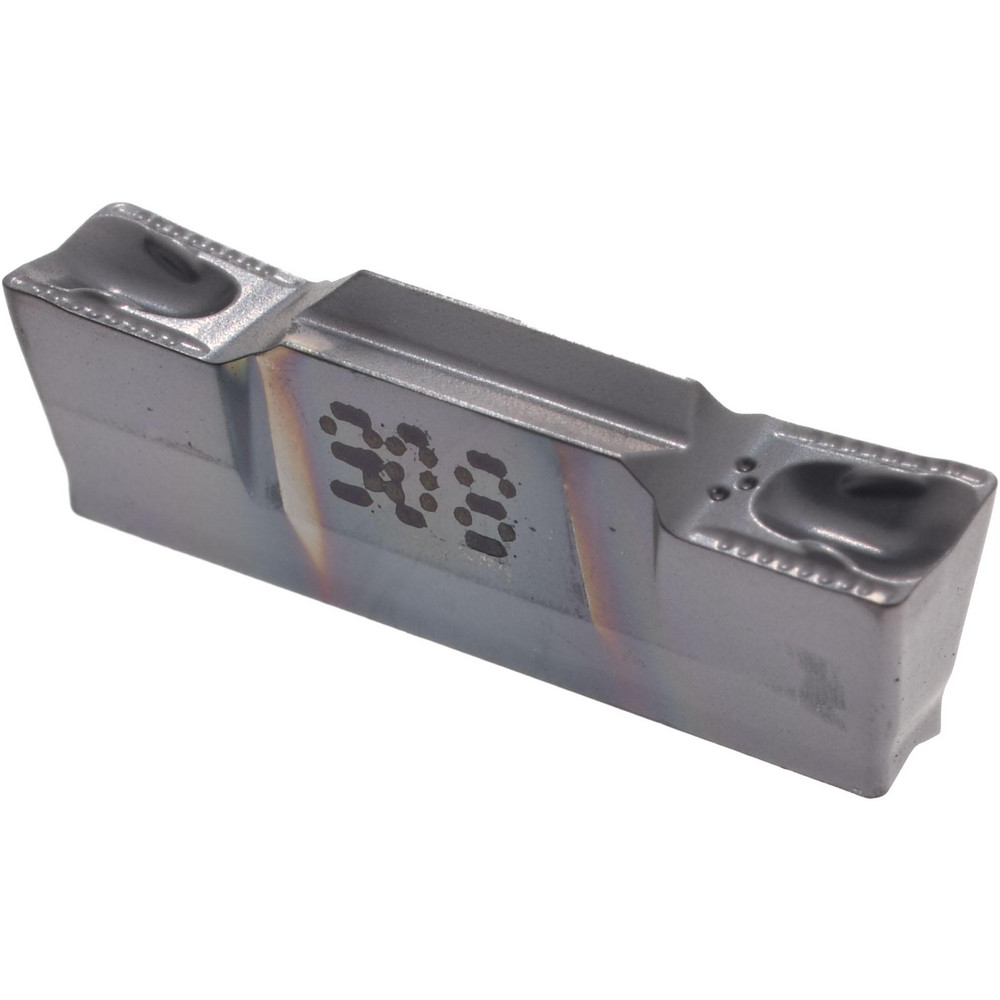

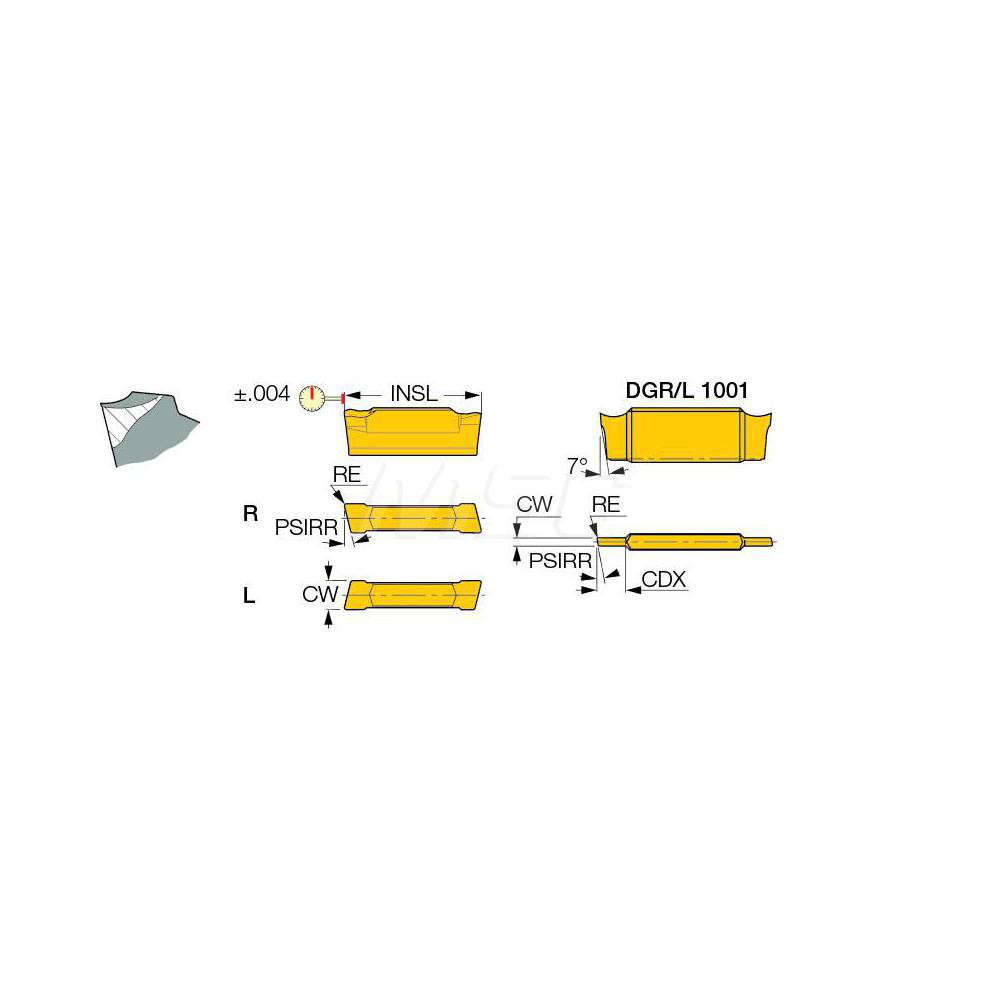

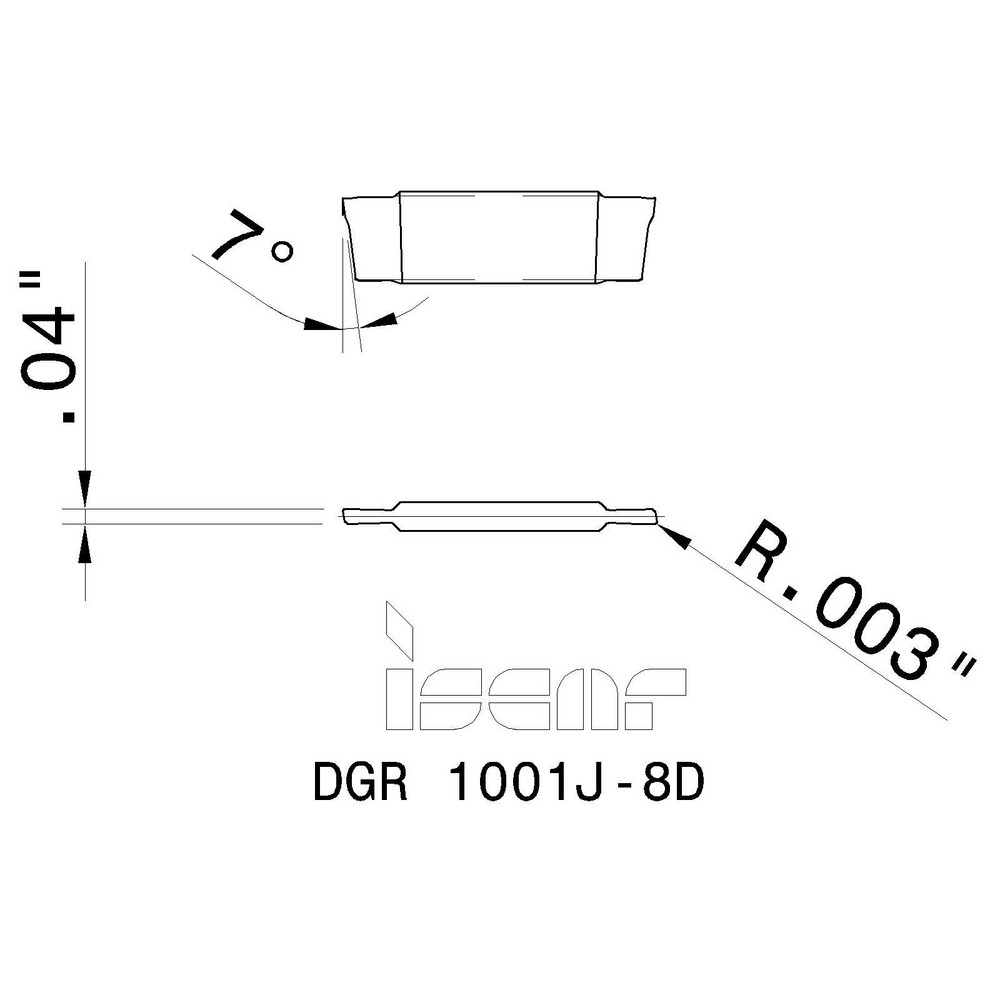

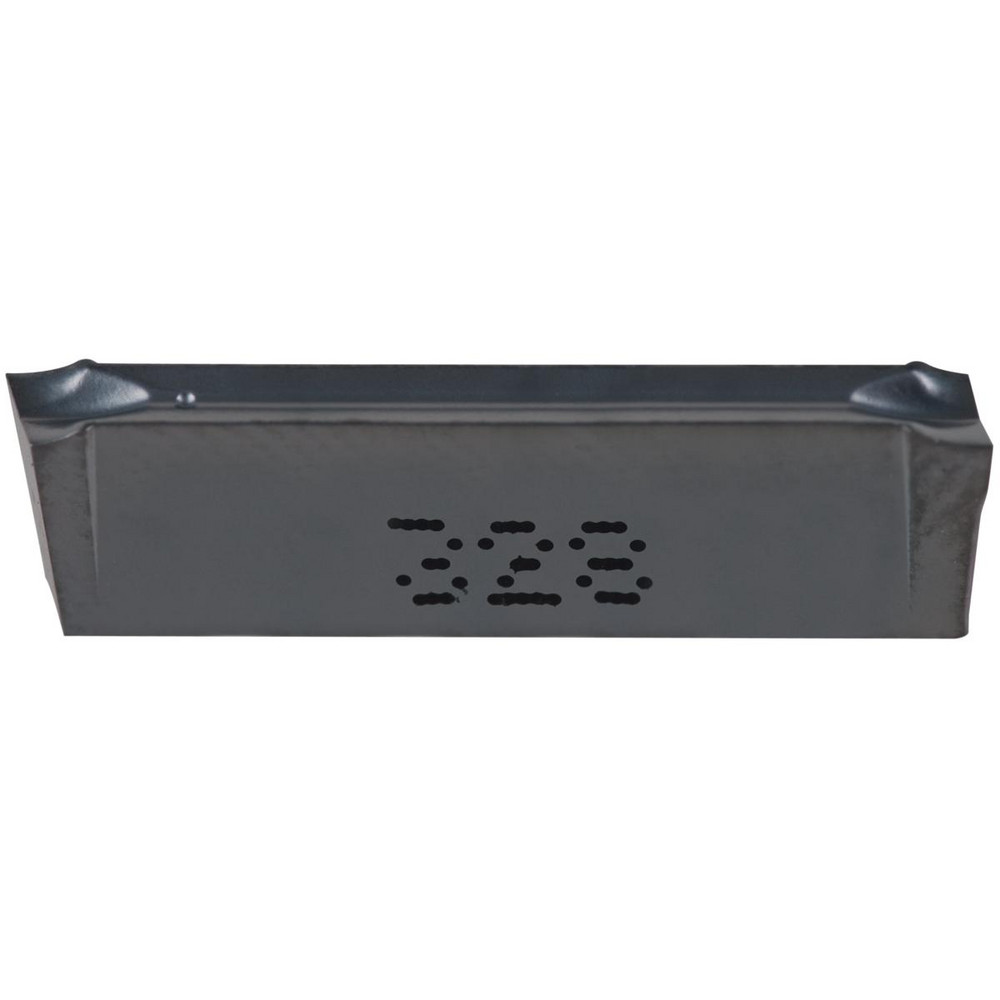

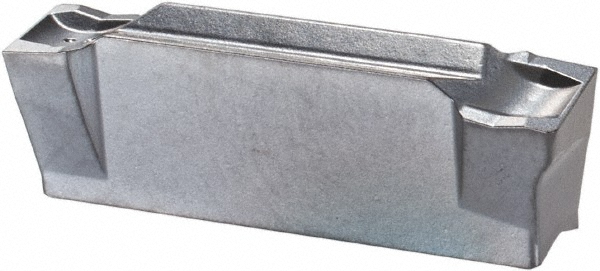

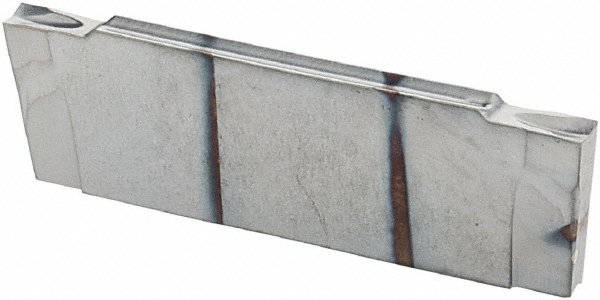

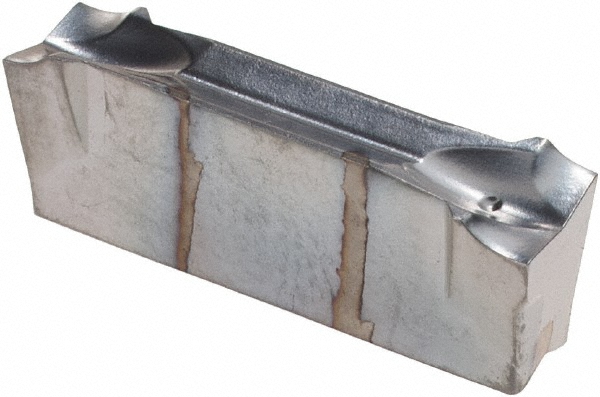

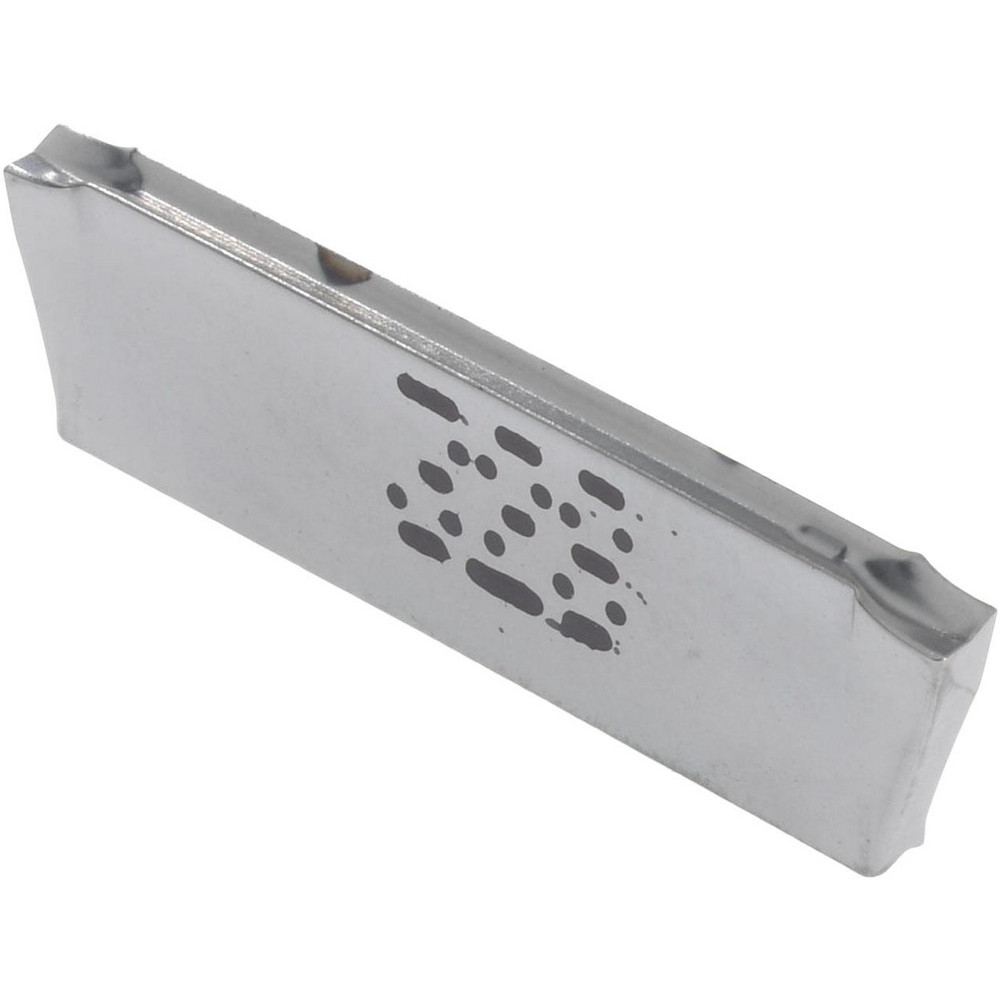

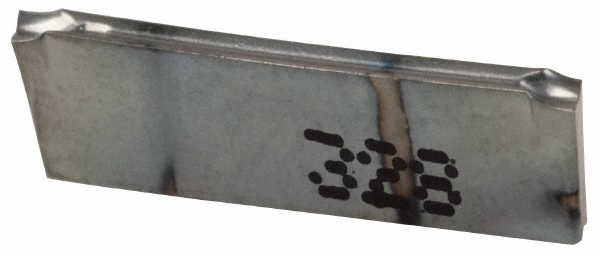

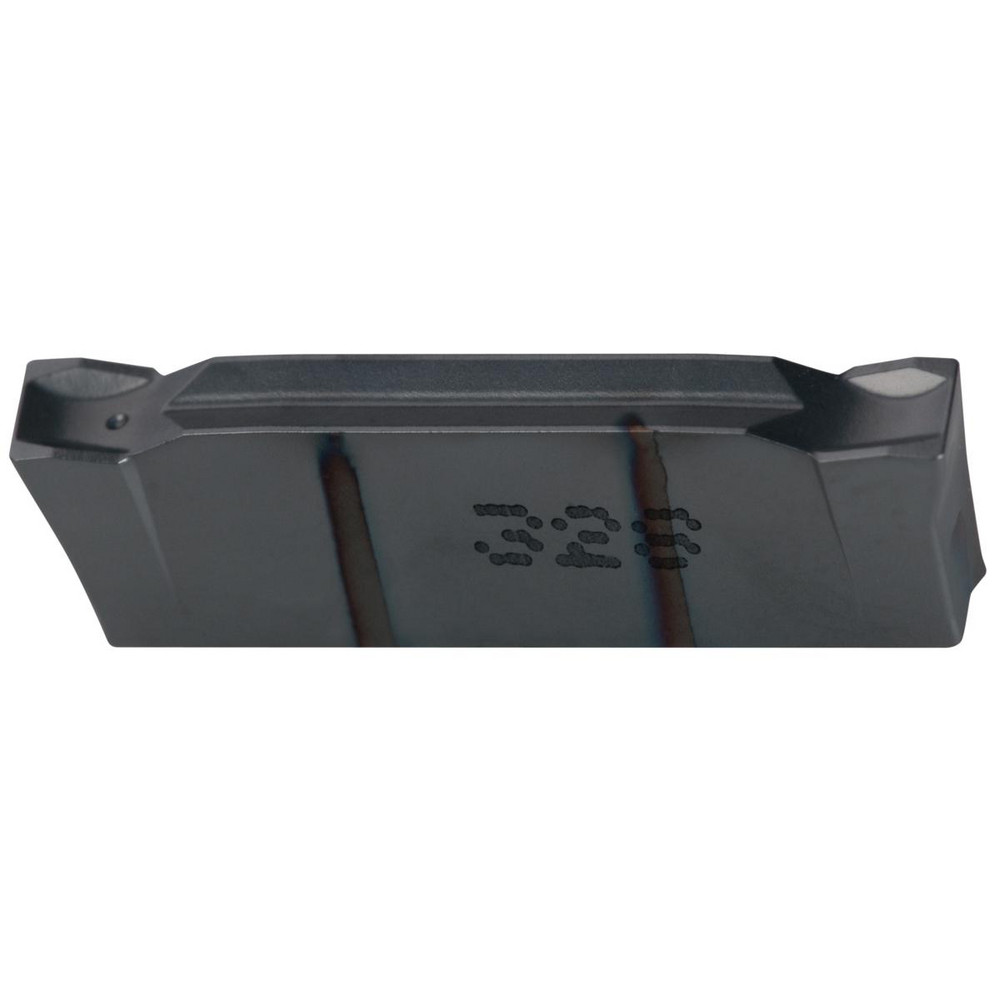

8 deg Right Hand Lead Angle, Series Do-Grip
| Insert Style | DGR |
|---|---|
| Insert Size Code | 1001 |
| Insert Material | Carbide |
| Manufacturer Grade | IC328 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Cutting Width (mm) | 1.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 8 |
| Relief Angle | 7.00 |
| Corner Radius (Decimal Inch) | 0.0028 |
| Chipbreaker | J |
| Multi-use Tool | No |
| Cutting Tool Application | Parting |
| Series | Do-Grip |
| Coating Process | PVD |
| Overall Length (mm) | 21.00 |
| Overall Length (Decimal Inch) | 0.8268 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | DGR 1001J-8D |
| Maximum Depth of Cut (mm) | 3.00 |
| Material Grade | C3; C5; C6; C2 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Coating/Finish | Coated |
| Single Or Double End | Double |
| UNSPSC Code | 23242105 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52700846 |
