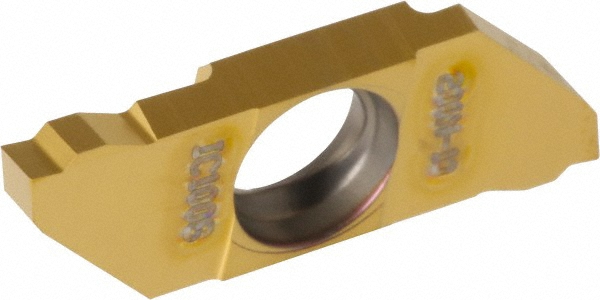

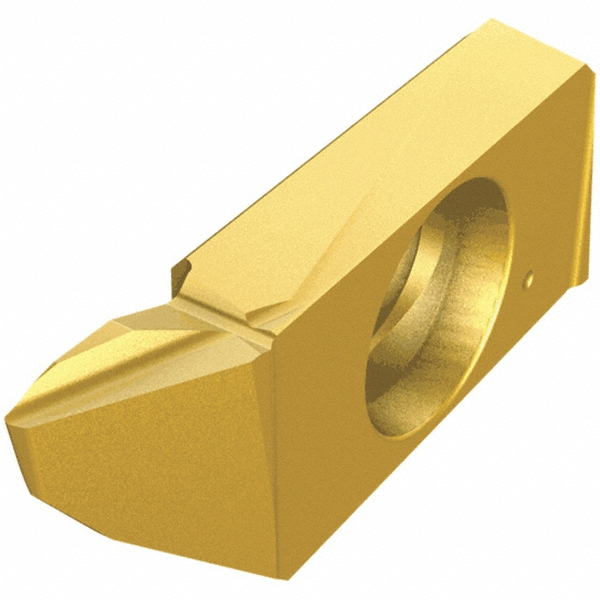

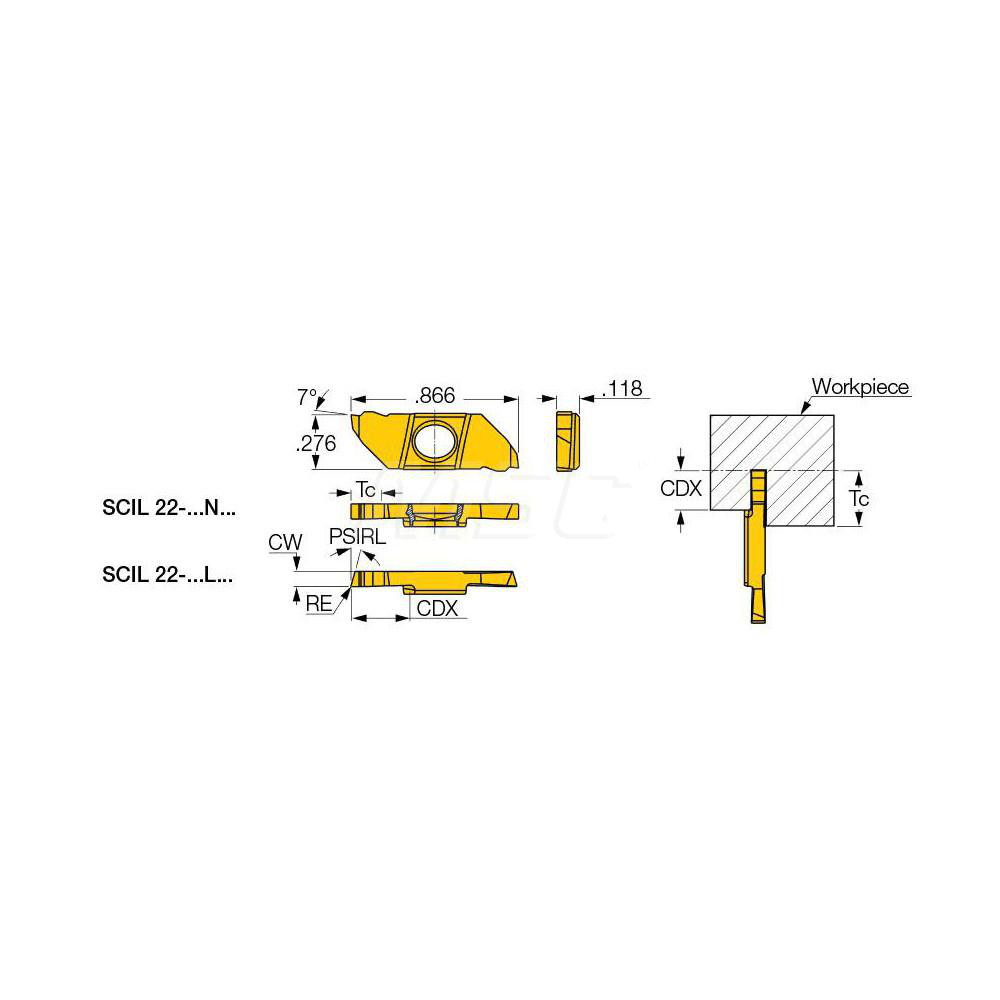

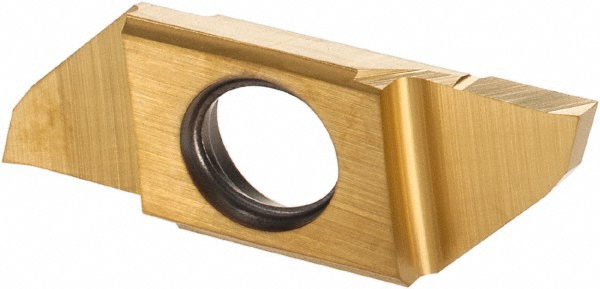

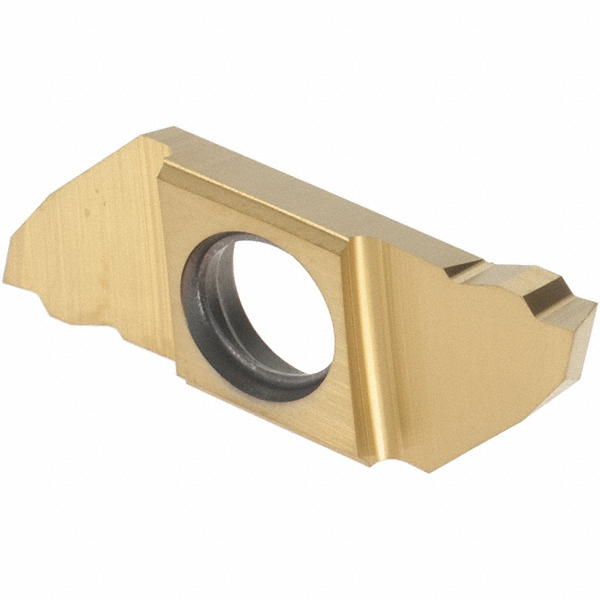

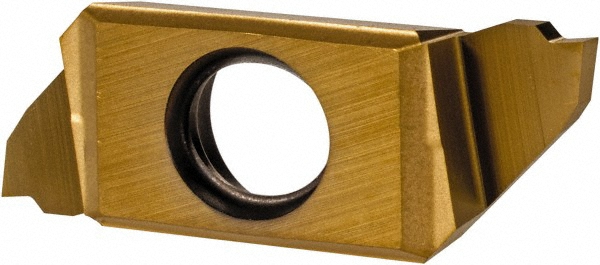

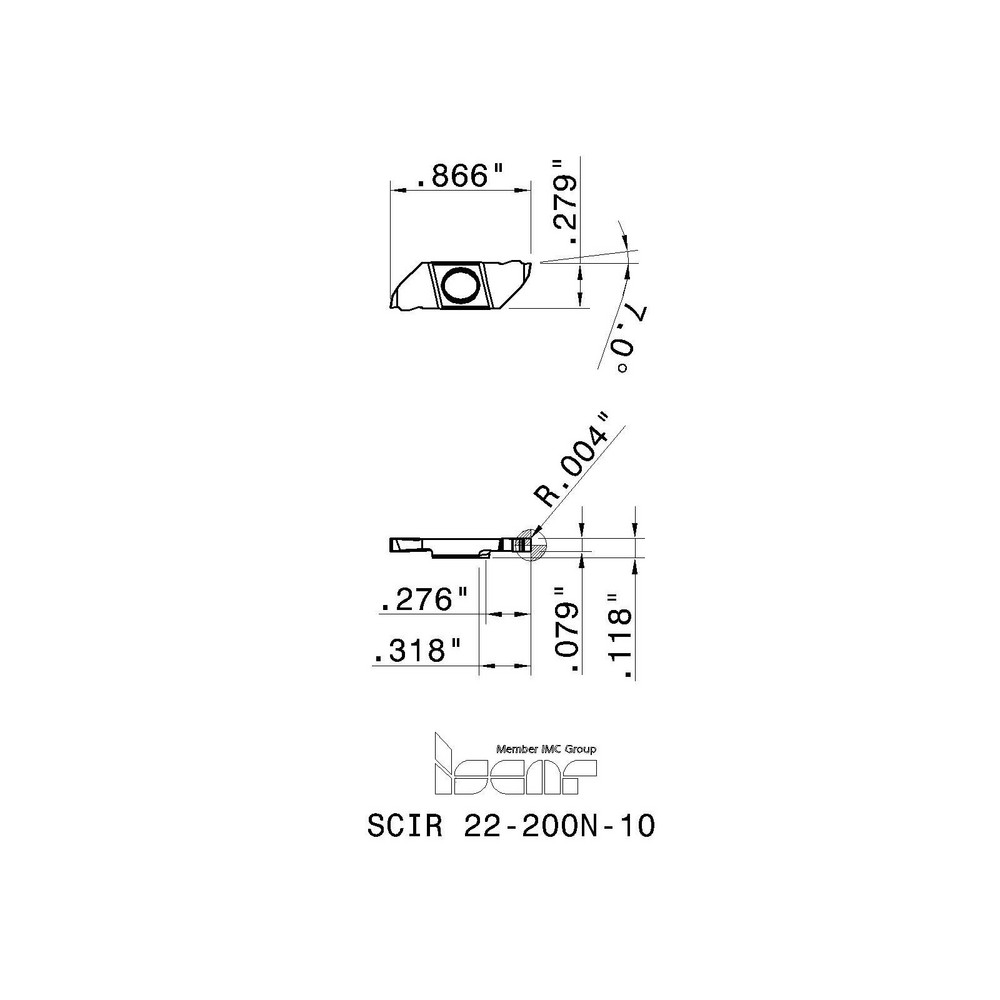

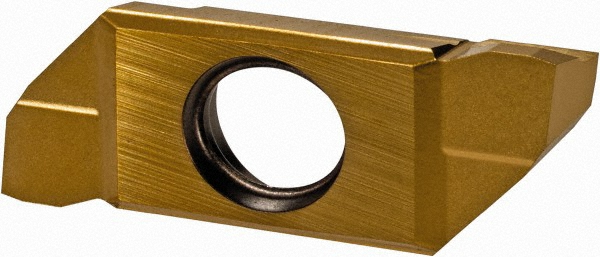

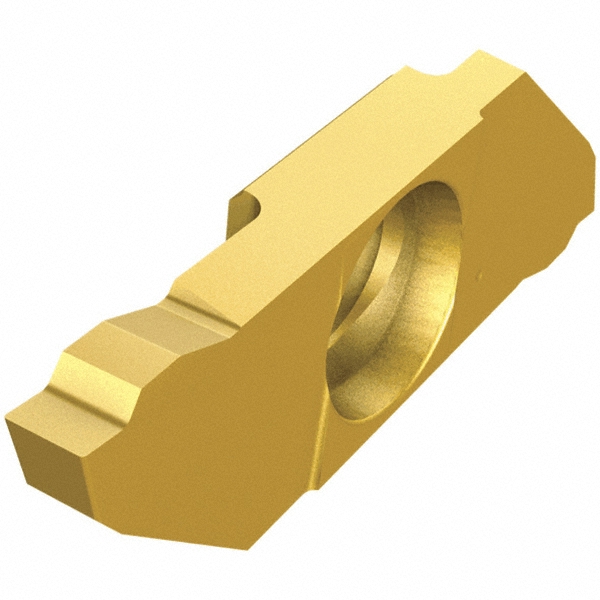

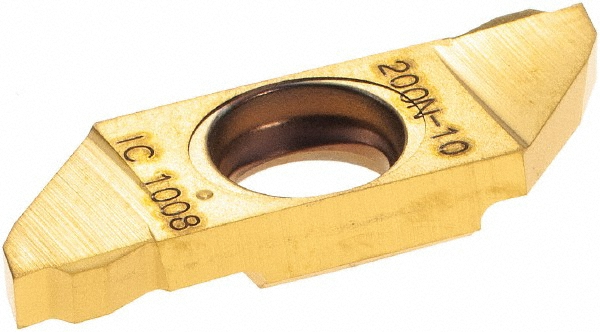

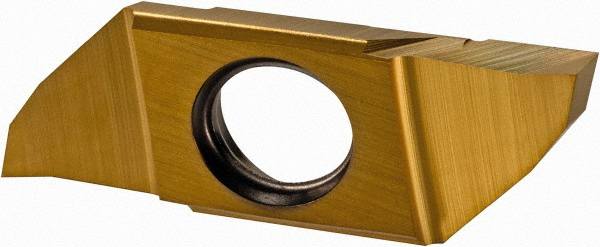

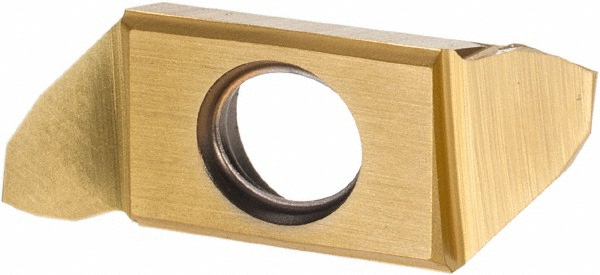

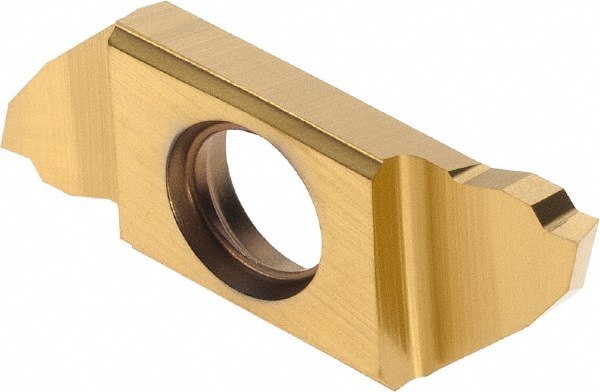

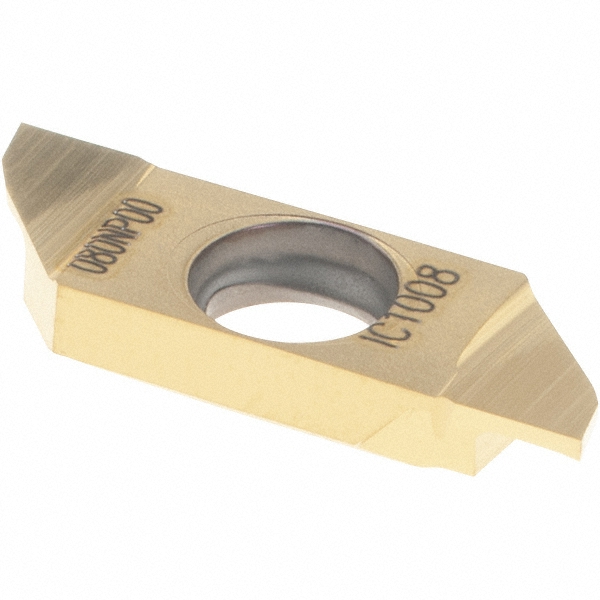

Neutral Lead Angle, Series Swisscut
| Insert Style | SCIR |
|---|---|
| Insert Size Code | 22 |
| Insert Material | Carbide |
| Manufacturer Grade | IC1008 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Cutting Width (mm) | 2.00 |
| Insert Holding Method | Screw |
| Lead Angle Direction | Neutral |
| Insert Hand | Right Hand |
| Relief Angle | 7.00 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Parting |
| Series | Swisscut |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8661 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Manufacturers Catalog Number | SCIR 22-200N-10 |
| Maximum Depth of Cut (mm) | 7.00 |
| Material Grade | C3; C5; C6; C1; C2 |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1181 |
| Overall Width (mm) | 3.00 |
| Coating/Finish | TiAlN/TiN |
| Single Or Double End | Single |
| UNSPSC Code | 23242105 |
| Country of Origin | Israel |
| MSC Number | MSC# 61821591 |
