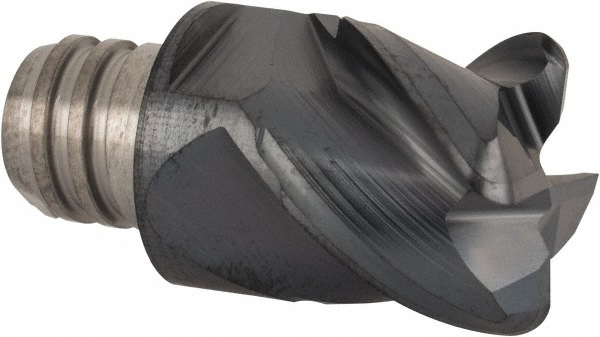

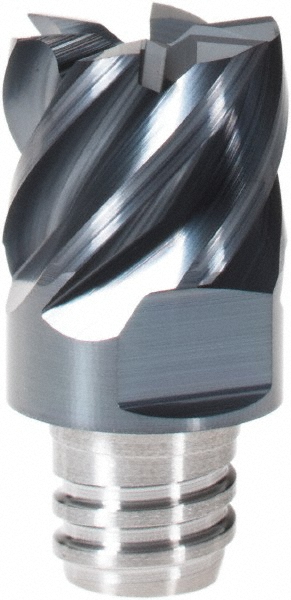

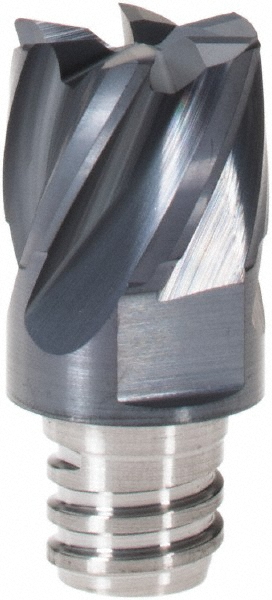

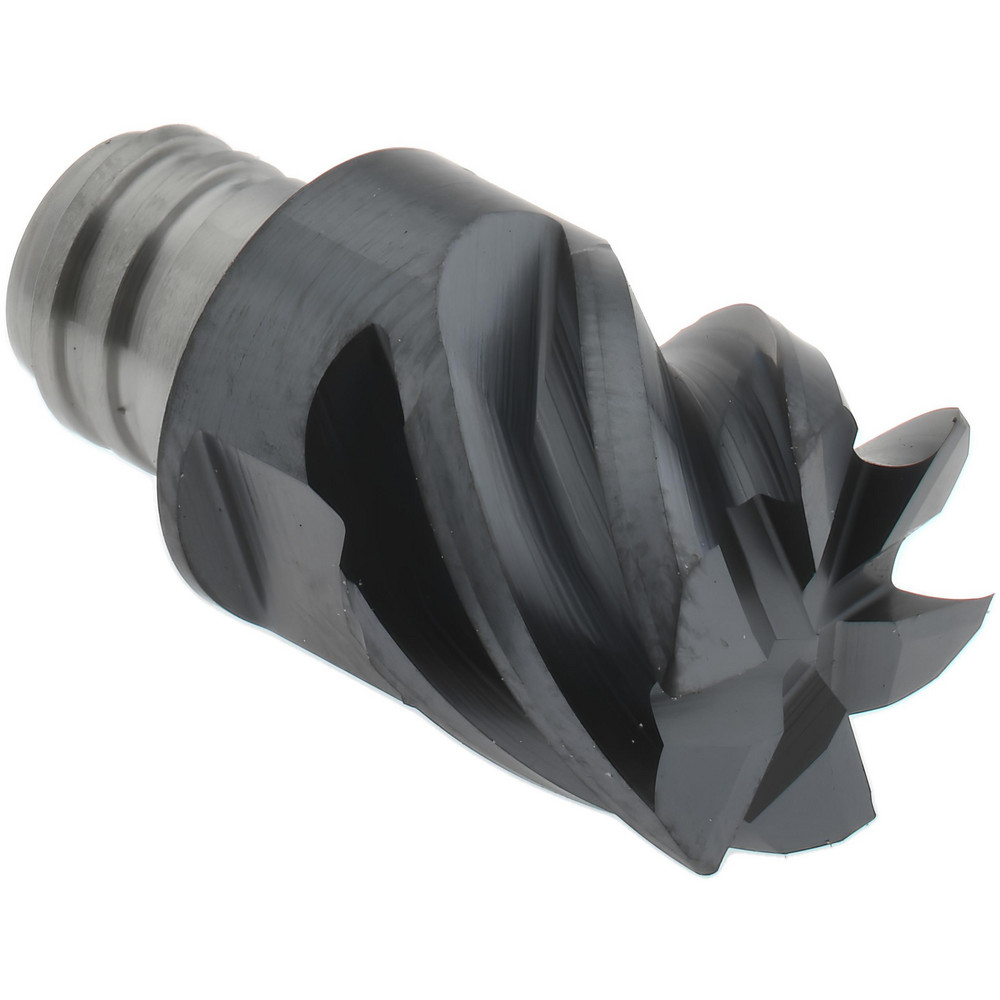

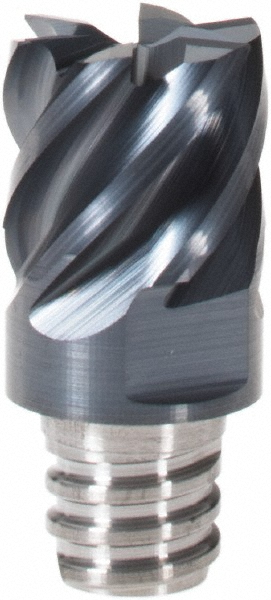

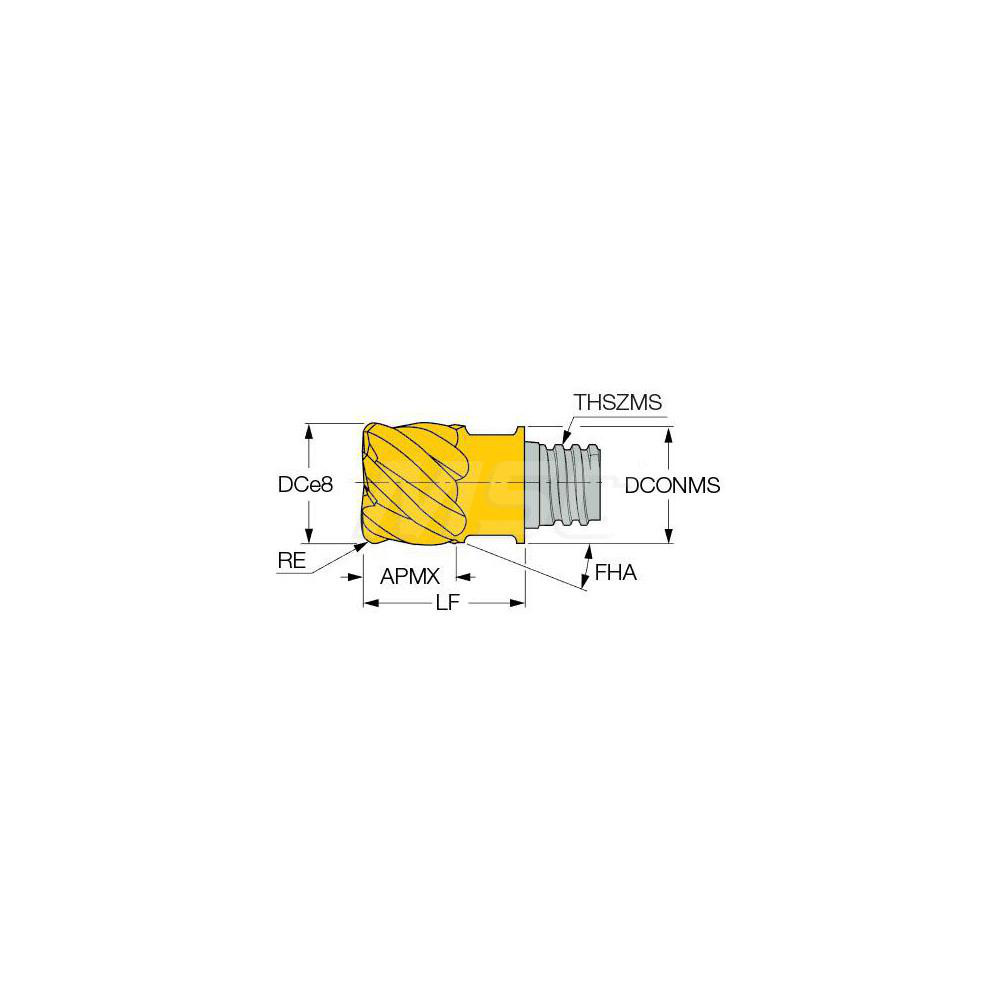

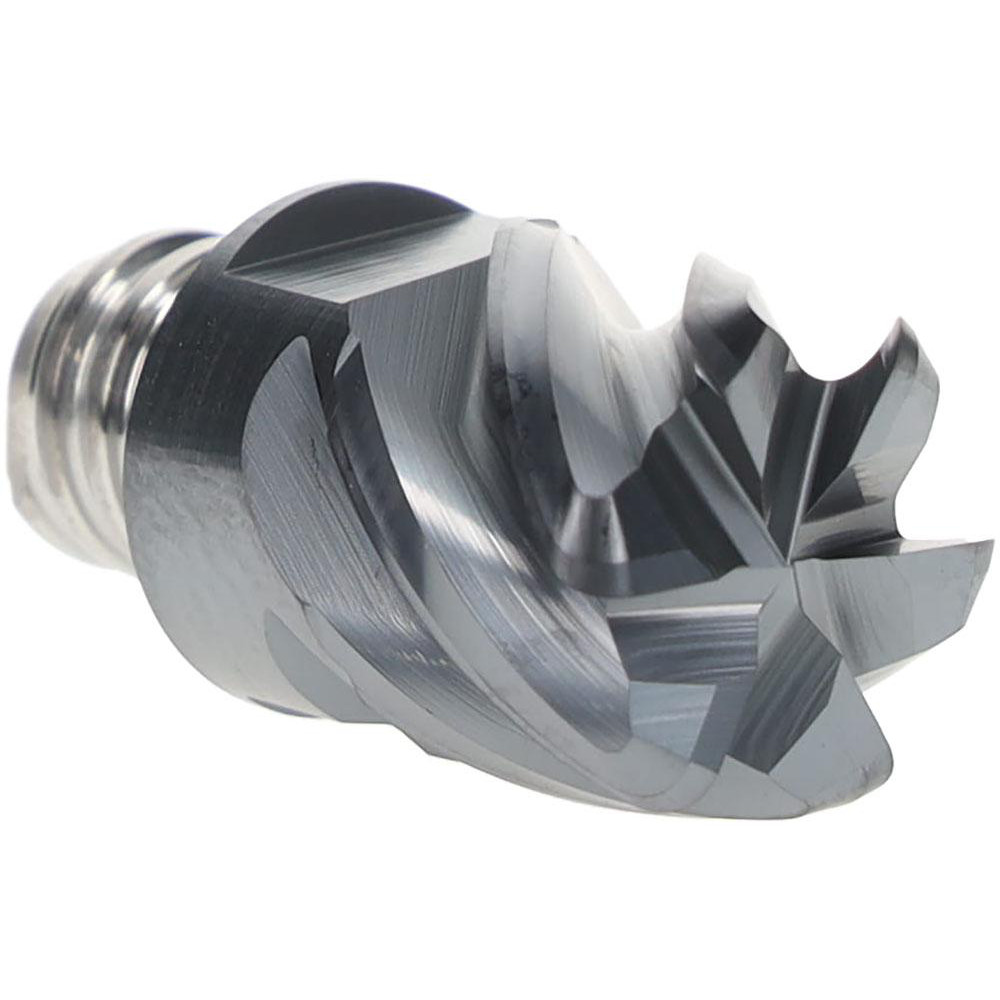

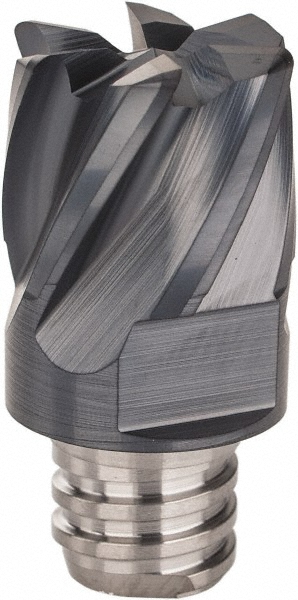

TiAlN, 6 Flutes, 3/8" Cutting Dia, Series MM EC-6
| Milling Tip Type | End |
|---|---|
| Milling Tip Style | MM EC-6 |
| Maximum Depth of Cut (Decimal Inch) | 0.2750 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM EC-6 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0000 |
| Cutting Width (Decimal Inch) | 0.375 |
| Functional Length (Decimal Inch) | 0.5120 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ANSI |

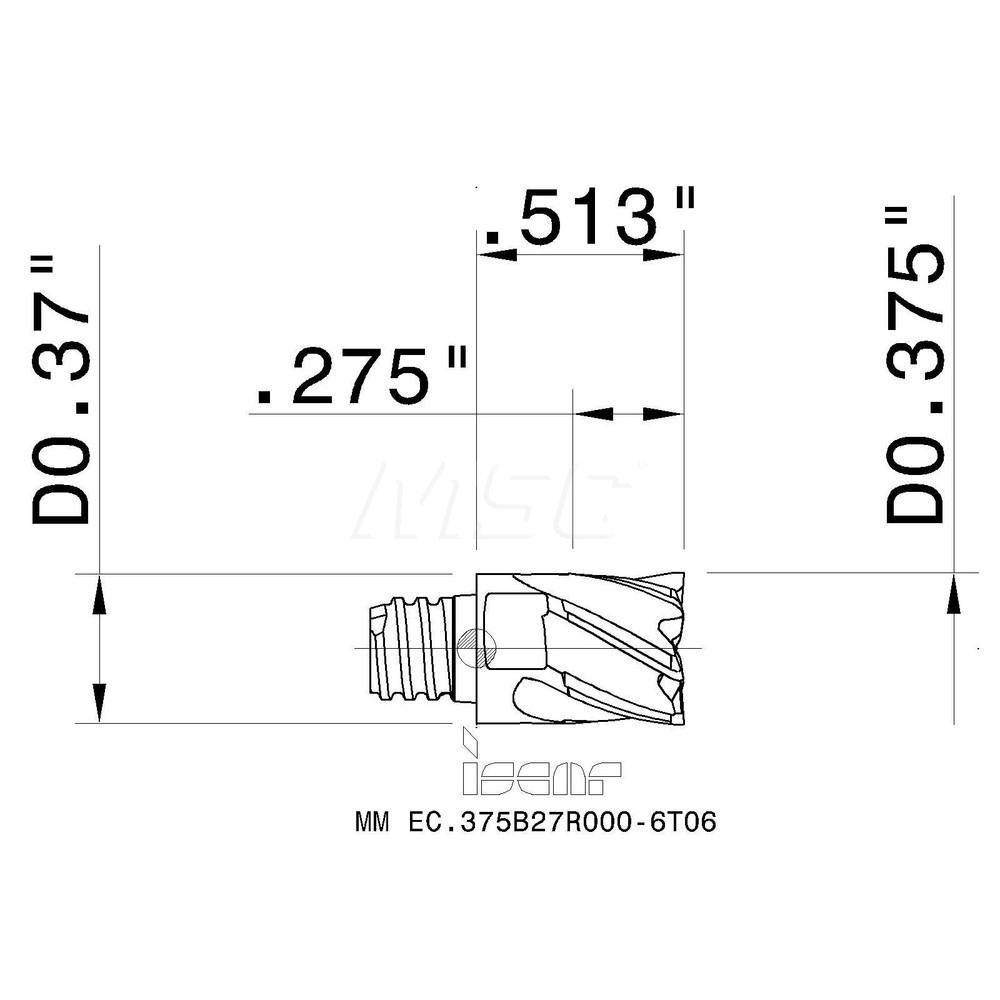

| Milling Tip Full Description | MM EC.375B27R000-6T06 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 5621623 |
| Chamfer Angle | 0 |
| Overall Length (Decimal Inch) | 0.512 |
| Insert Size | .375B27R000 |
| Helix Angle | 45 |
| Coolant Through | No |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2750 |
| Number Of Flutes | 6 |
| Extension From Holder (Inch) | 0.5120 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 07630270 |
