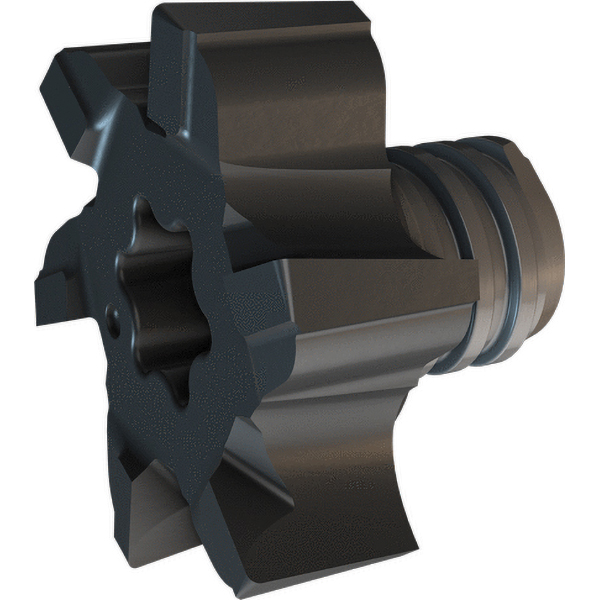

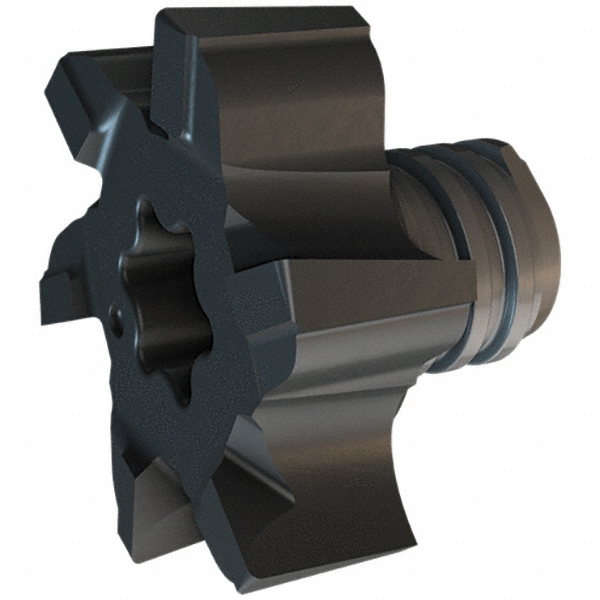

TiAlN, 6 Flutes, 12.00 mm Cutting Dia, 3.6 mm Max Depth of Cut, Series MM FM
| Milling Tip Type | Face |
|---|---|
| Milling Tip Style | MM FM |
| Maximum Depth of Cut (Decimal Inch) | 0.1418 |
| Maximum Depth of Cut (mm) | 3.6 |
| Cutting Diameter (Decimal Inch) | 0.4728 |
| Cutting Diameter (mm) | 12.00 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM FM |
| Coating Process | PVD |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Cutting Width (Decimal Inch) | 0.4728 |
| Functional Length (Decimal Inch) | 0.1734 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ANSI |

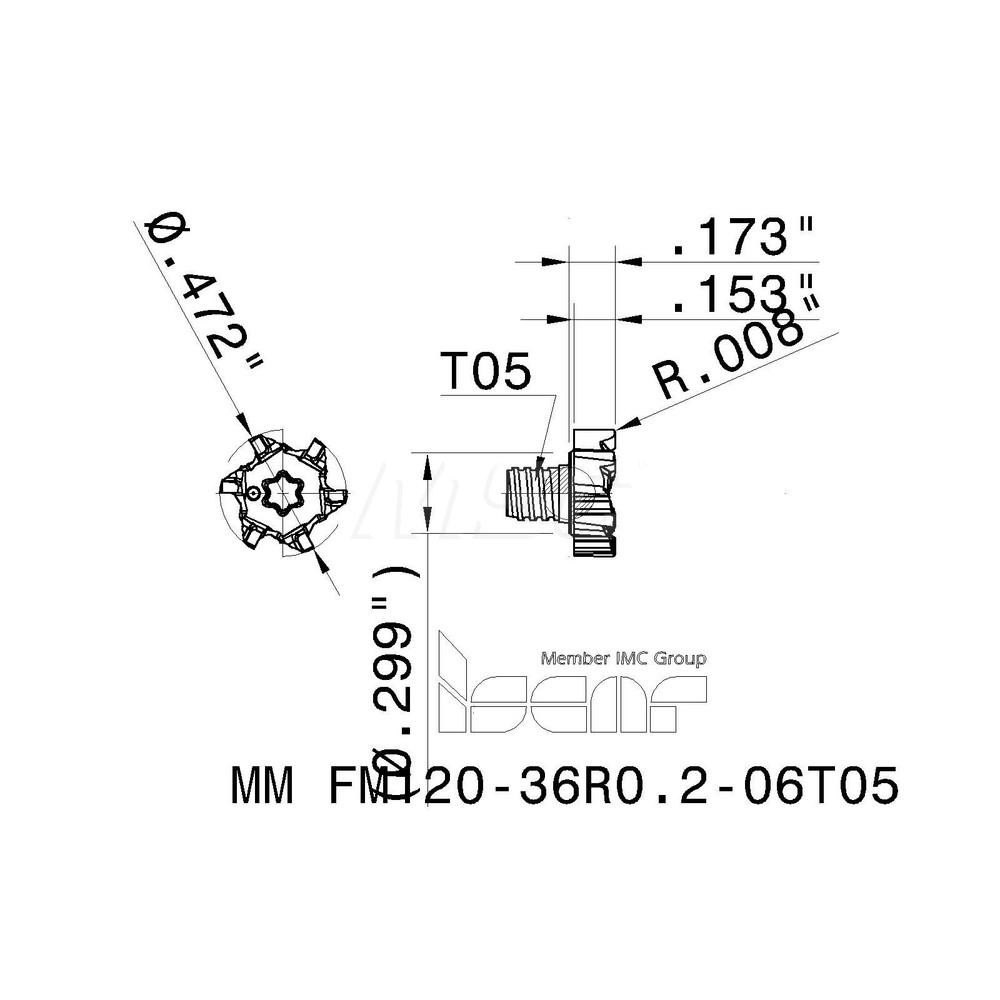

| Milling Tip Full Description | MM FM120-36R0.2-06T05 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 3318857 |
| Chamfer Angle | 0 |
| Overall Length (Decimal Inch) | 0.1734 |
| Insert Size | 120-36R0.2 |
| Coolant Through | No |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23291601 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1418 |
| Number Of Flutes | 6 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 12762332 |
