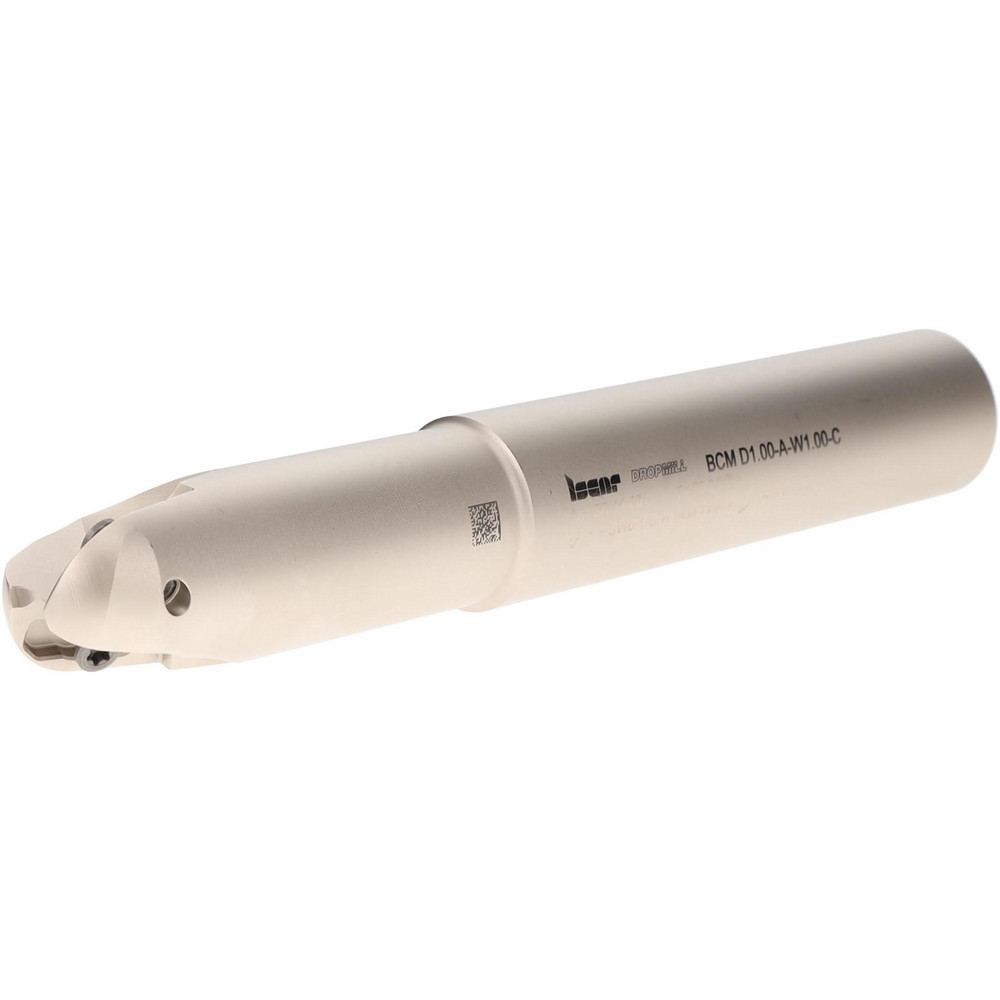

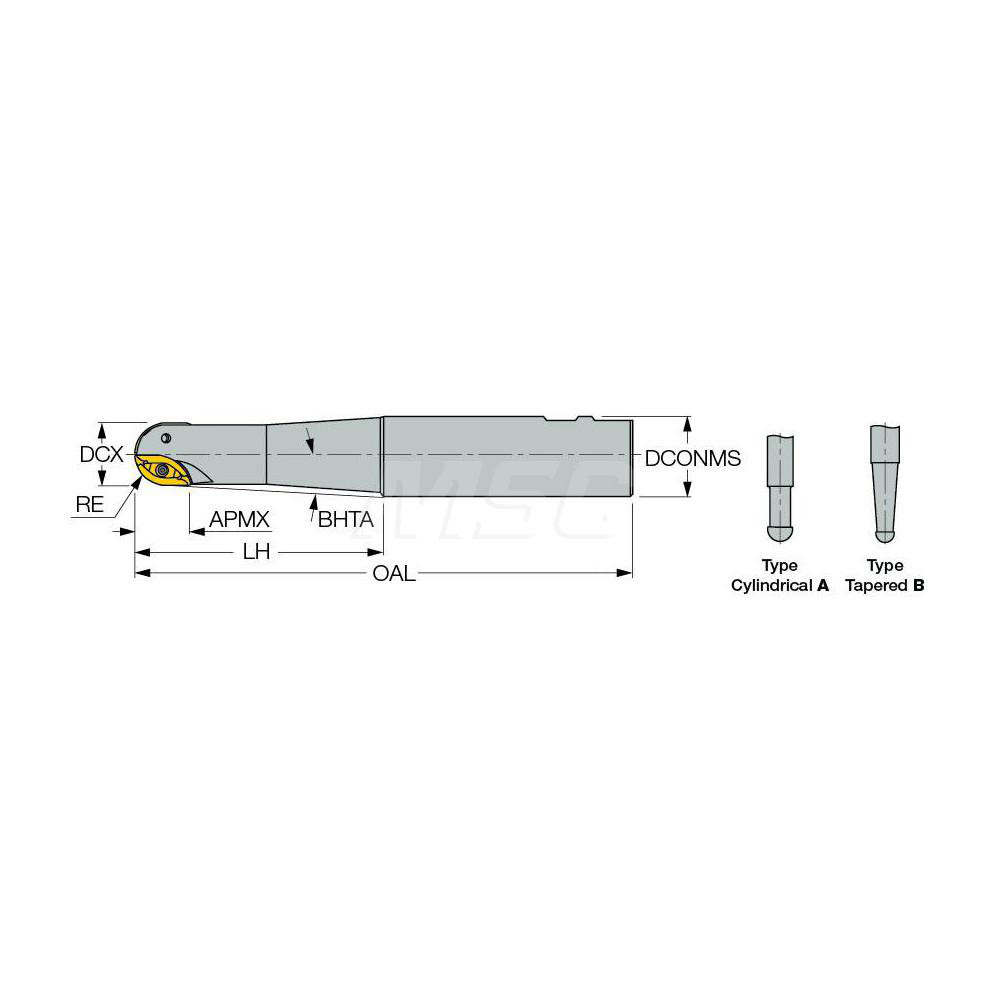

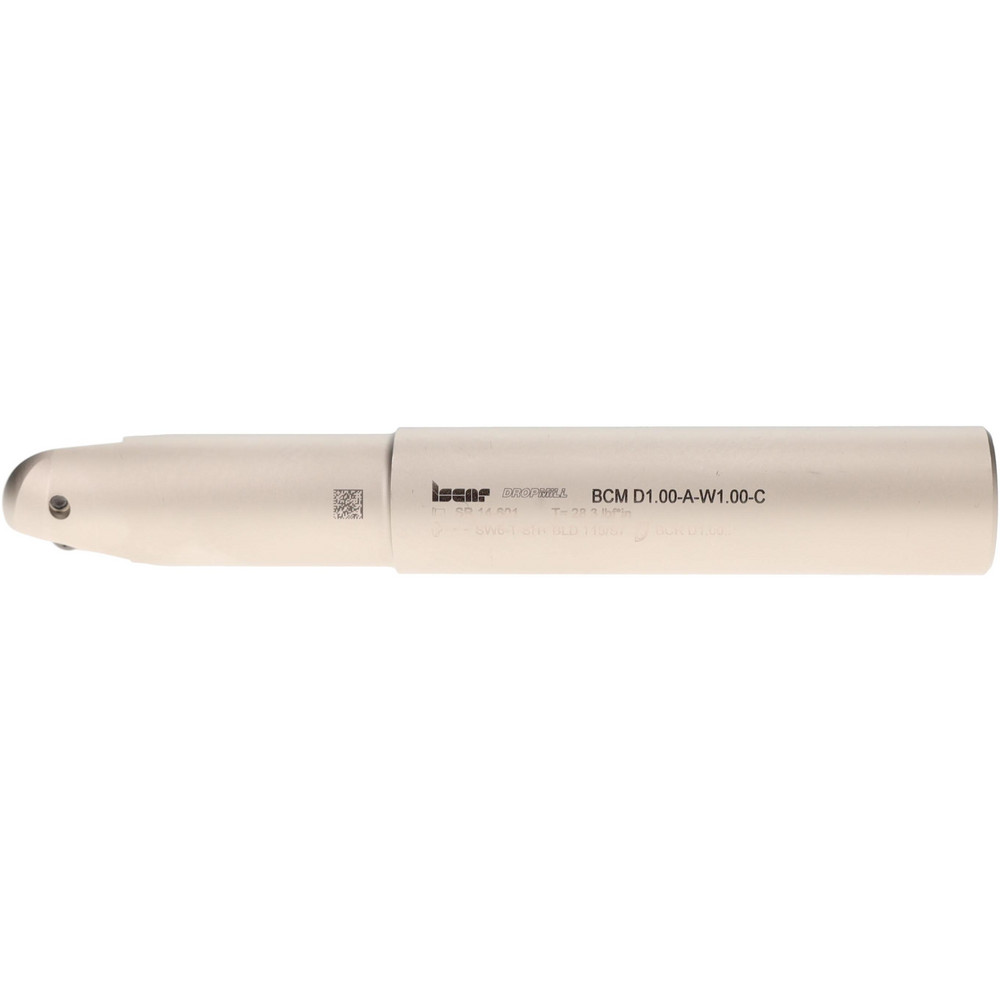

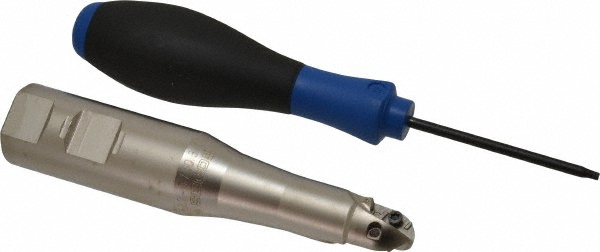

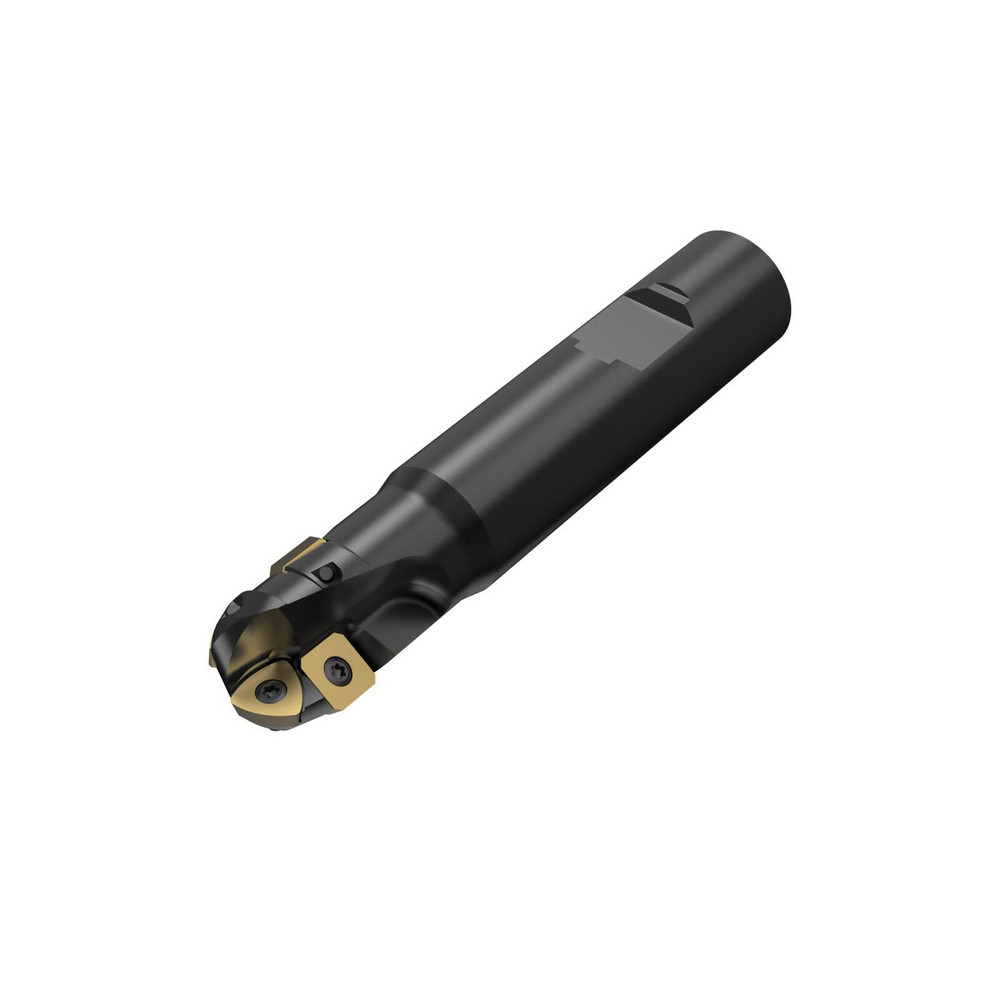

Uses BCR... Inserts, 1" Weldon Flat Shank, Through Coolant

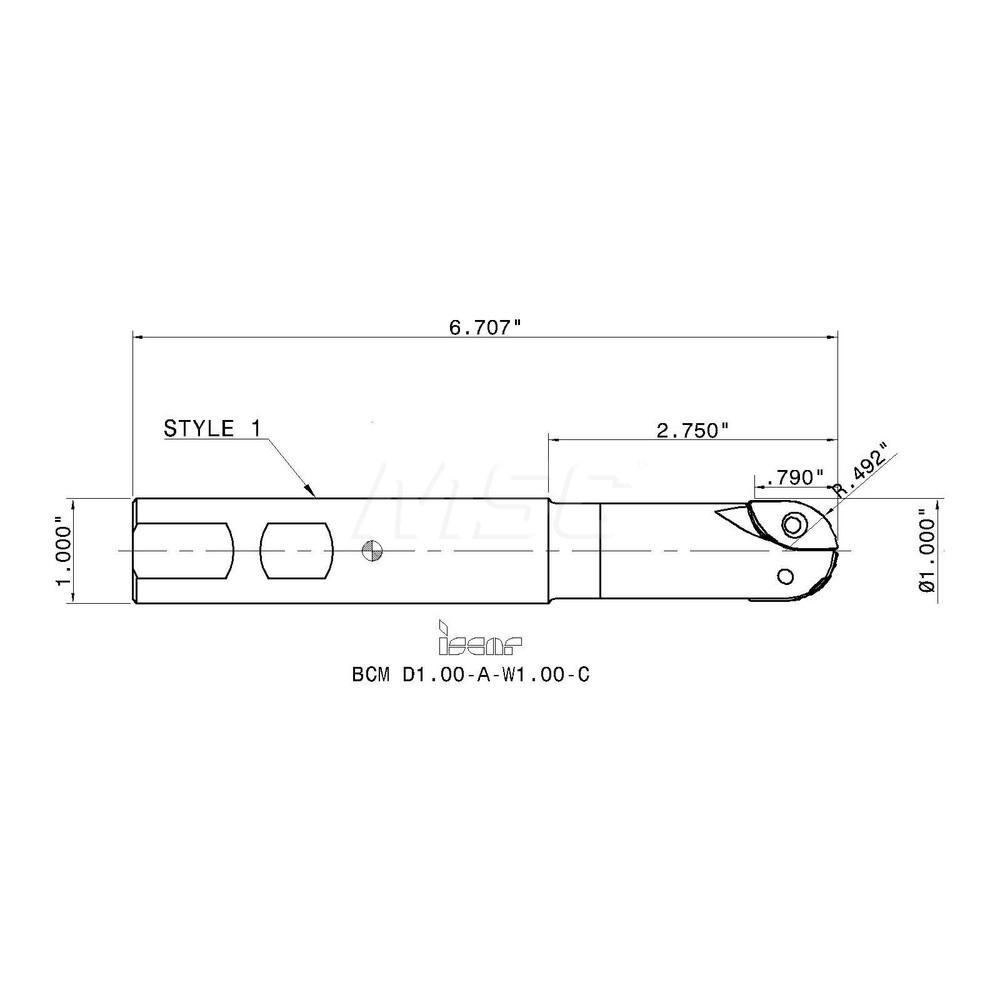

| Cutting Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Inch - 0 Decimals) | 1.0000 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Holding Method | Screw |
| Compatible Insert Style | BCR... |
| Toolholder Style | BCM |
| Tapered Neck | No |
| Overall Length (Decimal Inch) | 6.7000 |
| Series | DropMill |
| Head Length (Decimal Inch) | 2.7500 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Weldon Flat | Yes |
| Cutting Diameter (Inch) | 1 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| MSC Number | MSC# 85880128 |
