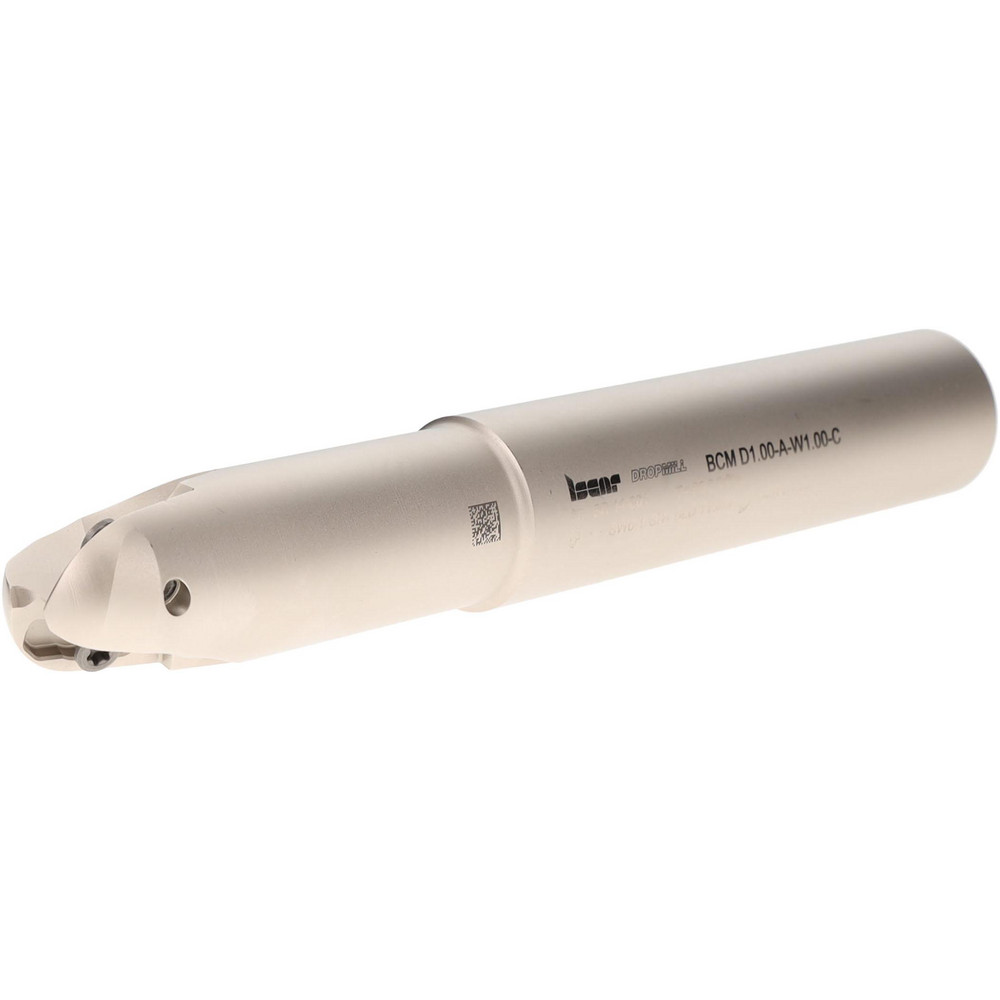

Uses BCR... Inserts, 1-1/4" Straight Shank, Through Coolant
| Cutting Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Inch - 0 Decimals) | 1.2500 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Holding Method | Screw |
| Compatible Insert Style | BCR... |
| Toolholder Style | BCM |
| Tapered Neck | Yes |
| Overall Length (Decimal Inch) | 8.7500 |
| Series | DropMill |
| Head Length (Decimal Inch) | 3.7500 |
| Weldon Flat | No |
| Cutting Diameter (Inch) | 1 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| Number of Ball Nose Inserts | 2 |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| MSC Number | MSC# 09454463 |
