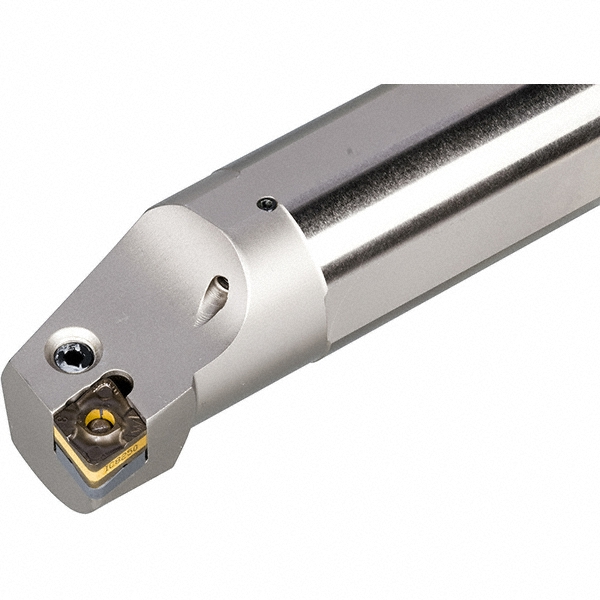

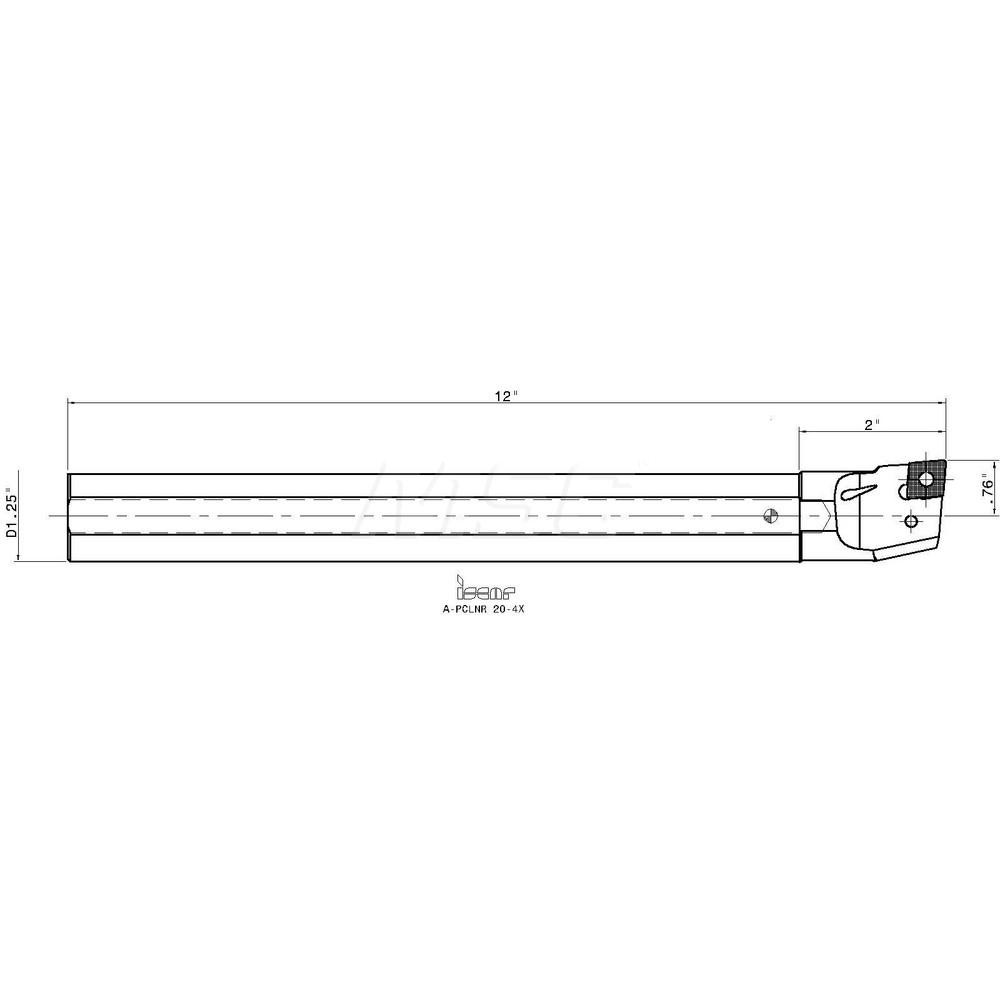

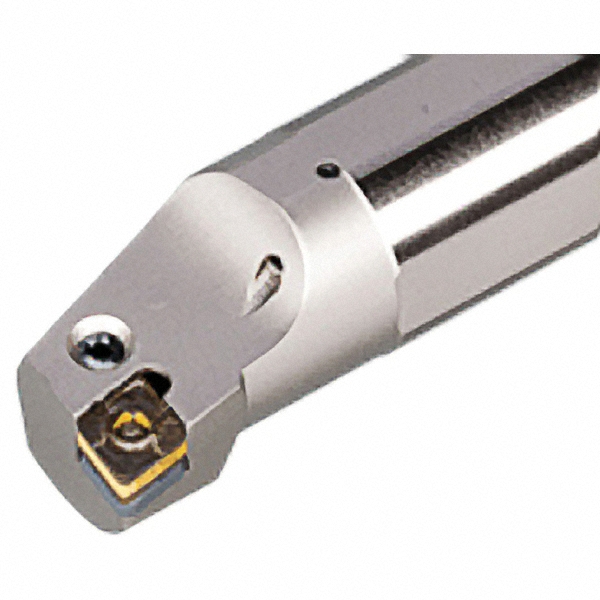

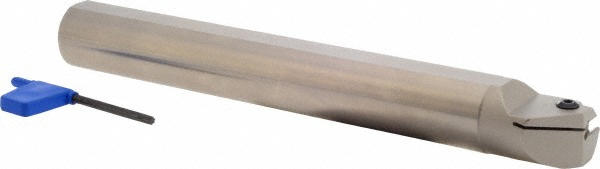

12.0000" OAL, Clamp, Uses CNMX 1207.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 2.1300 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Toolholder Style | A-PCLN |
| Tool Material | Steel |
| Insert Compatibility | CNMX 1207.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 12.0000 |
| Compatible Insert Size Code | 1207 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -13.00 |
| Series | Heliturn LD |
| Insert Inscribed Circle (mm) | 12.70 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.7600 |
| Standards | ISO 13399 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 93049120 |
