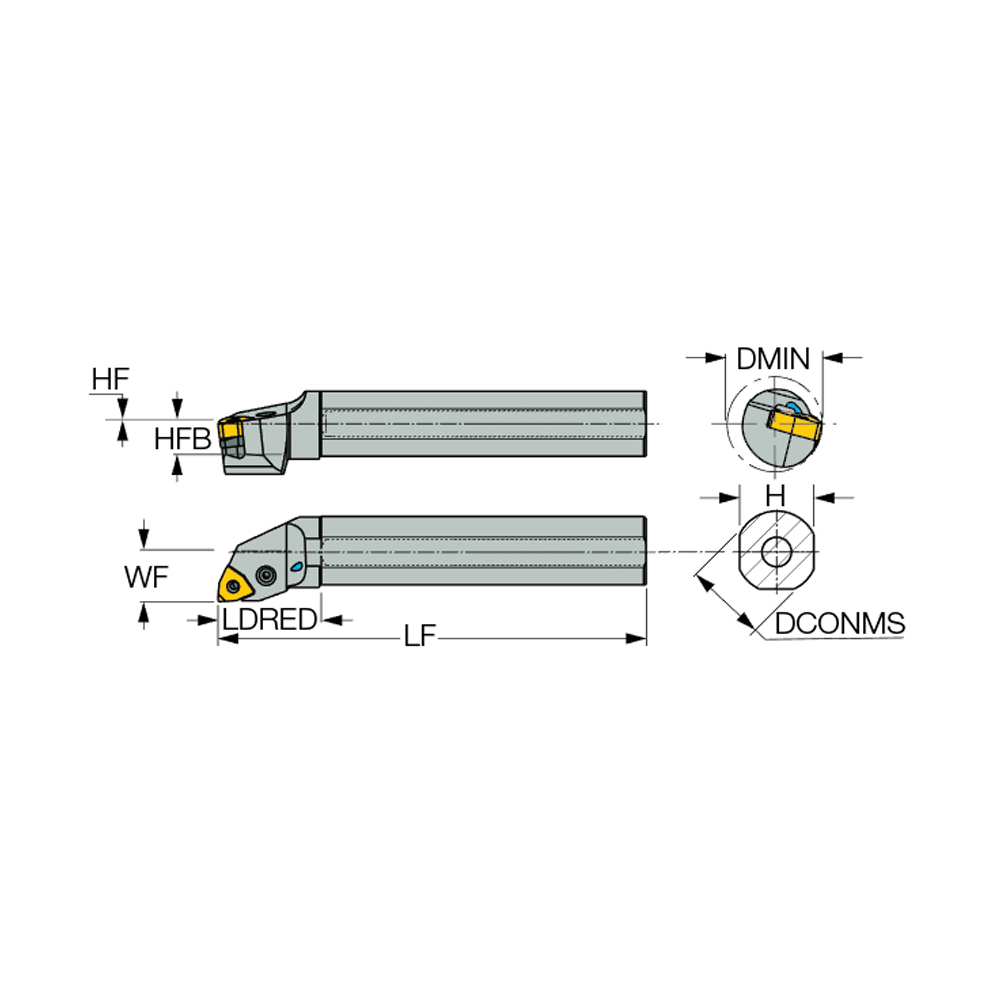

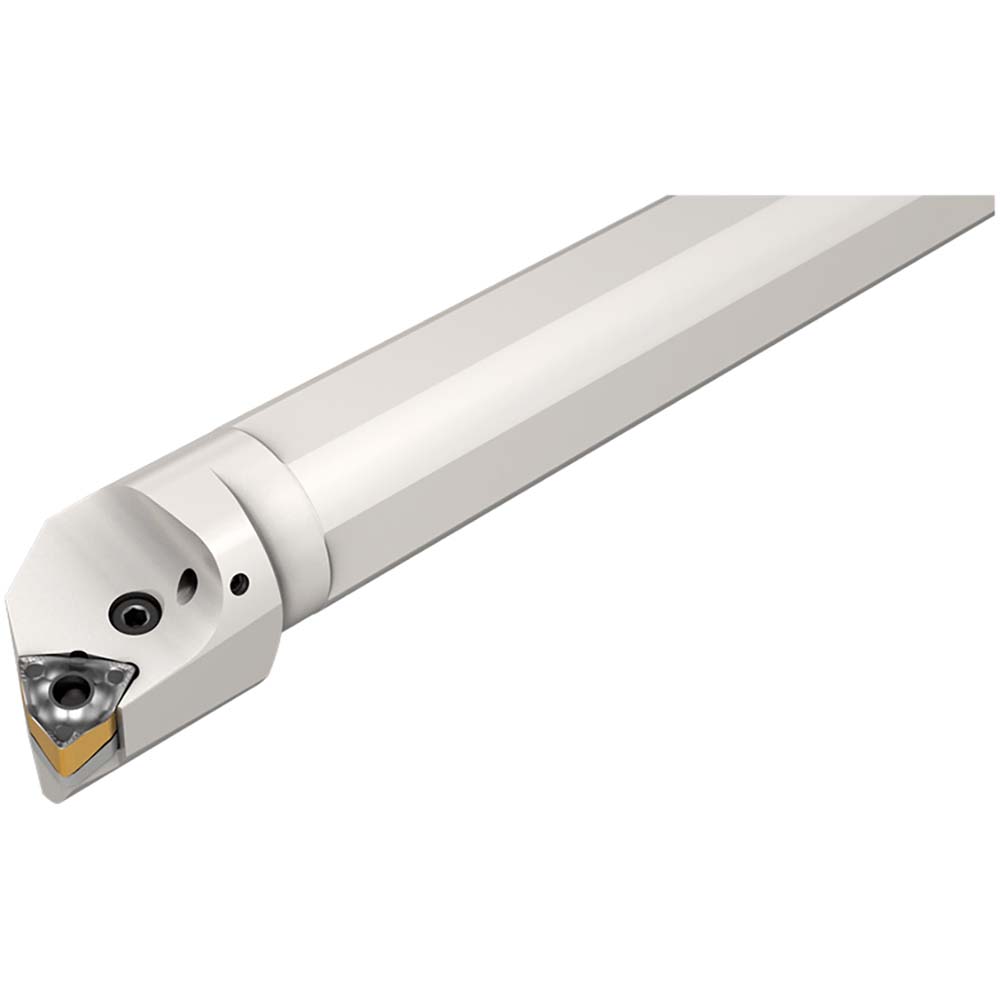

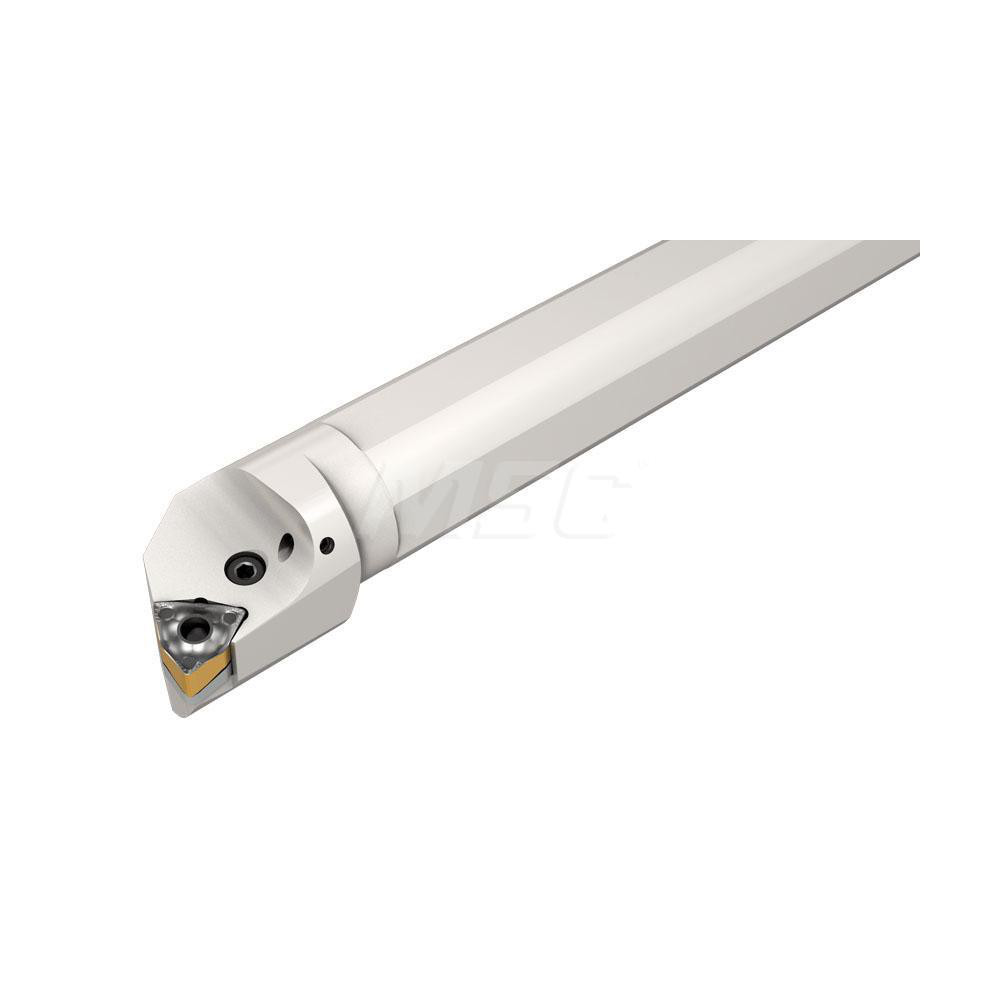

12.0000" OAL, Clamp, Uses WNMX 0807.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.9700 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Maximum Bore Depth (Inch) | 2 |
| Toolholder Style | A-PWLN |
| Tool Material | Steel |

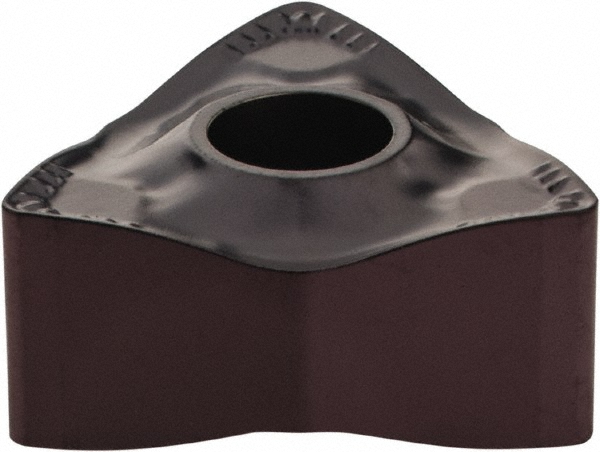

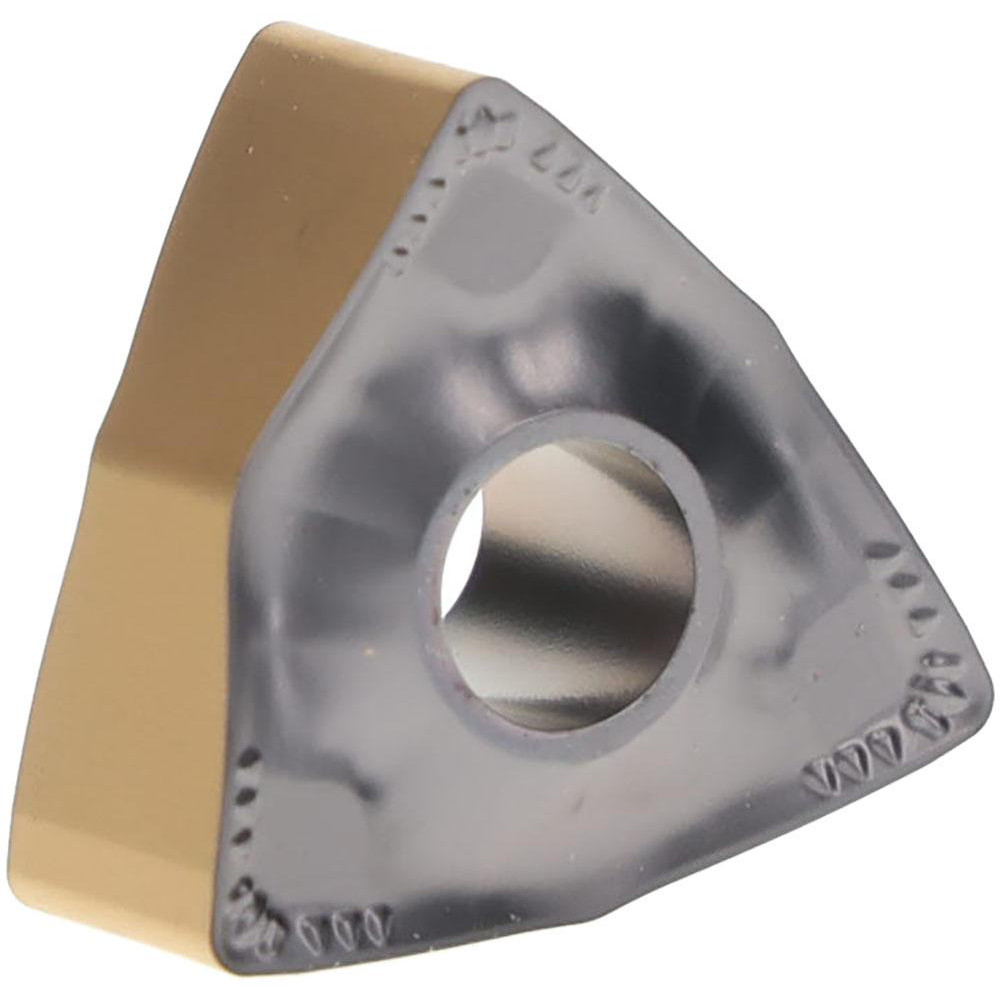

| Insert Compatibility | WNMX 0807.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Compatible Insert Size Code | 0807 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Trigon |
| Rake | Negative |
| Rake Angle | -14.00 |
| Series | Heliturn LD |
| Insert Inscribed Circle (mm) | 12.70 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.6500 |
| Standards | ISO 13399 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91110767 |
