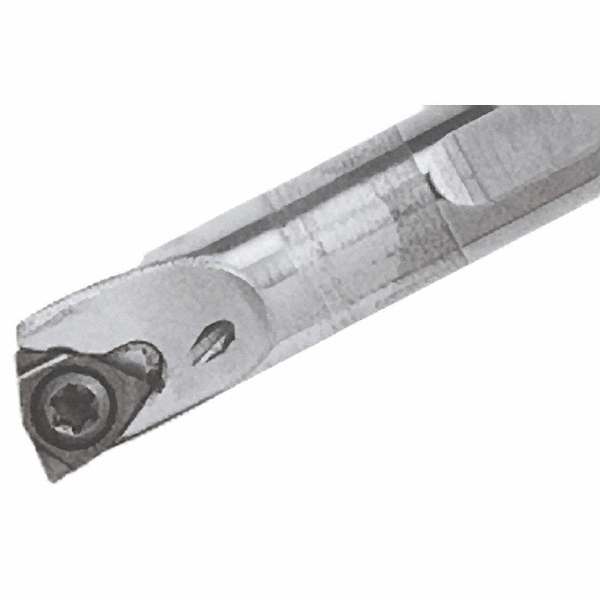

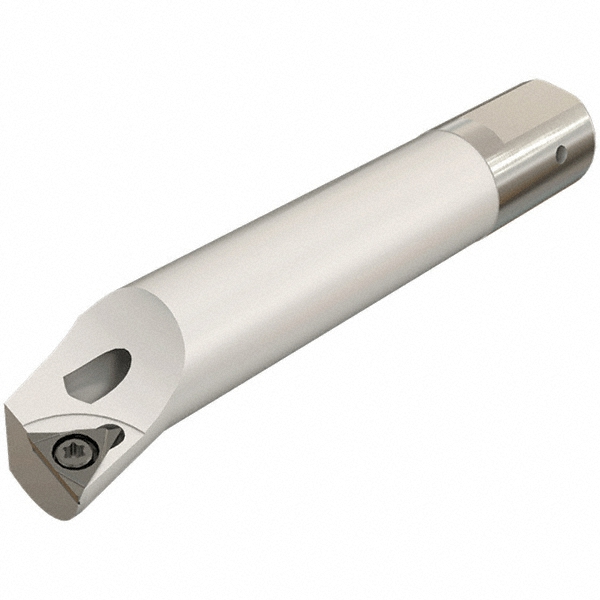

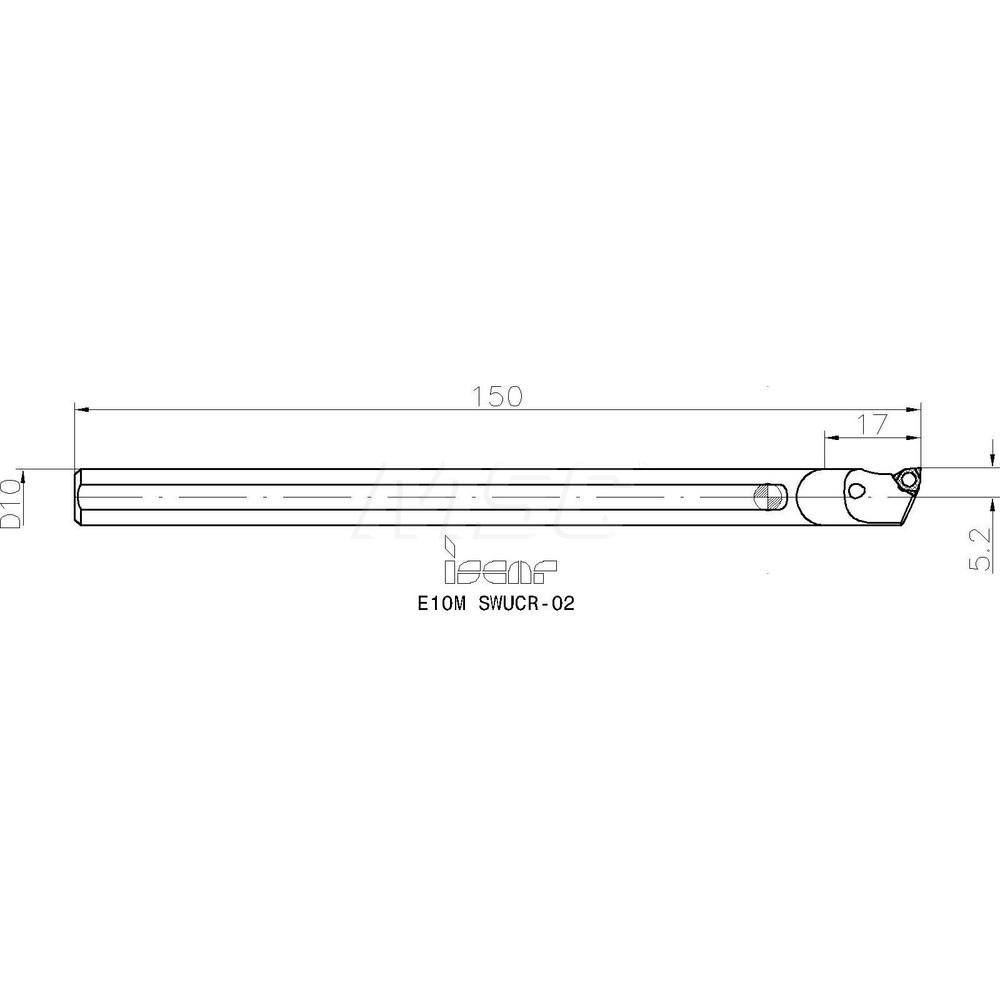

150.00 mm OAL, Screw, Uses WCGT 0201.. Inserts
| Minimum Bore Diameter (mm) | 10.90 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.4291 |
| Maximum Bore Depth (mm) | 17.00 |
| Toolholder Style | E-SWUC |
| Tool Material | Solid Carbide |
| Insert Compatibility | WCGT 0201.. |
| Shank Diameter (mm) | 10.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Compatible Insert Size Code | 0201 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Rake | Negative |
| Rake Angle | -12.00 |
| Lead Angle | 93 |
| Series | Isoturn |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2047 |
| Center to Cutting Edge (mm) | 5.20 |
| Standards | ISO 13399 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 05993621 |
