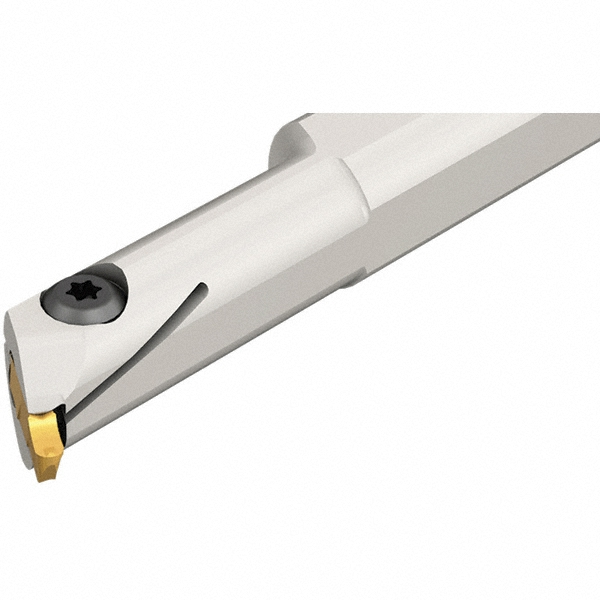

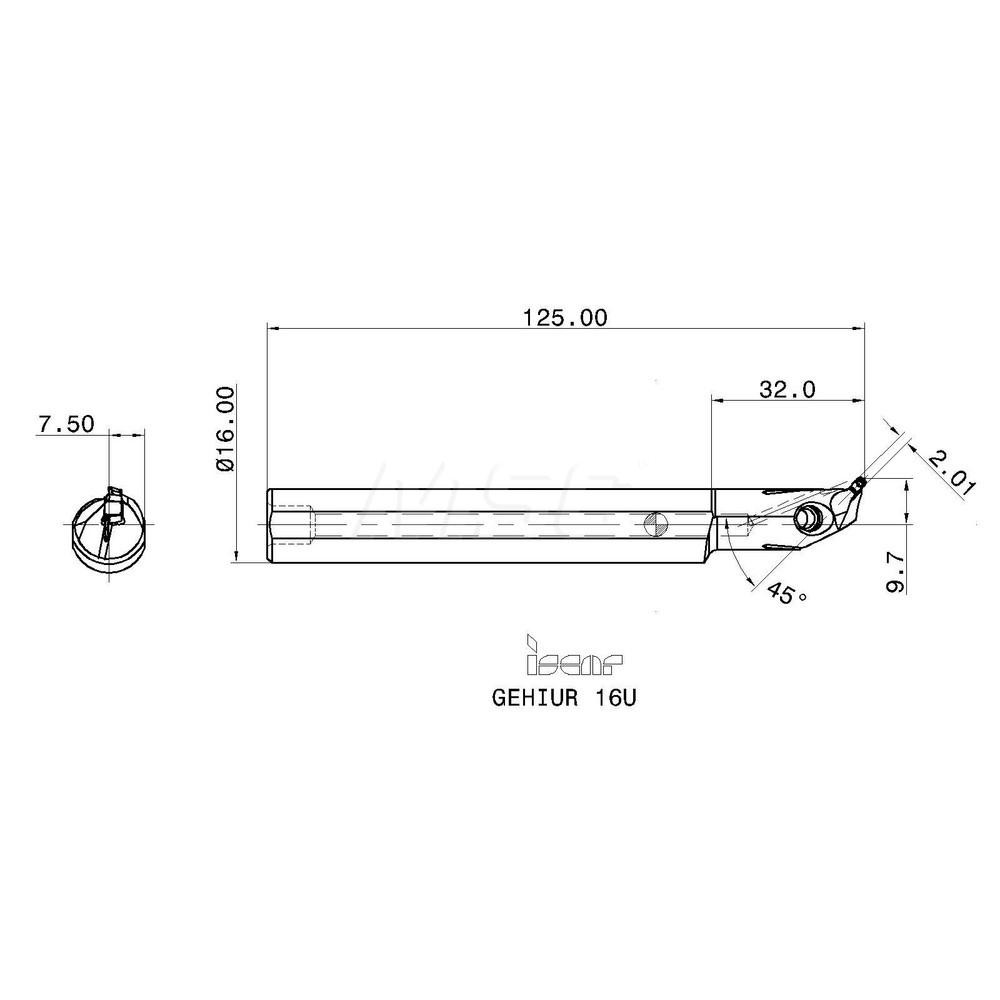

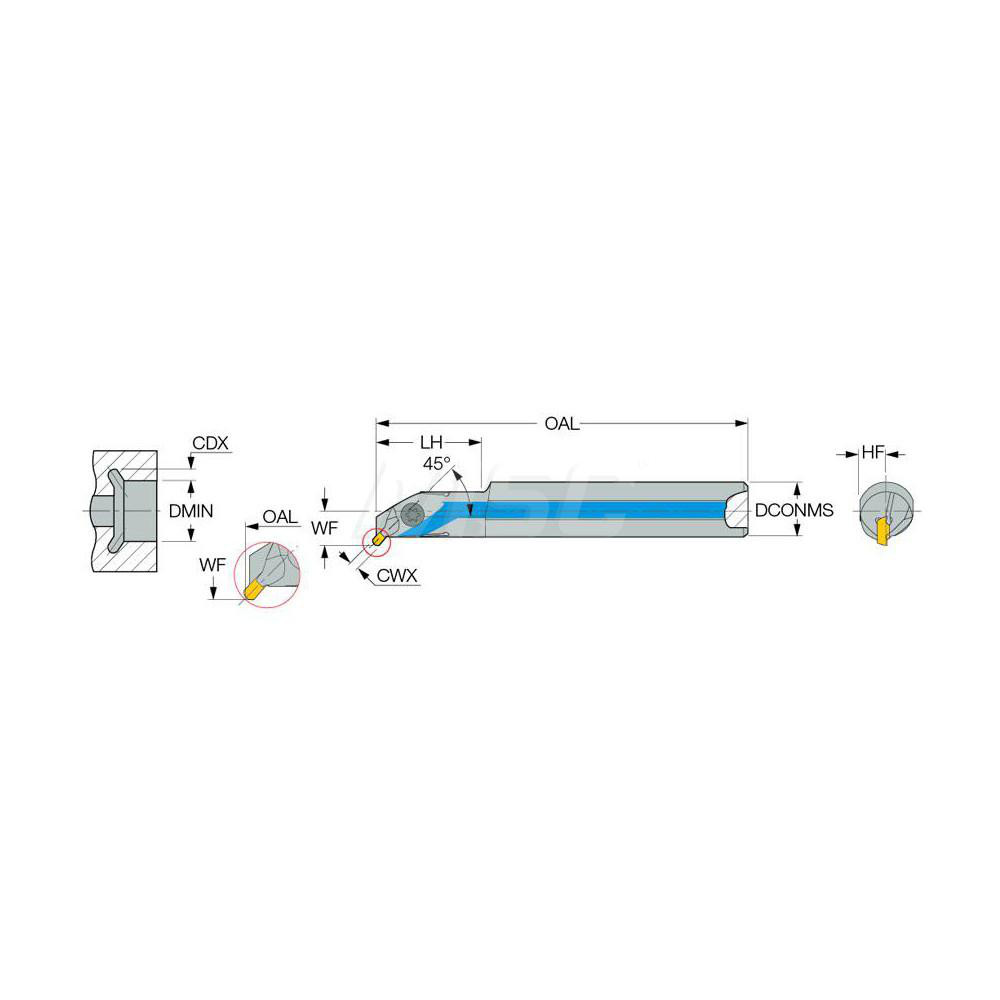

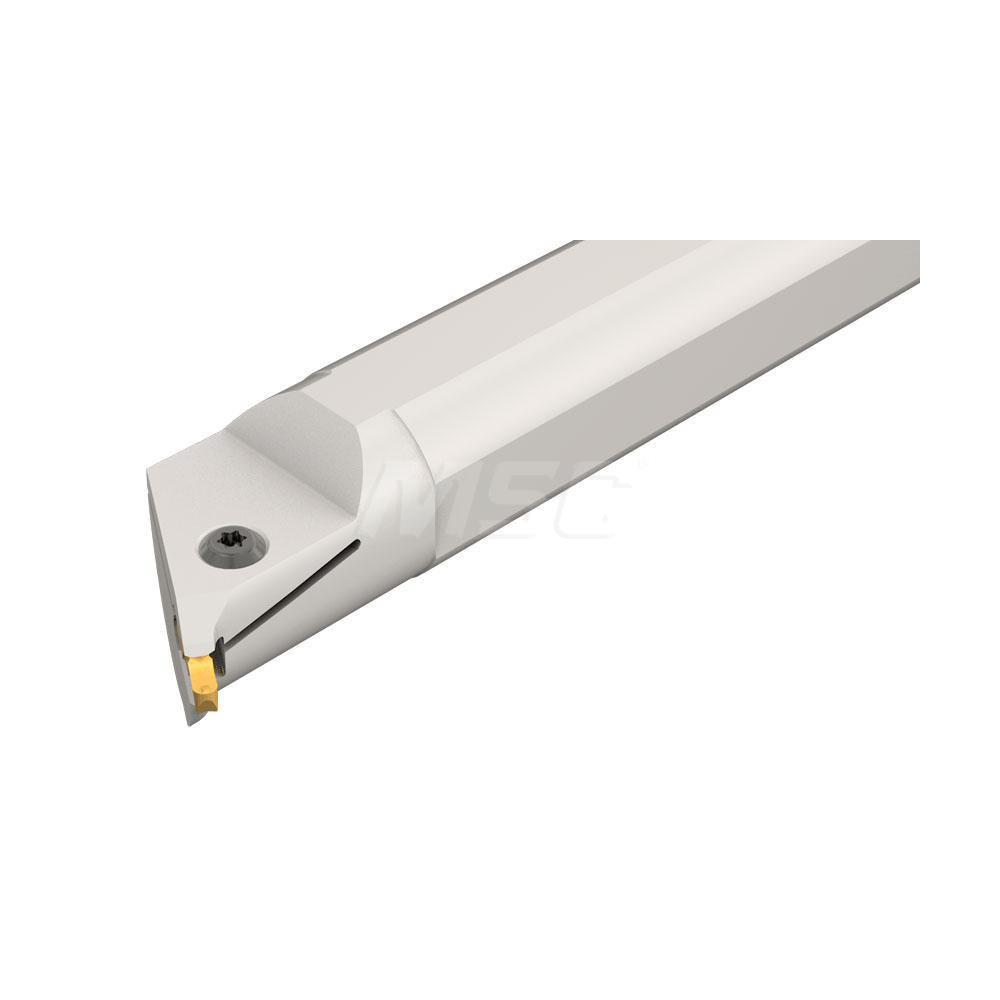

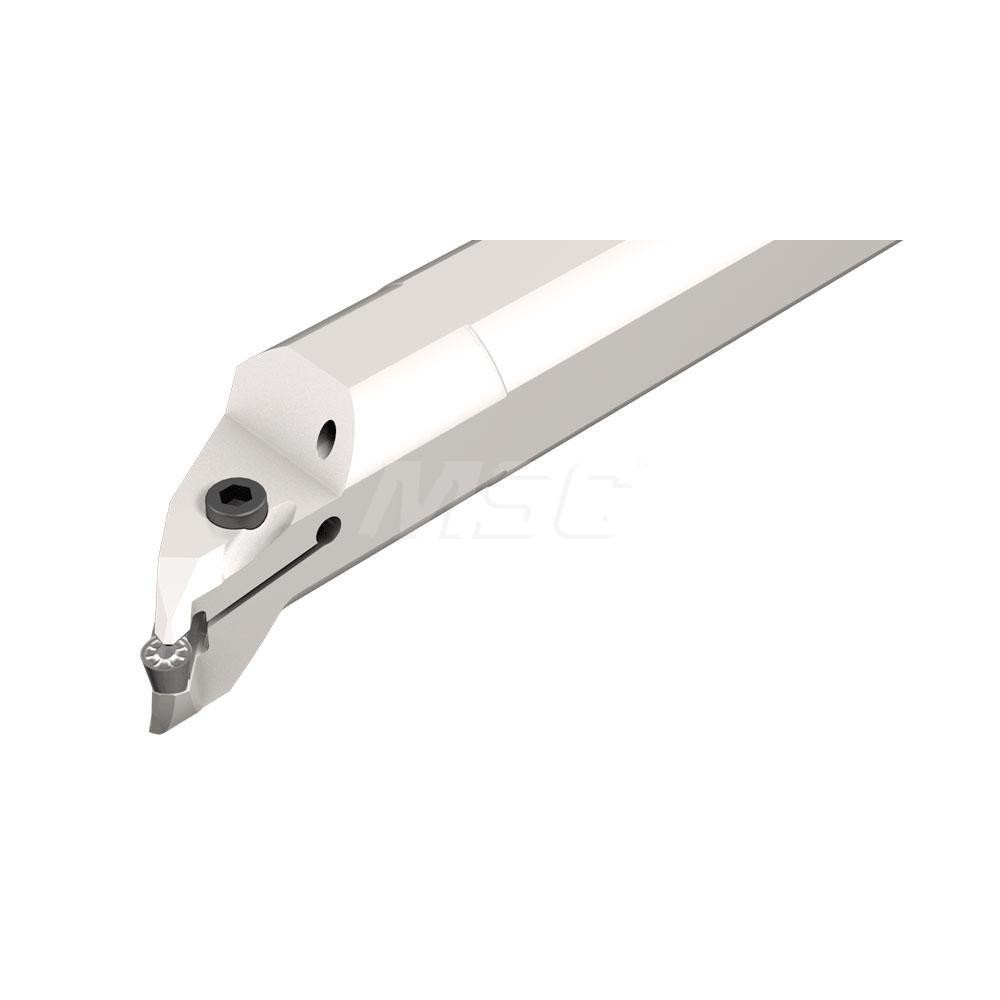

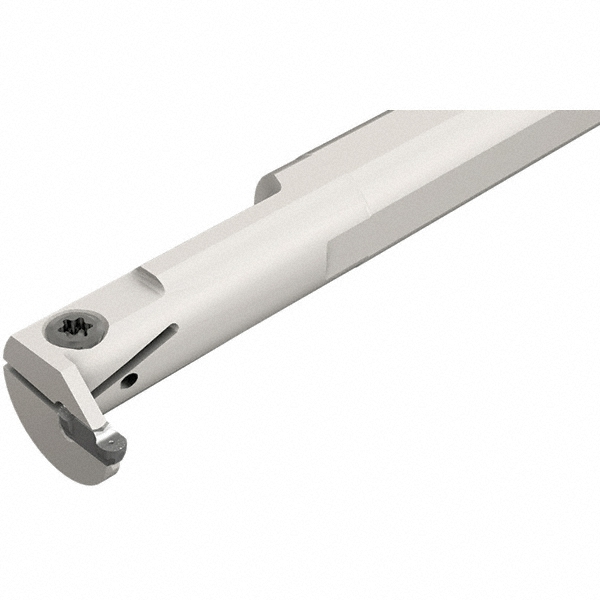

125 mm OAL, Screw, Uses GEPI Inserts
| Minimum Bore Diameter (mm) | 16.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Maximum Bore Depth (Decimal Inch) | 1.2598 |
| Maximum Bore Depth (mm) | 32.00 |
| Toolholder Style | GEHIU |
| Insert Compatibility | GEPI |
| Shank Diameter (mm) | 16.00 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 4.9213 |
| Overall Length (mm) | 125.00 |
| Insert Holding Method | Screw |
| Lead Angle | 45 |
| Series | Cut Grip |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3819 |
| Center to Cutting Edge (mm) | 9.70 |
| Standards | ISO 13399 |
| UNSPSC Code | 23153308 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 07009228 |
